2015 RENAULT MEGANE COUPE headrest

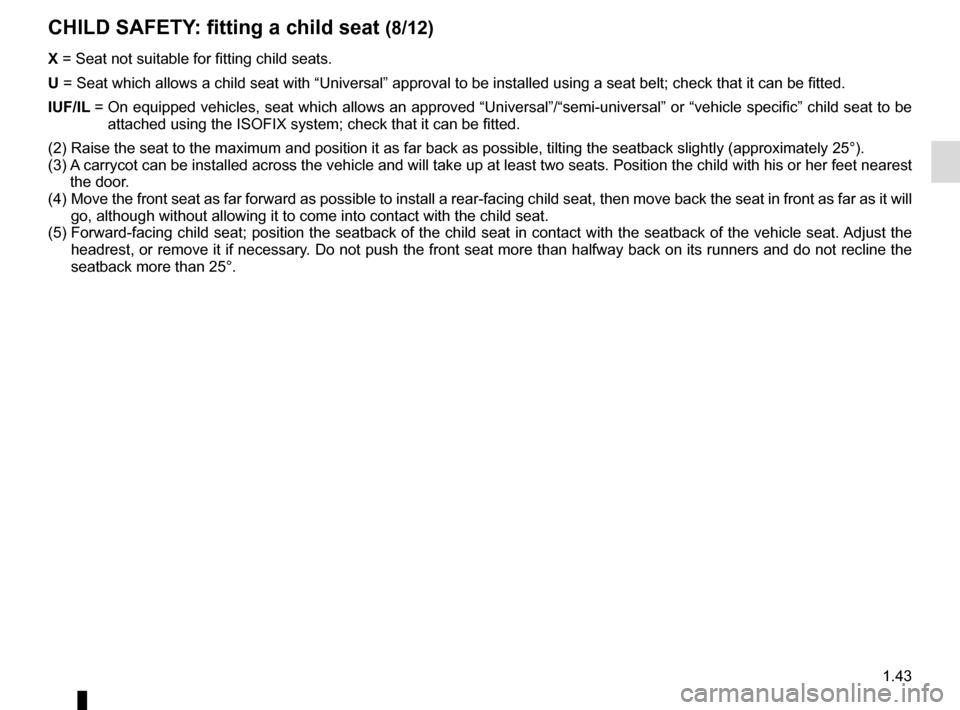

1.43
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“\
semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(2) Raise the seat to the maximum and position it as far back as possible, t\
ilting the seatback slightly (approximately 25°).
(3) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(4) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(5) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and d\
o not recline the
seatback more than 25°.
CHILD SAFETY: fitting a child seat (8/12)

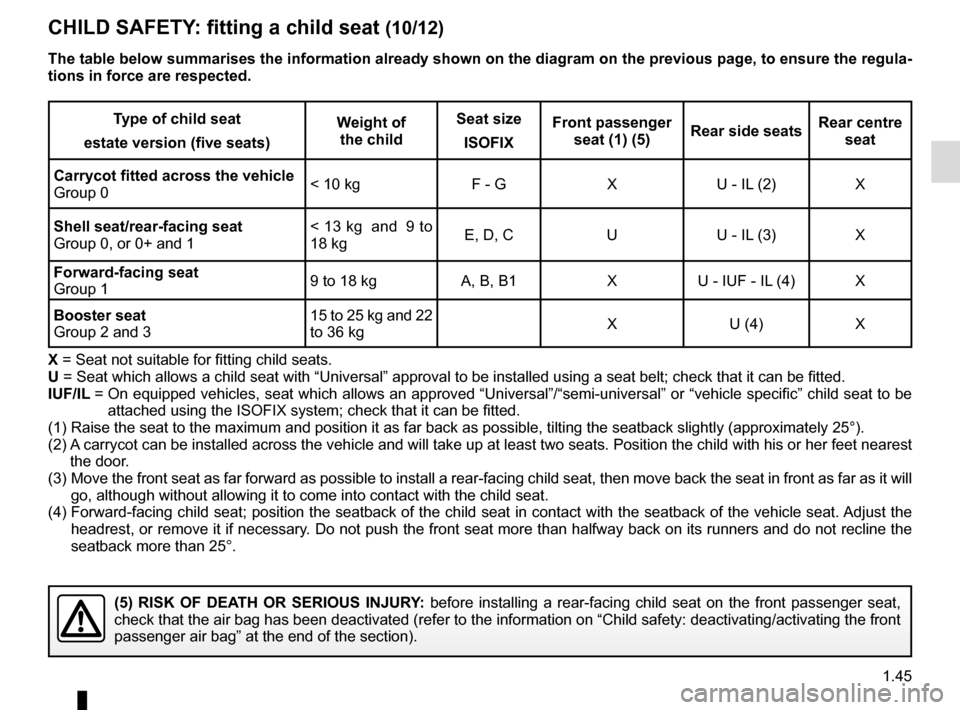

1.45
Type of child seat
estate version (five seats) Weight of
the child Seat size
ISOFIX Front passenger
seat (1) (5) Rear side seats Rear centre
seat
Carrycot fitted across the vehicle
Group 0 < 10 kg
F - GXU - IL (2) X
Shell seat/rear-facing seat
Group 0, or 0+ and 1 < 13 kg and 9 to
18 kg
E, D, C
UU - IL (3) X
Forward-facing seat
Group 1 9 to 18 kg
A, B, B1XU - IUF - IL (4) X
Booster seat
Group 2 and 3 15 to 25 kg and 22
to 36 kg
X
U (4) X
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“\
semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Raise the seat to the maximum and position it as far back as possible, t\
ilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(3) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and d\
o not recline the
seatback more than 25°.
CHILD SAFETY: fitting a child seat (10/12)
(5) RISK OF DEATH OR SERIOUS INJURY: before installing a rear-facing child seat on the front passenger seat,\

check that the air bag has been deactivated (refer to the information o\
n “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.

1.47
Type of child seat
estate version (four seats) Weight of
the child Seat size
ISOFIX Front passenger
seat (1) (5) Rear side seats
Carrycot fitted across the vehicle
Group 0 < 10 kg
F - GXU - IL (2)
Shell seat/rear-facing seat
Group 0, or 0+ and 1 < 13 kg and 9 to
18 kg
E, D, C
UU - IL (3)
Forward-facing seat
Group 1 9 to 18 kg
A, B, B1 XU - IUF - IL (4)
Booster seat
Group 2 and 3 15 to 25 kg and 22
to 36 kg
X
U (4)
X = Seat not suitable for fitting child seats.
U = Seat which allows a child seat with “Universal” approval to be ins\
talled using a seat belt; check that it can be fitted. IUF/IL = On equipped vehicles, seat which allows an approved “Universal”/“\
semi-universal” or “vehicle specific” child seat to be
attached using the ISOFIX system; check that it can be fitted.
(1) Raise the seat to the maximum and position it as far back as possible, t\
ilting the seatback slightly (approximately 25°).
(2) A carrycot can be installed across the vehicle and will take up at least \
two seats. Position the child with his or her feet nea rest
the door.
(3) Move the front seat as far forward as possible to install a rear-facing \
child seat, then move back the seat in front as far as it will
go, although without allowing it to come into contact with the child sea\
t.
(4) Forward-facing child seat; position the seatback of the child seat in co\
ntact with the seatback of the vehicle seat. Adjust the
headrest, or remove it if necessary. Do not push the front seat more than halfway back on its runners and d\
o not recline the
seatback more than 25°.
The table below summarises the information already shown on the diagram \
on the previous page, to ensure the regula-
tions in force are respected.
CHILD SAFETY: fitting a child seat (12/12)
(5) RISK OF DEATH OR SERIOUS INJURY: before installing a rear-facing child seat on the front passenger seat,\

check that the air bag has been deactivated (refer to the information o\
n “Child safety: deactivating/activating the front
passenger air bag” at the end of the section).

3.23
Press button 1 and lower the
seatback(s) A.
To fold down the seatback
Ensure that the front seats are far
enough forward.
Lower the rear headrests (refer to the
information on the “Rear headrests” in
Section 1).
Place the seat belts 2 in their guides
3.Sport tourer versions
Depending on the vehicle, seatback A
can be folded down on its own to allow
long or bulky objects to be transported.
REAR BENCH SEAT functions (1/2)
1
A
2
3
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
Before moving the seat-
back, put seat belt 2 in belt
guide 3 to avoid damaging
it.

3.24
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.
The seat and the seatback may be
folded away to allow bulky objects to be
carried.
To fold away the seat base
Tilt seat base B against the front seats.
To fold down the seatback
After folding the seat base down,
remove the rear headrests (refer to the
section on “rear headrests”) then press
button 1 and lower the seatback(s) C.
In all situations, remove the rear
headrests (refer to the informa-
tion on the “Rear headrests” in
Section 1).
For safety reasons, carry
out any adjustments when
the vehicle is not being
driven.
1
CB
REAR BENCH SEAT functions (2/2)
When moving the rear
bench seat, ensure that
nothing obstructs the an-
chorage points (part of the
body, a pet, gravel, cloth, toys, etc.).

3.31
TRANSPORTING OBJECTS IN THE BOOT
Always position the objects transported
so that the largest surface is against:
– The rear bench seatback for normal loads (example A).
– The front seatbacks with the rear
seatbacks folded down, the mobile
floor in the flat-floor position (exam-
ple B).
If you have to place objects on the folded
seatback, it is necessary that you lower
the headrests before folding the seat-
back so that it can be folded as flat as
possible against the seat.
B
A
Always position the heavi-
est items directly on the
floor. Use the lashing
points 1 on the boot floor, if
these are fitted to the vehicle. The
luggage should be loaded in such a
way that no items will be thrown for-
ward and strike the occupants if the
driver has to brake suddenly. Fasten
the rear seat belts, even if the seats
are not occupied.
1

7.2
ALPHABETICAL INDEX (2/5)
driving ........ 2.2 → 2.5, 2.9 → 2.17, 2.20 → 2.27, 2.30 → 2.40,
2.43 → 2.45
driving position settings ............................................................1.2\
1 → 1.23
driving recommendations ......................................2.15 → 2.17
E
electric beam height adjustment ........................................ 1.81
electric windows ....................................................3.12 → 3.14
electronic parking brake ........................................2.12 → 2.14
electronic stability control: ESC .............................2.24 → 2.27
emergency brake assist.........................................2.24 → 2.27
emergency braking ................................................2.24 → 2.27
emergency key ........................................................... 1.2 – 1.3
emergency spare wheel ...................................................... 5.2
engine coolant ..................................................................... 4.9
engine oil ..........................................................1.58, 4.4 → 4.8
engine oil capacity .....................................................4.6 → 4.8
engine oil level ...........................................................4.4 → 4.8
engine standby ..........................................................2.6 → 2.8
engine start/stop button .............................................2.3 → 2.5
environment ............................................................\
........... 2.19
ESC: electronic stability control .............................2.24 → 2.27
external temperature ......................................................... 1.74
F
faults operating faults ................................................5.36 → 5.41
filter air filter ........................................................................\
. 4.11
diesel filter .................................................................... 4.11
oil filter ........................................................ 4.6 → 4.8, 4.11
passenger compartment filter ...................................... 4.11
fitting a radio ...................................................................... 5.31
fittings ...............................................................\
.....3.18 → 3.21
fog lights ................................................................5.15 → 5.17front passenger air bag deactivation ................................. 1.48
front seat driver’s position memory .............................................. 1.19
front seat adjustment .............................................. 1.16 – 1.17
front seats adjustment ..........................1.14, 1.16 – 1.17, 1.21 → 1.23
with electric controls .................................................... 1.18
with manual controls .................................................... 1.16
fuel advice on fuel economy ...................................2.15 → 2.17
capacity ...............................................................\
......... 1.85
consumption .......................1.59, 1.64 – 1.65, 2.15 → 2.17
filling ........................................................1.59, 1.85 → 1.87
grade ................................................................1.\
85 → 1.87
fuel consumption ......................1.59, 1.64 – 1.65, 2.15 → 2.17
fuel economy .........................................................2.15 → 2.17
fuel filler cap ..........................................................1.85 → 1.87
fuel level ........................................................................\
.... 1.60
fuel tank capacity ............................................................1.8\
5 → 1.87
fuel tank capacity ...................................................1.85 → 1.87
fuses

....................................................................... 5.26 – 5.27
G
gear lever..............................................................\
............. 2.11
glove box ........................................................................\
... 3.20
H
handbrake...............................................................\
.. 1.56, 2.11
hands-free telephone integrated control ............................ 3.36
hazard warning lights signal ................................... 1.76 – 1.77
headlight beam adjustment ............................................... 1.81
headlight flashers .............................................................. 1.76
headlight washer ............................................................... 1.83
headrest................................................................\
.. 1.14 – 1.15
heating and air conditioning system .................................. 3.11
