2015 RENAULT ESPACE headrest

1.57
X = Seat not suitable for fitting child seats ISOFIX.
IUF/IL = On equipped vehicles, seat which allows an approved “Universal/semi-u\
niversal” or “vehicle specific” child seat to be at-
tached using the ISOFIX system; check that it can be fitted.
i-U = Suitable for the i-Size restraint devices in the “universal” forwa\
rd-facing and backward-facing category.
(1) If necessary, position the vehicle seat as far back as possible. Move the front seat\
as far forward as possible to install a re ar-
facing child seat, then move back the seat in front as far as it will go\
, although without allowing it to come into contact with the
child seat.
(2) In all situations, remove the rear headrest of the seat on which the chi\
ld seat is positioned. This must be done before fitting the
child seat. Please refer to the information on the “Rear headrests”\
in Section 3. Move the seat in front of the child forwards,
move the seatback forward to avoid contact between the seat and the chil\
d’s legs.
(3) Push the seat(s) in front of the child in a third row seat as far forw\
ard as possible.
CHILD SEATS: attachment using the isofix system (5/6)

3.1
Section 3: Your comfort
multi-Sense . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.2
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.4
Automatic climate control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . 3.7
Additional heating and air conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . 3.12
Air conditioning: information and advice on use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . 3.14
Electric windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.15
Electric sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.17
Fixed glass roof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.19
Interior lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.20
Sun visor/blinds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.22
Passenger compartment storage/fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . 3.23
Accessories socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Ashtray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Cigarette lighter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.28
Headrests - Rear seats . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.29
Luggage compartment. . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.35
Luggage cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.36
Luggage compartment storage space and fittings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 3.37
Transporting objects in the luggage compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . 3.38
Transporting objects: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . 3.39 equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . 3.39
Luggage net. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.40
Roof bars . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.42
Multimedia equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . 3.43

3.29
Centre seat headrest 2
storage position
Press tab 1 and lower the headrest
completely.
When the headrest is set at the
lowest position, this is for storage
only. It should not be in this position
when a seat is occupied.
REAR HEADRESTS
Position for use
Lift the headrest to maximum height,
then lower it until it locks.
To remove the headrest
Press the tab(s) 1 , then remove the
headrest.
To refit the headrest
Insert the rods into the holes, press
tab 1 and lower the headrest.
2
The headrest is a safety
component; check that it is
fitted and in the correct po-
sition. The top of the head-
rest should be as close as possible
to the top of the head.
1

3.34

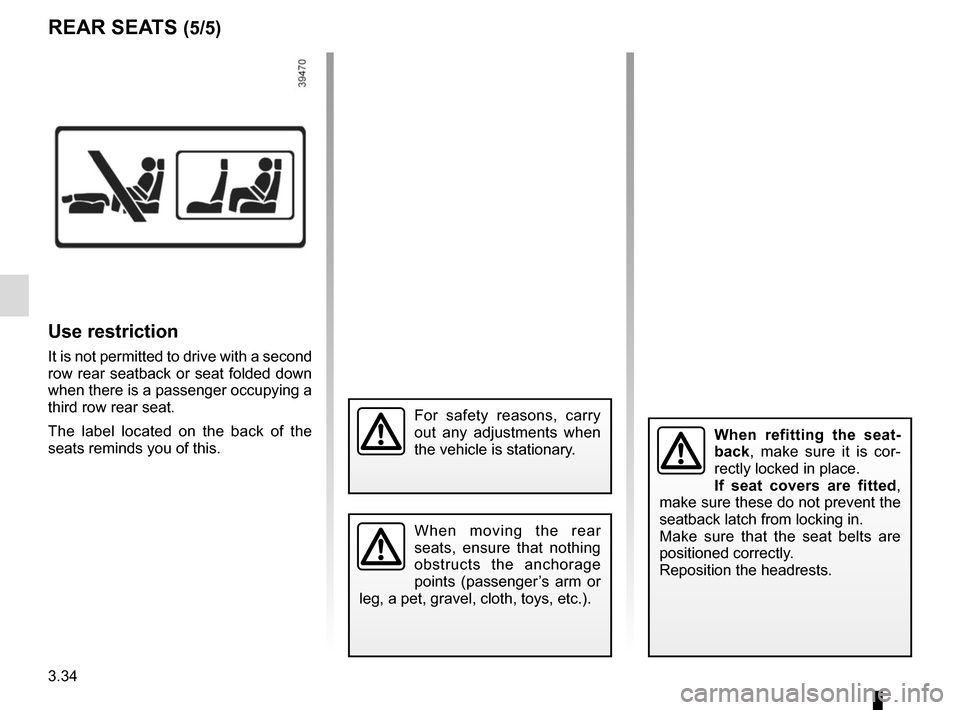

Use restriction
It is not permitted to drive with a second
row rear seatback or seat folded down
when there is a passenger occupying a
third row rear seat.
The label located on the back of the
seats reminds you of this.
REAR SEATS (5/5)
For safety reasons, carry
out any adjustments when
the vehicle is stationary.
When moving the rear
seats, ensure that nothing
obstructs the anchorage
points (passenger’s arm or
leg, a pet, gravel, cloth, toys, etc.).
When refitting the seat-
back, make sure it is cor-
rectly locked in place.
If seat covers are fitted ,
make sure these do not prevent the
seatback latch from locking in.
Make sure that the seat belts are
positioned correctly.
Reposition the headrests.

3.38
Always place the objects to be trans-
ported so that their largest side rests
against the back of the rear seat for
normal loads (e.g.: A), or against the
back of the front seats B when the rear
seatbacks are folded down.
If you have to place objects on the
folded seat back, it is vital that you
remove the headrests before folding
the seat back so that it can be folded as
flat as possible against the seat.
TRANSPORTING OBJECTS IN THE BOOT
A
Always position the heavi-
est items directly on the
floor. Use the lashing points
on the floor of the luggage
compartment, if these are fitted to
the vehicle. The luggage should be
loaded in such a way that no items
will be thrown forward and strike the
occupants if the driver has to brake
suddenly. Fasten the rear seat belts,
even if the seats are not occupied.
B
Anchorage points
Hooks 1 located on each corner of the
boot allow the load to be secured.
Always position objects being trans-
ported so that the heaviest items
are resting against the back of the
rear seat.
1

7.3
ALPHABETICAL INDEX (3/5)
head-up display .....................................................1.70 → 1.73
headlight flashers .............................................................. 1.90
headlight washer ............................................................. 1.100
headrest................................................................\
............. 3.29
heating and air conditioning system ....................... 3.13 – 3.14
heating system ........................................................ 3.7 → 3.11
Hill Start Assist..............................................2.26 → 2.37, 2.35
horn ...................................................................\
................ 1.90
horn: flash ..................................................................\
........... 1.90
sounding the horn ........................................................ 1.90
hubcap tool ................................................................. 5.8 – 5.9
I
indicators .............................................................\
..... 1.90, 5.15
indicators: direction indicators .............................................. 1.90, 5.16
exterior temperature indicator ...................................... 1.85
instrument panel ..............................................1.64 → 1.75
instrument panel ...........................................1.64 → 1.83, 1.91
instrument panel messages...................................1.76 → 1.83
interior trim maintenance ..................................................... 4.16 – 4.17
Isofix .................................................................\
.....1.53 → 1.58
J
jack ........................................................................\
..... 5.8 – 5.9
L
lane departure warning ..........................................2.38 → 2.40
levels: brake fluid ...................................................................... 4.8
coolant ................................................................\
........... 4.7
engine oil ....................................................................... 4.4
windscreen washer reservoir ......................................... 4.9 lifting the vehicle
changing a wheel .............................................. 5.10 – 5.11
lighting: exterior ......................................................1.3, 1.91 → 1.95
instrument panel .......................................................... 1.91
interior ........................................... 3.20 – 3.21, 5.19 – 5.20
lights changing bulbs ............................................................. 5.15
front ..................................................................\
............ 5.15
lights: brake lights .................................................................. 5.16
dipped beam headlights ...................................... 1.91, 5.15
direction indicators ................................... 1.90, 5.15 – 5.16
fog lights ............................................................. 1.95, 5.16
hazard warning ............................................................ 1.90
main beam headlights .............................. 1.92 – 1.93, 5.15
number plate lights ...................................................... 5.18
reversing lights ............................................................. 5.16
side lights ............................................................ 1.91, 5.16
locking the doors ................................. 1.2 → 1.7, 1.11 → 1.14
luggage compartment cover .............................................. 3.36
luggage retaining net .............................................. 3.40 – 3.41
M
maintenance ............................................................\
.......... 2.21
maintenance: bodywork .......................................................... 4.14 – 4.15
interior trim ........................................................ 4.16 – 4.17
mechanical .........................................4.2 – 4.3, 6.8 → 6.13
map reading lights .................................................. 3.20 – 3.21
menu for customising the vehicle settings ......................... 1.84
methods of restraint in addition to the seat belts ...1.36 → 1.38
mulitfunction display ..............................................1.70 → 1.73
multifunction screen...............................................1.70 \
→ 1.73
multimedia (equipment) .......................................... 3.43 – 3.44
multimedia equipment ............................................ 3.43 – 3.44
