2015 Ram 1500 service indicator

if the driver’s seat belt remains unbuckled, the seat belt
reminder light will flash or remain on continuously. Refer
to “Occupant Restraints” in “Things To Know Before
Starting Your Vehicle” for further information.
9. Air Bag Warning LightThis light will turn on for four to eight seconds
as a bulb check when the ignition switch is first
turned to ON/RUN. If the light is either not on
during starting, stays on, or turns on while
driving, have the system inspected at an authorized
dealer as soon as possible. Refer to “Occupant Restraints”
in “Things To Know Before Starting Your Vehicle” for
further information.
10. Engine Oil Pressure
The pointer should always indicate some oil pressure
when the engine is running. A continuous high or low
reading under normal driving conditions may indicate a lubrication system malfunction. Immediate service
should be obtained from an authorized dealer.
If the gauge pointer moves to either extreme of the gauge,
the Check Gauges indicator will illuminate and a single
chime will sound.
11. Speedometer
The speedometer shows the vehicle speed in miles per
hour and/or kilometers per hour (mph/km/h).
12. Park/Headlight ON Indicator — If Equipped
This indicator will illuminate when the park
lights or headlights are turned on.
13. Cargo Light The cargo light will illuminate when the cargo
light is activated by pressing the cargo light
button on the headlight switch.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 169

WARNING!(Continued)
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.

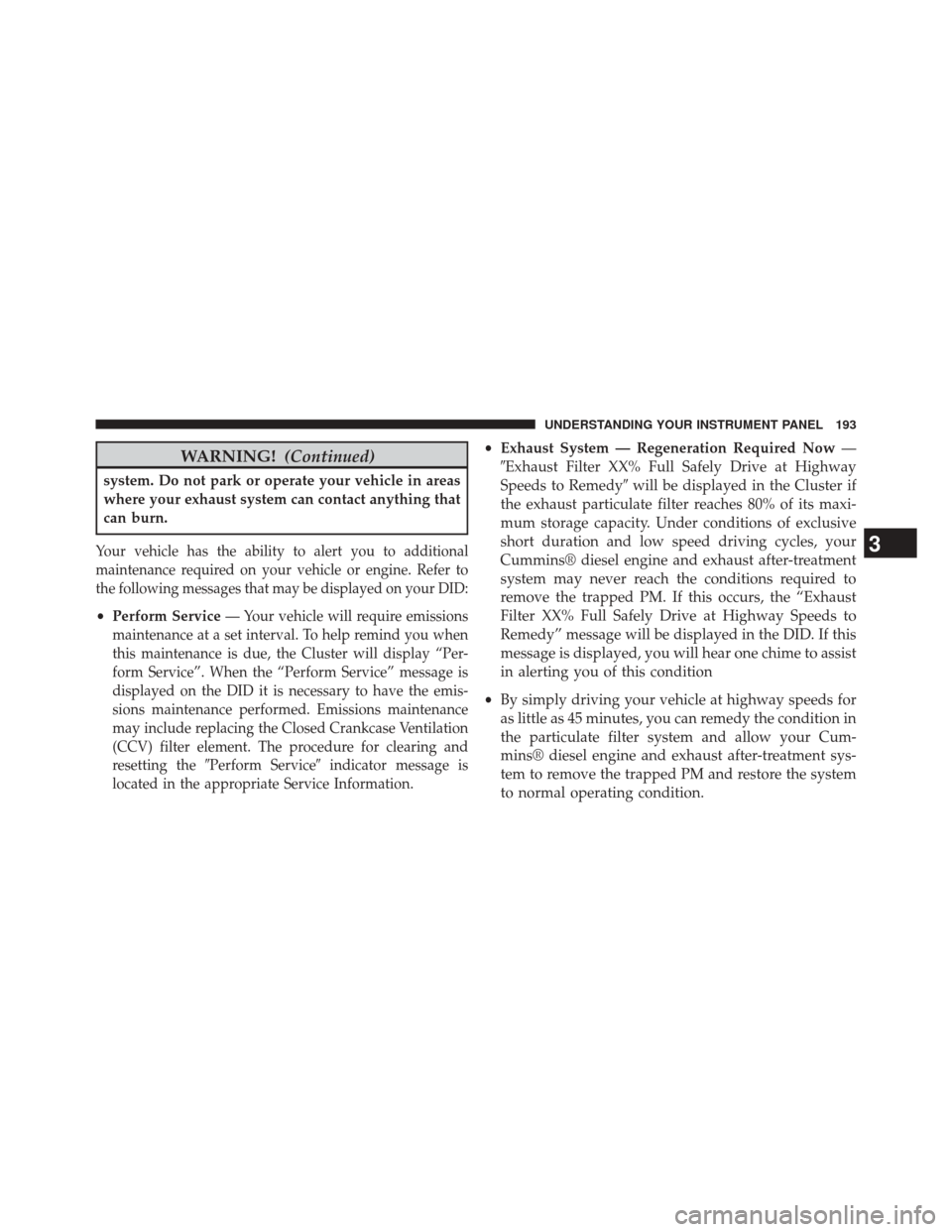

Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your DID:
•Perform Service— Your vehicle will require emissions
maintenance at a set interval. To help remind you when
this maintenance is due, the Cluster will display “Per-
form Service”. When the “Perform Service” message is
displayed on the DID it is necessary to have the emis-
sions maintenance performed. Emissions maintenance
may include replacing the Closed Crankcase Ventilation
(CCV) filter element. The procedure for clearing and
resetting the Perform Service indicator message is
located in the appropriate Service Information.
• Exhaust System — Regeneration Required Now —
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy will be displayed in the Cluster if
the exhaust particulate filter reaches 80% of its maxi-
mum storage capacity. Under conditions of exclusive
short duration and low speed driving cycles, your
Cummins® diesel engine and exhaust after-treatment
system may never reach the conditions required to
remove the trapped PM. If this occurs, the “Exhaust
Filter XX% Full Safely Drive at Highway Speeds to
Remedy” message will be displayed in the DID. If this
message is displayed, you will hear one chime to assist
in alerting you of this condition
• By simply driving your vehicle at highway speeds for
as little as 45 minutes, you can remedy the condition in
the particulate filter system and allow your Cum-
mins® diesel engine and exhaust after-treatment sys-
tem to remove the trapped PM and restore the system
to normal operating condition.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 193

accelerate under heavily loaded conditions may be re-
duced. In all cases, normal operation will resume once
the transmission temperature has risen to a suitable level.
Transmission Limp Home Mode
Transmission function is monitored electronically for
abnormal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission remains
in fourth gear (for 68RFE transmission) or third gear (for
AS69RC transmission) regardless of which forward gear
is selected. If an AS69RC-equipped truck enters Limp
Home Mode at highway speeds, it will initially engage
fifth gear, until the vehicle slows to a speed where third
gear can be engaged. PARK, REVERSE, and NEUTRAL
will continue to operate. The Malfunction Indicator Light
(MIL) may be illuminated. Limp Home Mode allows the
vehicle to be driven to an authorized dealer for service
without damaging the transmission.In the event of a momentary problem, the transmission
can be reset to regain all forward gears by performing the
following steps:
1. Stop the vehicle.
2. Shift the transmission into PARK.
3. Turn the ignition switch to the OFF position.
4. Wait approximately 10 seconds.
5. Restart the engine.
6. Shift into the desired gear range. If the problem is no
longer detected, the transmission will return to normal
operation.
NOTE: Even if the transmission can be reset, we recom-
mend that you visit your authorized dealer at your
earliest possible convenience. Your authorized dealer has
diagnostic equipment to determine if the problem could
recur.
4
STARTING AND OPERATING 239

CAUTION!

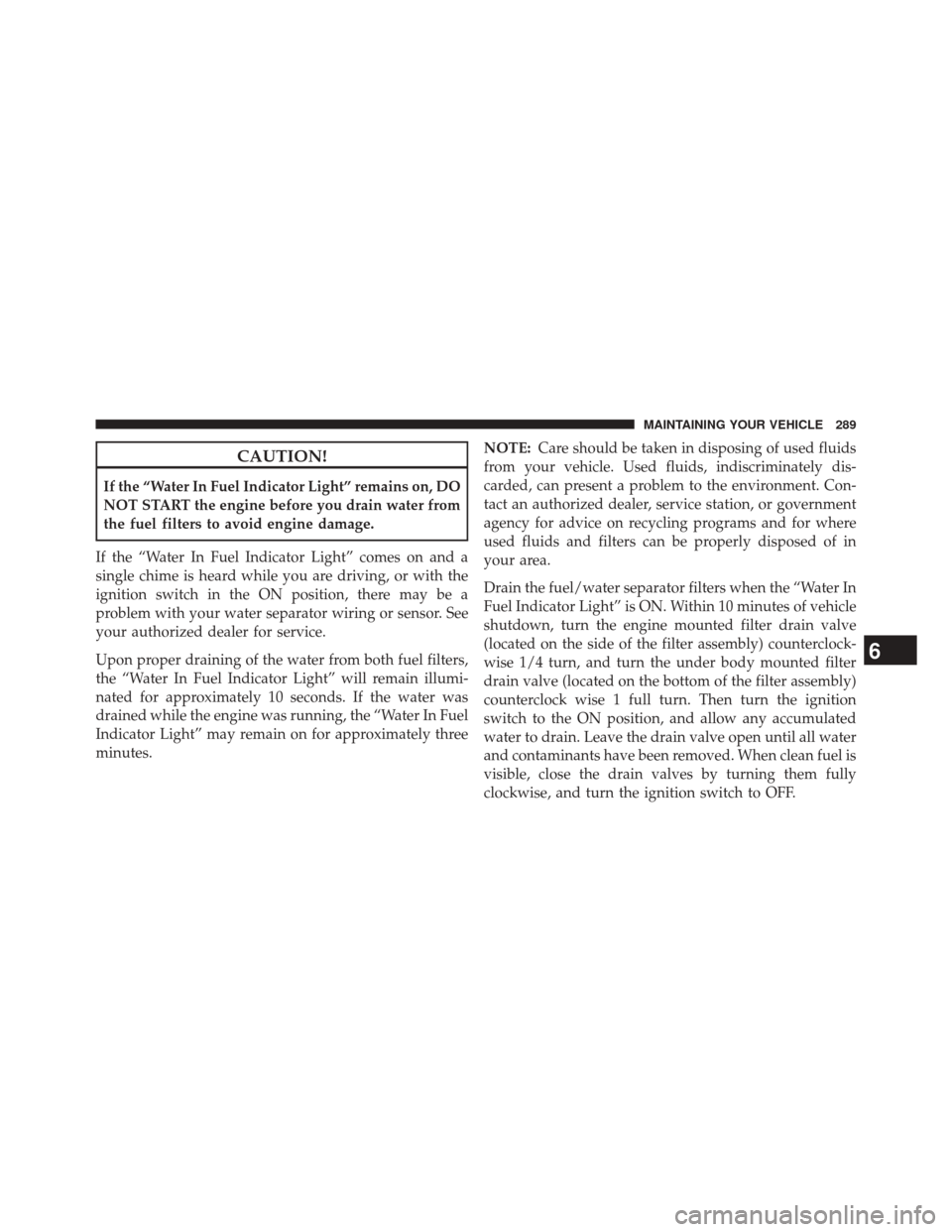

If the “Water In Fuel Indicator Light” remains on, DO
NOT START the engine before you drain water from
the fuel filters to avoid engine damage.
If the “Water In Fuel Indicator Light” comes on and a
single chime is heard while you are driving, or with the
ignition switch in the ON position, there may be a
problem with your water separator wiring or sensor. See
your authorized dealer for service.
Upon proper draining of the water from both fuel filters,
the “Water In Fuel Indicator Light” will remain illumi-
nated for approximately 10 seconds. If the water was
drained while the engine was running, the “Water In Fuel
Indicator Light” may remain on for approximately three
minutes. NOTE:
Care should be taken in disposing of used fluids
from your vehicle. Used fluids, indiscriminately dis-
carded, can present a problem to the environment. Con-
tact an authorized dealer, service station, or government
agency for advice on recycling programs and for where
used fluids and filters can be properly disposed of in
your area.
Drain the fuel/water separator filters when the “Water In
Fuel Indicator Light” is ON. Within 10 minutes of vehicle
shutdown, turn the engine mounted filter drain valve
(located on the side of the filter assembly) counterclock-
wise 1/4 turn, and turn the under body mounted filter
drain valve (located on the bottom of the filter assembly)
counterclock wise 1 full turn. Then turn the ignition
switch to the ON position, and allow any accumulated
water to drain. Leave the drain valve open until all water
and contaminants have been removed. When clean fuel is
visible, close the drain valves by turning them fully
clockwise, and turn the ignition switch to OFF.
6
MAINTAINING YOUR VEHICLE 289

MAINTENANCE SCHEDULE

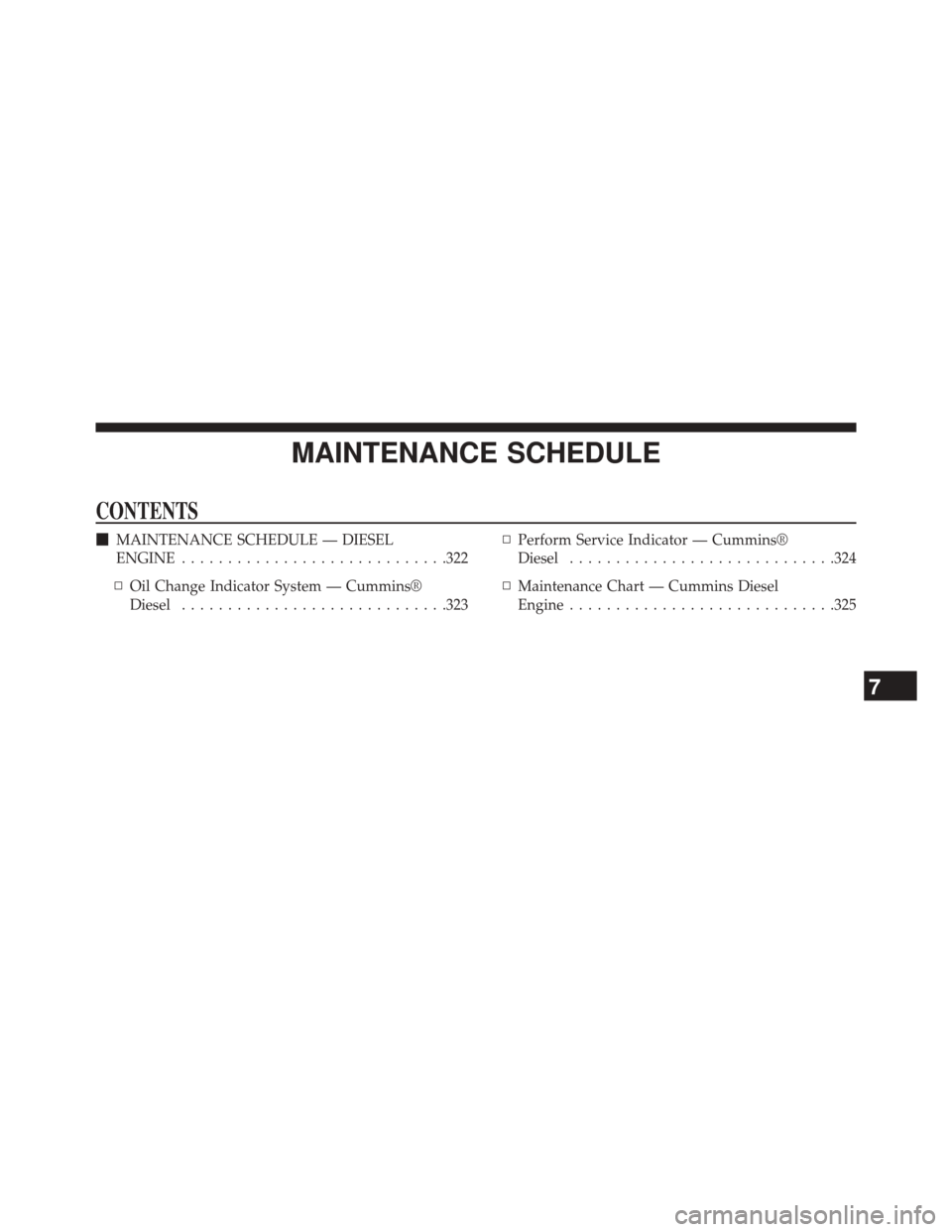

CONTENTS
MAINTENANCE SCHEDULE — DIESEL
ENGINE ............................ .322
▫ Oil Change Indicator System — Cummins®
Diesel ............................ .323▫
Perform Service Indicator — Cummins®
Diesel ............................ .324
▫ Maintenance Chart — Cummins Diesel
Engine ............................ .325
7

Inspection and service should also be performed anytime
a malfunction is observed or suspected. Retain all re-
ceipts.

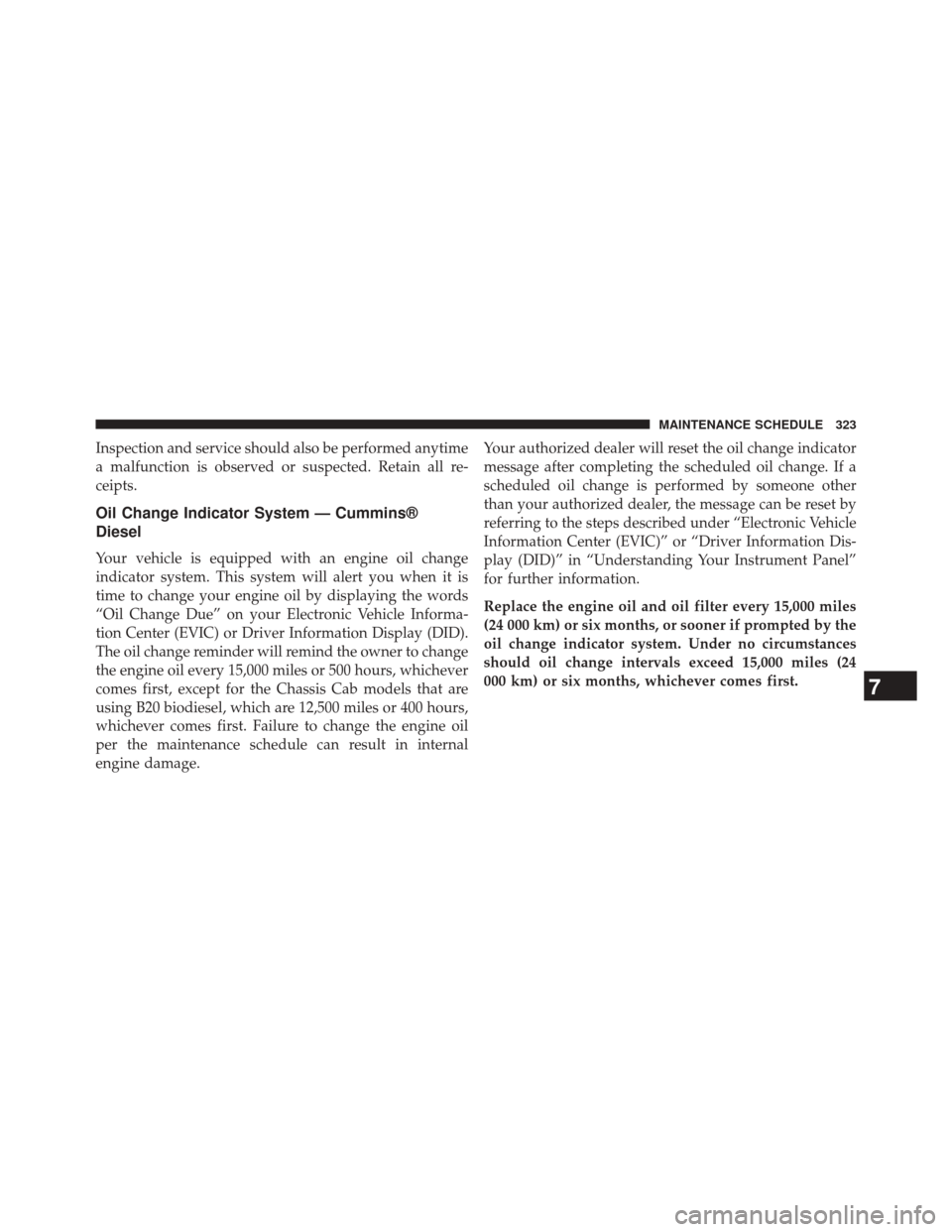

Oil Change Indicator System — Cummins®
Diesel
Your vehicle is equipped with an engine oil change
indicator system. This system will alert you when it is
time to change your engine oil by displaying the words
“Oil Change Due” on your Electronic Vehicle Informa-
tion Center (EVIC) or Driver Information Display (DID).
The oil change reminder will remind the owner to change
the engine oil every 15,000 miles or 500 hours, whichever
comes first, except for the Chassis Cab models that are
using B20 biodiesel, which are 12,500 miles or 400 hours,
whichever comes first. Failure to change the engine oil
per the maintenance schedule can result in internal
engine damage.Your authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other
than your authorized dealer, the message can be reset by
referring to the steps described under “Electronic Vehicle
Information Center (EVIC)” or “Driver Information Dis-
play (DID)” in “Understanding Your Instrument Panel”
for further information.
Replace the engine oil and oil filter every 15,000 miles
(24 000 km) or six months, or sooner if prompted by the
oil change indicator system. Under no circumstances
should oil change intervals exceed 15,000 miles (24
000 km) or six months, whichever comes first.
7
MAINTENANCE SCHEDULE 323

NOTE:
•Under no circumstances should oil change intervals
exceed 15,000 miles (24,000 km) or six months or 500
Hours, whichever comes first.
• Replace the engine oil and oil filter every 12,500 miles
(20 000 km) when running B20 fuel (Chassis Cab
Only).
If Chassis Cab models are operated with greater than 5%
levels of Biodiesel, the oil change interval must not
exceed 12,500 miles (20 000 km) under any circumstances.
See the Fuel Requirements section for more information
regarding operation of Chassis Cab models configured
for use with Biodiesel blend (B6-B20) fuel meeting ASTM
specification D-7467.Perform Service Indicator — Cummins® Diesel
Your vehicle will require emissions maintenance at a set
interval. To help remind you when this maintenance is
due, the Electronic Vehicle Information Center (EVIC) or
Driver information Display (DID) will display “Perform
Service”. When the “Perform Service” message is dis-
played on the EVIC/DID it is necessary to have the
emissions maintenance performed. Emissions mainte-
nance may include replacing the Closed Crankcase Ven-
tilation (CCV) filter element. The procedure for clearing
and resetting the “Perform Service” indicator message is
located in the appropriate Service Information.
324 MAINTENANCE SCHEDULE

Overdrive.............................. .241
Overdrive OFF Switch ..................... .241
Perform Service Indicator, Reset ...............324
Power Take-Off Adapter ...................... .248
Take-Off Operation ..................... .248
PTO (Power Take-Off) ..................... .248
Radiator Cap (Coolant Pressure Cap) ...........299
Remote Starting System .....................144
Resetting Perform Service Indicator ............324
Seat Belts Reminder ........................ .161 , 168
Selection of Coolant (Antifreeze) ...............316
Shifting ............................... .230
Automatic Transmission ..................232
Manual Transmission ....................244 Signals, Turn
........................... .153
Speedometer ............................ .157
Starting ............................... .206
Automatic Transmission ..................207
Engine Block Heater .................211,227
Manual Transmission ....................207
Remote ............................. .144
Starting Procedures ....................... .206
Starting Procedures (Diesel Engines) ............206
Synthetic Engine Oil ...................... .283
Tachometer ............................. .151
Tip Start ............................... .207
Ti re s Pressure Warning Light ...............154 , 170
Torque Converter Clutch ....................243
Traction Control ......................... .305
Transfer Case Fluid ............................... .318
342 INDEX - RAM 2500 / 3500 / 4500 / 5500
