2015 Ram 1500 engine

•Exhaust System – Filter XX% Full Service Required See
Dealer
• Exhaust System – Regeneration In Process Exhaust
Filter XX% Full
• Exhaust System – Regeneration Completed
• Engine Will Not Restart in XXXX mi DEF Low Refill
Soon
• Engine Will Not Restart in XXXX mi Refill DEF
• Engine Will Not Restart Refill DEF
• Service DEF System See Dealer
• Incorrect DEF Detected See Dealer
• Engine Will Not Restart in XXX mi Service DEF See
Dealer
• Engine Will Not Restart Service DEF System See
DealerOil Life Reset
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the EVIC after a single chime has sounded,
to indicate the next scheduled oil change interval. The
engine oil change indicator system is duty cycle based,
which means the engine oil change interval may fluctu-
ate, dependent upon your personal driving style.
NOTE: Use the steering wheel EVIC controls for the
following procedure(s).
Vehicles Equipped With Passive Entry
1. Without pressing the brake pedal, push the ENGINE START/STOP button and place the ignition to the
ON/RUN position (do not start the engine).
2. Push and release the DOWNarrow button to scroll
downward through the main menu to “Vehicle Info.”
54 UNDERSTANDING YOUR INSTRUMENT PANEL

3. Push and release theRIGHTarrow button to access
the ”Vehicle Info” screen, then scroll UP or DOWN to
select “Oil Life.”
4. Push and hold the RIGHTarrow button to select
“Reset,” then push and release the Rightarrow button
to select “NO”or“YES” to reset the Oil Life to 100%.
5. Push and release the Uparrow button to exit the EVIC
screen.
Vehicles Not Equipped With Passive Entry
1. Without depressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine).
2. Push and release the DOWNarrow button to scroll
downward through the main menu to “Vehicle Info.”
3. Push and release the RIGHTarrow button to access
the “Vehicle Info” screen then scroll UPorDOWN to
select “Oil Life.” 4. Push and hold the
RIGHTarrow button to select
“Reset,” then select “NO” or “YES” by pushing the
RIGHT arrow then push the RIGHTarrow button to
select reset of the Oil Life to 100%.
5. Push and release the Uparrow button to exit the EVIC
screen.
NOTE: If the indicator message illuminates when you
start the vehicle, the Oil Life indicator system did not
reset. If necessary, repeat this procedure.
Vehicle Information (Customer Information
Features)
Vehicle Information Submenus
• Battery Voltage
Displays the actual battery voltage.
• Fuel Filter Life
Displays the life of the fuel filter.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 55

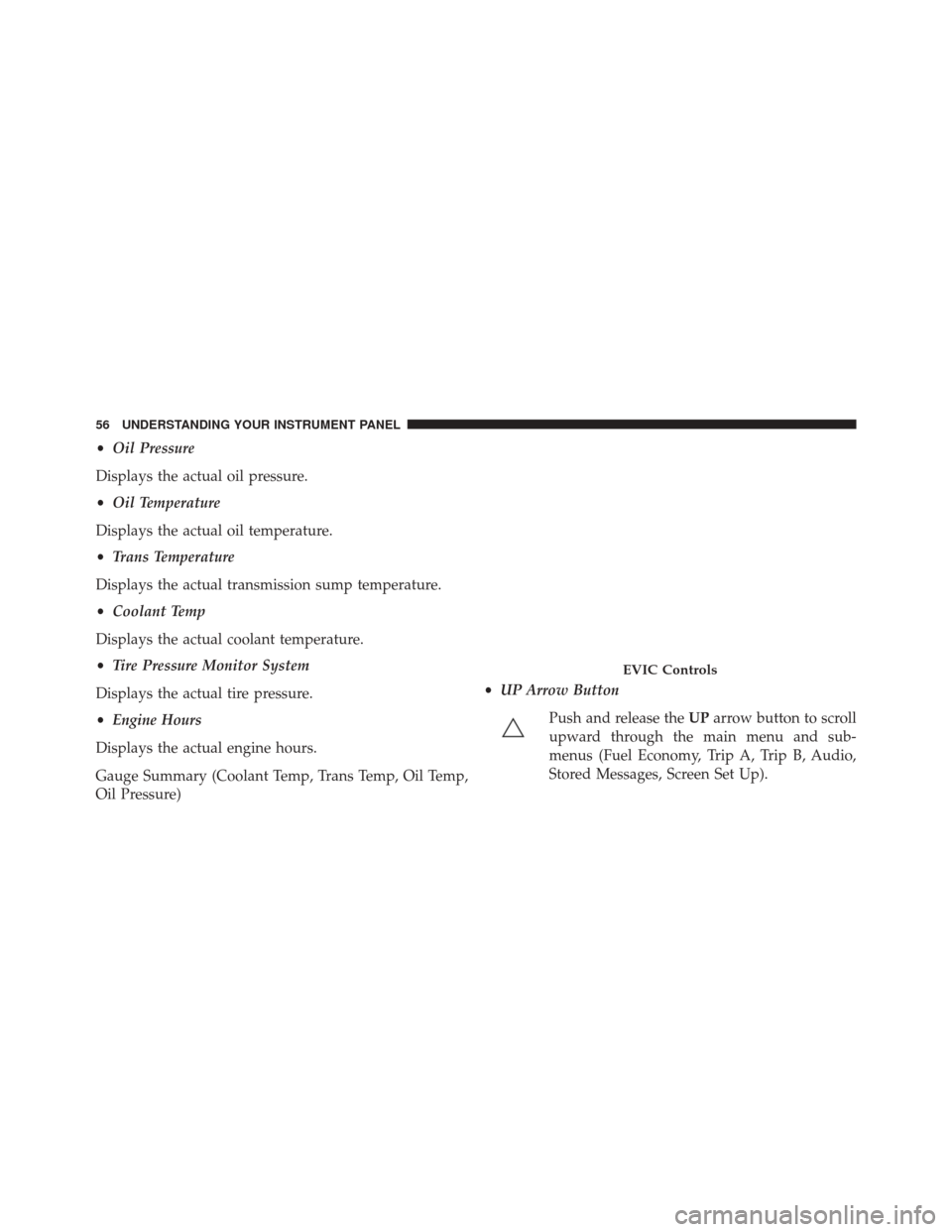

•Oil Pressure
Displays the actual oil pressure.
• Oil Temperature
Displays the actual oil temperature.
• Trans Temperature
Displays the actual transmission sump temperature.
• Coolant Temp
Displays the actual coolant temperature.
• Tire Pressure Monitor System
Displays the actual tire pressure.
• Engine Hours
Displays the actual engine hours.
Gauge Summary (Coolant Temp, Trans Temp, Oil Temp,
Oil Pressure) •
UP Arrow Button
Push and release the UParrow button to scroll
upward through the main menu and sub-
menus (Fuel Economy, Trip A, Trip B, Audio,
Stored Messages, Screen Set Up).
EVIC Controls
56 UNDERSTANDING YOUR INSTRUMENT PANEL

•Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
• Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the RUN state. Examples of this message type are
“Remote Start Aborted - Door Ajar” and “Press Brake
Pedal and Push Button to Start”.
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On”.Diesel Indicator Lights
This area will show reconfigurable amber telltales that
relate to your diesel. These telltales include:
NOTE: “Refer to your OM on DVD for additional telltale
information”
Water In Fuel Indicator Light
The “Water In Fuel Indicator Light” will illumi-
nate when there is water detected in the fuel
filters. If this light remains on, DO NOT start the
vehicle before you drain the water from the fuel
filters to prevent engine damage. Refer to “Maintenance
Procedures/Draining Fuel/Water Separator Filters” in
“Maintaining Your Vehicle” for further information.
Wait To Start Light

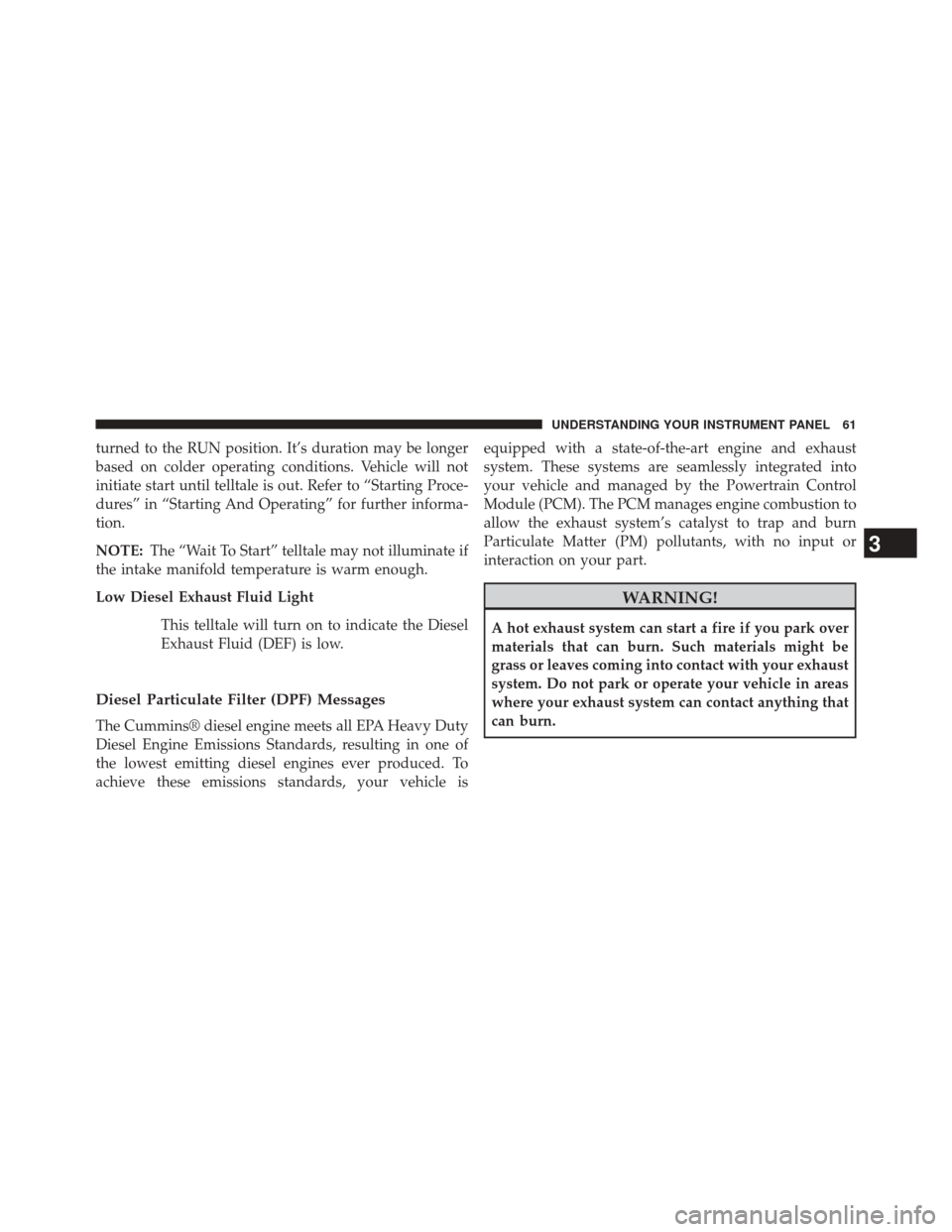

The “Wait To Start” telltale will illuminate for
approximately two seconds when the ignition is
60 UNDERSTANDING YOUR INSTRUMENT PANEL

turned to the RUN position. It’s duration may be longer
based on colder operating conditions. Vehicle will not
initiate start until telltale is out. Refer to “Starting Proce-
dures” in “Starting And Operating” for further informa-
tion.
NOTE:The “Wait To Start” telltale may not illuminate if
the intake manifold temperature is warm enough.
Low Diesel Exhaust Fluid Light
This telltale will turn on to indicate the Diesel
Exhaust Fluid (DEF) is low.
Diesel Particulate Filter (DPF) Messages
The Cummins® diesel engine meets all EPA Heavy Duty
Diesel Engine Emissions Standards, resulting in one of
the lowest emitting diesel engines ever produced. To
achieve these emissions standards, your vehicle is equipped with a state-of-the-art engine and exhaust
system. These systems are seamlessly integrated into
your vehicle and managed by the Powertrain Control
Module (PCM). The PCM manages engine combustion to
allow the exhaust system’s catalyst to trap and burn
Particulate Matter (PM) pollutants, with no input or
interaction on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 61

Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to the
following messages that may be displayed on your DID:
•Perform Service —Your vehicle will require emissions
maintenance at a set interval. To help remind you when
this maintenance is due, the Cluster will display “Per-
form Service”. When the “Perform Service” message is
displayed on the DID it is necessary to have the emis-
sions maintenance performed. Emissions maintenance
may include replacing the Closed Crankcase Ventilation
(CCV) filter element. The procedure for clearing and
resetting the Perform Service indicator message is
located in the appropriate Service Information.
• Exhaust System — Regeneration Required Now —
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy will be displayed in the Cluster if
the exhaust particulate filter reaches 80% of its maxi-
mum storage capacity. Under conditions of exclusive short duration and low speed driving cycles, your
Cummins® diesel engine and exhaust after-treatment
system may never reach the conditions required to
remove the trapped PM. If this occurs, the “Exhaust
Filter XX% Full Safely Drive at Highway Speeds to
Remedy” message will be displayed in the DID. If this
message is displayed, you will hear one chime to assist
in alerting you of this condition
• By simply driving your vehicle at highway speeds for
as little as 45 minutes, you can remedy the condition in
the particulate filter system and allow your Cum-
mins® diesel engine and exhaust after-treatment sys-
tem to remove the trapped PM and restore the system
to normal operating condition.
• Exhaust System — Regeneration In Process Exhaust
Filter XX% Full — Indicates that the Diesel Particulate
Filter (DPF) is self-cleaning. Maintain your current
driving condition until regeneration is completed.
62 UNDERSTANDING YOUR INSTRUMENT PANEL

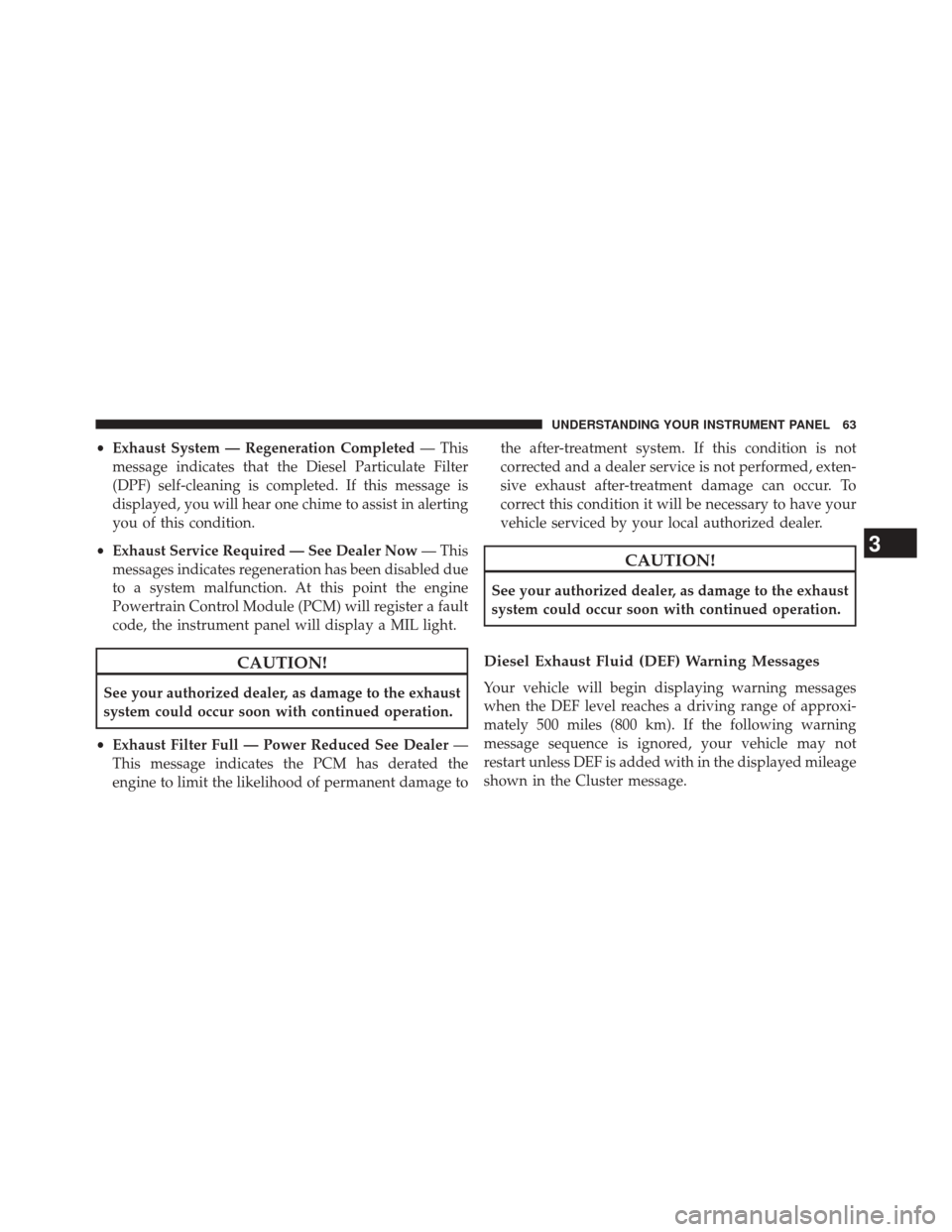

•Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter
(DPF) self-cleaning is completed. If this message is
displayed, you will hear one chime to assist in alerting
you of this condition.
• Exhaust Service Required — See Dealer Now — This
messages indicates regeneration has been disabled due
to a system malfunction. At this point the engine
Powertrain Control Module (PCM) will register a fault
code, the instrument panel will display a MIL light.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
• Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the
engine to limit the likelihood of permanent damage to the after-treatment system. If this condition is not
corrected and a dealer service is not performed, exten-
sive exhaust after-treatment damage can occur. To
correct this condition it will be necessary to have your
vehicle serviced by your local authorized dealer.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages
when the DEF level reaches a driving range of approxi-
mately 500 miles (800 km). If the following warning
message sequence is ignored, your vehicle may not
restart unless DEF is added with in the displayed mileage
shown in the Cluster message.
3
UNDERSTANDING YOUR INSTRUMENT PANEL 63

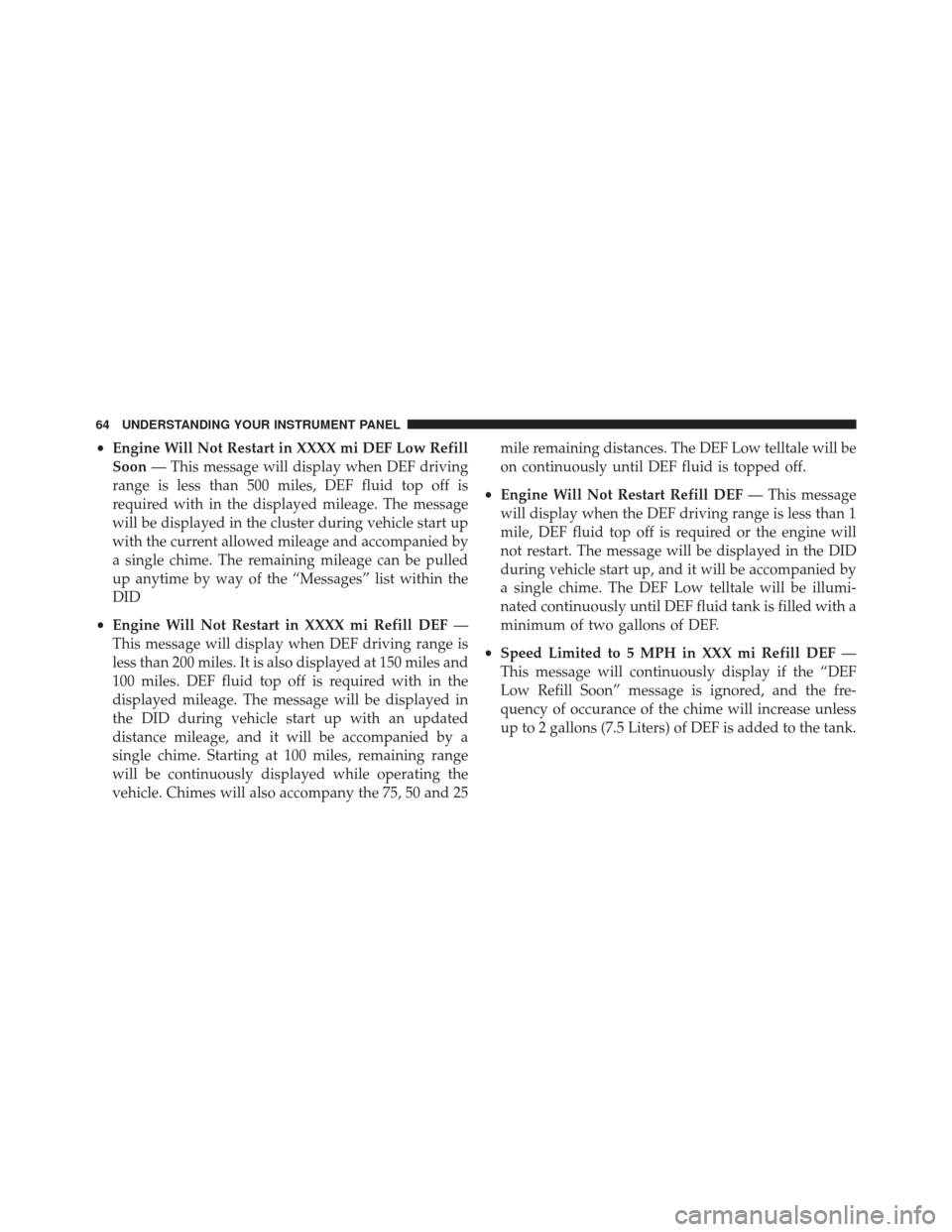

•Engine Will Not Restart in XXXX mi DEF Low Refill
Soon — This message will display when DEF driving
range is less than 500 miles, DEF fluid top off is
required with in the displayed mileage. The message
will be displayed in the cluster during vehicle start up
with the current allowed mileage and accompanied by
a single chime. The remaining mileage can be pulled
up anytime by way of the “Messages” list within the
DID
• Engine Will Not Restart in XXXX mi Refill DEF —
This message will display when DEF driving range is
less than 200 miles. It is also displayed at 150 miles and
100 miles. DEF fluid top off is required with in the
displayed mileage. The message will be displayed in
the DID during vehicle start up with an updated
distance mileage, and it will be accompanied by a
single chime. Starting at 100 miles, remaining range
will be continuously displayed while operating the
vehicle. Chimes will also accompany the 75, 50 and 25 mile remaining distances. The DEF Low telltale will be
on continuously until DEF fluid is topped off.
• Engine Will Not Restart Refill DEF — This message
will display when the DEF driving range is less than 1
mile, DEF fluid top off is required or the engine will
not restart. The message will be displayed in the DID
during vehicle start up, and it will be accompanied by
a single chime. The DEF Low telltale will be illumi-
nated continuously until DEF fluid tank is filled with a
minimum of two gallons of DEF.
• Speed Limited to 5 MPH in XXX mi Refill DEF —
This message will continuously display if the “DEF
Low Refill Soon” message is ignored, and the fre-
quency of occurance of the chime will increase unless
up to 2 gallons (7.5 Liters) of DEF is added to the tank.
64 UNDERSTANDING YOUR INSTRUMENT PANEL
