2015 OPEL ZAFIRA TOURER oil capacities

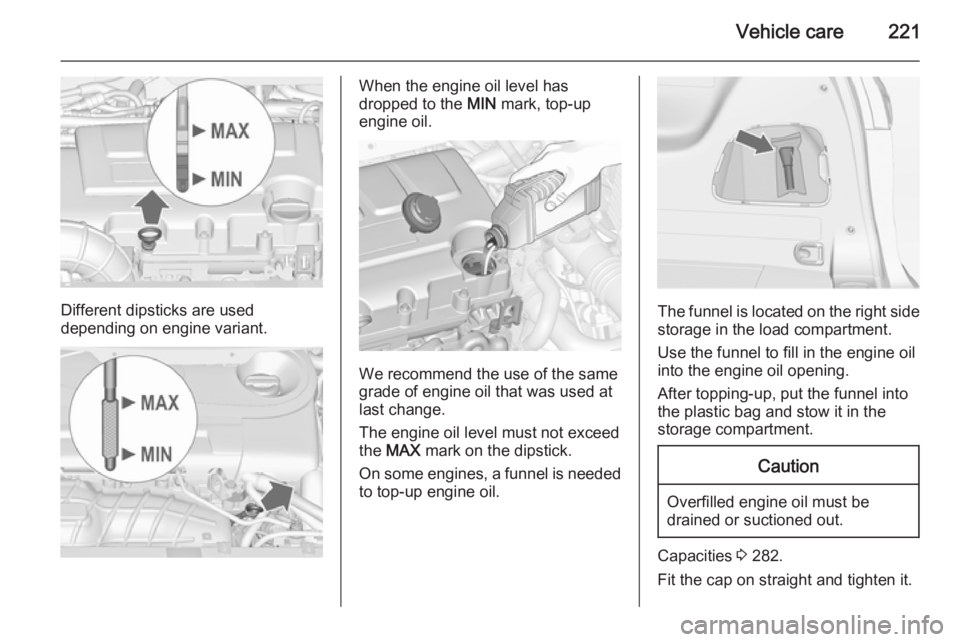

Vehicle care221
Different dipsticks are used
depending on engine variant.
When the engine oil level has
dropped to the MIN mark, top-up
engine oil.
We recommend the use of the same
grade of engine oil that was used at
last change.
The engine oil level must not exceed
the MAX mark on the dipstick.
On some engines, a funnel is needed to top-up engine oil.
The funnel is located on the right side storage in the load compartment.
Use the funnel to fill in the engine oil
into the engine oil opening.
After topping-up, put the funnel into the plastic bag and stow it in thestorage compartment.
Caution
Overfilled engine oil must be
drained or suctioned out.
Capacities 3 282.
Fit the cap on straight and tighten it.

282Technical dataCapacitiesEngine oilEngineB14NELB14NET,
B14NET LPGA16XNT CNGA16SHT,
A16XHTA18XEL,
A18XERincluding Filter [l]4.04.04.55.54.5between MIN and MAX [l]1.01.01.01.01.0EngineB16DTHB16DTJA20DTLA20DTA20DTHA20DTRincluding Filter [l]5.05.04.54.54.54.5between MIN and MAX [l]1.01.01.01.01.01.0
Fuel tank
Petrol/diesel, refilling quantity [l]58Natural gas CNG, refilling quantity [kg] or [l]
Petrol, refilling quantity25 kg 4)
or 144 l
14Liquid gas LPG, refilling quantity [l]604) At 20 MPa/200 bar/2900 psi and 15°C.
