60Seats, restraints

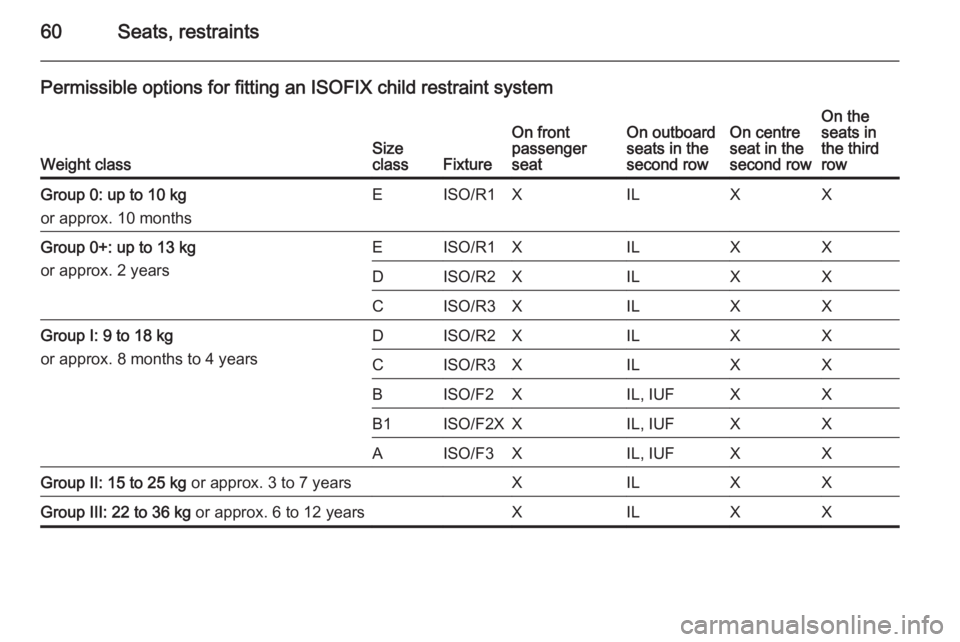

Permissible options for fitting an ISOFIX child restraint system
Weight classSize
classFixture
On front
passenger
seatOn outboard
seats in the
second rowOn centre
seat in the
second rowOn the
seats in
the third
rowGroup 0: up to 10 kg
or approx. 10 monthsEISO/R1XILXXGroup 0+: up to 13 kg
or approx. 2 yearsEISO/R1XILXXDISO/R2XILXXCISO/R3XILXXGroup I: 9 to 18 kg
or approx. 8 months to 4 yearsDISO/R2XILXXCISO/R3XILXXBISO/F2XIL, IUFXXB1ISO/F2XXIL, IUFXXAISO/F3XIL, IUFXXGroup II: 15 to 25 kg or approx. 3 to 7 yearsXILXXGroup III: 22 to 36 kg or approx. 6 to 12 yearsXILXX

Seats, restraints61

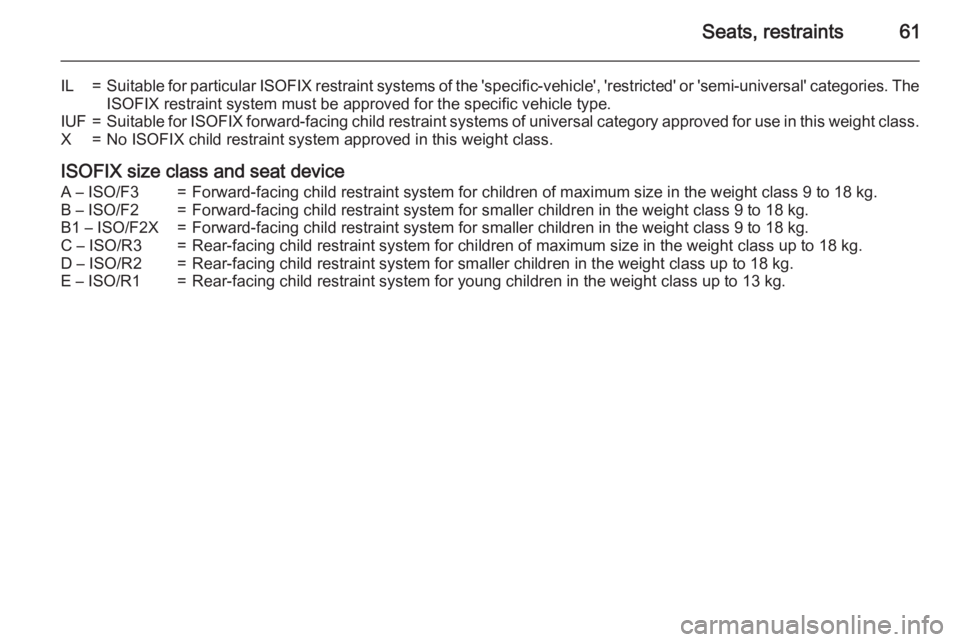

IL=Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories. The
ISOFIX restraint system must be approved for the specific vehicle type.IUF=Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class.X=No ISOFIX child restraint system approved in this weight class.
ISOFIX size class and seat device
A – ISO/F3=Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg.B – ISO/F2=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.B1 – ISO/F2X=Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg.C – ISO/R3=Rear-facing child restraint system for children of maximum size in the weight class up to 18 kg.D – ISO/R2=Rear-facing child restraint system for smaller children in the weight class up to 18 kg.E – ISO/R1=Rear-facing child restraint system for young children in the weight class up to 13 kg.

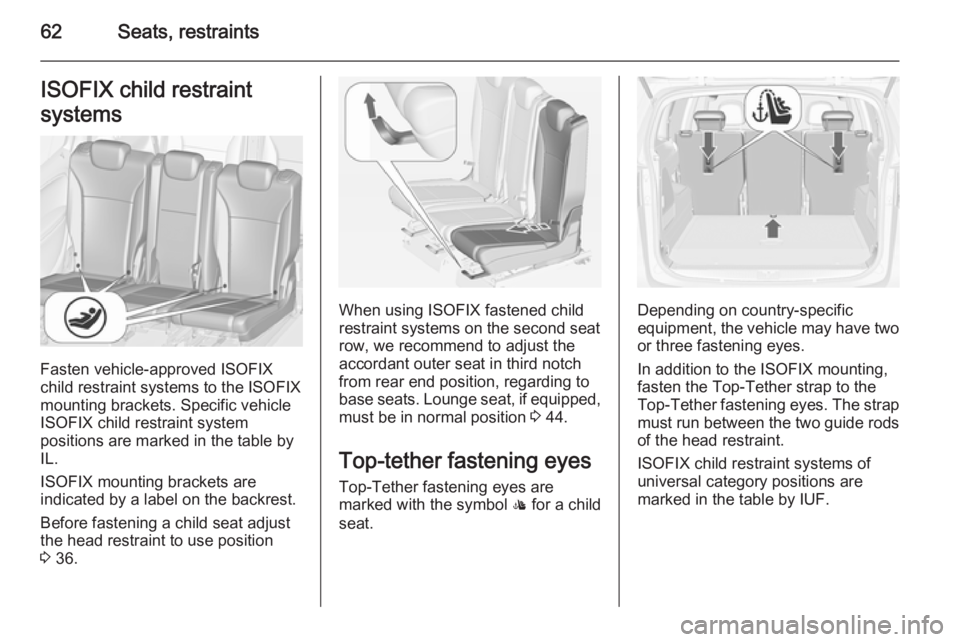

62Seats, restraintsISOFIX child restraint
systems
Fasten vehicle-approved ISOFIX
child restraint systems to the ISOFIX
mounting brackets. Specific vehicle
ISOFIX child restraint system
positions are marked in the table by
IL.
ISOFIX mounting brackets are
indicated by a label on the backrest.
Before fastening a child seat adjust
the head restraint to use position
3 36.
When using ISOFIX fastened child
restraint systems on the second seat
row, we recommend to adjust the
accordant outer seat in third notch
from rear end position, regarding to
base seats. Lounge seat, if equipped, must be in normal position 3 44.
Top-tether fastening eyes
Top-Tether fastening eyes are
marked with the symbol : for a child
seat.Depending on country-specific
equipment, the vehicle may have two or three fastening eyes.
In addition to the ISOFIX mounting,
fasten the Top-Tether strap to the
Top-Tether fastening eyes. The strap
must run between the two guide rods
of the head restraint.
ISOFIX child restraint systems of
universal category positions are
marked in the table by IUF.
