138Vehicle careVehicle careGeneral Information...................138
Vehicle checks ........................... 139
Bulb replacement .......................147
Electrical system ........................152
Vehicle tools .............................. 156
Wheels and tyres .......................157
Jump starting ............................. 168
Towing ....................................... 169
Appearance care .......................171General Information
Accessories and vehicle
modifications
We recommend the use of Genuine Parts and Accessories and factory
approved parts specific for your
vehicle type. We cannot assess or guarantee reliability of other products
- even if they have a regulatory or
otherwise granted approval.
Do not make any modifications to the electrical system, e.g. changes of
electronic control units (chip tuning).Caution
When transporting the vehicle on
a train or on a recovery vehicle, the
mud flaps might be damaged.
Vehicle storage
Storage for a long period of time
If the vehicle is to be stored for several months:
■ Wash and wax the vehicle.
■ Have the wax in the engine compartment and underbody
checked.
■ Clean and preserve rubber seals.
■ Fill up fuel tank completely.
■ Change the engine oil.
■ Drain the washer fluid reservoir.
■ Check the coolant antifreeze and corrosion protection.
■ Adjust tyre pressure to the value specified for full load.
■ Park vehicle in a dry, well ventilated
place. Engage first or reverse gear.
Prevent the vehicle from rolling.
■ Do not apply the parking brake.

Vehicle care139
■ Open the bonnet, close all doorsand lock the vehicle.
■ Disconnect the clamp from the negative terminal of the vehicle
battery. Beware that all systems are
not functional, e.g. anti-theft alarm
system.
Putting back into operation
When the vehicle is to be put back into
operation:
■ Connect the clamp to the negative terminal of the vehicle battery.
Activate the electronics of the
power windows.
■ Check tyre pressure.
■ Fill up the washer fluid reservoir.
■ Check the engine oil level.
■ Check the coolant level.
■ Fit the number plate, if necessary.End-of-life vehicle
recovery
Information on end-of-life vehicle
recovery centres and the recycling of
end-of-life vehicles is available on our website. Only entrust this work to an
authorised recycling centre.Vehicle checks
Performing work9 Warning
Only perform engine compartment
checks when the ignition is off.
The cooling fan may start
operating even if the ignition is off.
9 Danger
The ignition system generates
extremely high voltages. Do not
touch.
The caps for topping up the engine oil, the coolant, the washer fluid and the
oil dipstick handle are yellow for ease
of identification.

140Vehicle careBonnetOpening
Pull the release lever and return it to
its original position.
Move the safety catch (located
slightly right of centre) sideways to
the left and open the bonnet.
The bonnet is held open
automatically.
If the bonnet is opened during an
Autostop, the engine will be restarted automatically for safety reasons.
Stop-start system 3 117.
Closing Lower the bonnet and let it fall into the
latch from a low height (approx.
30 cm). Check that the bonnet is
engaged.
Engine oil
Check the engine oil level manually
on a regular basis to prevent damage
to the engine.
Ensure that the correct specification
of oil is used. Recommended fluids
and lubricants 3 176.
Check with the vehicle on a level
surface. The engine must be at
operating temperature and switched
off for at least 10 minutes.
Pull out the dipstick, wipe it clean,
insert it to the stop on the handle, pull
out and read the engine oil level.

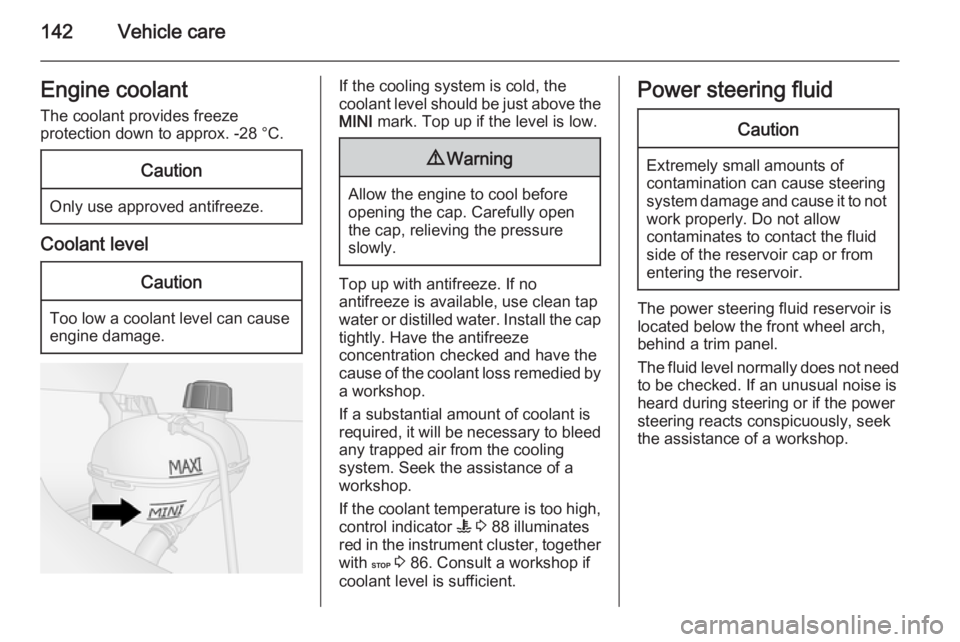

142Vehicle careEngine coolantThe coolant provides freeze
protection down to approx. -28 °C.Caution
Only use approved antifreeze.
Coolant level
Caution
Too low a coolant level can cause engine damage.
If the cooling system is cold, the
coolant level should be just above the
MINI mark. Top up if the level is low.9Warning
Allow the engine to cool before
opening the cap. Carefully open
the cap, relieving the pressure
slowly.
Top up with antifreeze. If no
antifreeze is available, use clean tap
water or distilled water. Install the cap
tightly. Have the antifreeze
concentration checked and have the
cause of the coolant loss remedied by a workshop.
If a substantial amount of coolant is
required, it will be necessary to bleed
any trapped air from the cooling
system. Seek the assistance of a
workshop.
If the coolant temperature is too high, control indicator W 3 88 illuminates
red in the instrument cluster, together
with C 3 86. Consult a workshop if
coolant level is sufficient.
Power steering fluidCaution
Extremely small amounts of
contamination can cause steering
system damage and cause it to not work properly. Do not allow
contaminates to contact the fluid
side of the reservoir cap or from
entering the reservoir.
The power steering fluid reservoir is located below the front wheel arch,
behind a trim panel.
The fluid level normally does not need
to be checked. If an unusual noise is
heard during steering or if the power
steering reacts conspicuously, seek
the assistance of a workshop.

146Vehicle careDiesel fuel filter
Drain diesel fuel filter of residual
water at every engine oil change.
Place a container underneath the
filter housing. Loosen the knurled
screw on the lower part of the filter by approx. one turn, to drain off the
water.
The filter is drained as soon as water-
free diesel fuel emerges. Retighten
the screw.
Check diesel fuel filter at shorter
intervals if the vehicle is subjected to
extreme operating conditions.
Diesel fuel system
bleeding
If the fuel tank has been run dry, it will
be necessary to air vent or bleed the
diesel fuel system.
Refuel then proceed as follows:
With ignition key ■ Switch on the ignition (key to position M) for 5 seconds at a time.
■ Switch off ignition (key to position A) for 3 seconds.
■ Repeat this process multiple times.
■ Start the engine (key to position D)
then switch off (key to position St).
Ignition switch positions 3 114.
With power button ■ Insert the electronic key in the card
reader.
■ Press the Start/Stop button without
pressing any of the pedals.
■ Wait a few minutes before starting engine.
Power button 3 114.If the engine fails to start, seek the
assistance of a workshop.
Starting the engine 3 116.
Wiper blade replacement Wiper blades on the windscreen
Lift the wiper arm, press button to
disengage the wiper blade and
remove.
Attach new wiper blade slightly
angled to the wiper arm and push until
it engages.
Lower wiper arm carefully.

158Vehicle care
Tyre pressures 3 192. Always inflate
tyres to the pressures shown on the
label on the driver's door frame.
The tyre pressure data refers to cold
tyres. It applies to summer and winter tyres.
Always inflate the spare tyre to the
pressure specified for full load.
Incorrect tyre pressures will impair
safety, vehicle handling, comfort and
fuel economy and will increase tyre
wear.
Tyre pressures differ depending on
various options. For the correct tyre
pressure value, follow the procedure
below:
1. Identify the engine identifier code.
Engine data 3 182.
2. Identify the respective tyre.
The tyre pressure tables show all possible tyre combinations 3 192.
For the tyres approved for your
vehicle, refer to the EEC Certificate of
Conformity provided with your vehicle
or other national registration
documents.The driver is responsible for correct
adjustment of tyre pressure.9 Warning
If the pressure is too low, this can
result in considerable tyre warm-
up and internal damage, leading to tread separation and even to tyre
blow-out at high speeds.
Tyre pressure monitoring
system
The Tyre Pressure Monitoring
System (TPMS) uses radio and
sensor technology to check tyre
pressure levels.
Caution
Tyre pressure monitoring system
warns only about low tyre pressure condition and does not replace
regular tyre maintenance by the
driver.
All wheels must be equipped with pressure sensors and the tyres must
have the prescribed pressure.
Note
In countries where the tyre pressure
monitoring system is legally
required, the use of wheels without
pressure sensors will invalidate the
vehicle type approval.
The TPMS sensors monitor the air
pressure in the tyres and transmit tyre pressure readings to a receiver
located in the vehicle.
Tyre pressures in display The current tyre pressures can be
shown in the Driver Information
Centre 3 90.

160Vehicle care
Puncture
A puncture or severely under-inflated
tyre is indicated by illumination of
control indicator w together with C
3 86 and a corresponding message
appears in the Driver Information
Centre. Stop vehicle and switch off
engine.
Tyre pressure 3 192, Tyre repair kit
3 162, Spare wheel 3 166, Wheel
changing 3 165.
Temperature dependency Tyre pressure depends on the
temperature of the tyre. During
driving, tyre temperature and
pressure increase.
The tyre pressure value displayed in
the Driver Information Centre shows
the actual tyre pressure. Therefore it
is important to check tyre pressure
with cold tyres.Relearn function
After changing the wheels, TPMS
needs to recalculate.
With the vehicle stationary, select the tyre pressure menu in the Driver
Information Centre by pressing button
on end of wiper lever. Press and hold button for approx. 3 seconds to
initialise recalculation. A
corresponding message appears in
the Driver Information Centre.
Several minutes of driving may be
required to complete the relearn
process.
If problems occur during the relearn
process, control indicator w remains
illuminated and a warning message is displayed in the Driver Information
Centre.
Driver Information Centre 3 90.
Vehicle messages 3 91.
General information
The use of commercially available
liquid tyre repair kits can impair the
function of the system. Factory-
approved tyre repair kits can be used.
Tyre repair kit 3 162.
External high-power radio equipment
could disrupt the tyre pressure
monitoring system.
Each time the tyres are replaced,
TPMS sensors must be dismounted
and serviced by a workshop.
Tread depth
Check tread depth at regular
intervals.
Tyres should be replaced for safety
reasons at a tread depth of 2-3 mm
(4 mm for winter tyres).

200
Steering wheel controls ...............75
Stop engine .................................. 86
Stop-start system.................. 18, 117
Storage ......................................... 67
Storage box .................................. 69
Storage compartments .................67
Sun visors .................................... 42
Symbols ......................................... 4
T Tachograph .................................. 94
Tachometer ................................. 81
Tailgate ......................................... 33
Tail lights ................................... 149
Technical data ............................ 182
Three-point seat belt .................... 51
Tools .......................................... 156
Top-tether fastening eyes ............66
Torx key ...................................... 156
Tow bar....................................... 136
Towing ................................ 136, 169
Towing another vehicle .............170
Towing a trailer ........................... 136
Towing eye ......................... 156, 169
Towing the vehicle .....................169
Traction Control system ............. 124
Trailer coupling ........................... 136
Trailer stability assist .................137
Trailer towing ............................. 136
Transmission ............................... 18Tread depth ............................... 160
Trip computer .............................. 92
Trip odometer .............................. 81
Turbo engine warm-up ...............116
Turn and lane-change signals .....97
Turn signal ................................... 85
Tyre chains ................................ 161
Tyre changing ............................. 165
Tyre designations ......................157
Tyre pressure ............................ 157
Tyre pressure monitoring system ............................... 88, 158
Tyre pressures ........................... 192
Tyre repair kit ............................. 162
Tyres .......................................... 157
Tyres and wheel size, changing. 161
U Ultrasonic parking assist............. 130
Underseat storage .......................69
Upholstery .................................. 172
Upshift .......................................... 87
Using this manual ..........................3
V Vehicle battery ........................... 144
Vehicle checks............................ 139
Vehicle data ................................ 181
Vehicle data recording and privacy ..................................... 193Vehicle dimensions .................... 186
Vehicle Identification Number ....178
Vehicle jack ................................ 156
Vehicle messages .......................91
Vehicle security ............................ 34
Vehicle shutdown ......................117
Vehicle specific data ......................3
Vehicle storage ........................... 138
Vehicle tools ....................... 156, 169
Vehicle unlocking ........................... 6
Vehicle weight ........................... 183
Ventilation ................................... 101
W
Warning chimes ........................... 91
Warning lights ............................... 80
Warning messages .......................91
Warning triangle .......................... 72
Washer and wiper systems .........16
Washer fluid ............................... 143
Washing the vehicle ...................171
Welcome lighting ........................100
Wheel changing .........................165
Wheel cover hook .......................156
Wheel covers ............................. 161
Wheels and tyres .......................157
Wheel wrench ............................. 156
Wide view mirror ........................... 39
Windows ....................................... 40
Windscreen................................... 40
