Page 42 of 253
40Keys, doors and windows
6. Insert the 4 mm Allen key into the
marked position of the flap-drive
unit. Turn the Allen key clockwise
all the way to the stop, so that the
sideways flaps are swivelled in.
7. Open the soft top lid to its end position.
8. Remove plastic covers on both sides by pushing and sliding
backwards, see illustration.
9. At the hinges on each side there are visible marks.
10. Haul in the attached strings around the marked position at the
hinge on both sides and pull the
end of the string through the loop, as shown in the illustration.
11. Deposit the end of the strings at the front.
Page 43 of 253
Keys, doors and windows41
12.Pull out the soft top by lifting up the
front bow ( 1) and simultaneously
the tension bow ( 2) on both sides.
13. Move the front bow ( 1) to the
windscreen frame.
14. Remove the small lid in the windscreen frame trim using a
screwdriver which is inserted in
the recess of the lid.
15. Insert the 6 mm Allen key into the
closure and lock the latch by
turning the Allen key clockwise to
its end position.
16. Lift up the tension bow ( 2) of the
soft top on both sides. Raise up
soft top lid by pushing slowly
approx. to the half raised position
and then let it slide into the closed position.
17. Lower the tension bow ( 2) of the
soft top.
Note
In this position, the vehicle can be
driven to a workshop for soft top
overhaul. The soft top is not
completely waterproof and not
latched at the rear.
To latch the soft top completely,
execute the following step.
Page 84 of 253

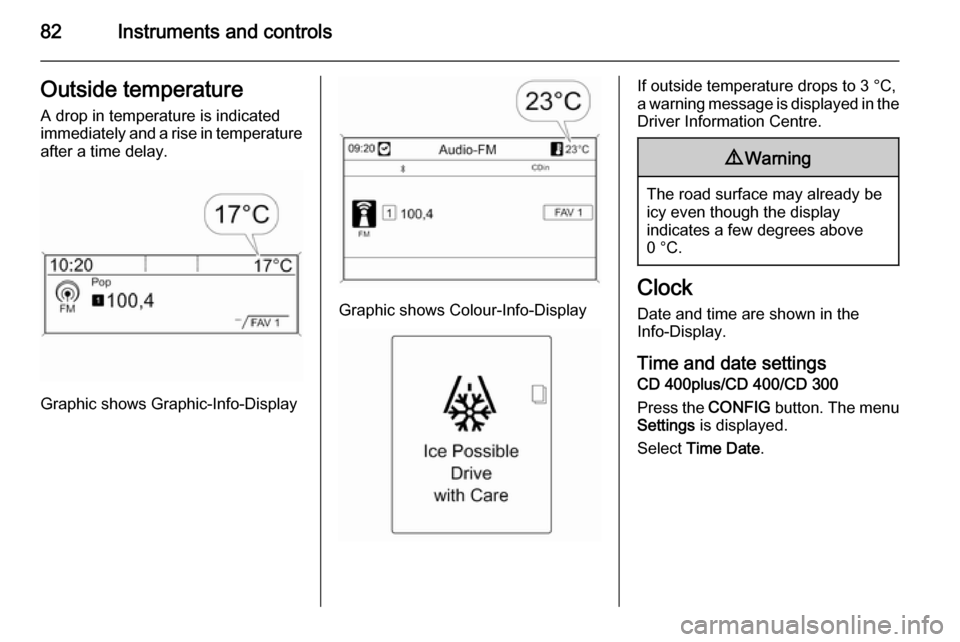

82Instruments and controlsOutside temperature
A drop in temperature is indicated
immediately and a rise in temperature
after a time delay.
Graphic shows Graphic-Info-Display
Graphic shows Colour-Info-Display
If outside temperature drops to 3 °C,
a warning message is displayed in the Driver Information Centre.9 Warning
The road surface may already be
icy even though the display
indicates a few degrees above
0 °C.
Clock
Date and time are shown in the
Info-Display.
Time and date settings
CD 400plus/CD 400/CD 300
Press the CONFIG button. The menu
Settings is displayed.
Select Time Date .
Page 85 of 253

Instruments and controls83
Selectable setting options:■ Set time: : Changes the time shown
on the display.
■ Set date: : Changes the date shown
on the display.
■ Set time format : Changes
indication of hours between 12 h
and 24 h.
■ Set date format : Changes
indication of date between MM/DD/
YYYY and DD.MM.YYYY .
■Display clock : Switches on/off
indication of time on the display.
■ RDS clock synchronization : The
RDS signal of most VHF
transmitters automatically sets the
time. RDS time synchronisation
can take a few minutes. Some
transmitters do not send a correct
time signal. In such cases, it is
recommended to switch off
automatic time synchronisation.
Vehicle personalisation 3 104.
Time and date settings
Navi 950/Navi 650/CD 600
Press the Config button and then
select the Time and Date menu item
to display the respective submenu.
Note
If RDS Auto Time Adjust is activated,
time and date are automatically set
by the system.
See Infotainment system manual for further information.
Set time
To adjust the time settings, select the
Set Time menu item. Turn the
multifunction knob to adjust the first
setting.
Press the multifunction knob to
confirm the input. The coloured
background moves to the next
setting.
Page 107 of 253
Instruments and controls105
Press the CONFIG button. The menu
Settings is displayed.
The following settings can be
selected by turning and pressing the
multifunction knob:
■ Sport mode settings
■ Languages
■ Time Date
■ Radio settings
■ Phone settings
■ Vehicle settings
In the corresponding submenus the
following settings can be changed:
Sport mode settings
The driver can select the functions
which will be activated in Sport mode
3 149.
■ Sport suspension : Damping
becomes harder.
■ Sport powertrain performance :
Accelerator pedal and gear change
characteristics become more
responsive.■ Sport steering : Steering support is
reduced.
■ Swap backlight colour main instr. :
Changes the instrument
illumination colour.
Languages
Selection of the desired language.
Time Date
See Clock 3 82.
Radio settings
See Infotainment system manual for further information.
Phone settings
See Infotainment system manual for
further information.
Page 180 of 253
178Driving and operating
Fitting the coupling ball bar
Disengage and fold down the socket.Remove the sealing plug from the
opening for the coupling ball bar and
stow it.
Checking the tensioning of the
coupling ball bar
■ Red marking on rotary knob must
point towards green marking on
coupling ball bar.
■ The gap between the rotary knob and the coupling ball bar must beapprox. 6 mm.
■ The key must be in position c.
Otherwise, the coupling ball bar must be tensioned before being inserted:
■ Unlock coupling ball bar by turning key to position c.
■ Pull out rotary knob and turn
clockwise as far as it will go.
Inserting the coupling ball bar
Page 182 of 253
180Driving and operating
Open the protective flap and turn the
key to position c to unlock the
coupling ball bar.
Pull out rotary handle and turn
clockwise as far as it will go. Pull out coupling ball bar downwards.
Insert sealing plug in opening. Fold away socket.
Stow and secure the coupling ball bar
as mentioned above.
Page 192 of 253
190Vehicle care
Low/High beam (1)
1. Rotate the cap (1) anticlockwiseand remove it.
2. Rotate the bulb holderanticlockwise to disengage.
Withdraw the bulb holder from the
reflector.
3. Disengage the bulb holder from the plug connector by pressing
the retaining lug.
4. Replace the bulb and connect bulb holder with the plug
connector.
5. Insert the bulb holder, engaging the two lugs into the reflector and
rotate clockwise to secure.
6. Fit the cap and rotate clockwise.
Sidelight/Daytime running light
(2)
1. Rotate bulb socket (2) anticlockwise to disengage.
Withdraw the bulb socket from the
reflector.
