2015 OPEL ASTRA J stop start

12In brief
1Power windows .....................33
2 Exterior mirrors .....................31
3 Cruise control .....................179
Speed limiter ....................... 181
Adaptive cruise control .......182
Forward collision alert .........189
4 Side air vents ...................... 158
5 Turn and lane-change
signals, headlight flash,
low beam and high beam,
high beam assist .................144
Exit lighting ......................... 148
Parking lights ...................... 145
Buttons for Driver
Information Centre ..............119
6 Instruments ........................ 108
7 Steering wheel controls .....100
8 Driver Information Centre .... 119
9 Windscreen wiper,
windscreen washer
system, headlight washer
system, rear wiper, rear
washer system ....................10210Sport mode ........................ 177
Central locking system ..........23
Fuel selector ....................... 109
Hazard warning flashers ....144
Control indicator for airbag
deactivation ........................ 113
Control indicator for front
passenger seat belt ...........113
Tour mode .......................... 177
11 Info-Display ........................ 124
12 Anti-theft alarm system
status LED ........................... 29
13 Centre air vents .................. 158
14 Glovebox .............................. 60
15 Traction Control system .....174
Electronic Stability Control . 175
Parking assist systems .......195
Lane departure warning .....209
Eco button for stop-start
system ................................. 163
Unlock button for boot lid ......2616Climate control system ........ 150
17 AUX input, USB input, SD
card slot ................................ 11
18 Power outlet ........................ 106
19 Selector lever, manual
transmission ....................... 171
Automatic transmission ......167
20 Electric parking brake .........172
21 Ignition switch with
steering wheel lock ............161
22 Horn ................................... 101
Driver airbag ........................ 50
23 Bonnet release lever ..........224
24 Storage compartment,
fuse box ............................. 253
25 Steering wheel adjustment 100
26 Light switch ........................ 137
Headlight range
adjustment ......................... 139
Front fog lights ...................144
Rear fog light ...................... 145
Instrument illumination .......146

In brief19
Starting the engine
■ Turn key to position 1
■ move the steering wheel slightly to release the steering wheel lock
■ operate clutch and brake
■ automatic transmission in P or N
■ do not operate accelerator pedal
■ diesel engines: turn the key to position 2 for preheating and wait
until control indicator !
extinguishes
■ turn key to position 3 and release
Starting the engine 3 161.
Stop-start system
If the vehicle is at a low speed or at a
standstill and certain conditions are
fulfilled, activate an Autostop as
follows:
■ Depress the clutch pedal
■ set the lever in neutral
■ release the clutch pedal
An Autostop is indicated by the
needle at the AUTOSTOP position in
the tachometer.
To restart the engine, depress the
clutch pedal again.
Stop-start system 3 163.
Parking9 Warning
■ Do not park the vehicle on an
easily ignitable surface. The
high temperature of the exhaust system could ignite the surface.
■ Always apply the parking brake.
Activate the manual parking
brake without pressing the
release button. Apply as firmly
as possible on a downhill slope
or uphill slope. Depress foot
brake at the same time to
reduce operating force.
For vehicles with electric
parking brake, pull switch m for
approx. one second.
The electric parking brake is
applied when control indicator
m illuminates 3 114.
■ Switch off the engine. ■ If the vehicle is on a level surface or uphill slope, engage
first gear or set the selector lever

46Seats, restraints

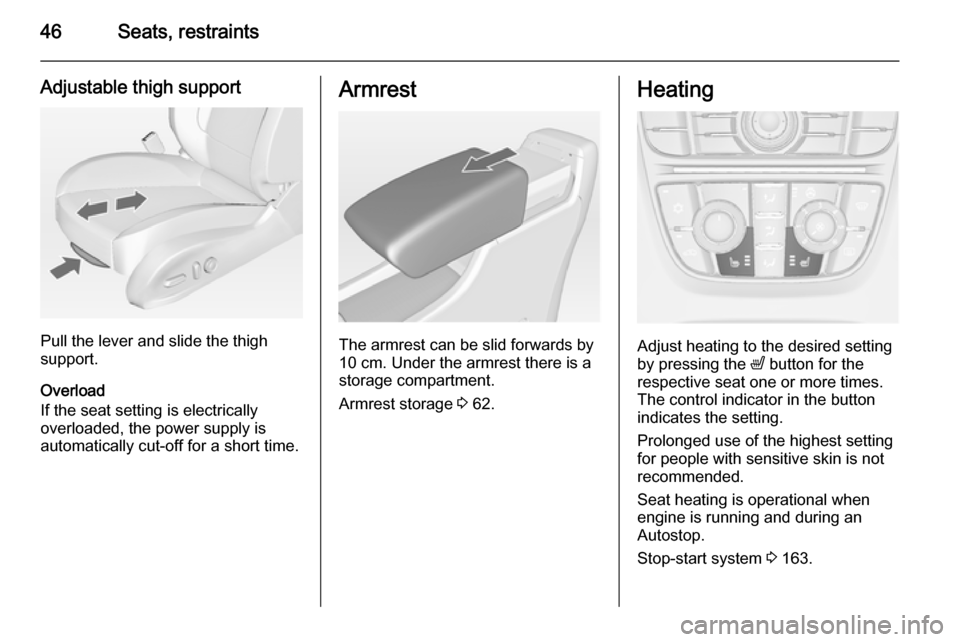

Adjustable thigh support
Pull the lever and slide the thigh
support.
Overload
If the seat setting is electrically
overloaded, the power supply is
automatically cut-off for a short time.
Armrest
The armrest can be slid forwards by
10 cm. Under the armrest there is a
storage compartment.
Armrest storage 3 62.
Heating
Adjust heating to the desired setting
by pressing the ß button for the
respective seat one or more times.
The control indicator in the button
indicates the setting.
Prolonged use of the highest setting
for people with sensitive skin is not
recommended.
Seat heating is operational when engine is running and during an
Autostop.
Stop-start system 3 163.

Instruments and controls101Heated steering wheel
Activate heating by pressing *
button. Activation is indicated by the
LED in the button.
The recommended grip areas of the
steering wheel are heated quicker
and to a higher temperature than the
other areas.
Heating is operational when the
engine is running and during an
Autostop.
Stop-start system 3 163.
Horn
Press j.

Instruments and controls107
A further 12 Volt power outlet is
located in the rear console. Fold the
cover downwards.
Sports tourer: A 12 Volt power outlet
is located at the left sidewall in the
load compartment.
Do not exceed the maximum power
consumption of 120 watts.
With ignition off, the power outlets are
deactivated. Additionally the power
outlets are deactivated in the event of
low vehicle battery voltage.
Electric accessories that are
connected must comply with the
electromagnetic compatibility
requirements laid down in
DIN VDE 40 839.
Do not connect any current-delivering
accessories, e.g. electric charging
devices or batteries.
Do not damage the outlet by using
unsuitable plugs.
Stop-start system 3 163.Cigarette lighter
The cigarette lighter is located in the
front console.
Press in cigarette lighter. It switches off automatically once the element is
glowing. Pull out lighter.
Ashtrays
Caution
To be used only for ash and not forcombustible rubbish.
The portable ashtray can be placed inthe cupholders.

114Instruments and controls
* illuminates yellow.
The front passenger airbag is
deactivated 3 52.9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is
running
Stop, switch off engine. Vehicle
battery is not charging. Engine
cooling may be interrupted. The
brake servo unit may cease to be
effective. Seek the assistance of a
workshop.
Malfunction indicator light
Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine isrunning
Fault in the emission control system. The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Service vehicle soon g illuminates yellow.
Additionally a warning message or a
warning code is displayed.
The vehicle needs a service.
Seek the assistance of a workshop.
Vehicle messages 3 126.
Brake and clutch system
R illuminates red.
The brake and clutch fluid level is too low 3 227.

Instruments and controls1159Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates after the ignition is
switched on if the manual parking
brake is applied 3 172.
Operate pedal - illuminates or flashes yellow.
Illuminates
Brake pedal needs to be depressed
to release the electric parking brake
3 172.
Clutch pedal needs to be depressed
to start the engine in Autostop mode.
Stop-start system 3 163.
Flashes
Clutch pedal needs to be depressed
for a main start of the engine 3 18,
3 161.
On some versions the operate pedal
message is indicated in the Driver
Information Display 3 126.
Electric parking brake
m illuminates or flashes red.
Illuminates Electric parking brake is applied
3 172.
Flashes Electric parking brake is not fullyapplied or released. Switch on
ignition, depress brake pedal and attempt to reset the system by first
releasing and then applying the
electric parking brake. If m remains
flashing, do not drive and seek the
assistance of a workshop.
Electric parking brake fault
j illuminates or flashes yellow.
Illuminates Electric parking brake is operating
with degraded performance 3 172.Flashes
Electric parking brake is in servicemode. Stop vehicle, apply and
release the electric parking brake to
reset.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Antilock brake system
(ABS) u illuminates yellow.
Illuminates for a few seconds after the ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the
ABS. The brake system remains
operational but without ABS
regulation.
Antilock brake system 3 171.

116Instruments and controlsUpshift[ illuminates green as a control
indicator, or is shown as a symbol in
the Driver Information Centre with
Uplevel-Combi-Display, when
upshifting is recommended for fuel
saving reasons.
On some versions, gearshift
indication is popped-up as full page in the Driver Information Centre.
EcoFlex drive assistant 3 129.
Power steering c illuminates yellow.
Illuminates with power steering reduced Power steering is reduced due to
overheating of the system. Control
indicator extinguishes when the
system has cooled down.
Stop-start system 3 163.Illuminates with power steering
disabled
Failure in the power steering system.
Consult a workshop.
Lane departure warning ) illuminates green or flashes yellow.
Illuminates green
System is switched on and ready to operate.
Flashes yellow
System recognises an unintended
lane change.
Ultrasonic parking assist
r illuminates yellow.
Fault in system
or
Fault due to sensors that are dirty or
covered by ice or snow
orInterference due to external sources of ultrasound. Once the source ofinterference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Ultrasonic parking assist 3 195.
Electronic Stability Control
off n illuminates yellow.
The system is deactivated.
Electronic Stability Control
and Traction Control
system
b illuminates or flashes yellow.
Illuminates
A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.
