2015 NISSAN VERSA SEDAN fog light

1. Engine hood (P. 3-24)
2. Windshield (P. 8-18)
3. Windshield wiper and washer switch(P. 2-20)
4. Power windows (if so equipped) ,
manual windows (if so equipped)
(P. 2-29, 2-29)
5. Door locks, NISSAN Intelligent Key®
(if so equipped) , key fob (if so
equipped) , keys (P. 3-5, 3-2, 3-2, 3-2)
6. Mirrors (P. 3-31)
7. Tire pressure (P. 8-31)
8. Flat tire (P. 6-3)
9. Tire chains (P. 8-38)
10. Headlight and turn signal switch
(P. 2-22)
11. Replacing bulbs (P. 8-25)
12. Fog lamp switch (if so equipped)
(P. 2-25)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2160
EXTERIOR FRONT
Illustrated table of contents0-3

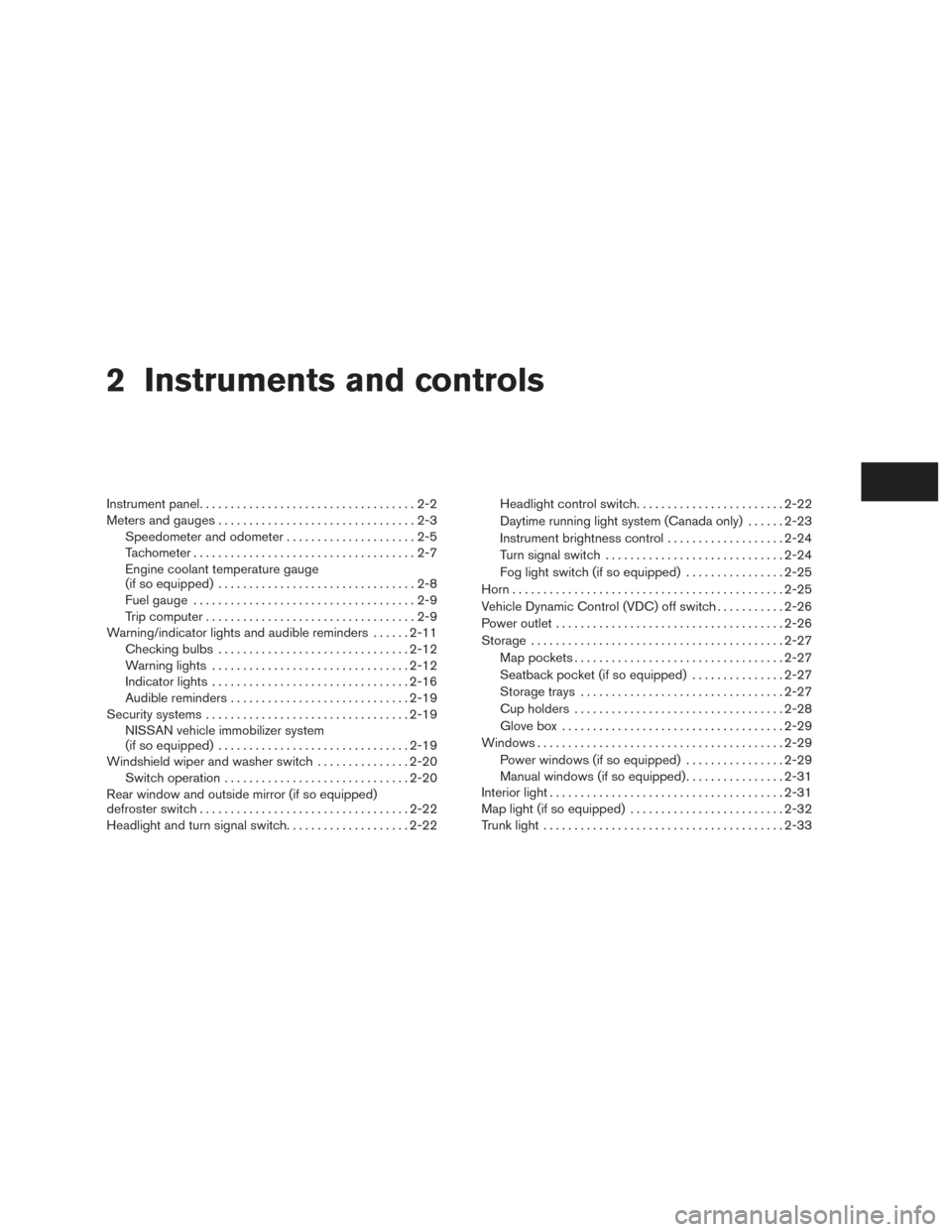

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-5
Tachometer ....................................2-7
Engine coolant temperature gauge
(if so equipped) ................................2-8
Fuel gauge ....................................2-9
Trip computer ..................................2-9
Warning/indicator lights and audible reminders ......2-11
Checking bulbs ............................... 2-12
Warning lights ................................ 2-12
Indicator lights ................................ 2-16
Audible reminders ............................. 2-19
Security systems ................................. 2-19
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-19
Windshield wiper and washer switch ...............2-20
Switch operation .............................. 2-20
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-22
Headlight and turn signal switch ....................2-22Headlight control switch
........................ 2-22
Daytime running light system (Canada only) ......2-23
Instrument brightness control ...................2-24
Turn signal switch ............................. 2-24
Fog light switch (if so equipped) ................2-25
Horn ............................................ 2-25
Vehicle Dynamic Control (VDC) off switch ...........2-26
Power outlet ..................................... 2-26
Storage ......................................... 2-27
Map pockets .................................. 2-27
Seatback pocket (if so equipped) . . .............2-27
Storage trays ................................. 2-27
Cup holders .................................. 2-28
Glove box .................................... 2-29
Windows ........................................ 2-29
Power windows (if so equipped) ................2-29
Manual windows (if so equipped) ................2-31
Interior light ...................................... 2-31
Map
light (if so equipped) ......................... 2-32
Trunk light ....................................... 2-33

Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.

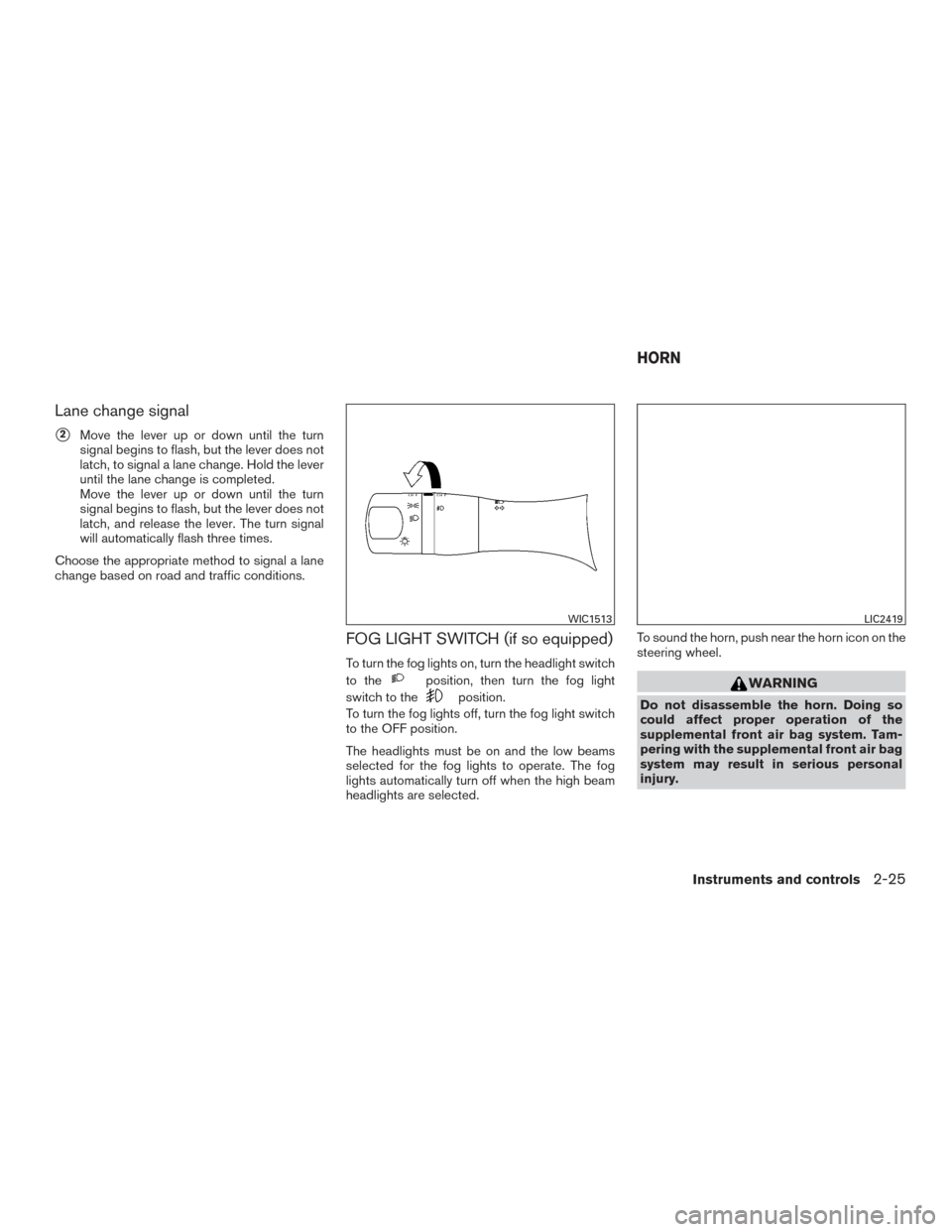

FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected. To sound the horn, push near the horn icon on the
steering wheel.WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
WIC1513LIC2419
HORN
Instruments and controls2-25

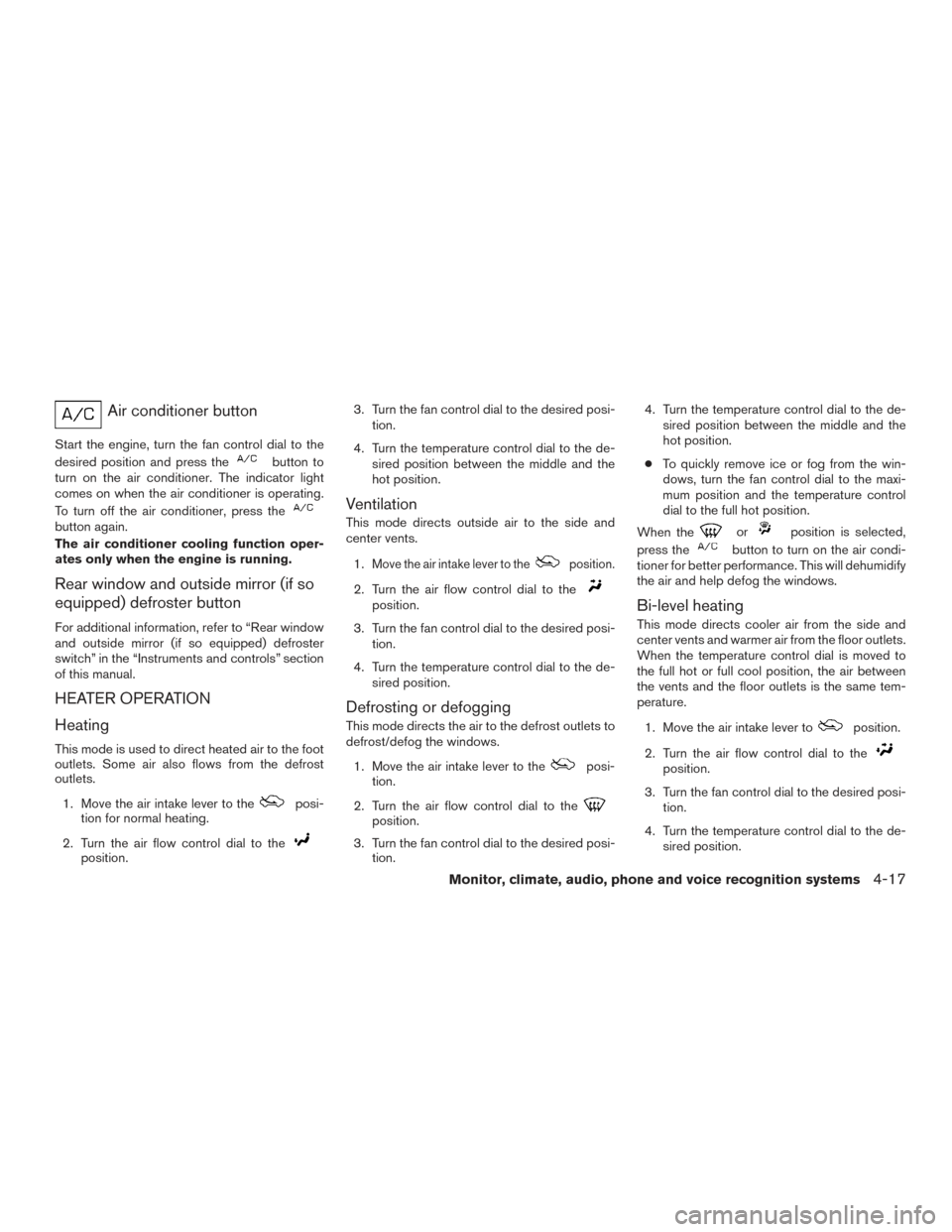

Air conditioner button
Start the engine, turn the fan control dial to the
desired position and press the
button to
turn on the air conditioner. The indicator light
comes on when the air conditioner is operating.
To turn off the air conditioner, press the
button again.
The air conditioner cooling function oper-
ates only when the engine is running.
Rear window and outside mirror (if so
equipped) defroster button
For additional information, refer to “Rear window
and outside mirror (if so equipped) defroster
switch” in the “Instruments and controls” section
of this manual.
HEATER OPERATION
Heating
This mode is used to direct heated air to the foot
outlets. Some air also flows from the defrost
outlets.
1. Move the air intake lever to the
posi-
tion for normal heating.
2. Turn the air flow control dial to the
position. 3. Turn the fan control dial to the desired posi-
tion.
4. Turn the temperature control dial to the de- sired position between the middle and the
hot position.
Ventilation
This mode directs outside air to the side and
center vents.
1.
Move the air intake lever to theposition.
2. Turn the air flow control dial to theposition.
3. Turn the fan control dial to the desired posi- tion.
4. Turn the temperature control dial to the de- sired position.
Defrosting or defogging
This mode directs the air to the defrost outlets to
defrost/defog the windows.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion. 4. Turn the temperature control dial to the de-
sired position between the middle and the
hot position.
● To quickly remove ice or fog from the win-
dows, turn the fan control dial to the maxi-
mum position and the temperature control
dial to the full hot position.
When the
orposition is selected,
press the
button to turn on the air condi-
tioner for better performance. This will dehumidify
the air and help defog the windows.
Bi-level heating
This mode directs cooler air from the side and
center vents and warmer air from the floor outlets.
When the temperature control dial is moved to
the full hot or full cool position, the air between
the vents and the floor outlets is the same tem-
perature.
1. Move the air intake lever to
position.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion.
4. Turn the temperature control dial to the de- sired position.

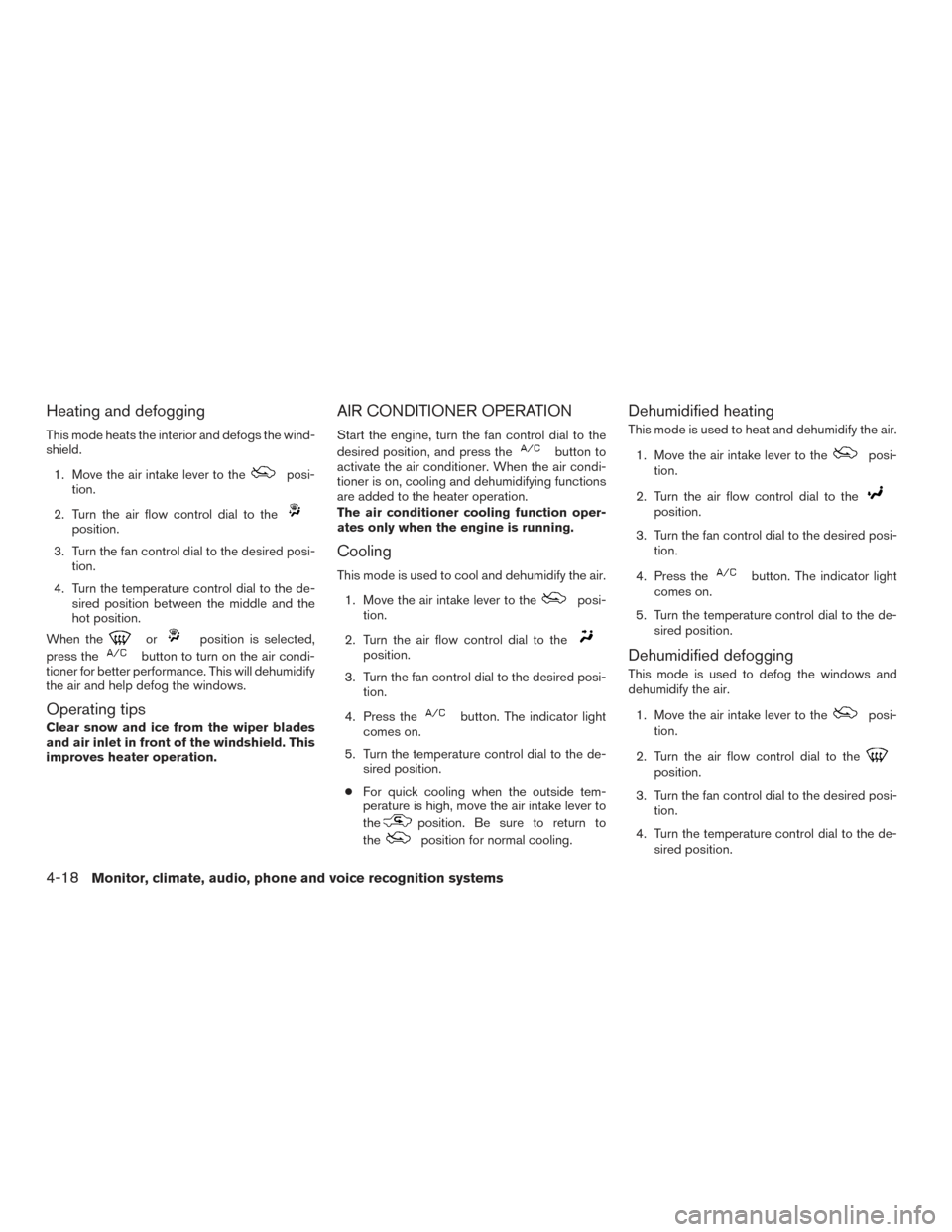

Monitor, climate, audio, phone and voice recognition systems4-17

Heating and defogging
This mode heats the interior and defogs the wind-
shield.1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion.
4. Turn the temperature control dial to the de- sired position between the middle and the
hot position.
When the
orposition is selected,
press the
button to turn on the air condi-
tioner for better performance. This will dehumidify
the air and help defog the windows.
Operating tips
Clear snow and ice from the wiper blades
and air inlet in front of the windshield. This
improves heater operation.
AIR CONDITIONER OPERATION
Start the engine, turn the fan control dial to the
desired position, and press the
button to
activate the air conditioner. When the air condi-
tioner is on, cooling and dehumidifying functions
are added to the heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.
Cooling
This mode is used to cool and dehumidify the air.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion.
4. Press the
button. The indicator light
comes on.
5. Turn the temperature control dial to the de- sired position.
● For quick cooling when the outside tem-
perature is high, move the air intake lever to
the
position. Be sure to return to
the
position for normal cooling.
Dehumidified heating
This mode is used to heat and dehumidify the air.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion.
4. Press the
button. The indicator light
comes on.
5. Turn the temperature control dial to the de- sired position.
Dehumidified defogging
This mode is used to defog the windows and
dehumidify the air.
1. Move the air intake lever to the
posi-
tion.
2. Turn the air flow control dial to the
position.
3. Turn the fan control dial to the desired posi- tion.
4. Turn the temperature control dial to the de- sired position.
4-18Monitor, climate, audio, phone and voice recognition systems

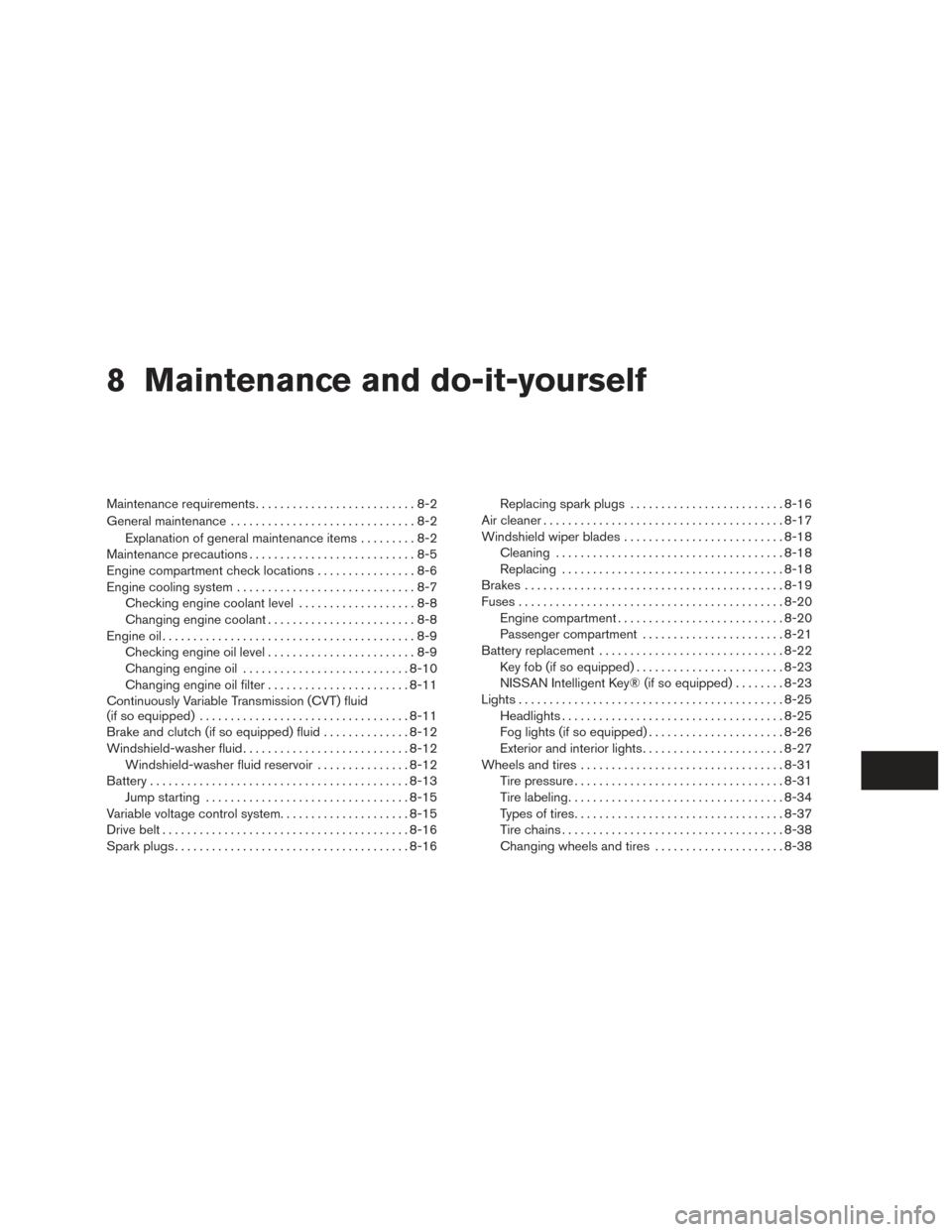

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Engine oil .........................................8-9
Checking engine oil level ........................8-9
Changing engine oil ........................... 8-10
Changing engine oil filter .......................8-11
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-11
Brake and clutch (if so equipped) fluid ..............8-12
Windshield-washer fluid ........................... 8-12
Windshield-washer fluid reservoir ...............8-12
Battery .......................................... 8-13
Jump starting ................................. 8-15
Variable voltage control system .....................8-15
Drive belt ........................................ 8-16
Spark plugs ...................................... 8-16Replacing spark plugs
......................... 8-16
Air cleaner ....................................... 8-17
Windshield wiper blades .......................... 8-18
Cleaning ..................................... 8-18
Replacing .................................... 8-18
Brakes .......................................... 8-19
Fuses ........................................... 8-20
Engine compartment ........................... 8-20
Passenger compartment .......................8-21
Battery replacement .............................. 8-22
Key fob (if so equipped) ........................ 8-23
NISSAN Intelligent Key® (if so equipped) ........8-23
Lights ........................................... 8-25
Headlights .................................... 8-25
Fog lights (if so equipped) ......................8-26
Exterior and interior lights .......................8-27
Wheels

and tires ................................. 8-31
Tire pressure .................................. 8-31
Tire labeling ................................... 8-34
Types of tires .................................. 8-37
Tire chains .................................... 8-38
Changing wheels and tires .....................8-38

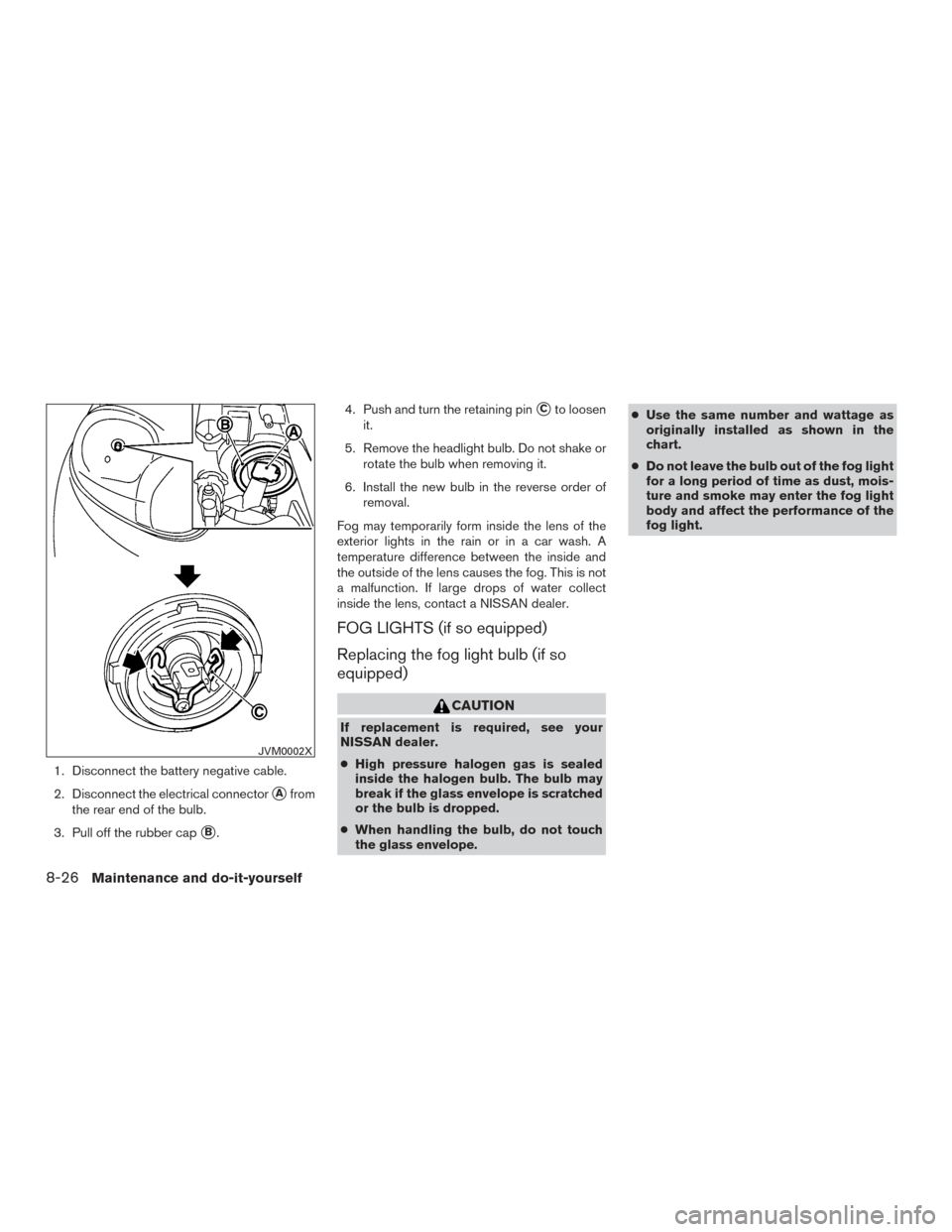

1. Disconnect the battery negative cable.
2. Disconnect the electrical connector
Afrom
the rear end of the bulb.
3. Pull off the rubber cap
B. 4. Push and turn the retaining pin
Cto loosen
it.
5. Remove the headlight bulb. Do not shake or rotate the bulb when removing it.
6. Install the new bulb in the reverse order of removal.
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
FOG LIGHTS (if so equipped)
Replacing the fog light bulb (if so
equipped)
CAUTION
If replacement is required, see your
NISSAN dealer.
● High pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is scratched
or the bulb is dropped.
● When handling the bulb, do not touch
the glass envelope. ●
Use the same number and wattage as
originally installed as shown in the
chart.
● Do not leave the bulb out of the fog light
for a long period of time as dust, mois-
ture and smoke may enter the fog light
body and affect the performance of the
fog light.
JVM0002X
8-26Maintenance and do-it-yourself

EXTERIOR AND INTERIOR LIGHTS

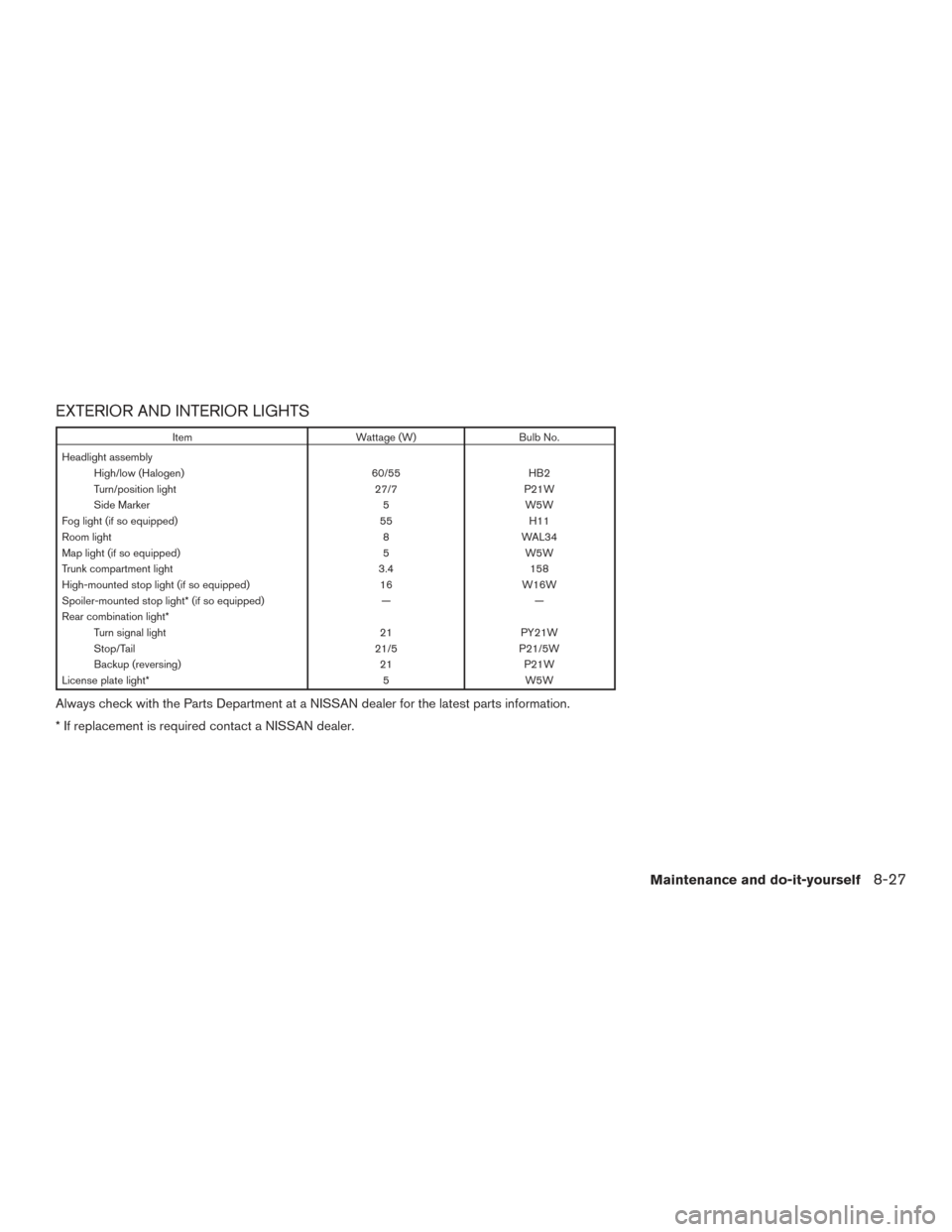

ItemWattage (W)Bulb No.
Headlight assembly High/low (Halogen) 60/55HB2
Turn/position light 27/7P21W
Side Marker 5W5W
Fog light (if so equipped) 55H11
Room light 8WAL34
Map light (if so equipped) 5W5W
Trunk compartment light 3.4158
High-mounted stop light (if so equipped) 16W16W
Spoiler-mounted stop light* (if so equipped) ——
Rear combination light* Turn signal light 21PY21W
Stop/Tail 21/5P21/5W
Backup (reversing) 21P21W
License plate light* 5W5W
Always check with the Parts Department at a NISSAN dealer for the latest parts information.
* If replacement is required contact a NISSAN dealer.
Maintenance and do-it-yourself8-27
