2015 NISSAN VERSA NOTE spark plugs replace

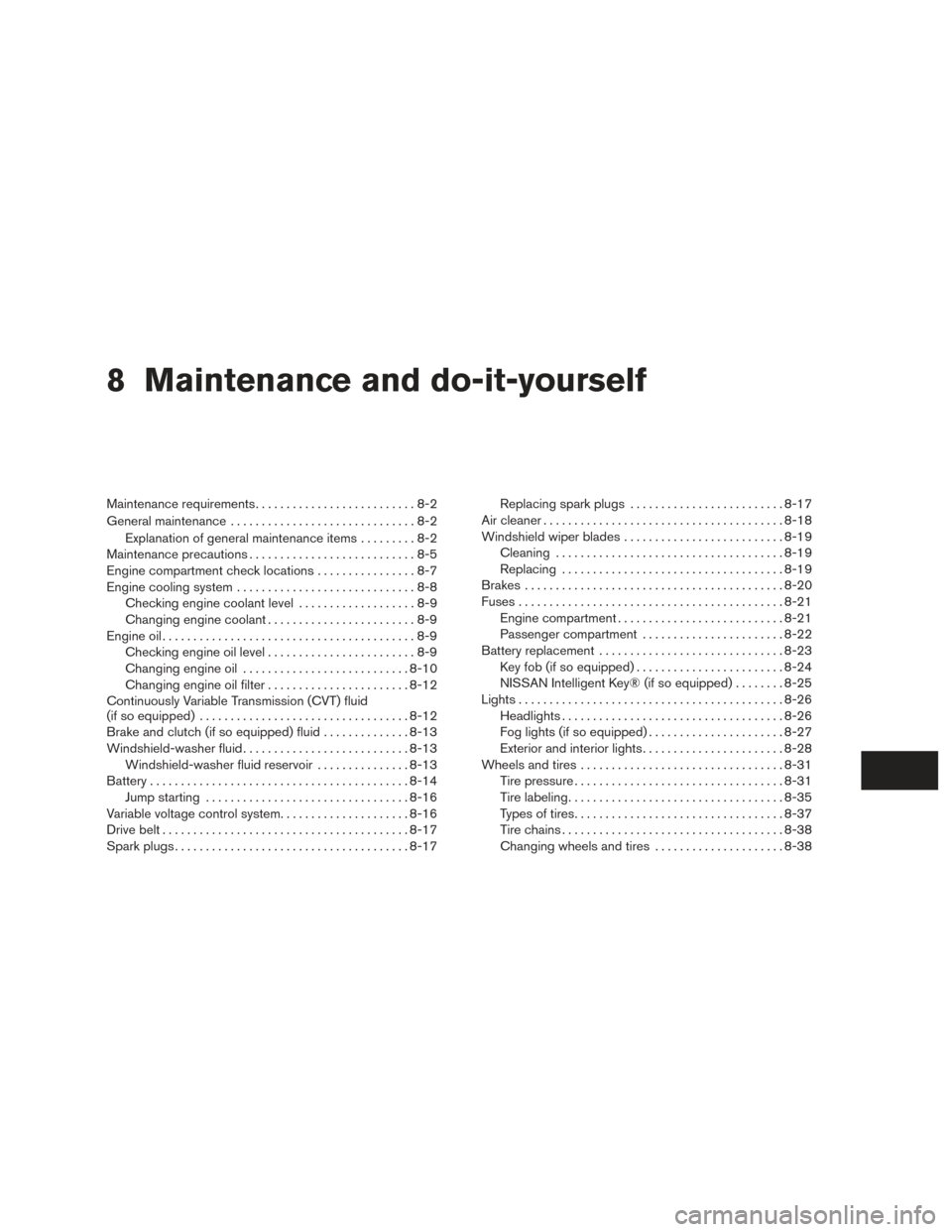

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-7
Engine cooling system .............................8-8
Checking engine coolant level ...................8-9
Changing engine coolant ........................8-9
Engine oil .........................................8-9
Checking engine oil level ........................8-9
Changing engine oil ........................... 8-10
Changing engine oil filter .......................8-12
Continuously Variable Transmission (CVT) fluid
(if so equipped) .................................. 8-12
Brake and clutch (if so equipped) fluid ..............8-13
Windshield-washer fluid ........................... 8-13
Windshield-washer fluid reservoir ...............8-13
Battery .......................................... 8-14
Jump starting ................................. 8-16
Variable voltage control system .....................8-16
Drive belt ........................................ 8-17
Spark plugs ...................................... 8-17Replacing spark plugs
......................... 8-17
Air cleaner ....................................... 8-18
Windshield wiper blades .......................... 8-19
Cleaning ..................................... 8-19
Replacing .................................... 8-19
Brakes .......................................... 8-20
Fuses ........................................... 8-21
Engine compartment ........................... 8-21
Passenger compartment .......................8-22
Battery replacement .............................. 8-23
Key fob (if so equipped) ........................ 8-24
NISSAN Intelligent Key® (if so equipped) ........8-25
Lights ........................................... 8-26
Headlights .................................... 8-26
Fog lights (if so equipped) ......................8-27
Exterior and interior lights .......................8-28
Wheels

and tires ................................. 8-31
Tire pressure .................................. 8-31
Tire labeling ................................... 8-35
Types of tires .................................. 8-37
Tire chains .................................... 8-38
Changing wheels and tires .....................8-38

1. Water pump
2. Generator
3. Manual tensioner
4. Air conditioner compressor
5. Crankshaft pulley
WARNING
Be sure the ignition switch is placed in the
OFF or LOCK position before servicing
drive belt. The engine could rotate
unexpectedly.1. Visually inspect the belt for signs of unusual
wear, cuts, or fraying. If the belt is in poor
condition, have it replaced or adjusted by a
NISSAN dealer.
2. Have the belt checked regularly for condi- tion.
REPLACING SPARK PLUGS
Platinum-tipped spark plugs
It is not necessary to replace platinum-tippedA
spark plugs as frequently as conventional type
spark plugs because they last much longer. Fol-
low the maintenance log shown in the “NISSAN
Service and Maintenance Guide”. Do not service
platinum-tipped spark plugs by cleaning or re-
gapping.
● Always replace spark plugs with rec-
ommended or equivalent ones.
LDI2399SDI1895
DRIVE BELT SPARK PLUGS
Maintenance and do-it-yourself8-17

WARNING
Be sure the engine and ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect socket
can damage the spark plugs.
WARNING
●Operating the engine with the air
cleaner filter off can cause you or others
to be burned. The air cleaner filter not
only cleans the intake air, it also stops
the flame if the engine backfires. If the
air cleaner is not installed and the en-
gine backfires, you could be burned.
Never drive with the air cleaner filter off.
Be cautious working on the engine
when the air cleaner is off.
To remove the filter from the air cleaner, release
the retaining clips
1, then release the holders at
the back of the unit. Pull the unit upward
2. The viscous paper type filter element should not
be cleaned and reused. The dry paper type filter
element may be cleaned and reused. Replace the
air filter according to the maintenance log shown
in a separate maintenance booklet.
When replacing the air filter, wipe the inside of
the air cleaner housing and the cover with a damp
cloth.
LDI2185
AIR CLEANER
8-18Maintenance and do-it-yourself

Side air bag system (See supplemental side
air bag and curtain side-impact air bag
system)......................1-54
Smartphone connectivity............4-75
Spark plug replacement .............8-17
Spark plugs ...................8-17
Specifications ...................9-8
Speedometer ...................2-4
SRS warning label ................1-56
Stability control .................5-29
Starting Before starting the engine ..........5-13
Jump starting .............6-12,8-16
Precautions when starting and driving ....5-2
Push starting .................6-14
Starting the engine .............5-14
Starting the engine ...............5-14
Steering Power steering system ...........5-26
Tilting steering wheel ............3-29
Steering wheel ..................3-29
Steering wheel audio control switch ......4-72
Stoplight.....................8-28
Storage......................2-31
Storage tray ...................2-32
Sun visors ....................3-29
Supplemental air bag warning labels ......1-56
Supplemental air bag warning light . . .1-57, 2-18
Supplemental front impact air bag system . . .1-49
Supplemental restraint system Information and warning labels .......1-56
Precautions on supplemental restraint
system ....................1-42
Supplemental restraint system
(Supplemental air bag system) .........1-42Supplemental side and curtain side-impact
air bag system
..................1-54
Switch Automatic power window switch ......2-39
Foglightswitch ...............2-28
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-25
Headlight control switch ..........2-25
Ignition switch .................5-8
Instrument brightness control ........2-27
Power door lock switch ............3-6
Rear window defroster switch .......2-25
Rear window wiper and washer
switches...................2-24
Turn signal switch ..............2-28
Vehicle dynamic control (VDC) off
switch.....................2-30
Windshield wiper and washer switch . . .2-23
T
Tachometer ....................2-8
Temperature gauge Engine coolant temperature gauge .....2-8
Theft (NISSAN vehicle immobilizer system) ,
engine start ..........2-22,3-4,5-10,5-13
Three-way catalyst ................5-2
Tilting steering wheel ..............3-29
Tire Flat tire .....................6-3
Spare tire ................6-4,8-41
Tire and Loading Information label .....9-12
Tirechains..................8-38
Tire pressure .................8-31
Tirerotation..................8-38 Types of tires
.................8-37
Uniform tire quality grading .........9-17
Wheels and tires ...............8-31
Wheel/tire size .................9-9
Tire

pressure
Low tire pressure warning light .......2-15
Tire Pressure Monitoring System (TPMS) ....5-3
Top tether strap child restraint .........1-25
Towing Flattowing..................9-17
Towtrucktowing...............6-15
Trailer towing .................9-17
Towing a trailer ..................9-17
Transmission Continuously Variable Transmission (CVT)
fluid......................8-12
Driving with Continuously Variable
Transmission (CVT) .............5-15
Driving with manual transmission ......5-18
Transmission shift lever lock release ......5-17
Travel (See registering your vehicle in another
country) ......................9-10
Trip computer ..................2-10
Trip odometer ...................2-5
Troubleshooting guide
(NISSAN voice recognition system) .....4-102
Turn signal switch ................2-28
U
Uniform tire quality grading ...........9-17
USB interface ...............4-61,4-63
Audio file operation ..........4-62,4-64
10-6
