2015 NISSAN TITAN fog light

1. Engine hood (P. 3-11)
2. Windshield wiper and washer switch(P. 2-30)
3. Windshield-washer fluid (P. 8-14)
4. Power windows (P. 2-54)
5. Door locks, key fob, keys (P. 3-3, 3-2)
6. Mirrors (P. 3-16)
7. Tire pressure (P. 8-34)
8. Flat tire (P. 6-2)
9. Tire chains (P. 8-34)
10. Replacing bulbs (P. 8-28)
11. Headlight and turn signal switch
(P. 2-32)
12. Fog light switch (if so equipped)
(P. 2-32)
13. Recovery hooks (if so equipped)
(P. 6-14)
See the page number indicated in paren-
theses for operating details.
LII2228
EXTERIOR FRONT
Illustrated table of contents0-3

1. Vents (P. 4-15)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-32)
3. Steering wheel switch for audio control
(if so equipped)/Bluetooth® Hands-
Free Phone System (if so equipped)
(P. 4-27)
4. Instrument brightness control (P. 2-36)
5. Driver supplemental air bag/horn
(P. 1-50, P. 2-37)
6. Meters, gauges and warning/indicator
lights (P. 2-3, 2-12)
7. Cruise control main/set switches
(if so equipped) (P. 5-20)
8. Shift lever (column) (if so equipped)
(P. 5-14)
9. Windshield wiper/washer switch
(P. 2-30)
10. Navigation system* (if so equipped)
(P. 4-4)
11. Climate controls (P. 4-15, P. 4-24)
12. Front passenger supplemental air bag
(P. 1-50)
13. Glove box (P. 2-48)
14. Storage tray (P. 2-46)
15. Front passenger air bag status light
(P. 1-59)
LIC2437
INSTRUMENT PANEL
0-6Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-13
Automatic transmis-
sion check warning
light2-13
Automatic transmis-
sion park warning
light (
model)2-13
or
Brake warning light 2-13
Charge warning
light
2-14
Warning
light Name Page
Engine oil pressure
low/engine coolant
temperature high
warning light (if so
equipped) 2-14
4WD warning light
(
model)
2-15
Low fuel warning
light 2-15
Low tire pressure
warning light2-15
Low windshield-
washer fluid warning
light2-17
Master warning light 2-17
Seat belt warning
light and chime
2-17
Warning
light Name Page
Supplemental air
bag warning light 2-17
Indicator
light Name Page
Electronic locking
rear differential (E-
Lock) system on
indicator light (if so
equipped) 2-18
Front fog light indi-
cator light (if so
equipped)
2-18
Front passenger air
bag status light
2-18
High beam indicator
light (Blue)2-18

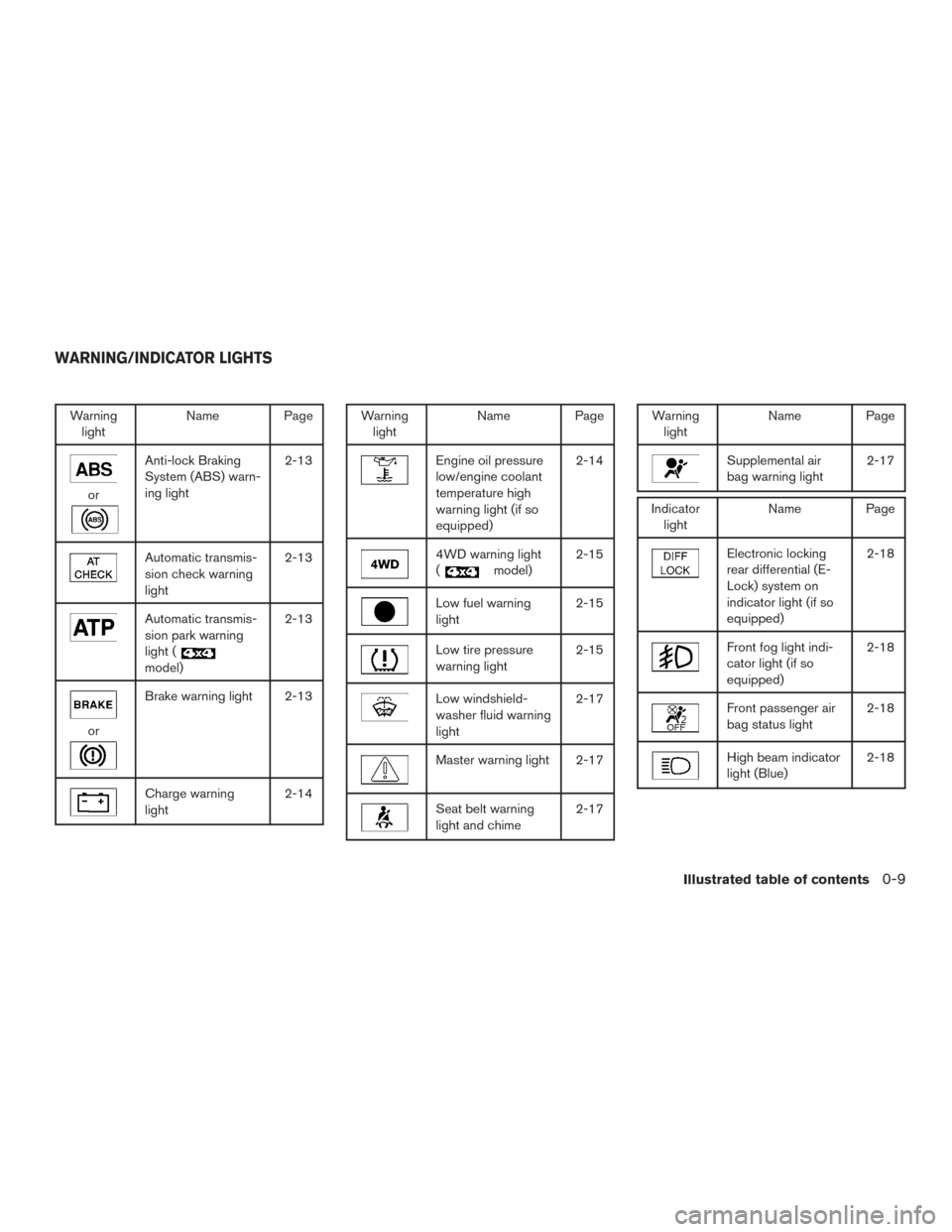

WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

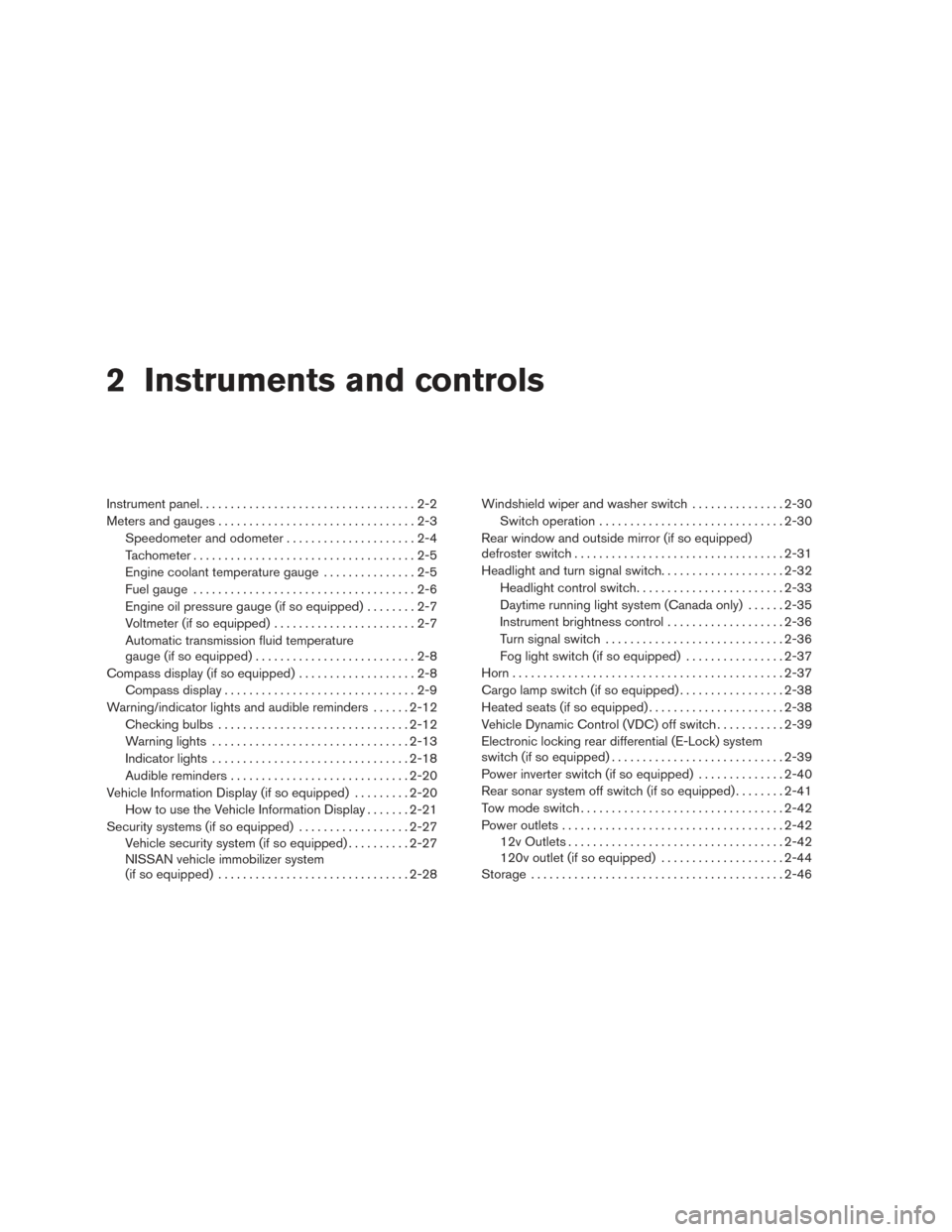

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Engine oil pressure gauge (if so equipped) ........2-7
Voltmeter (if so equipped) .......................2-7
Automatic transmission fluid temperature
gauge (if so equipped) ..........................2-8
Compass display (if so equipped) ...................2-8
Compass display ...............................2-9
Warning/indicator lights and audible reminders ......2-12
Checking bulbs ............................... 2-12
Warning lights ................................ 2-13
Indicator lights ................................ 2-18
Audible reminders ............................. 2-20
Vehicle Information Display (if so equipped) .........2-20
How to use the Vehicle Information Display .......2-21
Security systems (if so equipped) ..................2-27
Vehicle security system (if so equipped) ..........2-27
NISSAN vehicle immobilizer system
(if so equipped) ............................... 2-28Windshield wiper and washer switch
...............2-30
Switch operation .............................. 2-30
Rear window and outside mirror (if so equipped)
defroster switch .................................. 2-31
Headlight and turn signal switch ....................2-32
Headlight control switch ........................ 2-33
Daytime running light system (Canada only) ......2-35
Instrument brightness control ...................2-36
Turn signal switch ............................. 2-36
Fog light switch (if so equipped) ................2-37
Horn ............................................ 2-37
Cargo lamp switch (if so equipped) .................2-38
Heated seats (if so equipped) ......................2-38
Vehicle Dynamic Control (VDC) off switch ...........2-39
Electronic locking rear differential (E-Lock) system
switch (if so equipped) ............................ 2-39
Power inverter switch (if so equipped) ..............2-40
Rear sonar system off switch (if so equipped) ........2-41
T
ow mode switch ................................. 2-42
Power outlets .................................... 2-42
12v Outlets ................................... 2-42
120v outlet (if so equipped) ....................2-44
Storage ......................................... 2-46

1. Vents (P. 4-15)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-32)
3. Steering wheel switch for audio control
(if so equipped)/Bluetooth® Hands-
Free Phone System (if so equipped)
(P. 4-27)
4. Instrument brightness control (P. 2-36)
5. Driver supplemental air bag/horn
(P. 1-50, P. 2-37)
6. Meters, gauges and warning/indicator
lights (P. 2-3, 2-12)
7. Cruise control main/set switches
(if so equipped) (P. 5-20)
8. Shift lever (column) (if so equipped)
(P. 5-14)
9. Windshield wiper/washer switch
(P. 2-30)
10. Navigation system* (if so equipped)
(P. 4-4)
11. Climate controls (P. 4-15, P. 4-24)
12. Front passenger supplemental air bag
(P. 1-50)
13. Glove box (P. 2-48)
14. Storage tray (P. 2-46)
15. Front passenger air bag status light
(P. 1-59)
LIC2437
INSTRUMENT PANEL
2-2Instruments and controls

orAnti-lock Braking System (ABS)
warning lightLow tire pressure warning lightHigh beam indicator light (Blue)
Automatic transmission check warning lightLow windshield-washer fluid warning lightMalfunction Indicator Light (MIL)
Automatic transmission park warning light
(model)Master warning lightSecurity indicator light (if so equipped)
orBrake warning lightSeat belt warning light and chimeSlip indicator light
Charge warning lightSupplemental air bag warning lightTurn signal/hazard indicator lights
Engine oil pressure low/engine coolant tem-
perature high warning light (if so equipped)Electronic locking rear differential (E-Lock)
system on indicator light (if so equipped)Vehicle Dynamic Control (VDC) off indicator
light
4WD warning light (model)Front fog light indicator light (if so equipped)
Low fuel warning lightFront passenger air bag status light

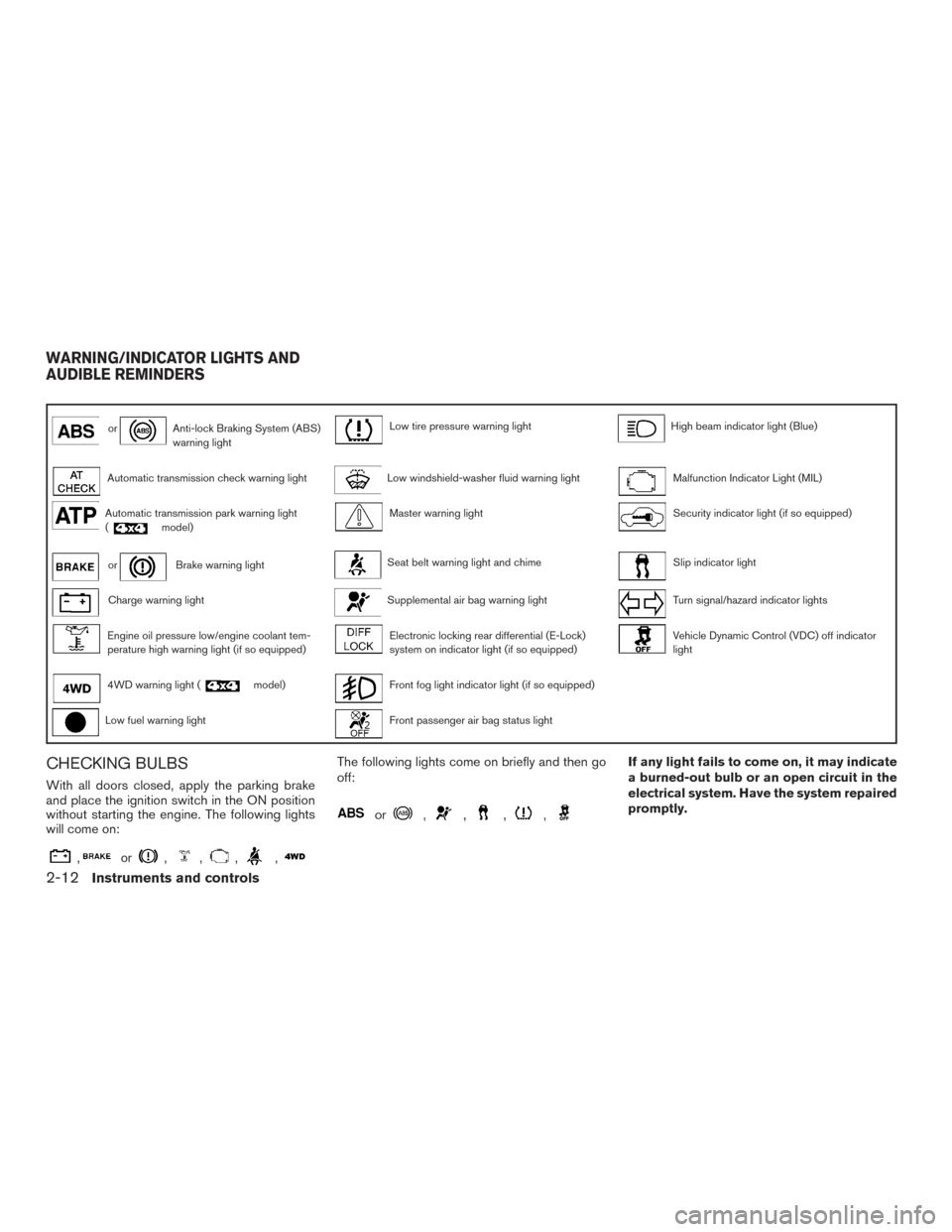

CHECKING BULBS
With all doors closed, apply the parking brake
and place the ignition switch in the ON position
without starting the engine. The following lights
will come on:
,or,,,,
The following lights come on briefly and then go
off:
or,,,,
If any light fails to come on, it may indicate
a burned-out bulb or an open circuit in the
electrical system. Have the system repaired
promptly.
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
2-12Instruments and controls

WARNING
If the supplemental air bag warning light
is on, it could mean that the front air bag,
side air bag, curtain air bag and/or preten-
sioner systems will not operate in an acci-
dent. To help avoid injury to yourself or
others, have your vehicle checked by a
NISSAN dealer as soon as possible.

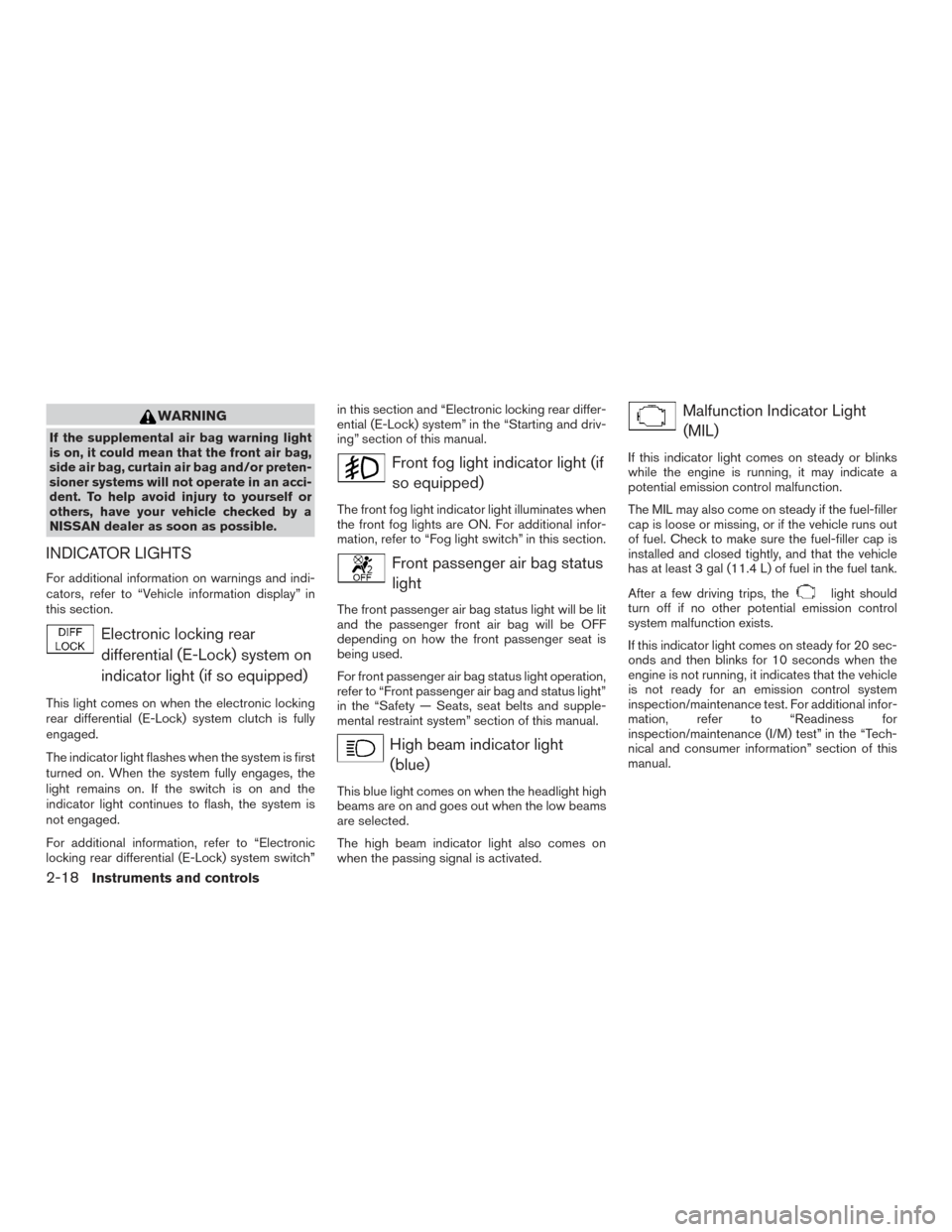

INDICATOR LIGHTS
For additional information on warnings and indi-
cators, refer to “Vehicle information display” in
this section.
Electronic locking reardifferential (E-Lock) system on
indicator light (if so equipped)
This light comes on when the electronic locking
rear differential (E-Lock) system clutch is fully
engaged.
The indicator light flashes when the system is first
turned on. When the system fully engages, the
light remains on. If the switch is on and the
indicator light continues to flash, the system is
not engaged.
For additional information, refer to “Electronic
locking rear differential (E-Lock) system switch” in this section and “Electronic locking rear differ-
ential (E-Lock) system” in the “Starting and driv-
ing” section of this manual.
Front fog light indicator light (if
so equipped)
The front fog light indicator light illuminates when
the front fog lights are ON. For additional infor-
mation, refer to “Fog light switch” in this section.
Front passenger air bag statuslight
The front passenger air bag status light will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For front passenger air bag status light operation,
refer to “Front passenger air bag and status light”
in the “Safety — Seats, seat belts and supple-
mental restraint system” section of this manual.
High beam indicator light(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The MIL may also come on steady if the fuel-filler
cap is loose or missing, or if the vehicle runs out
of fuel. Check to make sure the fuel-filler cap is
installed and closed tightly, and that the vehicle
has at least 3 gal (11.4 L) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle
is not ready for an emission control system
inspection/maintenance test. For additional infor-
mation, refer to “Readiness for
inspection/maintenance (I/M) test” in the “Tech-
nical and consumer information” section of this
manual.
2-18Instruments and controls

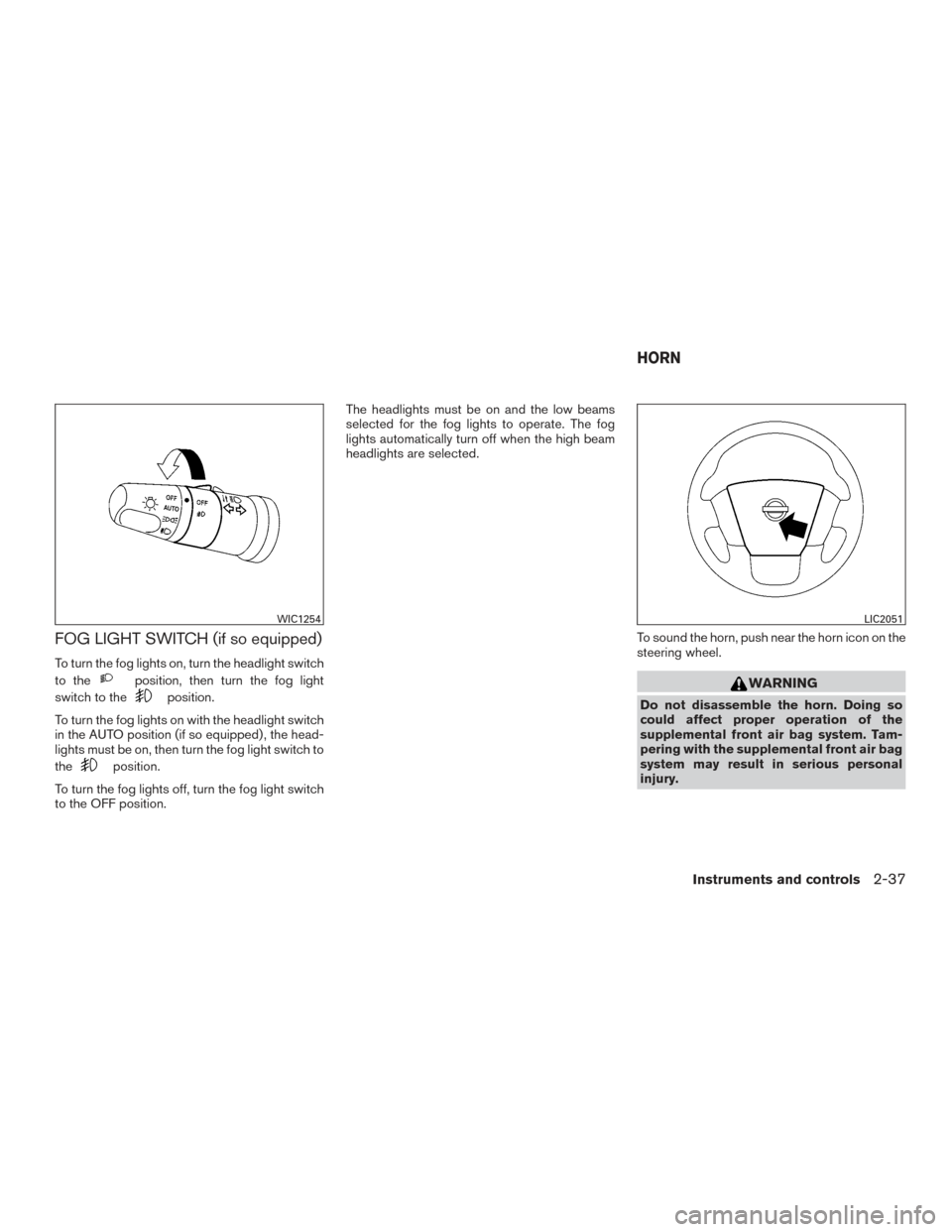

FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights on with the headlight switch
in the AUTO position (if so equipped) , the head-
lights must be on, then turn the fog light switch to
the
position.
To turn the fog lights off, turn the fog light switch
to the OFF position. The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected.
To sound the horn, push near the horn icon on the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
WIC1254LIC2051
HORN
Instruments and controls2-37
