9

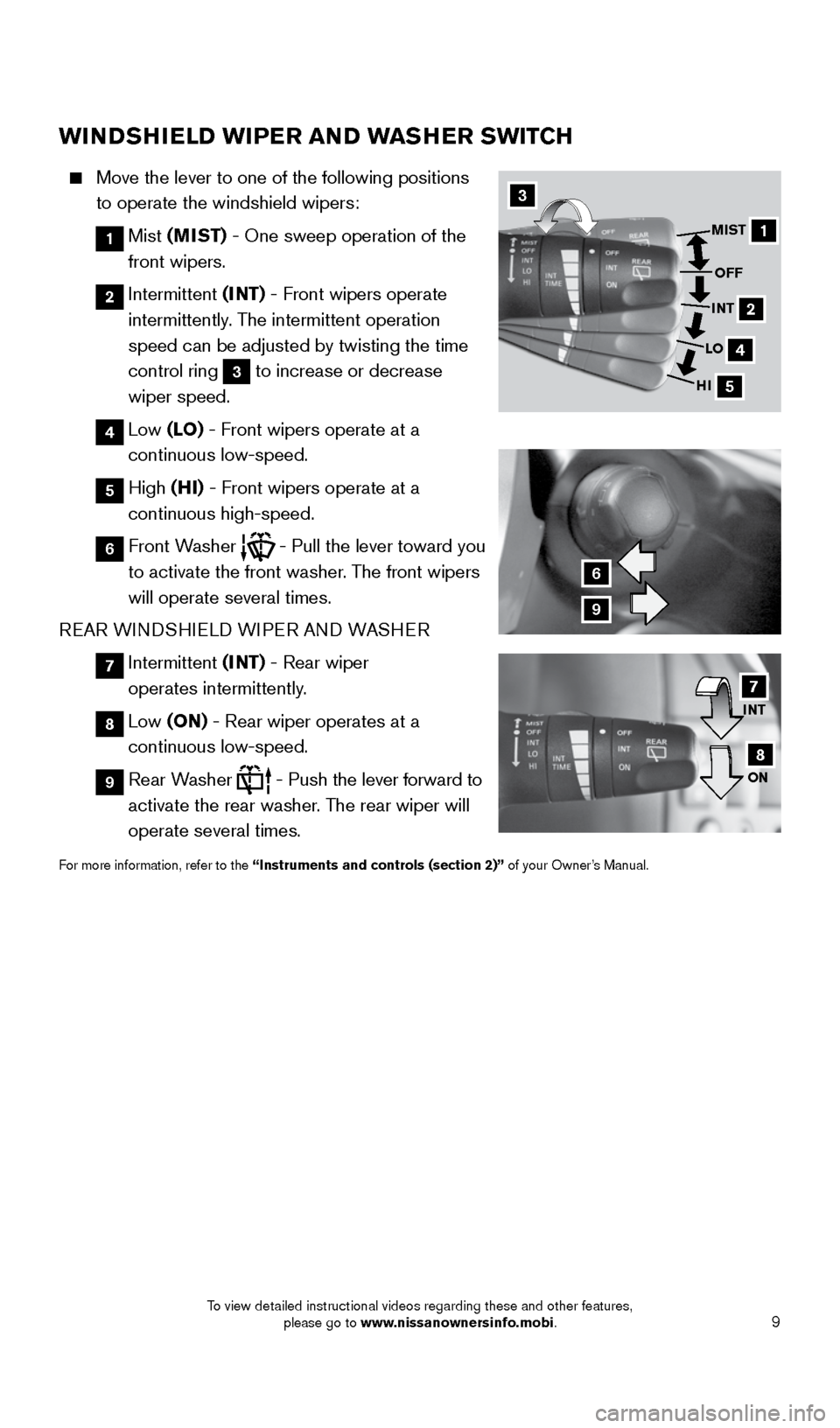

WINDSHIELD WIPER AND WASHER SWITCH
Move the lever to one of the following positions
to operate the windshield wipers:
1 Mist (MIST) - One sweep operation of the
front wipers.
2 Intermittent (INT) - Front wipers operate
intermittently. The intermittent operation
speed can be adjusted by twisting the time
control ring
3 to increase or decrease
wiper speed.
4 Low (LO) - Front wipers operate at a
continuous low-speed.
5 High (HI) - Front wipers operate at a
continuous high-speed.
6 Front Washer - Pull the lever toward you
to activate the front washer. The front wipers
will operate several times.
REAR WINDSHIELD WIPER AND WASHER
7 Intermittent (INT) - Rear wiper
operates intermittently.
8 Low (ON) - Rear wiper operates at a
continuous low-speed.
9 Rear Washer - Push the lever forward to
activate the rear washer. The rear wiper will
operate several times.
For more information, refer to the “Instruments and controls (section 2)” of your Owner’s Manual.
3
1
2
4
5
MIST
OFF
INT
LO
HI
6
9
INT
ON7
8
1706218_15a_Rogue_Select_QRG_111814.indd 911/18/14 2:44 PM
To view detailed instructional videos regarding these and other features, please go to www.nissanownersinfo.mobi.
