1. Hood (P.3-9)
2. Headlight and turn signal lights— Switch operation (P.2-29)
— Bulb replacement (P.8-24)
3. Windshield wiper and washer — Switch operation (P.2-27)
— Blade replacement (P.8-17) — Window washer fluid (P.8-12)
4. Roof rack (rail)* (P.2-38)
5. Outside mirrors (P.3-14)
6. Power windows (P.2-39)
7. Recovery hook (P.6-14)
8. License plate installation (P.9-11) 9. Tires
— Wheel and tires (P.8-29, P.9-7)
— Flat tire (P.6-2)
— Tire Pressure Monitoring System (TPMS)
(P.2-12, P.5-3)
10. Doors — Keys (P.3-2)
— Door locks (P.3-3)
— Remote keyless entry system (P.3-5)
— Security system (P.2-24)
11. Child safety rear door lock (P.3-5)
*: if so equipped
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
JVC0576X
1. Lift gate (P.3-10)
2. Rearview camera* (P.4-2)
3. Rear window wiper and washer— Switch operation (P.2-28)
— Window washer fluid (P.8-12)
4. Rear window defroster (P.2-29) 5. High-mounted stop light
— Bulb replacement (P.8-26)
6. Antenna (P.4-38)
— Satellite radio antenna* (P.4-12)
7. Back-up light — Bulb replacement (P.8-26) 8. Rear combination light
— Bulb replacement (P.8-26)
9. Fuel-filler door
— Operation (P.3-11)
— Fuel information (P.9-3)
*: if so equipped
EXTERIOR REAR

JVC0577X
1. Cargo cover* (P.2-36)
2. Coat hooks (P.2-38)
3. Ceiling light (P.2-43)
4. Door armrest— Power window switch (P.2-39)
— Power door lock switch (P.3-4)
5. Sun visors (P.3-13) 6. Front map lights (P.2-42)
7. Sunglasses holder (P.2-33)
8. Inside mirror (P.3-14)
9. Cargo area
— Storages (P.2-35)
— Luggage hooks (P.2-37)
— Cargo light (P.2-44) — Spare tire (P.6-4)
10. Rear cup holders (P.2-32)
11. Console box (P.2-35) — Power outlet (P.2-31)
—iPod
Šor USB connection port* (P.4-26)
12. Front cup holders (P.2-32)
*: if so equipped
Illustrated table of contents0-5
PASSENGER COMPARTMENT

0-6Illustrated table of contents
JVC0578X

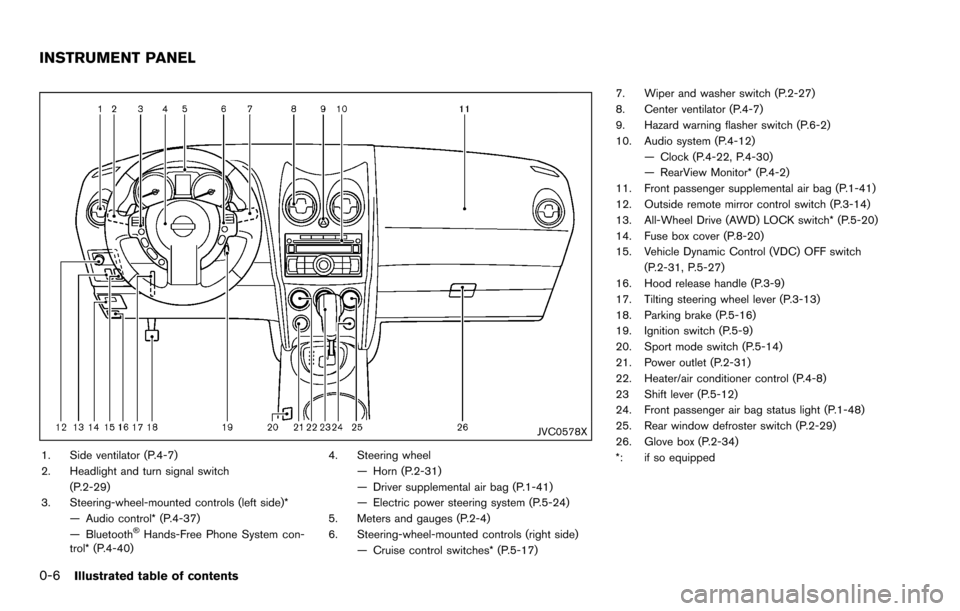

1. Side ventilator (P.4-7)
2. Headlight and turn signal switch(P.2-29)
3. Steering-wheel-mounted controls (left side)* — Audio control* (P.4-37)
— Bluetooth
ŠHands-Free Phone System con-
trol* (P.4-40) 4. Steering wheel
— Horn (P.2-31)
— Driver supplemental air bag (P.1-41)
— Electric power steering system (P.5-24)
5. Meters and gauges (P.2-4)
6. Steering-wheel-mounted controls (right side) — Cruise control switches* (P.5-17) 7. Wiper and washer switch (P.2-27)
8. Center ventilator (P.4-7)
9. Hazard warning flasher switch (P.6-2)
10. Audio system (P.4-12)
— Clock (P.4-22, P.4-30)
— RearView Monitor* (P.4-2)
11. Front passenger supplemental air bag (P.1-41)
12. Outside remote mirror control switch (P.3-14)
13. All-Wheel Drive (AWD) LOCK switch* (P.5-20)
14. Fuse box cover (P.8-20)
15. Vehicle Dynamic Control (VDC) OFF switch (P.2-31, P.5-27)
16. Hood release handle (P.3-9)
17. Tilting steering wheel lever (P.3-13)
18. Parking brake (P.5-16)
19. Ignition switch (P.5-9)
20. Sport mode switch (P.5-14)
21. Power outlet (P.2-31)
22. Heater/air conditioner control (P.4-8)
23 Shift lever (P.5-12)
24. Front passenger air bag status light (P.1-48)
25. Rear window defroster switch (P.2-29)
26. Glove box (P.2-34)
*: if so equipped
INSTRUMENT PANEL

0-8Illustrated table of contents
SDI2127

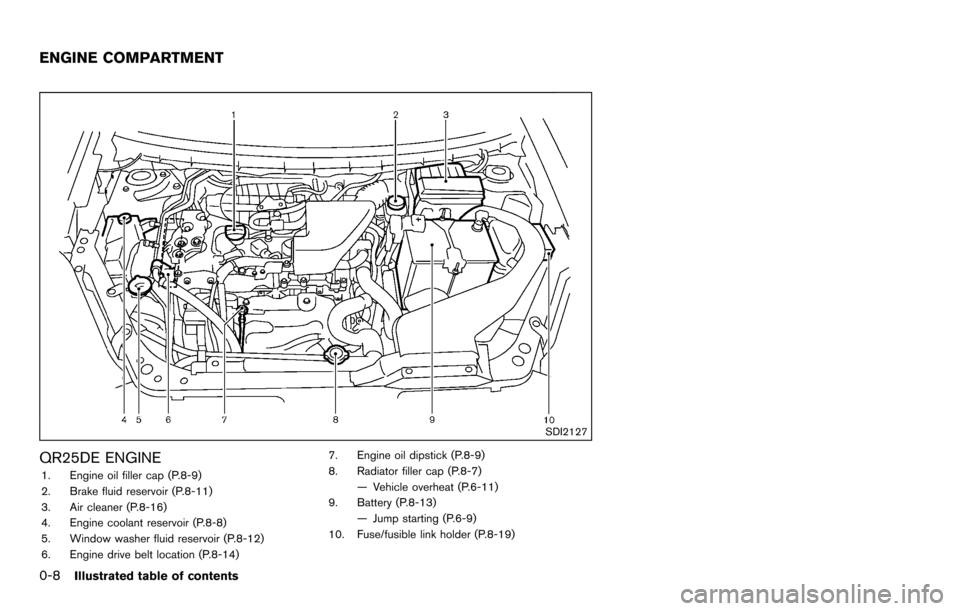

QR25DE ENGINE1. Engine oil filler cap (P.8-9)
2. Brake fluid reservoir (P.8-11)
3. Air cleaner (P.8-16)
4. Engine coolant reservoir (P.8-8)
5. Window washer fluid reservoir (P.8-12)
6. Engine drive belt location (P.8-14)7. Engine oil dipstick (P.8-9)
8. Radiator filler cap (P.8-7)
— Vehicle overheat (P.6-11)
9. Battery (P.8-13) — Jump starting (P.6-9)
10. Fuse/fusible link holder (P.8-19)
ENGINE COMPARTMENT

1-44Safety — Seats, seat belts and supplemental restraint system
SSS0008
SSS0009
SSS0099
SSS0100

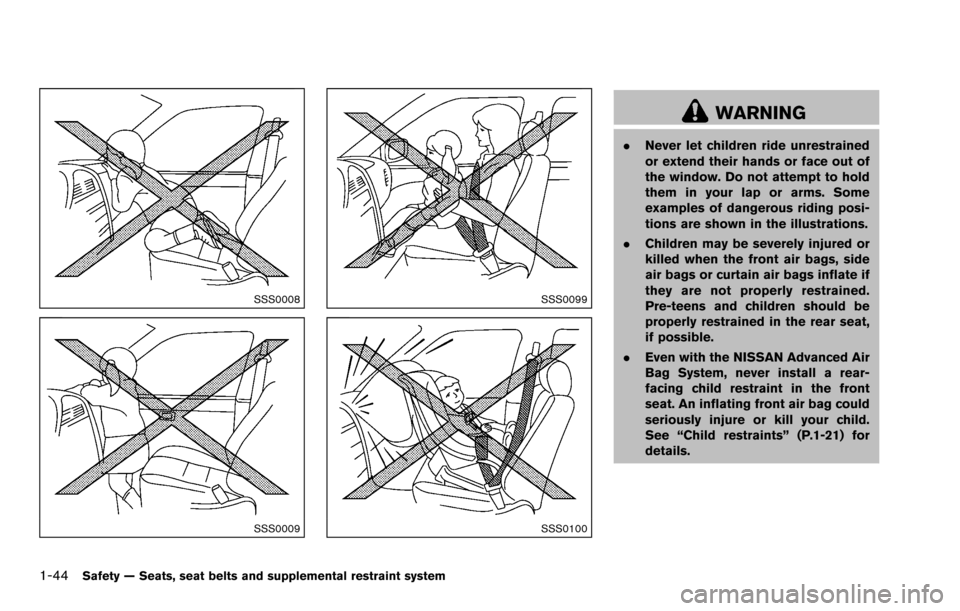

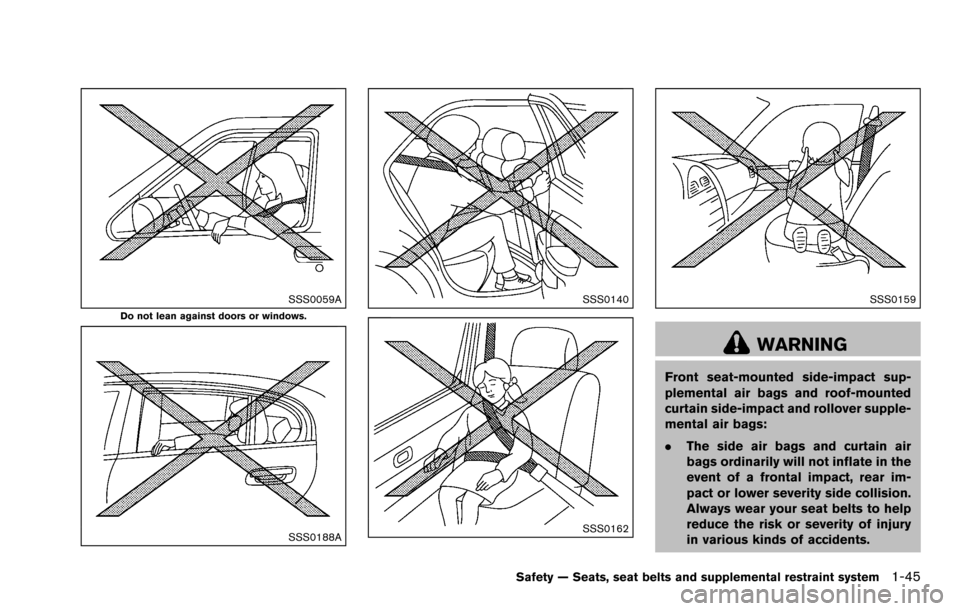

WARNING
.Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some
examples of dangerous riding posi-
tions are shown in the illustrations.
. Children may be severely injured or
killed when the front air bags, side
air bags or curtain air bags inflate if
they are not properly restrained.
Pre-teens and children should be
properly restrained in the rear seat,
if possible.
. Even with the NISSAN Advanced Air
Bag System, never install a rear-
facing child restraint in the front
seat. An inflating front air bag could
seriously injure or kill your child.
See “Child restraints” (P.1-21) for
details.

SSS0059ADo not lean against doors or windows.
SSS0188A
SSS0140
SSS0162
SSS0159
WARNING
Front seat-mounted side-impact sup-
plemental air bags and roof-mounted
curtain side-impact and rollover supple-
mental air bags:
.The side air bags and curtain air
bags ordinarily will not inflate in the
event of a frontal impact, rear im-
pact or lower severity side collision.
Always wear your seat belts to help
reduce the risk or severity of injury
in various kinds of accidents.
Safety — Seats, seat belts and supplemental restraint system1-45

1-46Safety — Seats, seat belts and supplemental restraint system
.The seat belts, the side air bags and
curtain air bags are most effective
when you are sitting well back and
upright in the seat. The side air bag
and curtain air bag inflate with great
force. Do not allow anyone to place
their hand, leg or face near the side
air bag on the side of the seatback
of the front seat or near the side
roof rails. Do not allow anyone
sitting in the front seats or rear
outboard seats to extend their hand
out of the window or lean against
the door. Some examples of dan-
gerous riding positions are shown
in the previous illustrations.
. When sitting in the rear seat, do not
hold onto the seatback of the front
seat. If the side air bag inflates, you
may be seriously injured. Be espe-
cially careful with children, who
should always be properly re-
strained. Some examples of danger-
ous riding positions are shown in
the illustrations.
. Do not use seat covers on the front
seatbacks. They may interfere with
side air bag inflation.

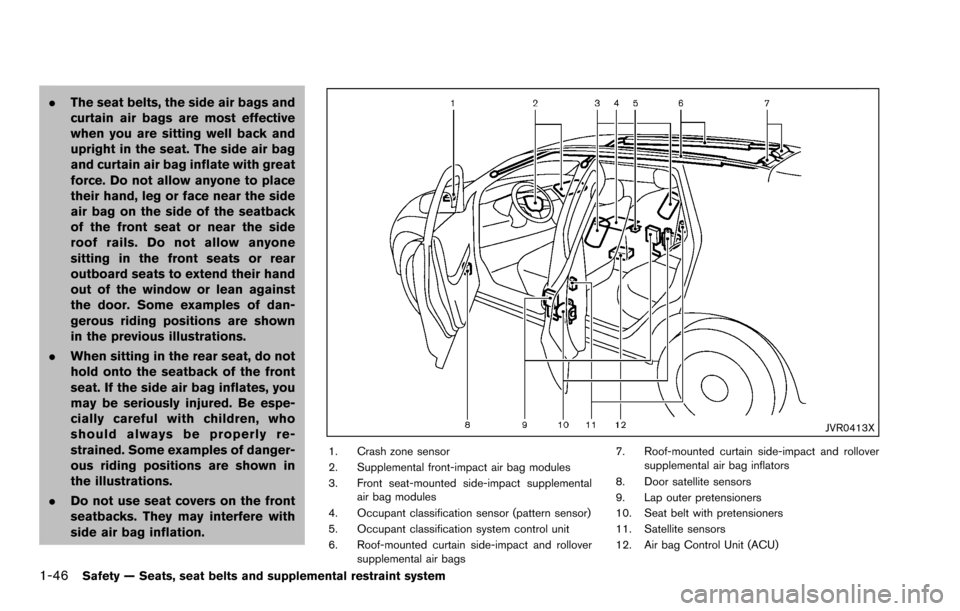

JVR0413X
1. Crash zone sensor
2. Supplemental front-impact air bag modules
3. Front seat-mounted side-impact supplemental
air bag modules
4. Occupant classification sensor (pattern sensor)
5. Occupant classification system control unit
6. Roof-mounted curtain side-impact and rollover supplemental air bags 7. Roof-mounted curtain side-impact and rollover
supplemental air bag inflators
8. Door satellite sensors
9. Lap outer pretensioners
10. Seat belt with pretensioners
11. Satellite sensors
12. Air bag Control Unit (ACU)
