2015 NISSAN ROGUE fog light

1. Front view camera (if so equipped)(P. 4-14)
2. Engine hood (P. 3-24)
3. Windshield wiper and washer switch,
wiper blades (P. 8-18)
4. Windshield-washer fluid (P. 8-13)
5. Windshield (P. 8-18)
6. Power windows (P. 2-51)
7. Door locks, NISSAN Intelligent Key®
(if so equipped) , NISSAN Jackknife key
(if so equipped) , keys (P. 3-5, 3-11,
3-2)
8. Mirrors (P. 3-34)
9. Side view camera (if so equipped)
(P. 4-14)
10. Tire pressure (P. 8-32)
11. Flat tire (P. 6-3)
12. Tire chains (P. 8-32)
13. Fog light switch (if so equipped)
(P. 2-34)
14. Replacing bulbs (P. 8-27)
15. Headlight and turn signal switch
(P. 2-34)
Refer to the page number indicated in pa-
rentheses for operating details.
LII2101
EXTERIOR FRONT
Illustrated table of contents0-3

1. Vent (P. 4-24)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-34)
3. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-3, P. 2-7, P. 2-15) 4. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-31)
Ignition switch (if so equipped)
(P. 5-10) 5. Push-button ignition switch
(if so equipped) (P. 5-13)
6. Vent (P. 4-24)
7. Hazard warning flasher switch (P. 6-2)
8. Radio (P. 4-44)/Navigation system*
(if so equipped)
9. Front passenger supplemental air bag
(P. 2-29)
10. Glove box (P. 2-44)
11. Heater and air conditioning controls
(P. 4-25)
12. Power outlet (P. 2-42)
13. Shift lever (P. 5-18)
14. Auxiliary jack (P. 4-60) USB port (P. 4-60)
15. Front passenger air bag status light
(P. 2-29)
16. Cruise control main/set switches
(P. 5-30
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-36)
17. Driver supplemental air bag/Horn
(P. 1-46, P. 2-38)
18. Control panel and Vehicle Information
Display switches (P. 2-16)
19. Hood release (P. 3-24) Fuel door release (P. 3-30)
LIC2626
INSTRUMENT PANEL
0-6Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS) warn-
ing light 2-9
or
Brake warning light 2-8
Charge warning
light
2-9
Low tire pressure
warning light2-9
Low windshield
washer fluid warning
light (if so equipped)2-11
Master warning light 2-11
Warning
light Name Page
Power steering
warning light 2-11
Seat belt warning
light and chime2-12
Supplemental air
bag warning light2-12
Indicator
light Name Page
All Wheel Drive
(AWD) LOCK indi-
cator light (if so
equipped) 2-13
ECO mode indicator
light
2-12
Front fog light indi-
cator light (if so
equipped)2-13
Indicator
light Name Page
Front passenger air
bag status light 2-13
High beam indicator
light (blue)2-13
Hill descent control
system ON indicator
light (if so equipped)2-13
Malfunction Indica-
tor Light (MIL)
2-13
Overdrive OFF indi-
cator light2-14
Security indicator
light2-14
Slip indicator light 2-14
SPORT mode indi-
cator light2-14
WARNING/INDICATOR LIGHTS
Illustrated table of contents0-9

2 Instruments and controls
Instrument panel...................................2-2
Meters and gauges ................................2-3
Speedometer and odometer .....................2-4
Tachometer ....................................2-5
Engine coolant temperature gauge ...............2-5
Fuel gauge ....................................2-6
Warning/indicator lights and audible reminders .......2-7
Checking bulbs ................................2-8
Warning lights .................................2-8
Indicator lights ................................ 2-12
Audible reminders ............................. 2-15
Vehicle Information Display ........................2-15
How to use the vehicle information display .......2-16
Startup display ................................ 2-16
Settings ...................................... 2-16
Vehicle information display warnings and
indicators ..................................... 2-26
Security systems ................................. 2-29
Vehicle security system ......................... 2-29
NISSAN vehicle immobilizer system .............2-30
Windshield wiper and washer switch ...............2-31
Switch operation .............................. 2-32
Rear window wiper and washer switch ..............2-33Rear window and outside mirror (if so equipped)
defroster switch
.................................. 2-34
Headlight and turn signal switch ....................2-34
Headlight control switch ........................ 2-34
Daytime running light system ....................2-36
Instrument brightness control ...................2-37
Turn signal switch ............................. 2-37
Fog light switch (if so equipped) ................2-38
Horn ............................................ 2-38
Heated seats (if so equipped) ......................2-39
Vehicle Dynamic Control (VDC) off switch ...........2-40
All-wheel drive (AWD) lock switch (if so equipped) . . . 2-40
SPORT mode switch ............................. 2-40
Hill descent control switch (if so equipped) ..........2-41
Warning systems switch (if so equipped) ............2-42
Power outlets .................................... 2-42
12v outlets ................................... 2-42
Storage ......................................... 2-44
Seatback

pockets............................. 2-44
Sunglasses holder ............................. 2-44
Cup holders .................................. 2-45
Glove box .................................... 2-47
Console box .................................. 2-47

1. Vent (P. 4-24)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-34)
3. Meters, gauges, warning/indicator
lights and Vehicle Information Display
(P. 2-3, P. 2-7, P. 2-15) 4. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-31)
Ignition switch (if so equipped)
(P. 5-10) 5. Push-button ignition switch
(if so equipped) (P. 5-13)
6. Vent (P. 4-24)
7. Hazard warning flasher switch (P. 6-2)
8. Radio (P. 4-44)/Navigation system*
(if so equipped)
9. Front passenger supplemental air bag
(P. 2-29)
10. Glove box (P. 2-44)
11. Heater and air conditioning controls
(P. 4-25)
12. Power outlet (P. 2-42)
13. Shift lever (P. 5-18)
14. Auxiliary jack (P. 4-60) USB port (P. 4-60)
15. Front passenger air bag status light
(P. 2-29)
16. Cruise control main/set switches
(P. 5-30
Bluetooth Hands-Free Phone System
(if so equipped) (P. 4-36)
17. Driver supplemental air bag/Horn
(P. 1-46, P. 2-38)
18. Control panel and Vehicle Information
Display switches (P. 2-16)
19. Hood release (P. 3-24) Fuel door release (P. 3-30)
LIC2626
INSTRUMENT PANEL
2-2Instruments and controls

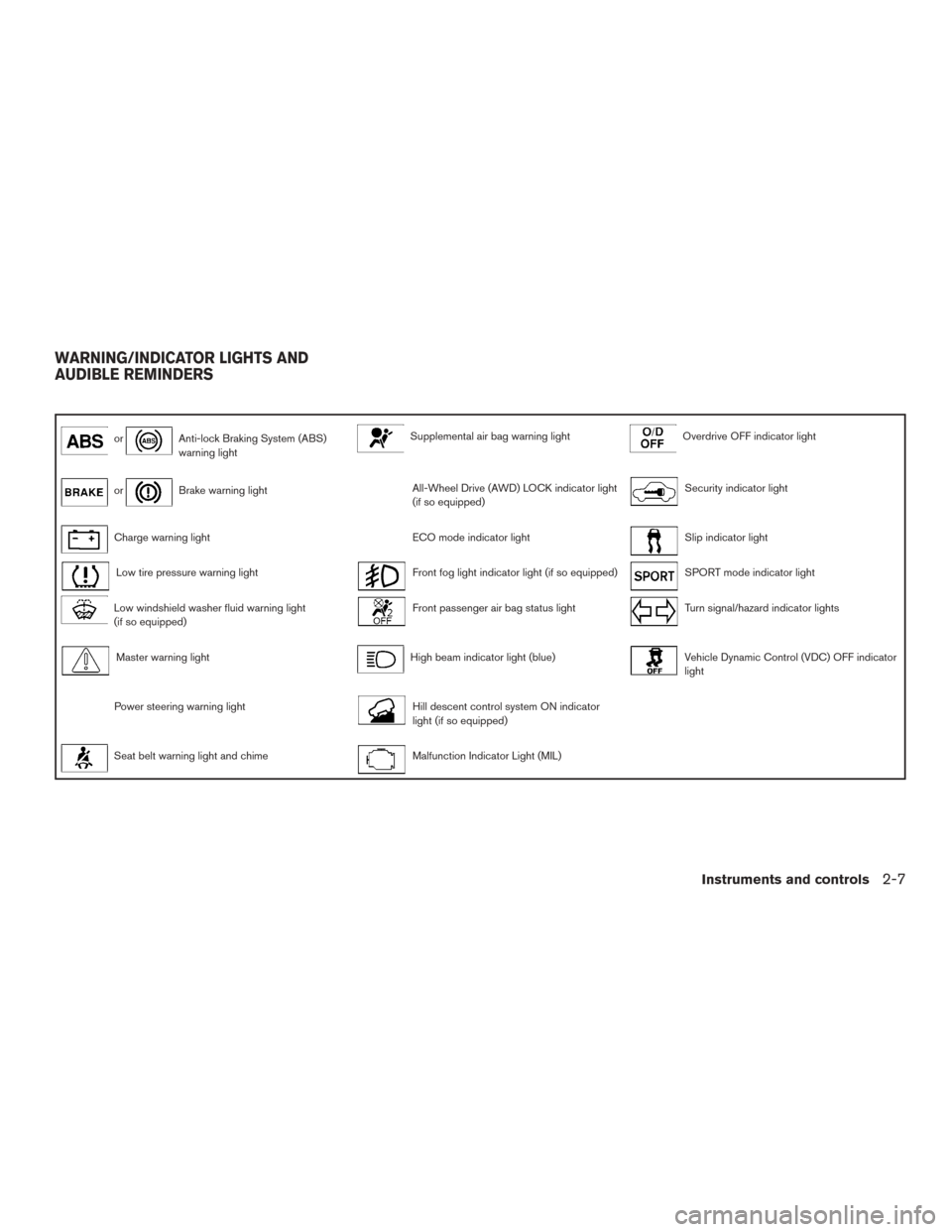

orAnti-lock Braking System (ABS)
warning lightSupplemental air bag warning lightOverdrive OFF indicator light
orBrake warning lightAll-Wheel Drive (AWD) LOCK indicator light
(if so equipped)Security indicator light
Charge warning lightECO mode indicator lightSlip indicator light
Low tire pressure warning lightFront fog light indicator light (if so equipped)SPORT mode indicator light
Low windshield washer fluid warning light
(if so equipped)Front passenger air bag status lightTurn signal/hazard indicator lights
Master warning lightHigh beam indicator light (blue)Vehicle Dynamic Control (VDC) OFF indicator
light
Power steering warning lightHill descent control system ON indicator
light (if so equipped)
Seat belt warning light and chimeMalfunction Indicator Light (MIL)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Instruments and controls2-7

Front fog light indicator light (ifso equipped)
The front fog light indicator light illuminates when
the front fog lights are ON. For additional infor-
mation, refer to “Fog light switch” in this section.
Front passenger air bag statuslight
The front passenger air bag status light will be lit
and the passenger front air bag will be OFF
depending on how the front passenger seat is
being used.
For additional information, refer to “Front passen-
ger air bag and status light” in the “Safety —
Seats, seat belts and supplemental restraint sys-
tem” section of this manual.
High beam indicator light(blue)
This blue light comes on when the headlight high
beams are on and goes out when the low beams
are selected.
The high beam indicator light also comes on
when the passing signal is activated.
Hill descent control systemON indicator light (if so
equipped)
When the ignition switch is placed in the ON
position, this light comes on briefly and then turns
off.
The light comes on when the hill descent control
system is activated.
If the hill descent control switch is on and the
indicator light blinks, the system is not engaged.
If the indicator light does not come on when the
hill descent switch is on, the system may not be
functioning properly. Have the system checked
by a NISSAN dealer.
For additional information, refer to “Hill descent
control system on indicator light” in this section
and “Hill descent control system” in the “Starting
and driving” section of this manual.
Malfunction Indicator Light(MIL)
If this indicator light comes on steady or blinks
while the engine is running, it may indicate a
potential emission control malfunction.
The MIL may also come on steady if the fuel-filler
cap is loose or missing, or if the vehicle runs out
of fuel. Check to make sure the fuel-filler cap is installed and closed tightly, and that the vehicle
has at least 3 gallons (11.4 liters) of fuel in the
fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light comes on steady for 20 sec-
onds and then blinks for 10 seconds when the
engine is not running, it indicates that the vehicle is
not ready for an emission control system
inspection/maintenance test. For additional infor-
mation, refer to “Readiness for
inspection/maintenance (I/M) test” in the “Technical
and consumer information” section of this manual.
Operation
The MIL will come on in one of two ways:
● MIL on steady — An emission control system
malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning appears in the vehicle information
display. If the fuel-filler cap is loose or miss-
ing, tighten or install the cap and continue to
drive the vehicle. The
light should turn
off after a few driving trips. If the
light
does not turn off after a few driving trips,
have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
Instruments and controls2-13

Lane change signal
2Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.
FOG LIGHT SWITCH (if so equipped)
To turn the fog lights on, turn the headlight switch
to the
position, then turn the fog light
switch to the
position.
To turn the fog lights on with the headlight switch
in the AUTO position, the headlights must be on,
then turn the fog light switch to the
posi-
tion.
To turn the fog lights off, turn the fog light switch
to the OFF position.
The headlights must be on and the low beams
selected for the fog lights to operate. The fog
lights automatically turn off when the high beam
headlights are selected. To sound the horn, push near the horn icon on the
steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system. Tam-
pering with the supplemental front air bag
system may result in serious personal
injury.
LIC2639LIC2319
HORN
2-38Instruments and controls
