2015 NISSAN QUEST stop start


> (GLW    0RGHO (' @
4-70Monitor, heater, air conditioner, audio, phone and voice recognition systems
Clock setting:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Turning the clock ON/OFF:
1. Push the MENU button until ªClock: ONº orªClock: OFFº is displayed.
2. Turn the TUNE´FOLDER knob to toggle
between ªClock: ONº and ªClock: OFFº.
Adjusting the clock:
1. Turn on the clock.
2. Push the MENU button until ªAdjust Clockº is displayed, and then select the ªYesº.
3. Push the MENU button. Turn the TUNE knob to adjust the hour.
4. Push the MENU button. Turn the TUNE knob to adjust the minutes.
5. Push the MENU button to exit the clock mode.
When no action is taken for 5 seconds, the
display will automatically return to the original
mode.
AUX button:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The AUX IN jack is located on the audio unit.
The AUX IN audio input jack accepts any
standard analog audio input such as from a
portable cassette tape player, CD player, digital
audio player or laptop computer.
Push the AUX button to play a compatible device when it is plugged into the AUX IN jack.
NISSAN strongly recommends using a stereo
mini plug cable when connecting your music
device to the audio system. Music may not play
properly when a monaural cable is used.
FM-AM radio operationGUID-F9A946AB-2EFB-4E8E-A601-362CEB73ADEE
/radio (FM/AM) band select:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the FM/AM button is pushed while the
audio system is off, the audio system will turn on
and the radio will turn on.
When the FM/AM button is pushed while
another audio source is playing, the other audio
source will turn off and the radio will turn on.
To change the radio bands (FM1, FM2, or AM) ,
push the FM/AM buttons.
TUNE (Tuning):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When adjusting the broadcasting station fre-
quency manually, turn the TUNE´FOLDER knob
until the preferred frequency is achieved.
/SEEK tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To adjust the broadcasting station frequency
automatically, push and release the SEEK or
TRACK button. When the system detects a
broadcasting station, it will stop at the station.
Detected stations are skipped while SEEK or
TRACK button is pushed and held.
SCAN tuning:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the SCAN button is pushed, the system
will seek and stop at the detected broadcasting
station for 5 seconds, and then it will start to
seek for the next broadcasting station.
Push the SCAN button in this 5-second period
to stop seeking.
*1to*6Radio memory operations:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The audio system can store up to 12 FM station
frequencies (for FM1 and FM2) and 6 AM
station frequencies.
During radio reception, pushing the radio
memory button for less than 1.5 seconds will
play the stored radio station.
To store the station frequency manually:
1. Tune to the desired broadcasting station
frequency using the SEEK /TRACK buttons.
2. Push and hold one of the radio memory buttons
*1-*6until a beep sounds.
3. The frequency of the selected channel will appear on the display when the memory is
stored properly.
4. Perform steps 1 - 3 for all other memory buttons.
&RQGLWLRQ


> (GLW    0RGHO (' @
Ð 1 Track Repeat
Ð 1 Disc Random
Ð 1 Folder Random (CD with compressedaudio files)
Text (models without navigation system):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTextº key is selected in the screen
using the multi-function controller and then the
ENTER button is pushed while the CD is being
played, the music information below will be
displayed on the screen.
CD:
. Disc title
. Track title
CD with compressed audio files:
. Folder title
. File title
. Song title
. Album title
. Artist
or/Next/Previous Track
and Fast Forward/Rewind:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When theorbutton is pushed for more
than 1.5 seconds while the CD is being played,
the CD will play while fast forwarding or
rewinding. When the button is released, the
CD will return to normal play speed. When the
orbutton is pushed for less
than 1.5 seconds while the CD is being played,
the next track or the beginning of the current
track on the CD will be played.
REPEAT (RPT) , RANDOM (RDM):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the RPT button is pushed while the CD is
played, the play pattern can be changed as
follows:
(CD)
NOS2606
(CD with compressed audio files)
NOS2607
CD EJECT:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the CD EJECT button is pushed with the
CD loaded, the CD will be ejected.
When this button is pushed while the CD is
being played, the CD will be ejected.
If the CD comes out and is not removed, it
will be pulled back into the slot to protect
it.
DVD (Digital Versatile Disc) PLAYER
OPERATION (if so equipped)
GUID-FECD0FDE-503D-4285-91C2-4252B6A87B01
PrecautionsGUID-59205F1E-B567-4CA9-8276-9FE4605BF034Start the engine when using the DVD entertain-
ment system.
Movies will not be shown on the front display
while the vehicle is in any drive position to
reduce driver distraction. Audio is available
when a movie is played. To view movies in the
front display, stop the vehicle in a safe location,
move the shift lever to the P (Park) position and
apply the parking brake.
WARNING
. The driver must not attempt to
operate the DVD system or wear
the headphones while the vehicle is
in motion so that full attention may
be given to vehicle operation.
. Do not attempt to modify the system
to display a movie on the front
screen while the vehicle is being
driven. Doing so may distract the
driver and may cause a collision and
serious personal injury or death.
Monitor, heater, air conditioner, audio, phone and voice recognition systems4-85
&RQGLWLRQ


> (GLW    0RGHO (' @

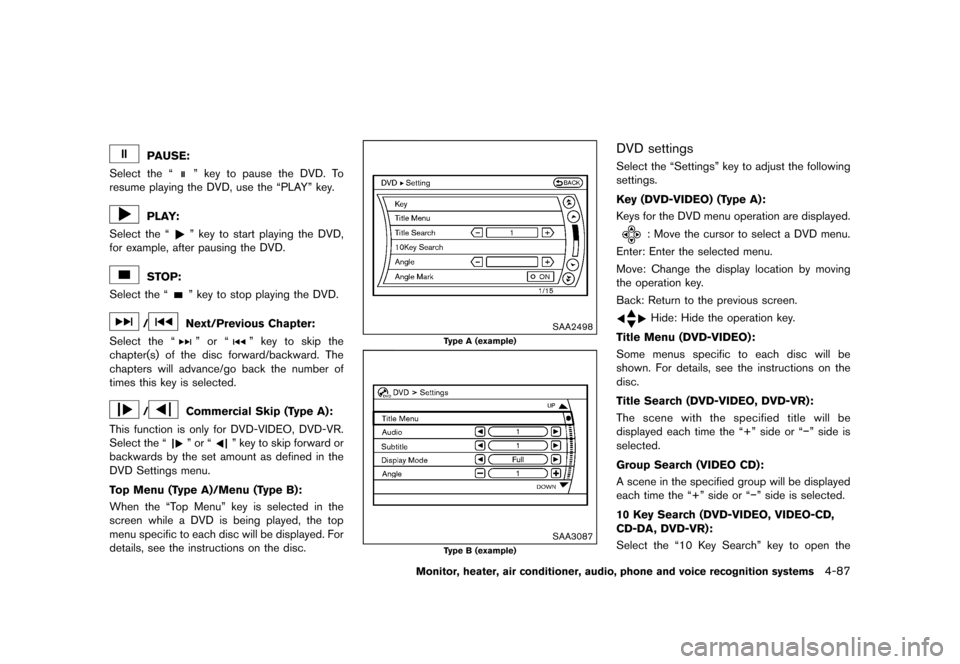

PAUSE:
Select the ª
º key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
PLAY:
Select the ª
º key to start playing the DVD,
for example, after pausing the DVD.
STOP:
Select the ª
º key to stop playing the DVD.
/Next/Previous Chapter:
Select the ª
º or ªº key to skip the
chapter(s) of the disc forward/backward. The
chapters will advance/go back the number of
times this key is selected.
/Commercial Skip (Type A):
This function is only for DVD-VIDEO, DVD-VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD Settings menu.
Top Menu (Type A)/Menu (Type B):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ªTop Menuº key is selected in the
screen while a DVD is being played, the top
menu specific to each disc will be displayed. For
details, see the instructions on the disc.
SAA2498
Type A (example)
SAA3087
Type B (example)
DVD settingsGUID-9C0F8952-DBBE-47C8-931C-858632203DCDSelect the ªSettingsº key to adjust the following
settings.
Key (DVD-VIDEO) (Type A):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Keys for the DVD menu operation are displayed.
: Move the cursor to select a DVD menu.
Enter: Enter the selected menu.
Move: Change the display location by moving
the operation key.
Back: Return to the previous screen.
Hide: Hide the operation key.
Title Menu (DVD-VIDEO) :
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Some menus specific to each disc will be
shown. For details, see the instructions on the
disc.
Title Search (DVD-VIDEO, DVD-VR):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The scene with the specified title will be
displayed each time the ª+º side or ª


> (GLW    0RGHO (' @
4-92Monitor, heater, air conditioner, audio, phone and voice recognition systems
SAA2503
Movie file operation (models with navi-
gation system)
GUID-F07B95C9-71B5-480D-9C83-AF29300659FBPark the vehicle in a safe location for the
front seat occupants to operate the USB
memory while watching the images.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the DISC´AUX button is pushed with the
system off and the USB memory inserted, the
system will turn on.
If another audio source is playing and a USB
memory is inserted, push the DISC´AUX button
repeatedly until the center display changes to
the USB memory mode.Operation keys:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To operate the USB memory, select the desired
key displayed on the operation screen using the
multi-function controller.
Pause
Select the ª
º key to pause the movie file. To
resume playing the movie file, select the ª
º
key.
Play
Select the ª
º key to start playing a movie file,
for example, after pausing a movie file.
STOP
Select the ª
º key to stop playing a movie file.
Skip (Next chapter)
Select the ª
º key to skip the chapter(s) of
the file forward. The chapters will advance the
number of times the ENTER button is pushed.
Skip (Previous chapter)
Select the ª
º key to skip the chapter(s) of
the file backward. The chapters will go back the
number of times the ª
º key is selected. List:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªListº key on the movie file operation
screen to display the file list.
&RQGLWLRQ


> (GLW    0RGHO (' @
4-112Monitor, heater, air conditioner, audio, phone and voice recognition systems
return to the previous display.
DVD operation keysGUID-B86DB395-DEC5-4D6C-A71D-E9C3F49F2777To operate the DVD drive, select the desired key
displayed on the operation screen using the
multi-function controller.
PAUSE:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to pause the DVD. To
resume playing the DVD, use the ªPLAYº key.
To pause the DVD, it is also possible to push the
ª
º button on the keypad of the remote
controller.
PLAY:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to start playing the DVD,
for example, after pausing the DVD.
To start playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
STOP:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to stop playing the DVD.
To stop playing the DVD, it is also possible to
push the ª
º button on the keypad of the
remote controller.
SKIP (FORWARD):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc forward. The chapters will advance the
number of times the ENTER button is pushed.
To skip the chapter(s) forward, it is also possible
to push the ª
º button on the keypad of the
remote controller.
SKIP (REWIND):GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Select the ªº key to skip the chapter(s) of
the disc backward. The chapters will go back
the number of times the ENTER button is
pushed.
To skip the chapter(s) backward, it is also
possible to push the ª
º button on the
keypad of the remote controller.
/Commercial Skip (if so
equipped):
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This function is only for DVD-VIDEO and DVD-
VR.
Select the ª
º or ªº key to skip forward or
backwards by the set amount as defined in the
DVD settings menu.
To skip forward or backward, it is also possible
to push the ª
º or ªº button on the
keypad of the remote controller.
SAA2498
Front screen (models with navigation system)
SAA3656
Rear screen (models with navigation system)
&RQGLWLRQ


> (GLW    0RGHO (' @
4-116Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-105D6E67-2A52-412D-A202-BB6065AD5B2BWhen installing a car phone or a CB radio in
your vehicle, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the electronic control modules
and electronic control system harness.
WARNING
.A cellular phone should not be used
for any purpose while driving so full
attention may be given to vehicle
operation. Some jurisdictions prohi-
bit the use of cellular phones while
driving.
. If you must make a call while your
vehicle is in motion, the hands-free
cellular phone operational mode (if
so equipped) is highly recom-
mended. Exercise extreme caution
at all times so full attention may be
given to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
.Keep the antenna as far away as
possible from the electronic control
modules.
. Keep the antenna wire more than 8
in (20 cm) away from the electronic
control system harness. Do not
route the antenna wire next to any
harness.
. Adjust the antenna standing-wave
ratio as recommended by the man-
ufacturer.
. Connect the ground wire from the
CB radio chassis to the body.
. For details, consult a NISSAN deal-
er.
GUID-983C61FF-2D71-4F38-99B2-426D4B127A2D*Type A is models with navigation system.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with Bluetooth


> (GLW    0RGHO (' @
GUID-CB2433AC-F184-4F3C-A0AF-4350B0B4D115* Type B is models without navigation
system/without text message function.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you find yourself unable to devote
full attention to vehicle operation
while talking on the phone, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
SAA3677
1. PHONE SENDbutton
2. PHONE END
button
Your NISSAN is equipped with the Bluetooth


> (GLW    0RGHO (' @
4-140Monitor, heater, air conditioner, audio, phone and voice recognition systems
GUID-016BA63F-C515-458C-980B-3756E72DF473* Type C is models without navigation
system/with text message function.
WARNING
.Use a phone after stopping your
vehicle in a safe location. If you
have to use a phone while driving,
exercise extreme caution at all
times so full attention may be given
to vehicle operation.
. If you are unable to devote full
attention to vehicle operation while
talking on the phone, pull off the
road to a safe location and stop
your vehicle.
CAUTION
To avoid draining the vehicle battery,
use a phone after starting the engine.
Your NISSAN is equipped with the Bluetooth
