> (GLW    0RGHO (' @

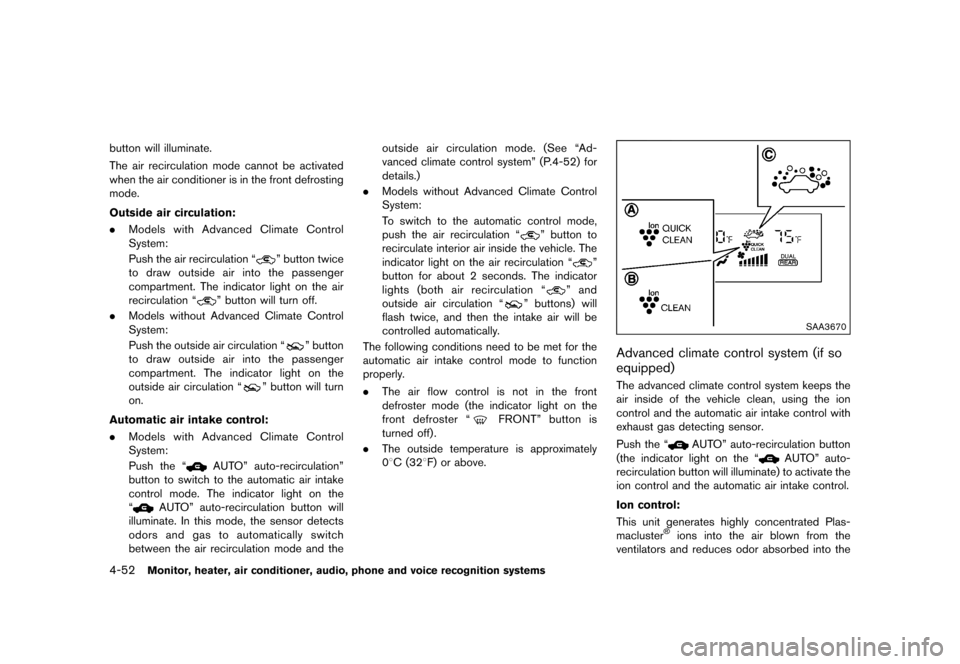

4-52Monitor, heater, air conditioner, audio, phone and voice recognition systems
button will illuminate.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode.
Outside air circulation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407.Models with Advanced Climate Control
System:
Push the air recirculation ª
º button twice
to draw outside air into the passenger
compartment. The indicator light on the air
recirculation ª
º button will turn off.
. Models without Advanced Climate Control
System:
Push the outside air circulation ª
º button
to draw outside air into the passenger
compartment. The indicator light on the
outside air circulation ª
º button will turn
on.
Automatic air intake control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407. Models with Advanced Climate Control
System:
Push the ª
AUTOº auto-recirculationº
button to switch to the automatic air intake
control mode. The indicator light on the
ª
AUTOº auto-recirculation button will
illuminate. In this mode, the sensor detects
odors and gas to automatically switch
between the air recirculation mode and the outside air circulation mode. (See ªAd-
vanced climate control systemº (P.4-52) for
details.)
. Models without Advanced Climate Control
System:
To switch to the automatic control mode,
push the air recirculation ª
º button to
recirculate interior air inside the vehicle. The
indicator light on the air recirculation ª
º
button for about 2 seconds. The indicator
lights (both air recirculation ª
º and
outside air circulation ª
º buttons) will
flash twice, and then the intake air will be
controlled automatically.
The following conditions need to be met for the
automatic air intake control mode to function
properly.
. The air flow control is not in the front
defroster mode (the indicator light on the
front defroster ª
FRONTº button is
turned off).
. The outside temperature is approximately
08C (328F) or above.
SAA3670
Advanced climate control system (if so
equipped)
GUID-992F4241-5305-4CFF-A305-49BC8CE2F232The advanced climate control system keeps the
air inside of the vehicle clean, using the ion
control and the automatic air intake control with
exhaust gas detecting sensor.
Push the ª
AUTOº auto-recirculation button
(the indicator light on the ª
AUTOº auto-
recirculation button will illuminate) to activate the
ion control and the automatic air intake control.
Ion control:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This unit generates highly concentrated Plas-
macluster


> (GLW    0RGHO (' @

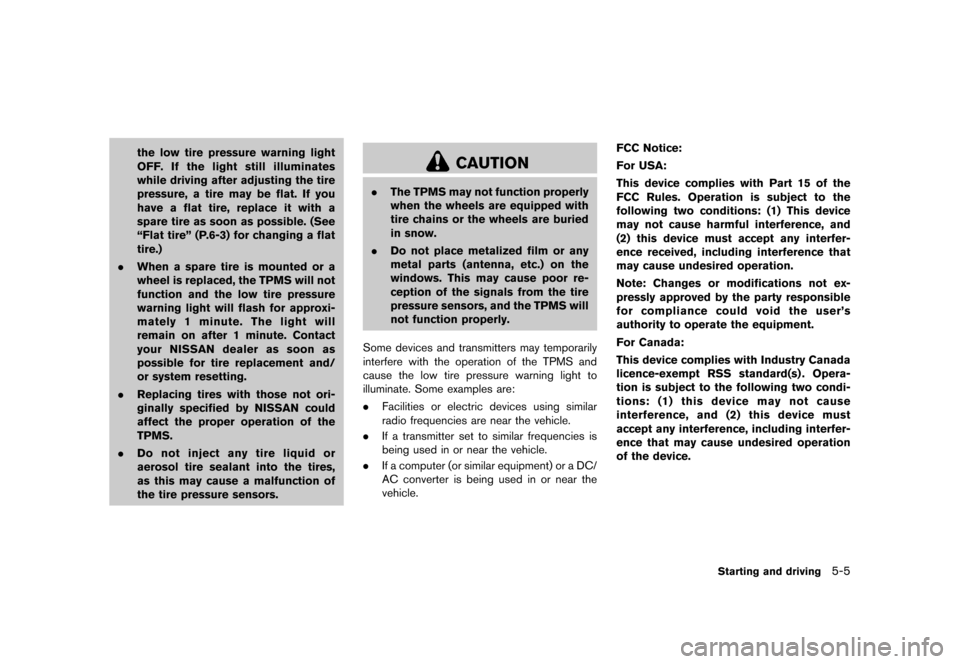

the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you
have a flat tire, replace it with a
spare tire as soon as possible. (See
ªFlat tireº (P.6-3) for changing a flat
tire.)
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires,
as this may cause a malfunction of
the tire pressure sensors.CAUTION
.The TPMS may not function properly
when the wheels are equipped with
tire chains or the wheels are buried
in snow.
. Do not place metalized film or any
metal parts (antenna, etc.) on the
windows. This may cause poor re-
ception of the signals from the tire
pressure sensors, and the TPMS will
not function properly.
Some devices and transmitters may temporarily
interfere with the operation of the TPMS and
cause the low tire pressure warning light to
illuminate. Some examples are:
. Facilities or electric devices using similar
radio frequencies are near the vehicle.
. If a transmitter set to similar frequencies is
being used in or near the vehicle.
. If a computer (or similar equipment) or a DC/
AC converter is being used in or near the
vehicle. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
Starting and driving5-5
&RQGLWLRQ


> (GLW    0RGHO (' @
5-6Starting and driving

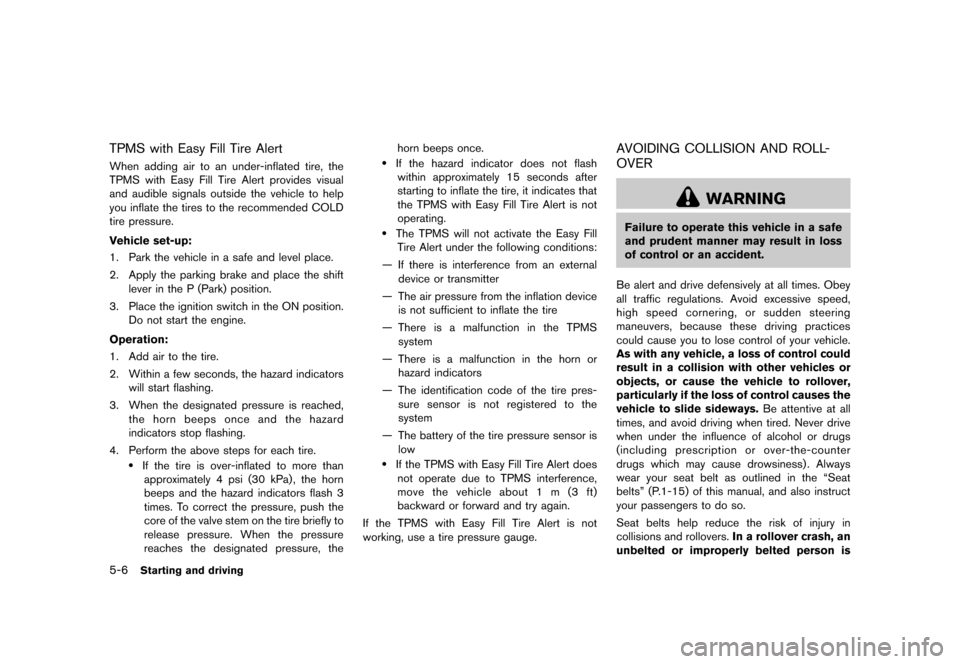

TPMS with Easy Fill Tire AlertGUID-C025E0CA-5E36-4A8C-814B-C7F8CB0E1BA6When adding air to an under-inflated tire, the
TPMS with Easy Fill Tire Alert provides visual
and audible signals outside the vehicle to help
you inflate the tires to the recommended COLD
tire pressure.
Vehicle set-up:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shiftlever in the P (Park) position.
3. Place the ignition switch in the ON position. Do not start the engine.
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Add air to the tire.
2. Within a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard
indicators stop flashing.
4. Perform the above steps for each tire.
.If the tire is over-inflated to more than approximately 4 psi (30 kPa) , the horn
beeps and the hazard indicators flash 3
times. To correct the pressure, push the
core of the valve stem on the tire briefly to
release pressure. When the pressure
reaches the designated pressure, the horn beeps once.
.If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates that
the TPMS with Easy Fill Tire Alert is not
operating.
.The TPMS will not activate the Easy Fill
Tire Alert under the following conditions:
Ð If there is interference from an external device or transmitter
Ð The air pressure from the inflation device is not sufficient to inflate the tire
Ð There is a malfunction in the TPMS system
Ð There is a malfunction in the horn or hazard indicators
Ð The identification code of the tire pres- sure sensor is not registered to the
system
Ð The battery of the tire pressure sensor is low
.If the TPMS with Easy Fill Tire Alert does
not operate due to TPMS interference,
move the vehicle about 1 m (3 ft)
backward or forward and try again.
If the TPMS with Easy Fill Tire Alert is not
working, use a tire pressure gauge.
AVOIDING COLLISION AND ROLL-
OVER
GUID-68BE121B-3840-43E8-ADC5-90FA47186A01
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering
maneuvers, because these driving practices
could cause you to lose control of your vehicle.
As with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness) . Always
wear your seat belt as outlined in the ªSeat
beltsº (P.1-15) of this manual, and also instruct
your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
&RQGLWLRQ


> (GLW    0RGHO (' @

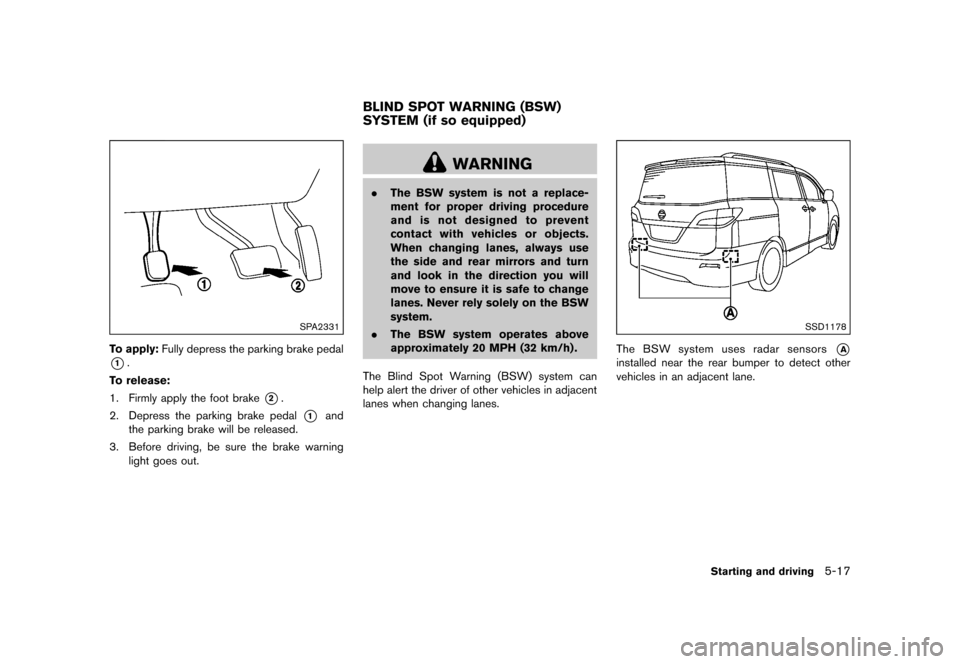

SPA2331
To apply:Fully depress the parking brake pedal
*1.
To release:
1. Firmly apply the foot brake
*2.
2. Depress the parking brake pedal
*1and
the parking brake will be released.
3. Before driving, be sure the brake warning light goes out.
GUID-8C590A26-003A-4629-B1A7-BD81A3C3475E
WARNING
.The BSW system is not a replace-
ment for proper driving procedure
and is not designed to prevent
contact with vehicles or objects.
When changing lanes, always use
the side and rear mirrors and turn
and look in the direction you will
move to ensure it is safe to change
lanes. Never rely solely on the BSW
system.
. The BSW system operates above
approximately 20 MPH (32 km/h) .
The Blind Spot Warning (BSW) system can
help alert the driver of other vehicles in adjacent
lanes when changing lanes.
SSD1178
The BSW system uses radar sensors*A
installed near the rear bumper to detect other
vehicles in an adjacent lane.
Starting and driving5-17
BLIND SPOT WARNING (BSW)
SYSTEM (if so equipped)
&RQGLWLRQ


> (GLW    0RGHO (' @
5-18Starting and driving

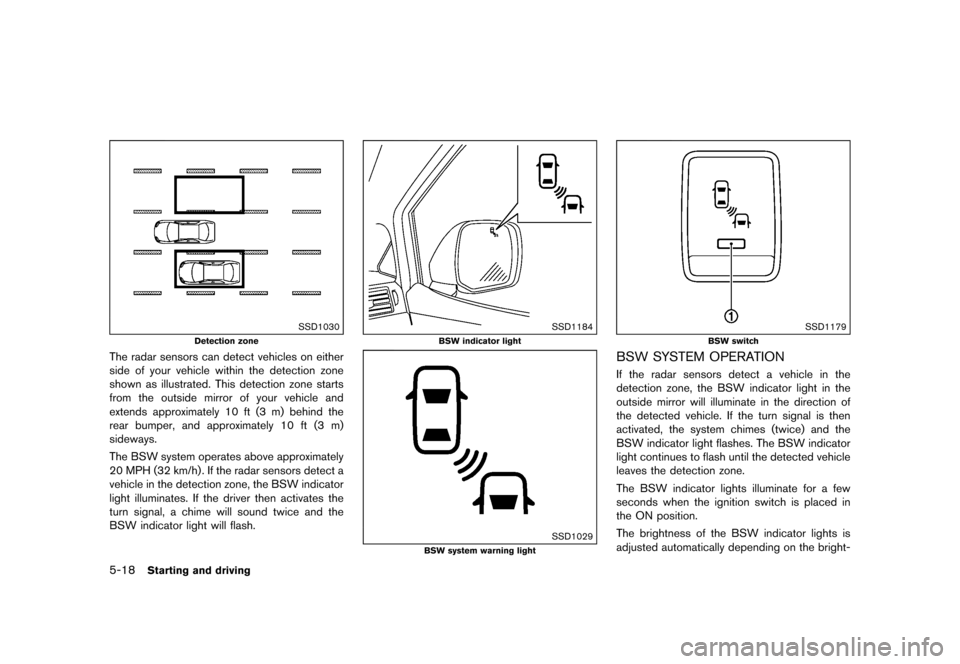

SSD1030
Detection zone
The radar sensors can detect vehicles on either
side of your vehicle within the detection zone
shown as illustrated. This detection zone starts
from the outside mirror of your vehicle and
extends approximately 10 ft (3 m) behind the
rear bumper, and approximately 10 ft (3 m)
sideways.
The BSW system operates above approximately
20 MPH (32 km/h) . If the radar sensors detect a
vehicle in the detection zone, the BSW indicator
light illuminates. If the driver then activates the
turn signal, a chime will sound twice and the
BSW indicator light will flash.
SSD1184
BSW indicator light
SSD1029
BSW system warning light
SSD1179
BSW switch
BSW SYSTEM OPERATIONGUID-B7B4A2DD-5B73-4122-8C65-5DB3CA4A4566If the radar sensors detect a vehicle in the
detection zone, the BSW indicator light in the
outside mirror will illuminate in the direction of
the detected vehicle. If the turn signal is then
activated, the system chimes (twice) and the
BSW indicator light flashes. The BSW indicator
light continues to flash until the detected vehicle
leaves the detection zone.
The BSW indicator lights illuminate for a few
seconds when the ignition switch is placed in
the ON position.
The brightness of the BSW indicator lights is
adjusted automatically depending on the bright-
&RQGLWLRQ


> (GLW    0RGHO (' @

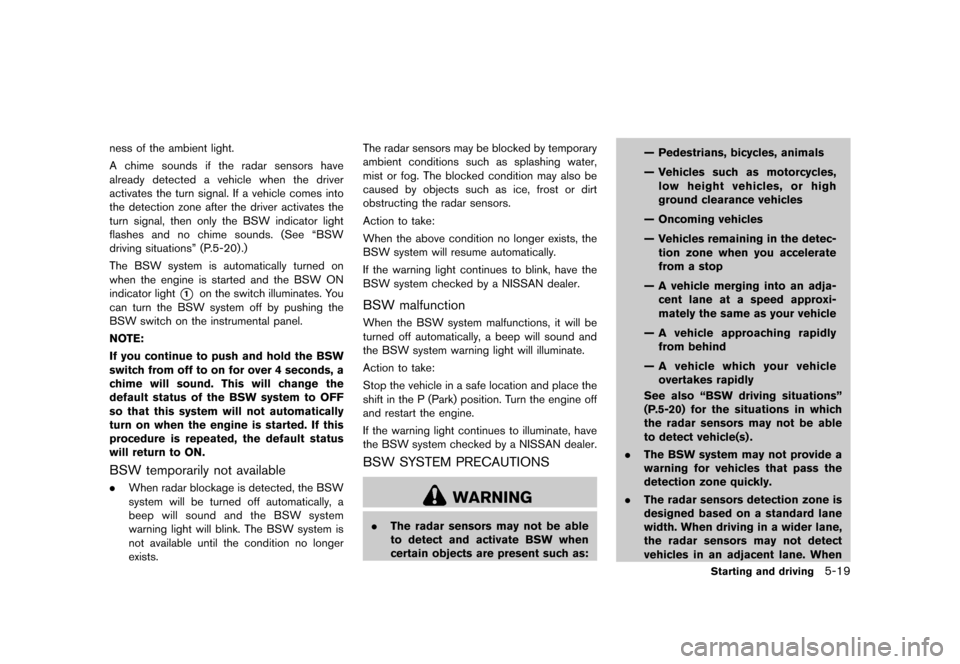

ness of the ambient light.
A chime sounds if the radar sensors have
already detected a vehicle when the driver
activates the turn signal. If a vehicle comes into
the detection zone after the driver activates the
turn signal, then only the BSW indicator light
flashes and no chime sounds. (See ªBSW
driving situationsº (P.5-20).)
The BSW system is automatically turned on
when the engine is started and the BSW ON
indicator light
*1on the switch illuminates. You
can turn the BSW system off by pushing the
BSW switch on the instrumental panel.
NOTE:
If you continue to push and hold the BSW
switch from off to on for over 4 seconds, a
chime will sound. This will change the
default status of the BSW system to OFF
so that this system will not automatically
turn on when the engine is started. If this
procedure is repeated, the default status
will return to ON.
BSW temporarily not availableGUID-6D4D6EF8-1DF9-4D89-8011-E54A25724E70. When radar blockage is detected, the BSW
system will be turned off automatically, a
beep will sound and the BSW system
warning light will blink. The BSW system is
not available until the condition no longer
exists. The radar sensors may be blocked by temporary
ambient conditions such as splashing water,
mist or fog. The blocked condition may also be
caused by objects such as ice, frost or dirt
obstructing the radar sensors.
Action to take:
When the above condition no longer exists, the
BSW system will resume automatically.
If the warning light continues to blink, have the
BSW system checked by a NISSAN dealer.
BSW malfunctionGUID-1F7A26C5-A202-469B-81D0-8B3F6C47D612When the BSW system malfunctions, it will be
turned off automatically, a beep will sound and
the BSW system warning light will illuminate.
Action to take:
Stop the vehicle in a safe location and place the
shift in the P (Park) position. Turn the engine off
and restart the engine.
If the warning light continues to illuminate, have
the BSW system checked by a NISSAN dealer.
BSW SYSTEM PRECAUTIONSGUID-3DDA042B-4A54-436D-8806-7EA18999A1CB
WARNING
.
The radar sensors may not be able
to detect and activate BSW when
certain objects are present such as: Ð Pedestrians, bicycles, animals
Ð Vehicles such as motorcycles,
low height vehicles, or high
ground clearance vehicles
Ð Oncoming vehicles
Ð Vehicles remaining in the detec- tion zone when you accelerate
from a stop
Ð A vehicle merging into an adja- cent lane at a speed approxi-
mately the same as your vehicle
Ð A vehicle approaching rapidly from behind
Ð A vehicle which your vehicle overtakes rapidly
See also ªBSW driving situationsº
(P.5-20) for the situations in which
the radar sensors may not be able
to detect vehicle(s) .
. The BSW system may not provide a
warning for vehicles that pass the
detection zone quickly.
. The radar sensors detection zone is
designed based on a standard lane
width. When driving in a wider lane,
the radar sensors may not detect
vehicles in an adjacent lane. When
Starting and driving5-19
&RQGLWLRQ


> (GLW    0RGHO (' @
5-20Starting and driving
driving in a narrow lane, the radar
sensors may detect vehicles driving
two lanes away.
. The radar sensors are designed to
ignore most stationary objects,
however objects such as guardrails,
walls, foliage and parked vehicles
may occasionally be detected. This
is a normal operating condition.
. Severe weather or road spray con-
ditions may reduce the ability of the
radar to detect other vehicles.
. Do not use the BSW system when
towing a trailer because the system
may not function properly.
. Excessive noise (for example, audio
system volume, open vehicle win-
dow) will interfere with the chime
sound, and it may not be heard.
SSD1026
Illustration 1 - Approaching from behind
BSW DRIVING SITUATIONSGUID-71ACE2ED-D9A7-422C-85CA-C5F85697B842
Another vehicle approaching from be-
hind
GUID-94FEA650-D18D-4A7A-91B7-9E8035334637Illustration 1: The BSW indicator light illumi-
nates if a vehicle enters the detection zone from
behind in an adjacent lane.
However, if the overtaking vehicle is traveling
much faster than your vehicle, the indicator light
may not illuminate before the detected vehicle is
beside your vehicle. Always use the side and
rear mirrors and turn and look in the direction
your vehicle will move to ensure it is safe to
change lanes.
SSD1031
Illustration 2 - Approaching from behind
Illustration 2: If the driver activates the turn
signal, then the system chimes (twice) and the
BSW indicator light flashed.
NOTE:
If the driver activates the turn signal before
a vehicle enters the detection zone, the
BSW indicator light will flash but no chime
will sound when the other vehicle is
detected.
&RQGLWLRQ


> (GLW    0RGHO (' @

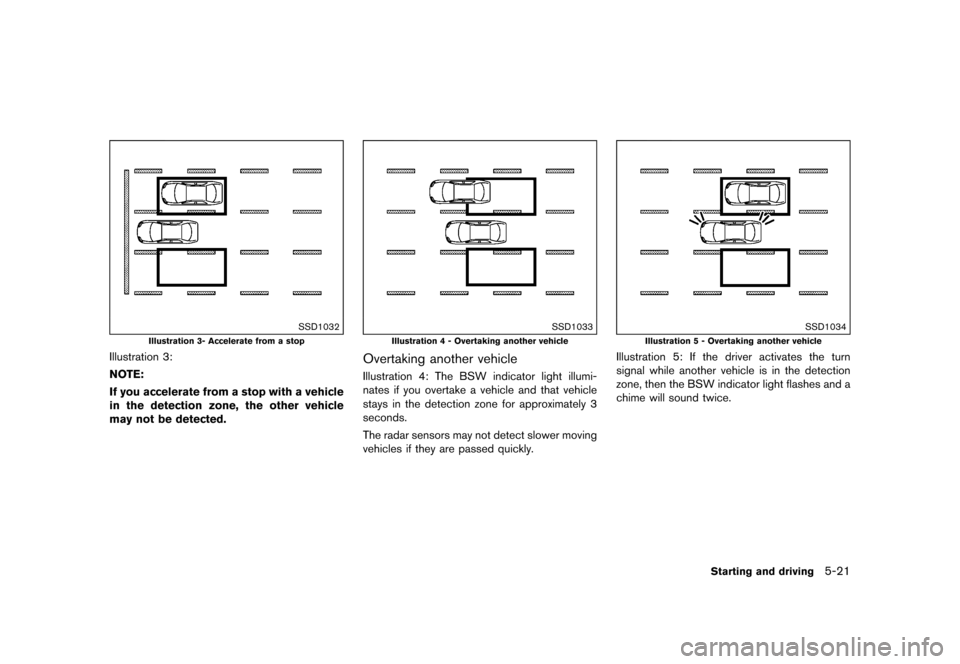

SSD1032
Illustration 3- Accelerate from a stop
Illustration 3:
NOTE:
If you accelerate from a stop with a vehicle
in the detection zone, the other vehicle
may not be detected.
SSD1033
Illustration 4 - Overtaking another vehicle
Overtaking another vehicleGUID-E148AB76-62C4-493D-9302-A57F3667E723Illustration 4: The BSW indicator light illumi-
nates if you overtake a vehicle and that vehicle
stays in the detection zone for approximately 3
seconds.
The radar sensors may not detect slower moving
vehicles if they are passed quickly.
SSD1034
Illustration 5 - Overtaking another vehicle
Illustration 5: If the driver activates the turn
signal while another vehicle is in the detection
zone, then the BSW indicator light flashes and a
chime will sound twice.
Starting and driving5-21
&RQGLWLRQ
