2015 NISSAN QUEST TPMS


> (GLW    0RGHO (' @
5-6Starting and driving
TPMS with Easy Fill Tire AlertGUID-C025E0CA-5E36-4A8C-814B-C7F8CB0E1BA6When adding air to an under-inflated tire, the
TPMS with Easy Fill Tire Alert provides visual
and audible signals outside the vehicle to help
you inflate the tires to the recommended COLD
tire pressure.
Vehicle set-up:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Park the vehicle in a safe and level place.
2. Apply the parking brake and place the shiftlever in the P (Park) position.
3. Place the ignition switch in the ON position. Do not start the engine.
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. Add air to the tire.
2. Within a few seconds, the hazard indicators will start flashing.
3. When the designated pressure is reached, the horn beeps once and the hazard
indicators stop flashing.
4. Perform the above steps for each tire.
.If the tire is over-inflated to more than approximately 4 psi (30 kPa) , the horn
beeps and the hazard indicators flash 3
times. To correct the pressure, push the
core of the valve stem on the tire briefly to
release pressure. When the pressure
reaches the designated pressure, the horn beeps once.
.If the hazard indicator does not flash
within approximately 15 seconds after
starting to inflate the tire, it indicates that
the TPMS with Easy Fill Tire Alert is not
operating.
.The TPMS will not activate the Easy Fill
Tire Alert under the following conditions:
Ð If there is interference from an external device or transmitter
Ð The air pressure from the inflation device is not sufficient to inflate the tire
Ð There is a malfunction in the TPMS system
Ð There is a malfunction in the horn or hazard indicators
Ð The identification code of the tire pres- sure sensor is not registered to the
system
Ð The battery of the tire pressure sensor is low
.If the TPMS with Easy Fill Tire Alert does
not operate due to TPMS interference,
move the vehicle about 1 m (3 ft)
backward or forward and try again.
If the TPMS with Easy Fill Tire Alert is not
working, use a tire pressure gauge.
AVOIDING COLLISION AND ROLL-
OVER
GUID-68BE121B-3840-43E8-ADC5-90FA47186A01
WARNING
Failure to operate this vehicle in a safe
and prudent manner may result in loss
of control or an accident.
Be alert and drive defensively at all times. Obey
all traffic regulations. Avoid excessive speed,
high speed cornering, or sudden steering
maneuvers, because these driving practices
could cause you to lose control of your vehicle.
As with any vehicle, a loss of control could
result in a collision with other vehicles or
objects, or cause the vehicle to rollover,
particularly if the loss of control causes the
vehicle to slide sideways. Be attentive at all
times, and avoid driving when tired. Never drive
when under the influence of alcohol or drugs
(including prescription or over-the-counter
drugs which may cause drowsiness) . Always
wear your seat belt as outlined in the ªSeat
beltsº (P.1-15) of this manual, and also instruct
your passengers to do so.
Seat belts help reduce the risk of injury in
collisions and rollovers. In a rollover crash, an
unbelted or improperly belted person is
&RQGLWLRQ


> (GLW    0RGHO (' @

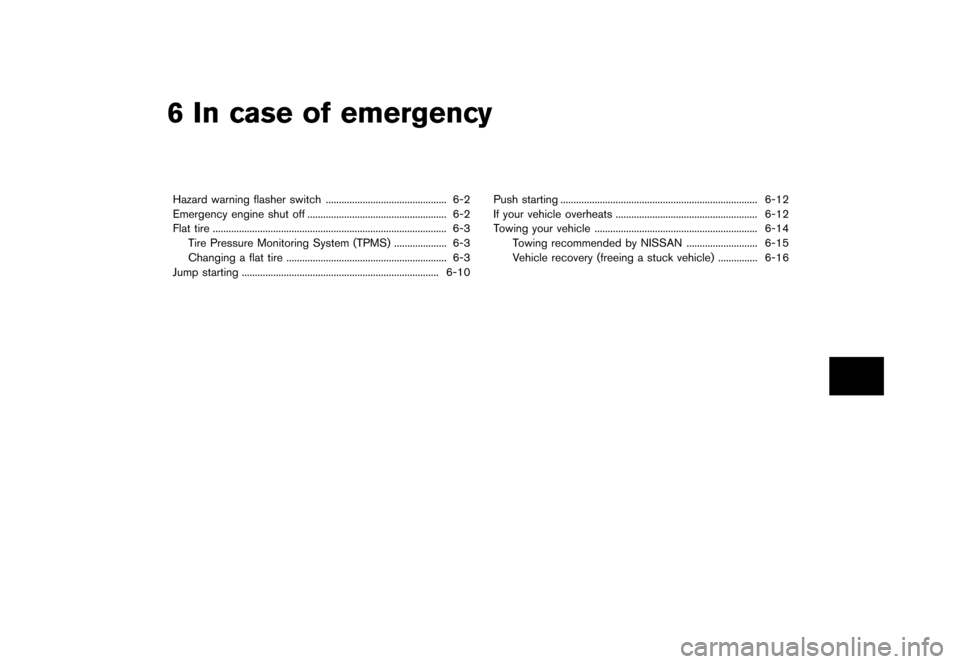

6 In case of emergency
Hazard warning flasher switch...
.............................................. 6-2
Emergency engine shut off ...
..................................................... 6-2
Flat tire ...
........................................................................\
................. 6-3
Tire Pressure Monitoring System (TPMS) ...
.................... 6-3
Changing a flat tire ...
............................................................. 6-3
Jump starting ...
........................................................................\
... 6-10 Push starting
...
........................................................................\
... 6-12
If your vehicle overheats ...
...................................................... 6-12
Towing your vehicle ...
.............................................................. 6-14
Towing recommended by NISSAN ...
........................... 6-15
Vehicle recovery (freeing a stuck vehicle) ...
............... 6-16
&RQGLWLRQ


> (GLW    0RGHO (' @
GUID-AC1D0281-335C-4108-853B-8A1B546B4579TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-DEB6C221-1388-45A8-A56A-12AE327CD076This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . For more
details, see ªWarning/indicator lights and audi-
ble remindersº (P.2-11) and ªTire Pressure
Monitoring System (TPMS)º (P.5-3) .
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you
have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not inject any tire liquid or
aerosol tire sealant into the tires, as this may cause a malfunction of
the tire pressure sensors.
CHANGING A FLAT TIREGUID-9C3D8FB6-951A-4EDB-A38A-8CFC44DDD5C4If you have a flat tire, follow the instructions
below.
Stopping the vehicleGUID-3C04CDD2-4FF2-4546-BEAF-E86E1FD31ECB1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the P (Park)
position.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle and stand in a safe place, away from traffic
and clear of the vehicle.
WARNING
.Make sure the parking brake is
securely applied and the transmis-
sion is shifted into the P (Park)
position.
In case of emergency6-3
FLAT TIRE
&RQGLWLRQ


> (GLW    0RGHO (' @
Lights*:Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires should be rotated every
5,000 miles (8,000 km) .
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires,
including the spare, to the pressure specified.
Check carefully for damage, cuts or excessive
wear.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Wheel alignment and balance: If the vehicle
should pull to either side while driving on a
straight and level road, or if you detect uneven or
abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed. For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Windshield:
Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Inside the vehicleGUID-3897C0E3-7461-4C2C-A02C-09726FC593F0The maintenance items listed here should be
checked on a regular basis, such as when
performing scheduled maintenance, cleaning
the vehicle, etc.
Accelerator pedal: Check the pedal for
smooth operation and make sure the pedal
does not catch or require uneven effort. Keep
the floor mat away from the pedal.
Brake pedal: Check the pedal for smooth
operation. If the brake pedal suddenly goes
down further than normal, the pedal feels
spongy or the vehicle seems to take longer to
stop, see a NISSAN dealer immediately. Keep
the floor mat away from the pedal.
Brakes: Check that the brakes do not pull the
vehicle to one side when applied. Continuously Variable Transmission (CVT)
P (Park) position mechanism:
On a fairly
steep hill, check that the vehicle is held securely
with the shift lever in the P (Park) position
without applying any brakes.
Parking brake: Check the parking brake
operation regularly. The vehicle should be
securely held on a fairly steep hill with only the
parking brake applied. If the parking brake needs
adjustment, see a NISSAN dealer.
Seat belts: Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt
webbing for cuts, fraying, wear or damage.
Seats: Check seat position controls such as
seat adjusters, seatback recliner, etc. to ensure
they operate smoothly and that all latches lock
securely in every position. Check that the head
restraints/headrests move up and down
smoothly and that the locks (if so equipped)
hold securely in all latched positions.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that
all warning lights and chimes are operating
properly.
Maintenance and do-it-yourself8-3
&RQGLWLRQ


> (GLW    0RGHO (' @
8-30Maintenance and do-it-yourself
GUID-89F90EC9-1A21-4C1D-B1C6-EA0BAF7C2106If you have a flat tire, see ªFlat tireº (P.6-3) .
TIRE PRESSUREGUID-6E7250AB-AD14-4FBE-A46C-D5F24A0415DC
Tire Pressure Monitoring System (TPMS)GUID-3AC4D70E-6B75-4BF7-9B81-983A94E44C75This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see ªLow tire pressure warning
lightº (P.2-14) , ªTire Pressure Monitoring Sys-
tem (TPMS)º (P.5-3) and ªTire Pressure Mon-
itoring System (TPMS)º (P.6-3) .
Tire inflation pressureGUID-B1306429-C2A4-4116-B9C4-C79D19196D15Check the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the ªCold Tire Pressureº heading. The Tire
and Loading Information label is affixed tothe driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
The TPMS with Easy Fill Tire Alert provides
visual and audible signals outside the
vehicle for inflating the tires to the recom-
mended COLD tire pressure. (See ªTPMS
with Easy Fill Tire Alertº (P.5-6) .)
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.For additional information re-
garding tires, refer to ªImportant
Tire Safety Informationº (US) or
WHEELS AND TIRES
&RQGLWLRQ


> (GLW    0RGHO (' @

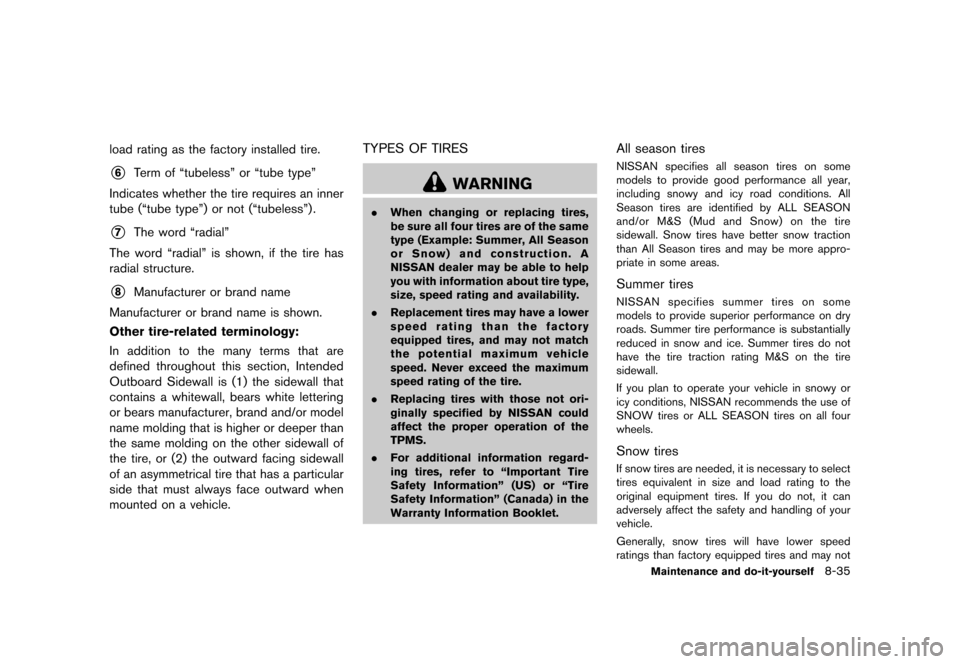

load rating as the factory installed tire.
*6Term of ªtubelessº or ªtube typeº
Indicates whether the tire requires an inner
tube (ªtube typeº) or not (ªtubelessº) .
*7The word ªradialº
The word ªradialº is shown, if the tire has
radial structure.
*8Manufacturer or brand name
Manufacturer or brand name is shown.
Other tire-related terminology:
In addition to the many terms that are
defined throughout this section, Intended
Outboard Sidewall is (1) the sidewall that
contains a whitewall, bears white lettering
or bears manufacturer, brand and/or model
name molding that is higher or deeper than
the same molding on the other sidewall of
the tire, or (2) the outward facing sidewall
of an asymmetrical tire that has a particular
side that must always face outward when
mounted on a vehicle.
TYPES OF TIRESGUID-5348E14A-CC90-4AB3-9036-4B3A7411D447
WARNING
. When changing or replacing tires,
be sure all four tires are of the same
type (Example: Summer, All Season
or Snow) and construction. A
NISSAN dealer may be able to help
you with information about tire type,
size, speed rating and availability.
. Replacement tires may have a lower
speed rating than the factory
equipped tires, and may not match
the potential maximum vehicle
speed. Never exceed the maximum
speed rating of the tire.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Warranty Information Booklet.
All season tiresGUID-F04CF4D4-36AC-46D8-AFCD-5FE805F16434NISSAN specifies all season tires on some
models to provide good performance all year,
including snowy and icy road conditions. All
Season tires are identified by ALL SEASON
and/or M&S (Mud and Snow) on the tire
sidewall. Snow tires have better snow traction
than All Season tires and may be more appro-
priate in some areas.
Summer tiresGUID-10A2FB53-2ADB-4413-9068-C494A16830B8NISSAN specifies summer tires on some
models to provide superior performance on dry
roads. Summer tire performance is substantially
reduced in snow and ice. Summer tires do not
have the tire traction rating M&S on the tire
sidewall.
If you plan to operate your vehicle in snowy or
icy conditions, NISSAN recommends the use of
SNOW tires or ALL SEASON tires on all four
wheels.
Snow tiresGUID-02BE7F20-F8DE-4578-8C06-B71D611D7A1EIf snow tires are needed, it is necessary to select
tires equivalent in size and load rating to the
original equipment tires. If you do not, it can
adversely affect the safety and handling of your
vehicle.
Generally, snow tires will have lower speed
ratings than factory equipped tires and may not
Maintenance and do-it-yourself8-35
&RQGLWLRQ


> (GLW    0RGHO (' @
accident and personal injury.
. If the wheels are changed for any
reason, always replace with wheels
which have the same off-set dimen-
sion. Wheels of a different off-set
could cause premature tire wear,
degrade vehicle handling character-
istics and/or interference with the
brake discs/drums. Such interfer-
ence can lead to decreased braking
efficiency and/or early brake pad/
shoe wear. See ªWheels and tiresº
(P.9-7) of this manual for wheel off-
set dimensions.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. Do not install a damaged or de-
formed wheel or tire even if it has been repaired. Such wheels or tires
could have structural damage and
could fail without warning.
. The use of retread tire is not re-
commended.
. For additional information regard-
ing tires, refer to ªImportant Tire
Safety Informationº (US) or ªTire
Safety Informationº (Canada) in the
Warranty Information Booklet.
Wheel balanceGUID-BC28C439-8120-4917-B316-D3EC5BF5A9DAUnbalanced wheels may affect vehicle handling
and tire life. Even with regular use, wheels can
get out of balance. Therefore, they should be
balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
For additional information regarding tires, refer
to ªImportant Tire Safety Informationº (US) or
ªTire Safety Informationº (Canada) in the War-
ranty Information Booklet.
Care of wheelsGUID-779AE1BC-6A37-42EE-A983-075C506FF618See ªCleaning exteriorº (P.7-2) for details about
care of the wheels.
Spare tireGUID-04BB4AF5-14FC-429D-A590-DF20AA32FF36When a spare tire is mounted (TEMPORARY
USE ONLY or conventional) , the TPMS will not
function.
Observe the following precautions if the TEM-
PORARY USE ONLY spare tire must be used,
otherwise your vehicle could be damaged or
involved in an accident.
WARNING
.The TEMPORARY USE ONLY spare
tire should be used for emergency
use. It should be replaced with the
standard tire at the first opportunity
to avoid possible tire or differential
damage.
. Drive carefully while the TEMPOR-
ARY USE ONLY spare tire is in-
stalled. Avoid sharp turns and
abrupt braking while driving.
. Periodically check spare tire infla-
tion pressure. Always keep the
pressure of the TEMPORARY USE
ONLY spare tire at 60 psi (420 kPa,
Maintenance and do-it-yourself8-39
&RQGLWLRQ


> (GLW    0RGHO (' @
10-4
Lights, Exterior and interior light replacement...
..... 8-27
Loading information (See vehicle
loading information) ...
.................................................... 9-12
Lock Automatic door locks ...
............................................. 3-7
Door locks ...
................................................................. 3-5
Lift gate lock ...
.......................................................... 3-26
Power door lock ...
...................................................... 3-5
Locking with mechanical key ...
...................................... 3-5
Loose fuel cap warning ...
................................. 2-21, 3-30
Low outside temperature warning ...
.......................... 2-21
Low tire pressure warning light ...
............................... 2-14
Low tire pressure warning system
(See tire pressure monitoring system (TPMS)) ...
.... 5-3
M
Maintenance
Battery ...
..................................................................... 8-13
General maintenance ...
............................................. 8-2
Inside the vehicle ...
.................................................... 8-3
Maintenance indicators ...
....................................... 2-22
Maintenance precautions ...
...................................... 8-5
Maintenance requirements ...
.................................... 8-2
Outside the vehicle ...
................................................. 8-2
Seat belt maintenance ...
........................................ 1-24
Malfunction indicator light (MIL) ...
.............................. 2-17
Manual air conditioner ...
................................................ 4-44
Manual front seat adjustment ...
..................................... 1-3
Map lights ...
..................................................................... 2-56
Master warning light ...
................................................... 2-15
Mechanical key (Intelligent Key system) ...
................. 3-4
Memory storage, Automatic drive positioner ...
....... 3-37
Meter Trip computer ...
........................................................ 2-23
Meters and gauges ...
....................................................... 2-5
Instrument brightness control ...
........................... 2-37 Mirror
Inside mirror ...
........................................................... 3-33
Outside mirrors ...
..................................................... 3-35
Vanity mirror ...
........................................................... 3-36
Monitor, RearView Monitor ...
....................................... 4-24
Mood lights ...
................................................................... 2-58
Moonroof ...
....................................................................... 2-53
Moving Object Detection (MOD) function ...
........... 4-38
Multi-function controller ...
............................................... 4-6
N
New vehicle break-in ...
.................................................. 5-25
NISSAN Mobile entertainment
system (MES) ...
........................................................... 4-104
NISSAN Vehicle Immobilizer System ...
..................... 2-29
NISSAN voice recognition system ...
...................... 4-148
O
Odometer ...
........................................................................ 2-6
Off-road recovery ...
.......................................................... 5-7
Oil Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine oil and filter ...
.............................. 8-9
Checking engine oil level ...
...................................... 8-8
Engine oil ...
................................................................... 8-8
Engine oil viscosity ...
.................................................. 9-5
Oil filter replacement indicator ...
......................... 2-22
Operation, Operational indicators ...
........................... 2-20
Outside air temperature display ...
.............................. 2-25
Outside mirrors ...
............................................................ 3-35
Overdrive OFF switch ...
................................................ 5-15
Overheat, If your vehicle overheats ...
........................ 6-12 Owner's Manual/Service Manual
order information
...
......................................................... 9-28
P
Panic alarm ...
................................................................... 3-23
Parking Brake break-in ...
....................................................... 5-29
Parking brake operation ...
..................................... 5-16
Parking on hills ...
..................................................... 5-27
Phone Bluetooth
