2015 NISSAN PATHFINDER jump start

Automatic operation (if so equipped)
To fully open a window equipped with automatic
operation, press the window switch down to the
second detent and release it; it need not be held.
The window automatically opens all the way. To
stop the window, lift the switch up while the
window is opening.
Auto-reverse function
The auto-reverse function can be activated when
a window is closed by automatic operation.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the window oc-
curs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the window.
If the vehicle’s battery is disconnected, replaced,
or jump started, the power window auto-reverse
function may not operate properly. If this occurs,
please contact the dealer to re-initialize the
power window auto-reverse system.
If the control unit detects something caught in a
window equipped with automatic operation, as it
is closing, the window will be immediately low-
ered.
POWER MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The power
moonroof is operational for a period of time, even
if the ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
LIC0410LIC2313
MOONROOF (if so equipped)
2-54Instruments and controls

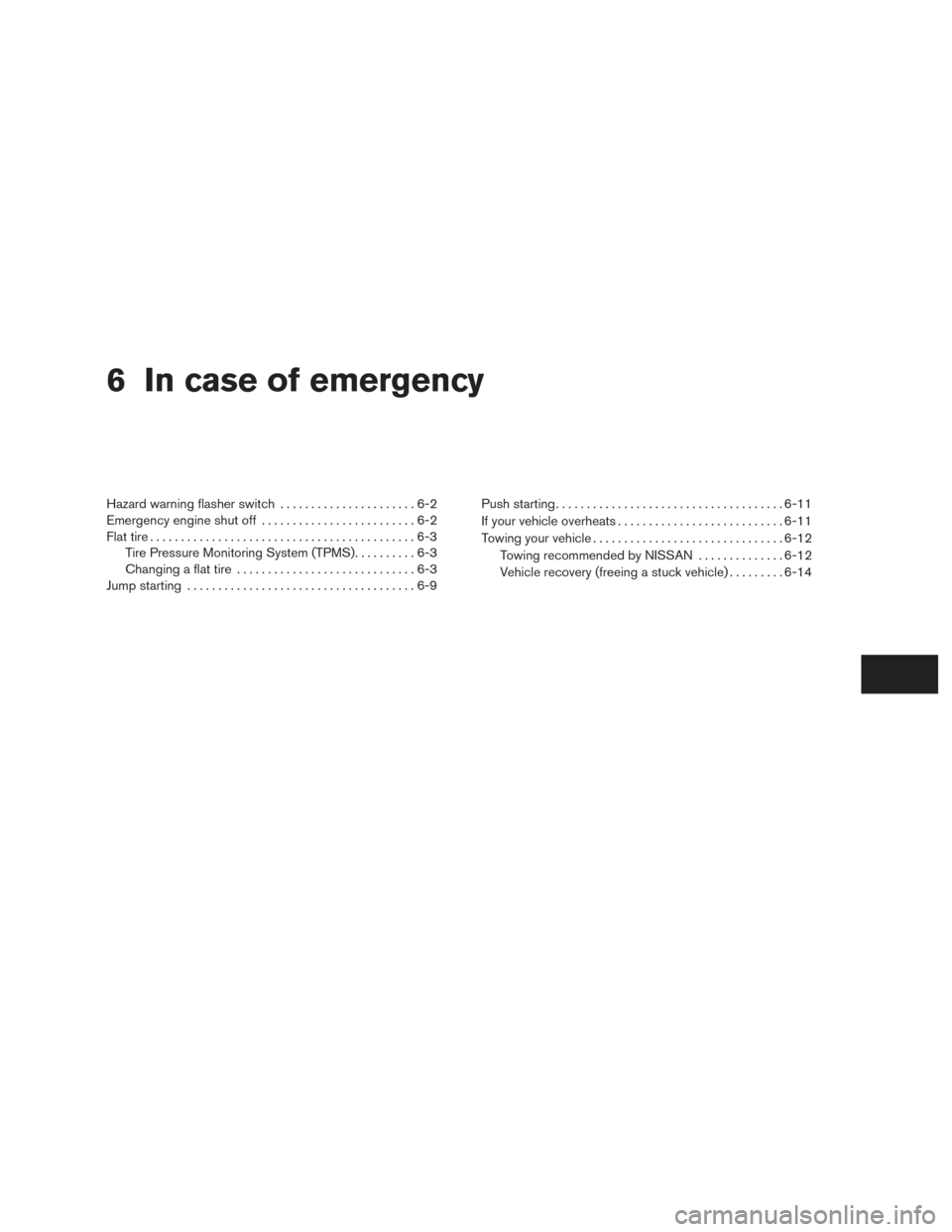

6 In case of emergency
Hazard warning flasher switch......................6-2
Emergency engine shut off .........................6-2
Flat tire ...........................................6-3
Tire Pressure Monitoring System (TPMS) ..........6-3
Changing a flat tire .............................6-3
Jump starting .....................................6-9 Push starting
..................................... 6-11
If your vehicle overheats ........................... 6-11
Towing your vehicle ............................... 6-12
Towing recommended by NISSAN ..............6-12
Vehicle recovery (freeing a stuck vehicle) .........6-14

Adjust tire pressure to the COLD pressure.
COLD pressure: After vehicle has been
parked for 3 hours or more or driven less
than 1 mile (1.6 km) .
COLD tire pressures are shown on the tire
and loading information label affixed to the
driver side center pillar.5. Securely store the flat tire, tools and jacking equipment in the vehicle.
6. Close the liftgate.
WARNING
● Always make sure that the spare tire
and jacking equipment are properly se-
cured after use. Such items can become
dangerous projectiles in an accident or
sudden stop.
● The spare tire is designed for emer-
gency use. For additional information,
refer to “Wheels and tires” in the “Main-
tenance and do-it-yourself” section of
this manual. To start your engine with a booster battery, the
instructions and precautions below must be fol-
lowed.
WARNING
●
If done incorrectly, jump starting can
lead to a battery explosion, resulting in
severe injury or death. It could also
damage your vehicle.
● Explosive hydrogen gas is always pres-
ent in the vicinity of the battery. Keep all
sparks and flames away from the
battery.
● Do not allow battery fluid to come into
contact with eyes, skin, clothing or
painted surfaces. Battery fluid is a cor-
rosive sulfuric acid solution which can
cause severe burns. If the fluid should
come into contact with anything, imme-
diately flush the contacted area with
water.
● Keep battery out of the reach of
children.
● The booster battery must be rated at
12 volts. Use of an improperly rated
battery can damage your vehicle. ●
Whenever working on or near a battery,
always wear suitable eye protectors (for
example, goggles or industrial safety
spectacles) and remove rings, metal
bands, or any other jewelry. Do not lean
over the battery when jump starting.
● Do not attempt to jump start a frozen
battery. It could explode and cause se-
rious injury.
● Your vehicle has an automatic engine
cooling fan. It could come on at any
time. Keep hands and other objects
away from it.

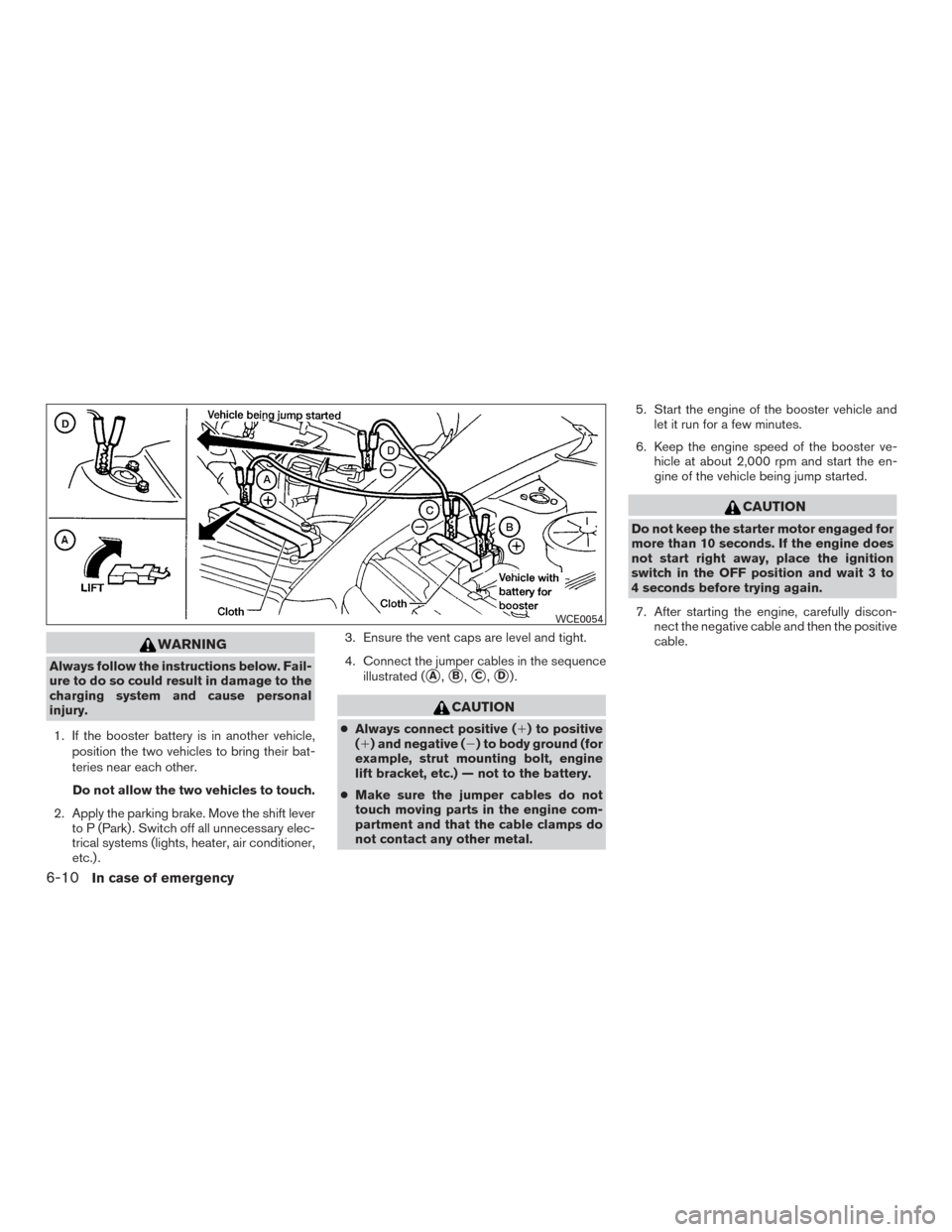

JUMP STARTING
In case of emergency6-9

WARNING
Always follow the instructions below. Fail-
ure to do so could result in damage to the
charging system and cause personal
injury.1. If the booster battery is in another vehicle, position the two vehicles to bring their bat-
teries near each other.
Do not allow the two vehicles to touch.
2. Apply the parking brake. Move the shift lever to P (Park) . Switch off all unnecessary elec-
trical systems (lights, heater, air conditioner,
etc.) . 3. Ensure the vent caps are level and tight.
4. Connect the jumper cables in the sequence
illustrated (A,B,C,D).
CAUTION
●Always connect positive () to positive
() and negative () to body ground (for
example, strut mounting bolt, engine
lift bracket, etc.) — not to the battery.
● Make sure the jumper cables do not
touch moving parts in the engine com-
partment and that the cable clamps do
not contact any other metal. 5. Start the engine of the booster vehicle and
let it run for a few minutes.
6. Keep the engine speed of the booster ve- hicle at about 2,000 rpm and start the en-
gine of the vehicle being jump started.
CAUTION
Do not keep the starter motor engaged for
more than 10 seconds. If the engine does
not start right away, place the ignition
switch in the OFF position and wait 3 to
4 seconds before trying again.
7. After starting the engine, carefully discon- nect the negative cable and then the positive
cable.
WCE0054
6-10In case of emergency

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions ...........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-7
Checking engine coolant level ...................8-8
Changing engine coolant ........................8-8
Engine oil .........................................8-9
Checking engine oil level ........................8-9
Changing engine oil ........................... 8-10
Changing engine oil filter .......................8-11
Continuously Variable Transmission (CVT) fluid ......8-12
Power steering fluid ............................... 8-12
Brake fluid ....................................... 8-13
Windshield-washer fluid ........................... 8-13
Windshield-washer fluid reservoir ...............8-13
Battery .......................................... 8-14
Jump starting ................................. 8-16
Variable voltage control system (if so equipped) ......8-16
Drive belt ........................................ 8-17
Spark plugs ...................................... 8-17Replacing spark plugs
......................... 8-17
Air cleaner ....................................... 8-18
In-cabin microfilter ............................. 8-18
Windshield wiper blades .......................... 8-19
Cleaning ..................................... 8-19
Replacing .................................... 8-19
Brakes .......................................... 8-20
Fuses ........................................... 8-21
Engine compartment ........................... 8-21
Passenger compartment .......................8-22
Battery replacement .............................. 8-23
NISSAN Intelligent Key® .......................8-24
Lights ........................................... 8-25
Headlights .................................... 8-25
Fog lights (if so equipped) ......................8-25
Exterior and interior lights .......................8-26
Wheels
and tires ................................. 8-29
Tire pressure .................................. 8-29
Tire labeling ................................... 8-32
Types of tires .................................. 8-35
Tire chains .................................... 8-36
Changing wheels and tires .....................8-36

Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level.
JUMP STARTING
If jump starting is necessary, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the engine does not start by jump
starting, the battery may have to be replaced.
Contact a NISSAN dealer.
CAUTION
●Do not ground accessories directly to
the battery terminal. Doing so will by-
pass the variable voltage control sys-
tem and the vehicle battery may not
charge completely.
● Use electrical accessories with the en-
gine running to avoid discharging the
vehicle battery. Your vehicle is equipped with a variable voltage
control system. This system measures the
amount of electrical discharge from the battery
and controls voltage generated by the generator.
The current sensor is located near the battery
along the negative battery cable. If you add elec-
trical accessories to your vehicle, be sure to
ground them to a suitable body ground such as
the frame or engine block area.
LDI2132
VARIABLE VOLTAGE CONTROL
SYSTEM (if so equipped)
8-16Maintenance and do-it-yourself

Remote keyless entry operation.......3-13
Troubleshooting guide............3-18
Warning signals ...............3-18
Interiorlight....................2-58
iPod®Player ...............4-92,4-94
ISOFIX child restraints .............1-28
J
Jump starting ................6-9,8-16
K
Key.........................3-2
Keyless entry With Intelligent Key system
(See Intelligent Key system) .........3-13
Keys, For Intelligent Key system .........3-7
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emissioncontrolinformationlabel.....9-11
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-65
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-28 Liftgate......................3-23
Liftgaterelease.................3-27
Light
Air bag warning light .........1-65,2-15
Brake light (See stop light) .........8-26
Bulb check/instrument panel ........2-11
Bulbreplacement..............8-26
Charge warning light ............2-12
Foglights...................8-25
Foglightswitch ...............2-37
Headlight and turn signal switch ......2-33
Headlight control switch ..........2-34
Headlights..................8-25
Interiorlight..................2-58
Lightbulbs..................8-25
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light ..................2-14,2-27
Passenger air bag and status light .....1-57
Security indicator light ............2-17
Spotlights(Seemaplight) .........2-59
Warning/indicator lights and audible
reminders ...............2-10,2-15
Lights.......................8-25 Maplights ..................2-59
Lock Child safety rear door lock ..........3-7
Door locks ...................3-5
Gloveboxlock................2-46
Liftgaterelease...............3-27
Power door locks ...............3-6
Loose fuel cap warning ..........2-28,3-29
Lowfuelwarninglight.......2-12,2-14,2-26
Low tire pressure warning light .........2-12
Low windshield-washer fluid warning
light ....................2-14,2-27 Luggage hook
..................2-50
Luggage rack (see roof rack) ..........2-51
Luggage (See vehicle loading information) . .9-13
M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-24
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-16
Manual front seat adjustment ...........1-3
Maplights ....................2-59
Mappocket....................2-45
Memory Seat ...................3-36
Meters and gauges ................2-3
Instrument brightness control ........
2-36
Mirror Automatic anti-glare inside mirror ......3-34
Inside mirror .................3-33
Outside mirrors ...............3-35
Vanity mirror .................3-33
Mirrors ......................3-33
Moonroof .....................2-54
N
NISSAN vehicle immobilizer
system ................2-29,3-4,5-13
NISSAN voice recognition system ......4-143
10-4

Shoulder belt height adjustment......1-23
Three-point type with retractor .......1-20
Seat belt extenders ...............1-23
Seatbeltwarninglight..........1-20,2-14
Seats 2nd row bench seat adjustment ....1-7,1-9
Adjustment ...................1-2
Armrests...................1-10
Automatic drive positioner ..........3-36
Frontseats...................1-2
Heatedseats..........2-38,2-39,2-40
Manual front seat adjustment .........1-3
Security indicator light ..............2-17
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-29,3-4,5-13
Security systems Vehicle security system ...........2-28
Self-adjusting brakes ..............8-20
Service manual order form ...........9-32
Servicing air conditioner .............4-50
Shoulder belt height adjustment ........1-23
Sonar Rear system .................5-47
Spark plug replacement .............8-17
Spark plugs ...................8-17
Specifications ...................9-8
Speedometer ...................2-4
Spotlights(Seemaplight) ...........2-59
SRS warning label ................1-65
Stability control .................5-43
Starting Before starting the engine ..........5-13
Jump starting ..............6-9,8-16
Precautions when starting and driving ....5-2
Push starting .................6-11
Starting the engine .............5-14 Starting the engine
...............5-14
Steering Heated steering wheel ...........2-41
Power steering fluid .............8-12
Power steering system ...........5-41
Steering wheel audio control switch .....4-102
Stoplight.....................8-26
Storage......................2-45
Storagebin....................2-51
Sunglassescase.................2-47
Sunglassesholder................2-47
Sunroof(seeMoonroof).............2-54
Sun visors ....................3-32
Supplemental air bag warning labels ......1-65
Supplemental air bag warning light . . .1-65, 2-15
Supplemental front impact air bag system . . .1-55
Supplemental restraint system Information and warning labels .......1-65
Precautions on supplemental restraint
system ....................1-48
Supplemental restraint system
(Supplemental air bag system) .........1-48
Switch Autolightswitch...............2-34
Automatic power window switch ......2-54
Foglightswitch ...............2-37
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-33
Headlight control switch ..........2-34
Instrument brightness control ........2-36
Power door lock switch ............3-6
Power inverter switch ............2-42
Rear window and outside mirror defroster
switch.....................2-33
Rear window wiper and washer switches .2-32
Tow mode switch ..............2-43 Turnsignalswitch..............2-36
Vehicle dynamic control (VDC) off
switch
.....................2-42
Wiper and washer switch ..........2-30
T
T

achometer ....................2-5
Temperature gauge Engine coolant temperature gauge .....2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-29,3-4,5-13
Three-way catalyst ................5-2
Tire Flat tire .....................6-3
Spare tire ................6-4,8-39
Tire and Loading Information label .....9-12
Tire chains ..................8-36
Tire pressure .................8-29
Tire rotation..................8-36
Tires of 4-wheel drive ............8-38
Types of tires .................8-35
Uniform tire quality grading .........9-29
Wheels and tires ...............8-29
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-12
Tire Pressure Monitoring System (TPMS) ....5-3
Top tether strap child restraint .........1-31
Towing 4-wheel drive models ............6-13
Flattowing..................9-28
Towing load/specification ..........9-20
Towtrucktowing...............6-12
Trailer towing .................9-17
10-6
