CAUTION
∙ Do not force the USB device into theUSB port. Inserting the USB device
tilted or up-side-down into the port
may damage the port. Make sure that
the USB device is connected correctly
into the USB port.
∙ Do not grab the USB port cover (if so equipped) when pulling the USB de-
vice out of the port. This could dam-
age the port and the cover.
∙ Do not leave the USB cable in a place where it can be pulled unintentionally.
Pulling the cable may damage the
port.
For additional information, refer to your de-
vice manufacturer’s owner information re-
garding the proper use and care of the
device.
To connect an iPod® to the vehicle so that
the iPod® can be controlled with the audio
system controls and display screen, use
the USB connection port located on the
center console below the heater and air
conditioner controls
1. Connect the
iPod®-specific end of the cable to the iPod®
and the USB end of the cable to the USB
connection port on the vehicle. If your
iPod® supports charging via a USB connec- tion, its battery will be charged while con-
nected to the vehicle with the ignition
switch in the ACC or ON position.
While connected to the vehicle, the iPod®
can only be operated by the vehicle audio
controls.
To disconnect the iPod® from the vehicle,
remove the USB end of the cable from the
USB connection port on the vehicle, then
remove the cable from the iPod®.
* iPod® is a trademark of Apple Inc., regis-
tered in the U.S. and other countries.
Compatibility
The following models are compatible:
∙ iPod® Classic 5th generation (firmware version 1.3.0 or later)
∙ iPod® Classic 6th generation (firmware version 2.0.1 or later)
∙ iPod® Classic 7th generation (firmware version 2.0.4 or later)
∙ iPod® Touch 2nd generation (firmware version 4.2.1 or later)*
∙ iPod® Touch 3rd generation (firmware version 5.1 or later) ∙ iPod® Touch 4th generation (firmware
version 5.1 or later)
∙ iPod® nano - 1st generation (firmware version 1.3.1 or later)
∙ iPod® nano - 2nd generation (firmware version 1.1.3 or later)
∙ iPod® nano - 3rd generation (firmware version 1.1.3 or later)
∙ iPod® nano - 4th generation (firmware version 1.0.4 or later)
∙ iPod® nano - 5th generation (firmware version 1.0.2 or later)
∙ iPod® nano - 6th generation (firmware version 1.1 or later)
∙ iPhone® 3G (firmware version 4.2.1 or later)
∙ iPhone® 3GS (firmware version 5.1 or later)
∙ iPhone® 4 (firmware version 5.1 or later)
∙ iPhone® 4S (firmware version 5.1 or later)
* Some features of this iPod® may not be
fully functional.
Make sure that your iPod® firmware is up-
dated to the version indicated above.
4-56Monitor, climate, audio, phone and voice recognition systems

∙ Do not use the cruise control (if soequipped) on slippery roads.
∙ Snow can trap dangerous exhaust gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.

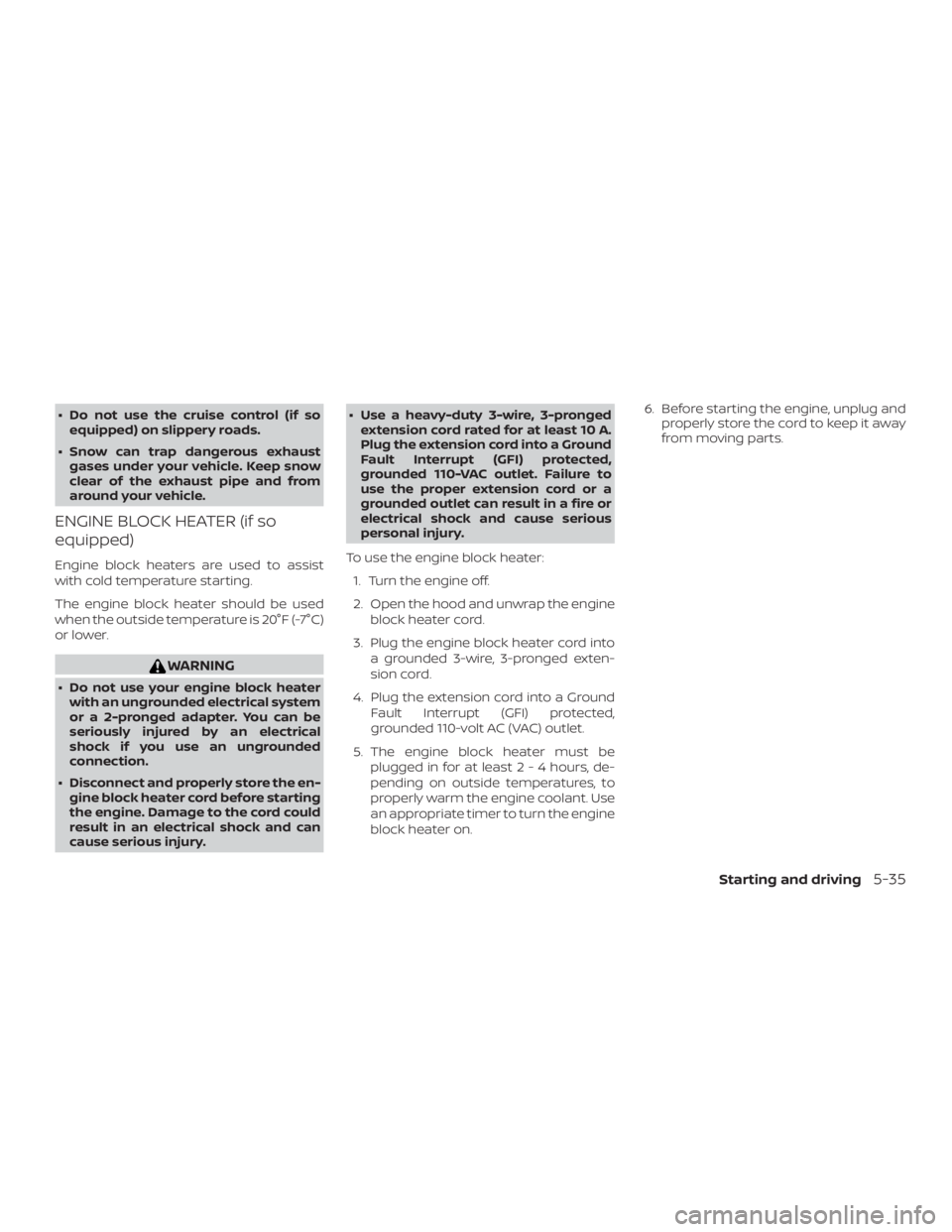

ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist
with cold temperature starting.
The engine block heater should be used
when the outside temperature is 20°F (-7°C)
or lower.

WARNING
Always follow the instructions below.
Failure to do so could result in damage
to the charging system and cause per-
sonal injury.1. If the booster battery is in another ve- hicle, position the two vehicles to bring
their batteries near each other.
Do not allow the two vehicles to
touch. 2. Apply the parking brake. Move the shif t
lever to P (Park). Switch off all unneces-
sary electrical systems (lights, heater,
air conditioner, etc.).
3. Ensure the vent caps are level and tight.
4. Connect jumper cables in the se- quence illustrated (
A,B,C,D).

CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir
when the engine is cold. If the coolant
level is below the MIN level, add coolant to
the MAX level. If the reservoir is empty,
check the coolant level in the radiator
when the engine is cold. If there is insuffi-
cient coolant in the radiator, fill the radiator
with coolant up to the filler opening and
also add it to the reservoir up to the MAX
level. This vehicle contains Genuine NISSAN Long
Life Antifreeze/Coolant (blue). The life ex-
pectancy of the factory-fill coolant is
105,000 miles (168,000 km) or 7 years. Mixing
any other type of coolant or the use of
non-distilled water will reduce the life ex-
pectancy of the factory-fill coolant. For ad-
ditional information, refer to the “Mainte-
nance and schedules” section of this
manual.
The engine coolant reservoir is a pres-
surized tank. When installing the cap,
tighten.
If the cooling system frequently requires
coolant, have it checked. It is recom-
mended that you visit a NISSAN dealer
for this service.
CHANGING ENGINE COOLANT
A NISSAN dealer can change the engine
coolant. The service procedure can be
found in the NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine over-
heating.

CD player (See audio system)....4-40,4-47
Childrestraints ...........1-19, 1-19, 1-21 Precautions on child
restraints............1-22, 1-24, 1-28
Top tether strap anchor point
locations.................. .1-23
Child restraint with top tether strap . . . .1-23
Chimes, audible reminders ..........2-17
Cleaningexteriorandinterior......7-2,7-4
Clock setting (models with Navigation
System)......................4-7
Clock setting (models without Navigation
System)..................4-38,4-39
C.M.V.S.S. certification label .........10-11
Coldweatherdriving.............5-33
Compact disc (CD) player .......4-40,4-47
Continuously Variable
Transmission (CVT) ............5-8,5-12
Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) ..........5-8,5-12
Control panel buttons .............4-4
Brightness/contrast button .......4-9
Settingbutton................4-7
Controls Audio controls (steering wheel) ....4-62
Heater and air conditioner controls . .4-19
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-6
Checking engine coolant level ......8-6
Corrosionprotection..............7-7
Cruisecontrol..................5-18
Cupholders ..................2-28 D
Daytimelightsystem.............2-22
Defroster switch Rear window and outside mirror
defrosterswitch..............2-21
Dimensions and weights ...........10-9
Dimmer switch for instrument panel . . .2-23
Display controls
(see control panel buttons) ..........4-4
Door locks ....................3-4
Door open warning light ...........2-11
Doors .......................3-3
D-ring ...................2-29,10-16
Drivebelt ....................8-15
Driving Cold weather driving ...........5-33
Driving with Continuously Variable
Transmission (CVT) ..........5-8,5-12
Precautions when starting and
driving.....................5-2
Drivingthevehicle...............5-11
E
Economy - fuel .................5-21
Emission control information label . . . .10-11
Emission control system warranty . . . .10-19
Engine Before starting the engine ........5-10
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-6
Changing engine oil ............8-8
Changing engine oil filter .........8-9Checking engine coolant level
......8-6
Checking engine oil level .........8-7
Engine compartment check
locations...................8-4
Engine cooling system ..........8-5
Engine oil ...................8-7
Engine oil and oil filter
recommendation .............10-6
Engine oil pressure warning light ....2-11
Engine oil viscosity .............10-6
Engine serial number ..........10-10
Engine specifications ...........10-8
Starting the engine ............5-10
Engine Block Heater .............5-35
EventDatarecorders ............10-21
Exhaust gas (Carbon monoxide) .......5-2
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch...........8-21
F
Flasher

s
(Seehazardwarningflasherswitch)....6-2
Flattire....................6-2,6-3
Floormatpositioningaid...........7-5
Fluid Brakefluid..................8-10
Capacities and recommended
fuel/lubricants...............10-2
Continuously Variable Transmission (CVT)
fluid......................8-10
Engine coolant ...............8-5
Engine oil ...................8-7
11-2

Windshield-washer fluid.........8-11
F.M.V.S.S. certification label ..........10-11
Front air bag system
(See supplemental restraint system) . . .1-39
Front-door pocket ...............2-27
Frontseats................... .1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-21
Fuel-filler door and cap ..........3-15
Fuel-filler door lock opener lever ....3-15
Fuel gauge ..................2-6
Fueloctanerating.............10-5
Fuel recommendation ..........10-3
Loose fuel cap warning ..........2-5
Fuelefficientdrivingtips...........5-20
Fuel-filler door .................3-15
Fuel gauge ....................2-6
Fuses .......................8-19
Fusiblelinks...................8-20
G
Gascap .....................3-15
Gauge Fuel gauge ..................2-6
Odometer ..................2-4
Speedometer ................2-4
Tachometer .................2-6
Trip computer ................2-7
Trip odometer ................2-4
General maintenance .............9-2
Glovebox....................2-28
Gloveboxlock.................2-28 H
Hands-free phone system,
Bluetooth®................4-65,4-76
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-21
Headlightcontrolswitch...........2-21
Headlights ...................8-24
Headrestraints................. .1-7
Heater Heater and air conditioner controls . .4-19
Heater operation ..............4-21
Hill start assist system ............5-29
Hood .......................3-14
Horn.......................2-24
I
Ignition switch ..................5-8
Immobilizer system .........2-19,3-2,5-9
Important vehicle information label . . . .10-11
Increasing fuel economy ...........5-21
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) .................2-9,2-15
Instrument brightness control .......2-23
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-23
Interiorlight...............2-32,2-34
iPod®Player...............4-53,4-55
J
Jumpstarting..............6-10,8-14 K
Key........................ .3-2
Key fob battery replacement .....8-22,8-22
Keyless entry Without Intelligent Key system
(See remote keyless entry
system).................3-10, 3-11
Keys NISSAN Vehicle Immobilizer System
keys......................3-2
L
Label Tirewarning................10-12
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label .......10-11
Emission control information label . .10-11
Engine serial number ..........10-10
F.M.V.S.S. certification label ........10-11
Tir

e and Loading Information label . .10-11
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS) .........1-49
License plate Installing the license plate .......10-12
Light Airbagwarninglight........1-50, 2-14
Brakelight(Seestoplight)........8-29
Bulb check/instrument panel ......2-9
Bulb replacement .............8-29
Charge warning light ...........2-11
11-3
