2015 NISSAN NV200 TPMS

may not detect a sudden drop in tire
pressure (for example a flat tire while
driving).
For additional information, refer to
“Warning lights, indicator lights and
audible reminders” in the “Instru-
ments and controls” section, “Tire
Pressure Monitoring System (TPMS)”
in the “Starting and driving” section,
and “Flat tire” in the “In case of emer-
gency” section of this manual.

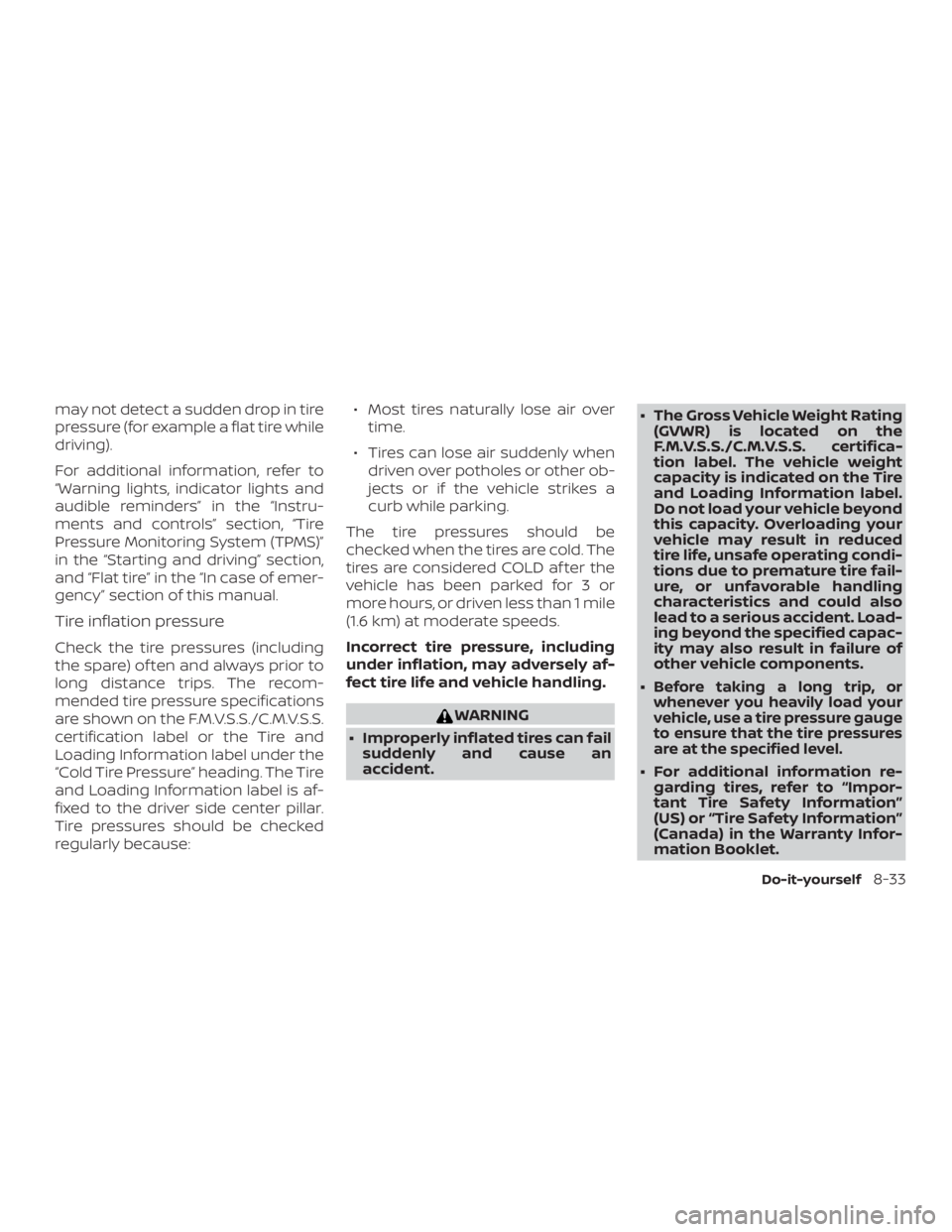

Tire inflation pressure
Check the tire pressures (including
the spare) of ten and always prior to
long distance trips. The recom-
mended tire pressure specifications
are shown on the F.M.V.S.S./C.M.V.S.S.
certification label or the Tire and
Loading Information label under the
“Cold Tire Pressure” heading. The Tire
and Loading Information label is af-
fixed to the driver side center pillar.
Tire pressures should be checked
regularly because:∙ Most tires naturally lose air over
time.
∙ Tires can lose air suddenly when driven over potholes or other ob-
jects or if the vehicle strikes a
curb while parking.
The tire pressures should be
checked when the tires are cold. The
tires are considered COLD af ter the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds.
Incorrect tire pressure, including
under inflation, may adversely af-
fect tire life and vehicle handling.

∙ When replacing a wheel without theTPMS, such as the spare tire, TPMS will
not function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will remain
on af ter 1 minute. Have your tires re-
placed and/or TPMS system reset as
soon as possible. It is recommended
that you visit a NISSAN dealer for this
service.
∙ The TPMS sensor may be damaged if it is not handled correctly. Be careful
when handling the TPMS sensor.
∙ When replacing the TPMS sensor, the ID registration may be required. It is
recommended that you visit a NISSAN
dealer for ID registration.
∙ Do not use a valve stem cap that is not specified by NISSAN. The valve stem
cap may become stuck.
∙ Be sure that the valve stem caps are correctly fitted. Otherwise the valve
may be clogged up with dirt and
cause a malfunction or loss of
pressure.
∙ Replacing tires with those not origi- nally specified by NISSAN could affect
the proper operation of the TPMS. ∙ Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could
have structural damage and could fail
without warning.
∙ The use of retread tires is not recommended.
∙ For additional information regarding tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Wheel balance
Unbalanced wheels may affect vehicle
handling and tire life. Even with regular use,
wheels can get out of balance. Therefore,
they should be balanced as required.
Wheel balance service should be per-
formed with the wheels off the vehicle.
Spin balancing the wheels on the vehicle
could lead to mechanical damage.
∙ For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety In-
formation” (Canada) in the Warranty
Information Booklet.
Care of wheels
∙ Wash the wheels when washing the ve- hicle to maintain their appearance.
∙ Clean the inner side of the wheels when the wheel is changed or the underside
of the vehicle is washed.
∙ Do not use abrasive cleaners when washing the wheels.
∙ Inspect wheel rims regularly for dents or corrosion. Such damage may cause
loss of pressure or poor seal at the tire
bead.
∙ NISSAN recommends waxing the road wheels to protect against road salt in
areas where it is used during winter.
Do-it-yourself8-43

Supplemental front impact air bag
system..................... .1-39
Supplemental restraint system Information and warning labels . . . .1-49
Precautions on supplemental restraint
system ....................1-32
Supplemental restraint system
(Supplemental air bag system) .......1-32
Switch Automatic power window switch . . .2-31
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-21
Headlightcontrolswitch.........2-21
Ignition switch ................5-8
Instrument brightness control .....2-23
Power door lock switch ..........3-6
Rear sonar system off switch ......2-25
Rear window and outside mirror
defrosterswitch..............2-21
Turn signal switch .............2-23
Vehicle dynamic control (VDC) off
switch....................2-24
T
Tachometer ...................2-6
Thef t (NISSAN Vehicle Immobilizer System),
engine start ................2-19,5-9
Three-waycatalyst...............5-2
Tire Flattire..................6-2,6-3
Spare tire ...................6-4
Tire and Loading Information label . .10-11
Tire chains .................8-40
Tire pressure .............8-32,8-32 Tirerotation ................8-40
Types of tires
................8-39
Uniform tire quality grading ......10-18
Wheels and tires ...........8-32,10-9
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-12
Tire Pressure Monitoring System (TPMS) . .5-3
Tire warning label ...............10-12
Toptetherstrapchildrestraint.......1-23
Towing 4-wheel drive models ...........6-14
Flattowing.................10-17
Towtrucktowing .............6-13
Trailertowing ...............10-17
Towingatrailer................10-17
Transmission Continuously Variable Transmission (CVT)
fluid......................8-10
Driving with Continuously Variable
Transmission (CVT) ..........5-8,5-12
Travel (See registering a vehicle in another
country) .....................10-10
Trip computer ..................2-7
Trip odometer ..................2-4
Troubleshooting guide
(NISSAN voice recognition system) ....4-90
Turn signal switch ...............2-23
U
Uniform tire quality grading ........10-18
USBinterface ..............4-49,4-51 Audio file operation ........4-50,4-52 V
Variable voltage control system ......8-14
Vehicle dimensions and weights ......10-9
Vehicle dynamic control (VDC) off
switch......................2-24
Vehicle dynamic control (VDC) system . .5-26
Vehicle Dynamic Control (VDC) system . .5-26
Vehicle identification .............10-10
Vehicle identification number (VIN) . . . .10-10
Vehicle identification number (VIN)
plate.......................10-10
Vehicle immobilizer system ....2-19,3-2,5-9
Vehicle loading information ........10-13
Vehiclerecovery................6-15
Vehicle security system ............2-17
Vehicle security system (NISSAN Vehicle
Immobilizer System), engine start. . .2-19, 5-9
Ventilators ....................4-18
Visors.......................3-18
Voice Prompt Interrupt ........4-68, 4-79
Voice recognition system ..........
4-86
W
Warning Airbagwarninglight........1-50, 2-14
Anti-lock brake warning light ......2-10
Battery charge warning light ......2-11
Brakewarninglight............2-10
Door open warning light .........2-11
Engine oil pressure warning light ....2-11
Hazard warning flasher switch ......6-2
Loosefuelcapwarning..........2-5
Lowfuelwarninglight...........2-11
11-6
