3-74Navigation
LNE0226X
2. Touch [Audio Display on Map]. The indicatorilluminates when the item is set.
3. Push the MAPbutton to return to the
current location map screen.
LNE0227X
4. On the bottom of the map screen, the operating status of an audio/visual function
is displayed at all times.
Customizing Nearby PlacesGUID-A4E50221-4823-4EA9-82A7-F33DD5C56E4DThe categories can be customized for searching
places of interest nearby.
The modified list of points of interest can be
used for searching for a location using [Nearby
Points of Interest].
1. Touch [Others].
2. Touch [Customize Nearby Places].
LNE0228X
3. Touch the preferred item. The main categorylist is displayed.
LNE0229X
4. Touch a main category. The sub category listis displayed.
LNE0230X
5. Touch a sub category. The category settingis modified.
Settings keyboard layout of charac-
ter input screen
GUID-015D713B-5749-42AB-A5C8-6F76F2EECE39The keyboard layout of the character input
screen can be set to either the ABC or
QWERTY layout, depending on the user's
preference.
Example: Switching to the QWERTY layout
1. Touch [Others].
2. Touch [Keyboard Type].
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

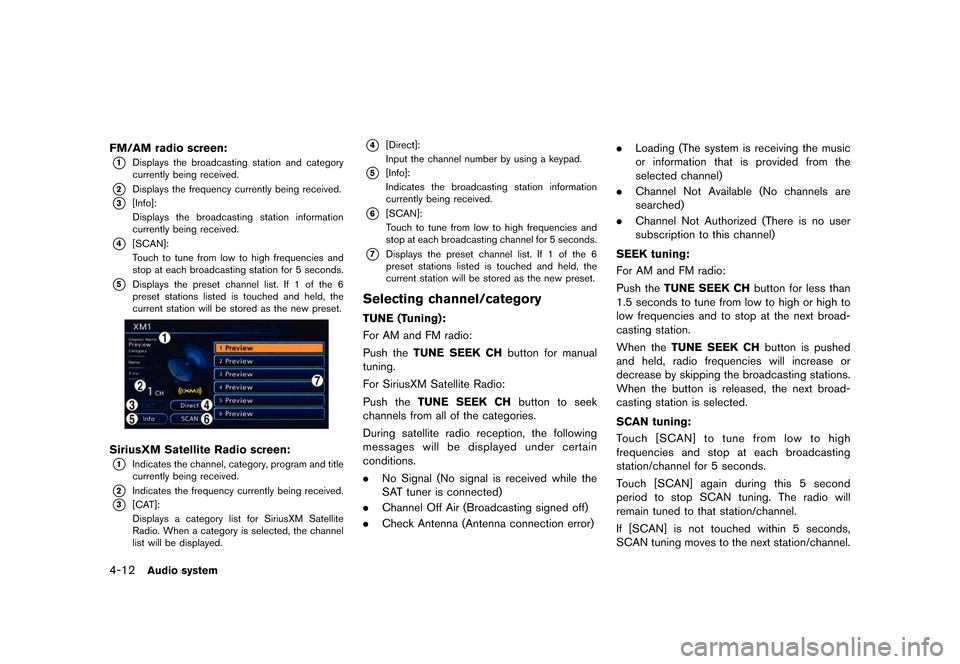

4-12Audio system
FM/AM radio screen:
*1Displays the broadcasting station and category
currently being received.
*2Displays the frequency currently being received.
*3[Info]:
Displays the broadcasting station information
currently being received.
*4[SCAN]:
Touch to tune from low to high frequencies and
stop at each broadcasting station for 5 seconds.
*5Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held, the
current station will be stored as the new preset.
LNF0004X
SiriusXM Satellite Radio screen:
*1Indicates the channel, category, program and title
currently being received.
*2Indicates the frequency currently being received.
*3[CAT]:
Displays a category list for SiriusXM Satellite
Radio. When a category is selected, the channel
list will be displayed.
*4[Direct]:
Input the channel number by using a keypad.
*5[Info]:
Indicates the broadcasting station information
currently being received.
*6[SCAN]:
Touch to tune from low to high frequencies and
stop at each broadcasting channel for 5 seconds.
*7Displays the preset channel list. If 1 of the 6
preset stations listed is touched and held, the
current station will be stored as the new preset.
Selecting channel/categoryGUID-62D7FA96-477E-4256-B425-B9212D8F6329
TUNE (Tuning):
For AM and FM radio:
Push theTUNE SEEK CH button for manual
tuning.
For SiriusXM Satellite Radio:
Push the TUNE SEEK CH button to seek
channels from all of the categories.
During satellite radio reception, the following
messages will be displayed under certain
conditions.
. No Signal (No signal is received while the
SAT tuner is connected)
. Channel Off Air (Broadcasting signed off)
. Check Antenna (Antenna connection error) .
Loading (The system is receiving the music
or information that is provided from the
selected channel)
. Channel Not Available (No channels are
searched)
. Channel Not Authorized (There is no user
subscription to this channel)
SEEK tuning:
For AM and FM radio:
Push the TUNE SEEK CH button for less than
1.5 seconds to tune from low to high or high to
low frequencies and to stop at the next broad-
casting station.
When the TUNE SEEK CH button is pushed
and held, radio frequencies will increase or
decrease by skipping the broadcasting stations.
When the button is released, the next broad-
casting station is selected.
SCAN tuning:
Touch [SCAN] to tune from low to high
frequencies and stop at each broadcasting
station/channel for 5 seconds.
Touch [SCAN] again during this 5 second
period to stop SCAN tuning. The radio will
remain tuned to that station/channel.
If [SCAN] is not touched within 5 seconds,
SCAN tuning moves to the next station/channel.
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

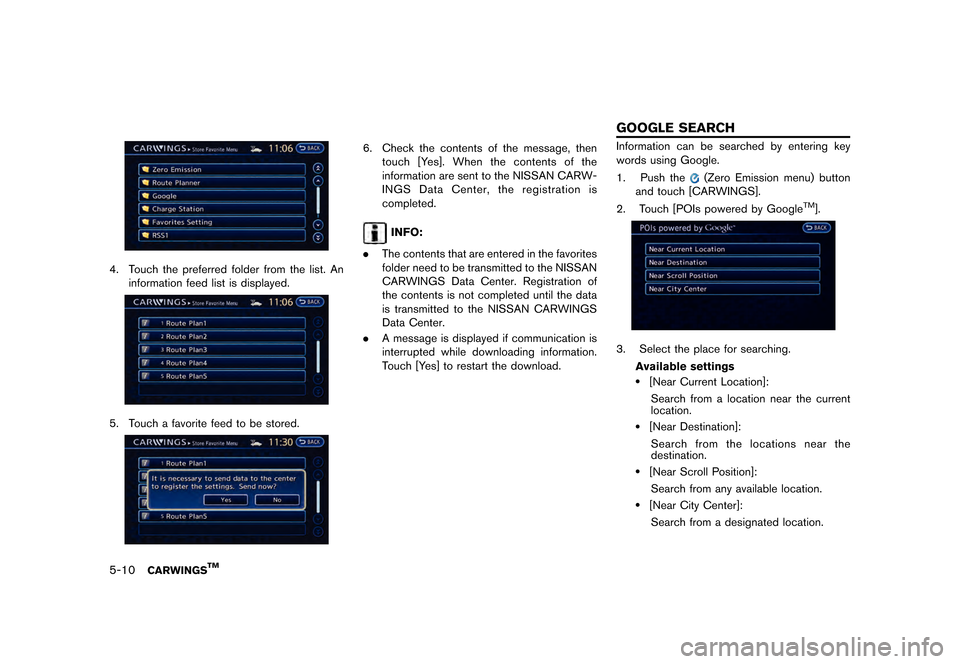

5-10CARWINGSTM
LNG0008X
4. Touch the preferred folder from the list. Aninformation feed list is displayed.
LNG0009X
5. Touch a favorite feed to be stored.
LNG0011X
6. Check the contents of the message, thentouch [Yes]. When the contents of the
information are sent to the NISSAN CARW-
INGS Data Center, the registration is
completed.
INFO:
. The contents that are entered in the favorites
folder need to be transmitted to the NISSAN
CARWINGS Data Center. Registration of
the contents is not completed until the data
is transmitted to the NISSAN CARWINGS
Data Center.
. A message is displayed if communication is
interrupted while downloading information.
Touch [Yes] to restart the download.
GUID-2F43976A-4831-41AD-9410-508DAE208600Information can be searched by entering key
words using Google.
1. Push the
(Zero Emission menu) button
and touch [CARWINGS].
2. Touch [POIs powered by Google
TM].
LNG0123X
3. Select the place for searching. Available settings
.[Near Current Location]:Search from a location near the current
location.
.[Near Destination]:
Search from the locations near the
destination.
.[Near Scroll Position]:Search from any available location.
.[Near City Center]:Search from a designated location.
GOOGLE SEARCH
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

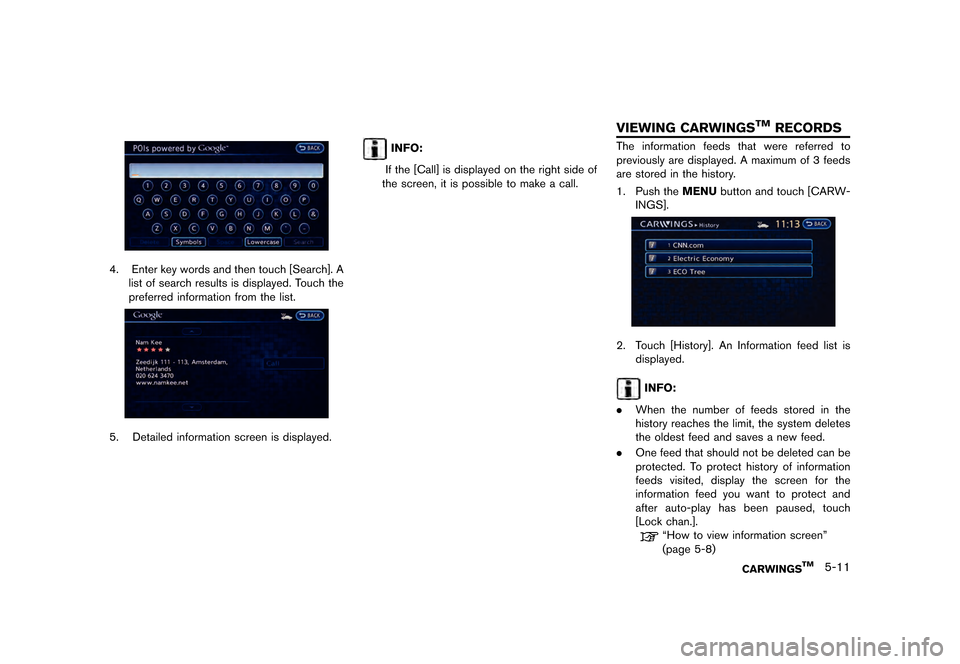

LNG0124X
4. Enter key words and then touch [Search]. Alist of search results is displayed. Touch the
preferred information from the list.
LNG0125X
5. Detailed information screen is displayed.
INFO:
If the [Call] is displayed on the right side of
the screen, it is possible to make a call.
GUID-B02BC457-9D3A-45FA-AD2A-E9C0285F174CThe information feeds that were referred to
previously are displayed. A maximum of 3 feeds
are stored in the history.
1. Push the MENUbutton and touch [CARW-
INGS].
LNG0052X
2. Touch [History]. An Information feed list is displayed.
INFO:
. When the number of feeds stored in the
history reaches the limit, the system deletes
the oldest feed and saves a new feed.
. One feed that should not be deleted can be
protected. To protect history of information
feeds visited, display the screen for the
information feed you want to protect and
after auto-play has been paused, touch
[Lock chan.].
ªHow to view information screenº
(page 5-8)
CARWINGSTM5-11
VIEWING CARWINGSTMRECORDS
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @

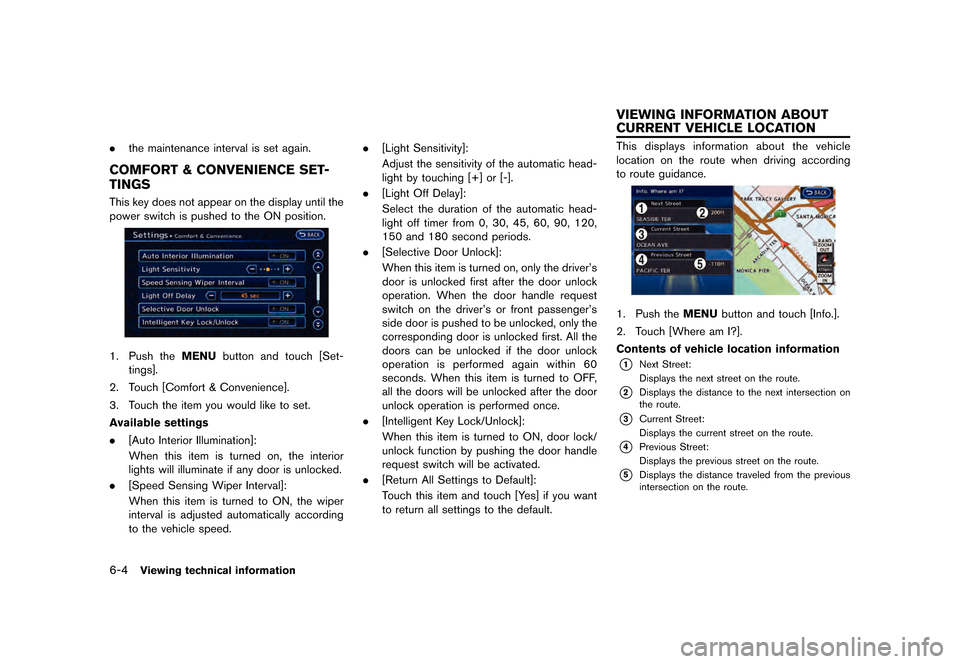

6-4Viewing technical information
.the maintenance interval is set again.
COMFORT & CONVENIENCE SET-
TINGS
GUID-5299EC94-C57D-49DF-88DE-4252E79D3654This key does not appear on the display until the
power switch is pushed to the ON position.
LNH0005X
1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Comfort & Convenience].
3. Touch the item you would like to set.
Available settings
. [Auto Interior Illumination]:
When this item is turned on, the interior
lights will illuminate if any door is unlocked.
. [Speed Sensing Wiper Interval]:
When this item is turned to ON, the wiper
interval is adjusted automatically according
to the vehicle speed. .
[Light Sensitivity]:
Adjust the sensitivity of the automatic head-
light by touching [+] or [-].
. [Light Off Delay]:
Select the duration of the automatic head-
light off timer from 0, 30, 45, 60, 90, 120,
150 and 180 second periods.
. [Selective Door Unlock]:
When this item is turned on, only the driver's
door is unlocked first after the door unlock
operation. When the door handle request
switch on the driver's or front passenger's
side door is pushed to be unlocked, only the
corresponding door is unlocked first. All the
doors can be unlocked if the door unlock
operation is performed again within 60
seconds. When this item is turned to OFF,
all the doors will be unlocked after the door
unlock operation is performed once.
. [Intelligent Key Lock/Unlock]:
When this item is turned to ON, door lock/
unlock function by pushing the door handle
request switch will be activated.
. [Return All Settings to Default]:
Touch this item and touch [Yes] if you want
to return all settings to the default.
GUID-A17BC4BB-AADA-4171-BA2D-E28871BCA8F9This displays information about the vehicle
location on the route when driving according
to route guidance.
LNH0006X
1. Push the MENUbutton and touch [Info.].
2. Touch [Where am I?].
Contents of vehicle location information
*1Next Street:
Displays the next street on the route.
*2Displays the distance to the next intersection on
the route.
*3Current Street:
Displays the current street on the route.
*4Previous Street:
Displays the previous street on the route.
*5Displays the distance traveled from the previous
intersection on the route.
VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION
&RQGLWLRQ 1$0


> (GLW    0RGHO 1DYL(9 @
MAKING A CALLGUID-A10664E4-4636-4046-949D-803558D90AF1To make a call, follow this procedure.
1. Push the
button on the steering wheel.
LNI0135X
2. Touch a method for making a call.Available methods
.[Quick Dial]:Select a telephone number from the
phonebook, and then make a call. Before
making a call, the telephone number must
be registered in the phonebook.
.[Call History]:
Select a telephone number from the
incoming or outgoing history lists, and
then make a call.
.[Phonebook]:Download the phonebook from a cellular
phone that is connected to the vehicle,
select a telephone number from the
phonebook, and then make a call. Phone-
book data should be registered in the system after downloading the phonebook
from the cellular phone that is connected
to the vehicle. If the phonebook is not
registered, a message that reminds you
of phonebook data download will be
displayed.
.[Keypad]:
Input the phone number manually using
the keypad displayed on the screen.
ªHow to input letters and numbersº
(page 1-7)
LNI0144X
3. Dialing will start and the screen will change to the call in progress screen.
4. After the call is over, perform one of the following actions to finish the call.
.Push thebutton on the steering
wheel.
.Touch [Hang up].
RECEIVING A CALLGUID-309AF505-32BC-4C5C-80D1-0E512251C11BWhen you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
. Push the
button on the steering wheel.
. Touch [Answer].
LNI0011X
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
.[Answer]:
Accept an incoming call to talk.
. [Hold Call]:
Put an incoming call on hold.
. [Reject Call]:
Reject an incoming call.
To finish the call, perform one of the following
procedures listed below.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
compatibility) . Select one of these entries
to save in the Quick Dial.
.[Enter Number by Keypad]:Input the phone number to save in the
Quick Dial.
LNI0147X
5. Touch [OK] at the top of the screen.
LNI0148X
6. After the phonebook entry is saved, it will show a screen to indicate that is ready to
call the number. Touch [BACK] to return to
the Quick Dial.
Editing Quick DialGUID-50D9B6E9-FE77-4AAA-8905-FB0A241C7DCE1. Push the MENUbutton and touch [Set-
tings].
2. Touch [Phone & CARWINGS].
3. Touch [Phone].
LNI0136X
4. Touch [Edit Quick Dial].
LNI0149X
5. Select the desired entry from the displayed list.
LNI0150X
6. Touch [Edit].
LNI0151X
7. Select the desired item to change.
Available settings
.[Entry #]:Changes the displayed number of the
selected entry.
.[Name]:Edit the name of the entry using the
keypad displayed on the screen.
Bluetooth


> (GLW    0RGHO 1DYL(9 @
4. Enter the address and message..[Address]:Enter the address where you would like
to send a message.
Choose an input method from [Quick
Dial]/[Phonebook]/[Call History]/[Enter
Number by keypad].
.[Message]:Enter the message.
Select [Fixed Text] or [Custom Text] and
choose a message from the displayed
list.
LNI0137X
5. Confirm the contents of the message then touch [Send].
Reading a received text messageGUID-6E8733FE-E012-43E9-9801-EF19066E89CC
When a new text message is received:
1.When a text message is received, the
screen will switch to the incoming message
screen. 2. To have a received message read aloud,
touch [Read], or push the
button on
the steering wheel.
After checking a received message, touch
[Ignore], or push the
button on the
steering wheel.
3. To end operation, touch [Exit] or push the
button on the steering wheel.
To reply to a received message, touch
[Reply] or push the
on the steering
wheel.
From the history list:
1. Press the phone
button on the steering
wheel.
2. Touch [Text Message] and then select a text message from the list.
LNI0140X
3. The text message is displayed. Followingitems are available from the text message
screen:
.[Prev.]:
Returns to the previous message.
.[Next]:Displays to the next message.
.[Play]:Reads a text message.
.[Call]:
Makes a call.
.[Reply]:Creates a reply message.
.[Exit]:
Exits the text message.
PHONE SETTINGSGUID-113ACEB2-74B1-46EA-92C5-7C0462E956E7The Bluetooth
