2015 NISSAN JUKE navigation system


> (GLW   0RGHO )'@
4-38
Heater, airconditione r,audio andphone systems

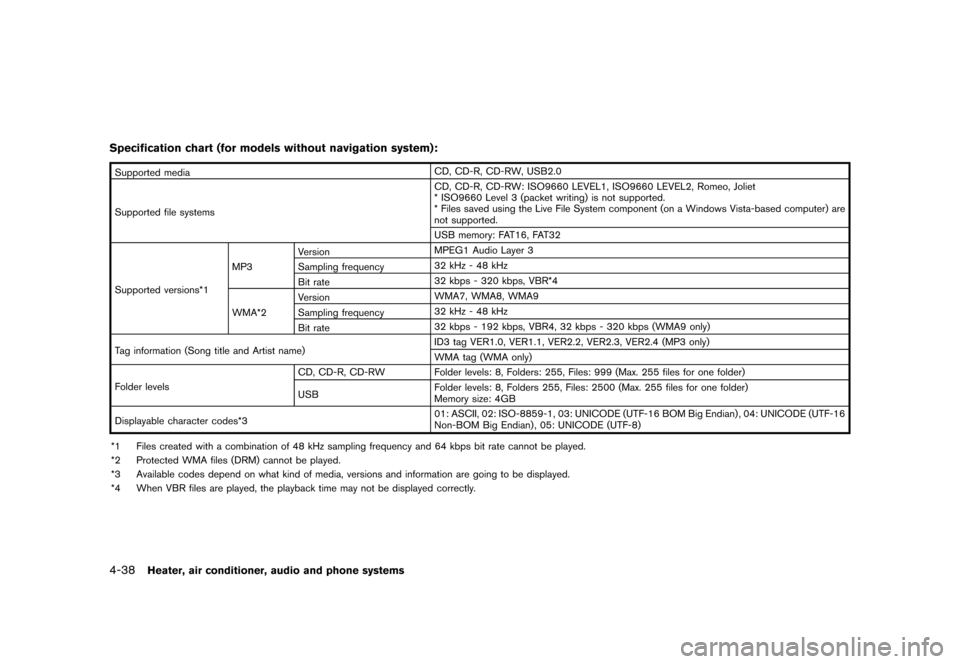

Specification chart(formodels without navigation system):
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Supported media CD,
CD-R, CD-RW ,USB2.0
Supported filesystems CD,
CD-R, CD-RW: ISO9660 LEVEL1,ISO9660 LEVEL2,Romeo,Joliet
* ISO9660 Level3(packet writing)isnot supported.
* Files saved usingtheLive FileSystem component (onaWindows Vista-based computer)are
not supported.
USB memory: FA T16, FA T32
Supported versions*1 MP3
V
ersion MPEG1
AudioLayer3
Sampling frequency 32
kHz -48 kHz
Bit rate 32
kbps -320 kbps, VBR*4
WMA*2 V
ersion WMA7,
WMA8,WMA9
Sampling frequency 32
kHz -48 kHz
Bit rate 32
kbps -192 kbps, VBR4, 32kbps -320 kbps (WMA9 only)
T ag information (Songtitleand Artist name) ID3
tagVER1.0, VER1.1, VER2.2,VER2.3,VER2.4(MP3only)
WMA tag(WMA only)
Folder levels CD,
CD-R, CD-RW Folderlevels:8,Folders: 255,Files: 999(Max. 255filesforone folder)
USB Folder
levels:8,Folders 255,Files: 2500 (Max.255filesforone folder)
Memory size:4GB
Displayable charactercodes*3 01:
ASCII, 02:ISO-8859-1, 03:UNICODE (UTF-16BOMBigEndian) ,04: UNICODE (UTF-16
Non-BOM BigEndian) ,05: UNICODE (UTF-8)
*1 Filescreated withacombination of48 kHz sampling frequency and64kbps bitrate cannot beplayed.
*2 Protected WMAfiles(DRM) cannot beplayed.
*3 Available codesdepend onwhat kindofmedia, versions andinformation aregoing tobe displayed.
*4 When VBRfilesareplayed, theplayback timemaynotbedisplayed correctly.
&RQGLWLRQ


> (GLW   0RGHO )'@
Specification chart(formodels withnavigation system):
GUID-F 83C168B-173D -4313-B631-F712588C04 63
Supported media CD,
CD-R, CD-RW
Supported filesystems ISO9660
LEVEL1,ISO9660 LEVEL2,AppleISO,Romeo, Joliet*ISO9660 Level3(packet writing) isnot
supported.
Supported
versions*1 MP3
V
ersion MPEG1,
MPEG2,MPEG2.5
Sampling frequency 8
kHz -48 kHz
Bit rate 8
kbps -320 kbps, VBR
WMA*2 V
ersion WMA7,
WMA8,WMA9
Sampling frequency 32
kHz -48 kHz
Bit rate 48
kbps -192 kbps, VBR
T ag information ID3
tagVER1.0, VER1.1,VER2.2,VER2.3(MP3only)
Folder levels Folder
levels:8,Max folders: 255(including rootfolder) ,Files: 512(Max. 255filesforone folder)
T ext character numberlimitation 128
characters
Displayable charactercodes*2 01:
ASCII, 02:ISO-8859-1, 03:UNICODE (UTF-16BOMBigEndian) ,04: UNICODE (UTF-16Non-BOM Big
Endian) ,05: UNICODE (UTF-8),06: UNICODE (Non-UTF-16 BOMLittleEndian)
*1 Filescreated withacombination of48 kHz sampling frequency and64kbps bitrate cannot beplayed.
*2 Available codesdepend onwhat kindofmedia, versions andinformation aregoing tobe displayed.
Heater, airconditione r,audio andphone systems
4-39
&RQGLWLRQ


> (GLW   0RGHO )'@
PHONE SETTINGS
GUID-3D8411 0D-D0A3-4F6E-B8AF-B B9ED0B0757A
T o access thephone settings:
1. Push the
button.
2. Touch theªSettingsº key.
3. Touch theªPhone &Bluetoothº key.
4. Touch theªPhone Settingsº keyand adjust
the following settingsasdesired:
. Sort Phonebook By:
T ouch ªFirst Nameº orªLast Nameº to
choose howphonebook entriesarealpha-
betically displayed onthe screen.
. Use Phonebook From:
T ouch ªHandsetº touse thephone's phone-
book. Select ªSIMºtouse thephonebook on
the SIM card. Touch ªBothº touse both
sources.
. Download Phonebook Now:
T ouch todownload thephonebook tothe
vehicle fromthechosen source.
. Record NameforPhonebook Entry:
T ouch torecord aname foraphonebook
entry foruse with theNISSAN Voice
Recognition System.
. Phone Notifications for:
T ouch ªDriverº tohave phone notifications
shown inthe vehicle information display.
T ouch ªBothº tohave phone notifications shown
inboth thevehicle information dis-
play andthecenter display screen.
. Text Messaging:
T ouch totoggle thetext message function-
ality onoroff.
. Show Incoming Text for:
T ouch ªDriverº tohave incoming textnotifi-
cations showninthe vehicle information
display .Touch ªBothº tohave textnotifica-
tions shown inboth thevehicle information
display andthecenter display screen. Touch
ªOffº toturn offalltext notifications.
. Auto Reply:
T ouch totoggle theauto reply functionality
on oroff.
. Auto Reply Message:
T ouch toindicate preferred messagetobe
sent when ªAuto Replyº function isacti-
vated.
. Use Vehicle's Signature:
T ouch totoggle onoroff the addition ofthe
vehicle signature tooutgoing messages
. Custom Text Messages:
T ouch thisoption toselect acustom
message toedit. There are4customer
message slotsavailable.
GUID-513 34051-21B0 -416B-9031-93 72BED64572
The NISSAN Voice Recognition systemallows
hands-free operationofthe systems equipped
on this vehicle, suchasthe phone andnaviga-
tion systems.
T o operate NISSAN Voice Recognition, pushthe
button located onthe steering wheel.
When prompted, speakthecommand forthe
system youwish toactivate. Thecommand given
is picked upbythe microphone andperformed
when itis properly recognized. NISSANVoice
Recognition willprovide avoice response as
well asamessage inthe center display toinform
you ofthe command results.
Heater, airconditione r,audio andphone systems
4-89
NISSAN VOICERECOGN ITION
S Y STEM (models withnavigation
system)
&RQGLWLRQ


> (GLW   0RGHO )'@
AUDIO SYSTEM VOICE COMMANDS
GUID-4D15B 57C-DDB8-49AB-9F43-F95624AD1EE 2
T o access theaudio system voicecommands:
1. Push the
button.
2. Say ªAudioº .
3. Speak acommand fromthefollowing
available commands:
. Play (AM, FM,etc.)
Allows usertoselect radioband
. Tune AM(number)
Allows usertotune directly toadesired AM
frequency
. Tune FM(number)
Allows usertotune directly toadesired FM
frequency
. SXM channel (number)
Allows usertotune directly toadesired
SXM station (ifso equipped)
. CD Track (number)
Allows usertoselect tracktobe played
. Play Song (name)
Allows usertoselect songname tobe
played
. Play Artist (name)
Allows usertoselect artisttobe played
. Play Album (name)
Allows usertoselect album nametobe
played For
more information abouttheaudio system,
see ªFM-AM-SA Tradio withCompact Disc(CD)
player (Type B)º(P.4-59) .
INFORMA TIONVOICE COMMAND S
GUID-171 CBBFE-A46 D-429D-86D 2-3E7A2671F101
The following voicecommands areavailable for
the information functionsofthe Navigation
System:
. Traffic
. Fuel Prices
. Stocks
. Movie Listings
. Current Weather
. Weather Map
. 5Ð day Forecast
. 6Ð hour Forecast
For more information aboutthesecommands,
see theseparate Navigation SystemOwner's
Manual.
MY APPS VOICE COMMAND S
GUID-4BFC8 758-C169-4735-A859-23 581CD5220F
Many Appscanbeaccessed usingthisvoice
command. SeeªNissanConnect
SM
App smart-
phone integrationº (P.4-72) .
HELP VOICE COMMANDS
GUID-42A9 446A-DBB0 -4D48-A24E-8D3703DA 8916
The following voicecommands canbespoken
to have thesystem provide instructions andtips
for using theNISSAN Voice Recognition sys-
tem.
. List Commands
. What CanISay?
. General Help
. Quit
. Exit
TROUBLESH OOTING GUIDE
GUID-9A20 B758-753D-4 25B-9C65-7CCF803B5D5 0
The system shouldrespond correctly toall voice
commands withoutdifficulty.If problems are
encountered, followthesolutions giveninthis
guide forthe appropriate error.Where the
solutions arelisted bynumber, tryeach solution
in turn, starting withnumber one,untilthe
problem isresolved.
Heater, airconditione r,audio andphone systems
4-93
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-073 2A6EE-A1B 3-4CC3-BD33 -7DB3C73B83E2

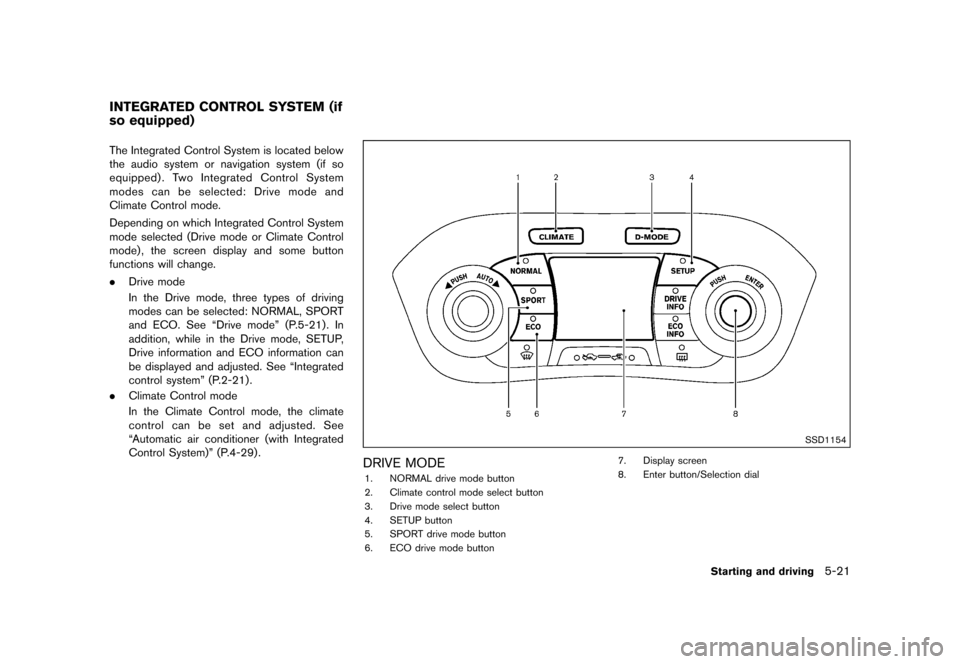

The Integrated ControlSystemislocated below
the audio system ornavigation system(ifso
equipped) .Two Integrated ControlSystem
modes canbeselected: Drivemode and
Climate Controlmode.
Depending onwhich Integrated ControlSystem
mode selected (DrivemodeorClimate Control
mode) ,the screen display andsome button
functions willchange.
. Drive mode
In the Drive mode, threetypes ofdriving
modes canbeselected: NORMAL, SPORT
and ECO. SeeªDrive modeº (P.5-21) .In
addition, whileinthe Drive mode, SETUP,
Drive information andECO information can
be displayed andadjusted. SeeªIntegrated
control systemº (P.2-21) .
. Climate Controlmode
In the Climate Controlmode,theclimate
control canbeset and adjusted. See
ª Automatic airconditioner (withIntegrated
Control System)º (P.4-29)
.
SSD1154
DRIVE MODE
GUID-2823EE 2D-393A-4DD 3-A706-4BE90023CB7 7
1. NORMAL drivemode button
2. Climate controlmodeselect button
3. Drive mode select button
4. SETUP button
5. SPORT drivemode button
6. ECO drivemode button 7.
Display screen
8. Enter button/Selection dial
Starting anddriving
5-21
INTEGRA TEDCONTROL SY STEM (if
so equippe d)
&RQGLWLRQ


> (GLW   0RGHO )'@
5-28
Starting anddriving
GUID-7C03 A534-EF0E- 40B7-84F0-1 3B8CB4EE473
Follow theseeasy-to-use FuelEfficient Driving
Tips tohelp youachieve themost fueleconomy
from yourvehicle.
1. Use smooth accelerator andbrake pedal
application.
.
Avoid rapidstarts andstops.
.
Use smooth, gentleaccelerator and
brake application wheneverpossible.
.
Maintain constant speedwhilecommut-
ing and coast whenever possible.
2. Maintain constant speed.
.
Look ahead totry and anticipate and
minimize stops.
.
Synchronizing yourspeed withtraffic
lights allows youtoreduce yournumber
of stops.
.
Maintaining asteady speedcanminimize
red light stops andimprove fueleffi-
ciency .
3. Use airconditioning (A/C)athigher vehicle
speeds.
.
Below 40MPH (64km/h) ,it is more
efficient toopen windows tocool the
vehicle duetoreduced engineload.
.
Above 40MPH (64km/h) ,it is more
efficient touse A/C tocool thevehicle
due toincreased aerodynamic drag.
.
Recirculating thecool airinthe cabin
when theA/C ison reduces coolingload.
4. Drive ateconomical speedsanddistances.
.
Observing thespeed limitandnotex-
ceeding 60MPH (97km/h) (where
legally allowed) canimprove fueleffi-
ciency duetoreduced aerodynamic
drag.
.
Maintaining asafe following distance
behind othervehicles reduces unneces-
sary braking.
.
Safely monitoring traffictoanticipate
changes inspeed permits reduced brak-
ing and smooth acceleration changes.
.
Select agear range suitable toroad
conditions.
5. Use cruise control.
.
Using cruise control duringhighway
driving helpsmaintain asteady speed.
.
Cruise control isparticularly effectivein
providing fuelsavings whendriving on
flat terrains.
6. Plan forthe shortest route.
.
Utilize amap ornavigation systemto
determine thebest route tosave time.
7. Avoid idling.
.
Shutting offyour engine whensafefor
stops exceeding 30-60seconds saves fuel
and reduces emissions.
8. Buy anautomated passfortoll roads.
.
Automated passespermitdrivers touse
special lanestomaintain cruisingspeed
through thetolland avoid stopping and
starting.
9. Winter warmup.
.
Limit idling timetominimize impacttofuel
economy .
.
V ehicles typically neednomore than30
seconds ofidling atstart-up toeffectively
circulate theengine oilbefore driving.
.
Y our vehicle willreach itsideal operating
temperature morequickly whiledriving
versus idling.
10. Keeping yourvehicle cool.
.
Park yourvehicle inacovered parking
area orinthe shade whenever possible.
.
When entering ahot vehicle, opening the
windows willhelp toreduce theinside
temperature faster,resulting inreduced
demand onyour A/Csystem.
FUEL EFFICIENT DRIVINGTIPS
&RQGLWLRQ


> (GLW   0RGHO )'@
10-4
Manual airconditioner ...
................................................ 4-26
Manual frontseatadjustment ...
..................................... 1-3
Map lights ...
........................................................... ..........2-50
Mechanical key(Intelligent Key system) ...
................. 3-3
Meter Trip computer ...
................................................. .......2-10
Meters andgauges ...
....................................... ................2-5
Instrument brightnesscontrol...
........................... 2-39
Mirror Inside mirror...
....................................... ....................3-21
Outside mirrors...
..................................................... 3-22
V anity mirror ...
....................................... ....................3-23
Monitor, RearView Monitor...
......................................... 4-8
Moonroof ...
............................................ ...........................2-48
Moving ObjectDetection (MOD)function ...
........... 4-20
N
Navigation systemvoicecommands ...
...................... 4-92
New vehicle break-in...
............................................ ......5-27
NISSAN Vehicle Immobilizer System...
..................... 2-30
NISSAN voicerecognition system...
......................... 4-89
NissanConnect Appsmartphone integration...
....... 4-72
O
Odometer ...
....................................... .................................2-6
Off-road recovery...
.......................................................... 5-6
Oil Capacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engineoiland filter ...
.............................. 8-9
Checking engineoillevel ...
...................................... 8-8
Engine oil...
............................................ .......................8-8
Engine oilviscosity ...
............................................ ......9-7
One Shot Call...
....................................... .......................4-84
Outside airtemperature display...
.............................. 2-10Outside
mirrors...
...................................................... ......3-22
Overheat, Ifyour vehicle overheats ...
........................ 6-10
Owner's Manual/Service Manual
order information ...
......................................................... 9-21
P
Panic alarm...
............................................ .......................3-13
Parking
Brake break-in...
....................................... ................5-35
Parking brakeoperation ...
..................................... 5-25
Parking onhills ...
..................................................... 5-33
Phone Car phone orCB radio ...
...................................... 4-73
Phone settings ...
............................................................. 4-89
P ower
Electric powersteering system...
........................ 5-34
Moonroof ...
............................................ ....................2-48
P ower doorlock...
............................................ ..........3-4
P ower outlet ...
.......................................................... 2-42
P ower windows ...
................................................. ...2-46
Precautions Audio operation ...
................................................. ...4-32
Braking precautions ...
............................................. 5-35
Child restraints ...
...................................................... 1-18
Cruise control ...
................................................. .......5-26
Driving safety...
...................................................... ......5-7
Maintenance ...
........................................................... ..8-5
Seat beltusage ...
................................................. ...1-10
Supplemental restraintsystem...
.......................... 1-38
When starting anddriving ...
.................................... 5-2
Push starting ...
...................................................... ..........6-10
Push-button ignitionswitch...
............................. 5-9,5-10
R
Radio ...
................................................................ ..............4-32
Car phone orCB radio ...
...................................... 4-73
Steering wheelaudiocontrols ...
.......................... 4-70
Rapid airpressure loss...
................................................ 5-6
Readiness forinspection/maintenance
(I/M) test...
................................................. .......................9-20
Rear doorlock,Child safety reardoor lock...
........... 3-6
Rear seats ...
........................................................... ............1-4
Rear window andoutside mirror
defroster switch...
................................................. ..........2-35
Rear window wiperandwasher switch...
................ 2-34
RearView Monitor...
.......................................................... 4-8
Recorders, Eventdata...
............................................... 9-21
Registering withNissanConnect App...
................... 4-72
Registering yourvehicle inanother country...
......... 9-10
Remote keylessentryfunction, ForIntelligent
K ey system ...
...................................................... ..............3-12
Reporting safetydefects ...
........................................... 9-19
Rollover ...
................................................................ ............5-5
Roof, Moonroof ...
...................................................... ......2-49
S
Safety
Child seatbelts ...
................................................. ...1-16
Reporting safetydefects ...
.................................... 9-19
Seat adjustment
Front manual seatadjustment ...
.............................. 1-3
Front seats ...
...................................................... ..........1-3
Seat belt(s)
Child safety ...
............................................ ................1-16
Infants ...
...................................................... ................1-17
Injured persons ...
..................................................... 1-12
Larger children ...
...................................................... 1-17
Precautions onseat beltusage ...
........................ 1-10
&RQGLWLRQ
