2015 NISSAN ARMADA PLATINUM Owners Manual

9. VOICE button*
10. BACK (previous) button (P. 4-11)
11. STATUS button (P. 4-14)
12. MAP button*
*For additional information, refer to the separate
Navigation System Owner’s Manual regarding
Navigation system control buttons.
**For additional information, refer to “Bluetooth®
Hands-Free Phone System with Navigation Sys-
tem” regarding the PHONE button in this section.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ENTER button — This is a button on the control
panel.
“Example” — Words marked in quotes refer to a
key shown only on the display. These keys can be
selected by touching the screen or using the
NISSAN controller.

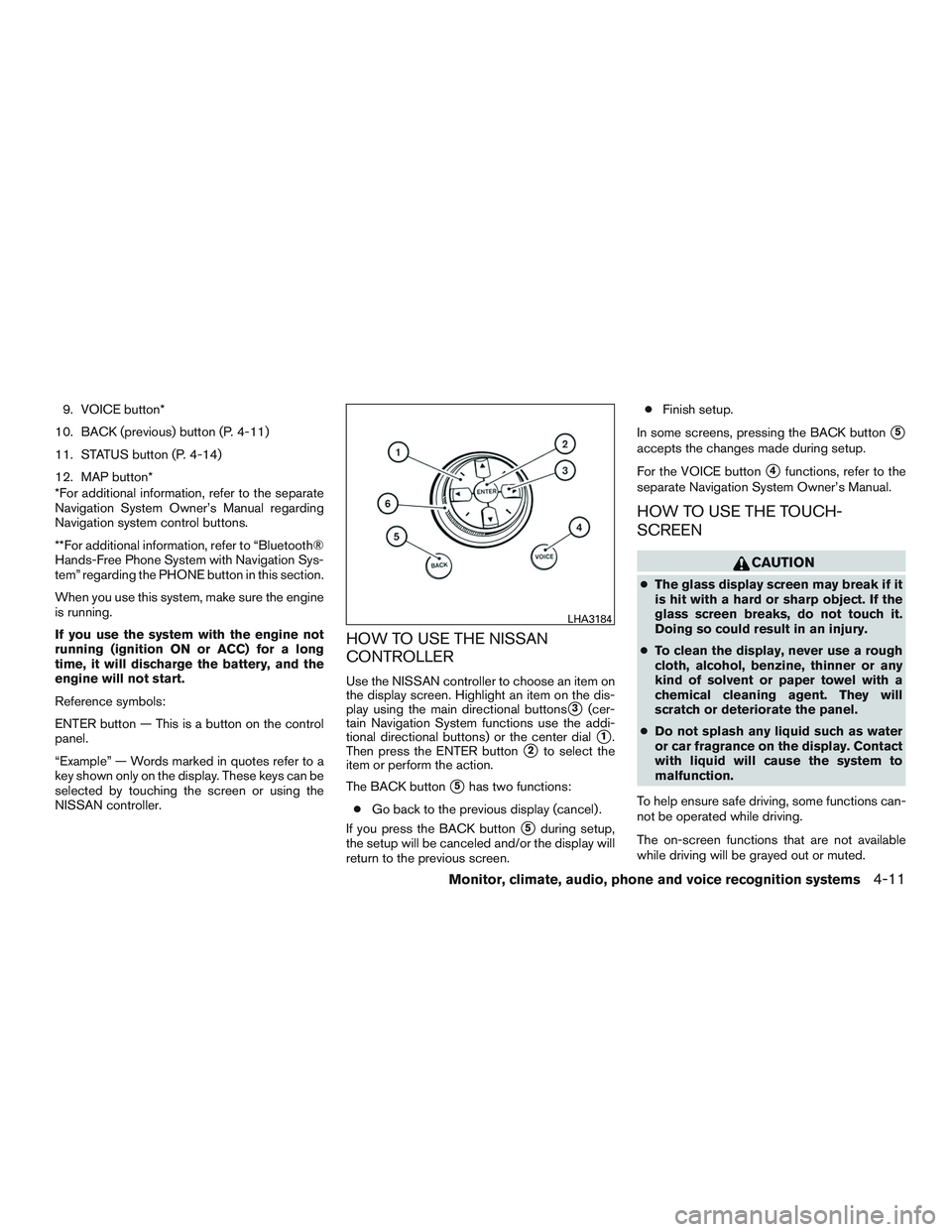

HOW TO USE THE NISSAN
CONTROLLER
Use the NISSAN controller to choose an item on
the display screen. Highlight an item on the dis-
play using the main directional buttons
3(cer-
tain Navigation System functions use the addi-
tional directional buttons) or the center dial
1.
Then press the ENTER button
2to select the
item or perform the action.
The BACK button
5has two functions:
● Go back to the previous display (cancel) .
If you press the BACK button
5during setup,
the setup will be canceled and/or the display will
return to the previous screen. ●
Finish setup.
In some screens, pressing the BACK button
5
accepts the changes made during setup.
For the VOICE button
4functions, refer to the
separate Navigation System Owner’s Manual.

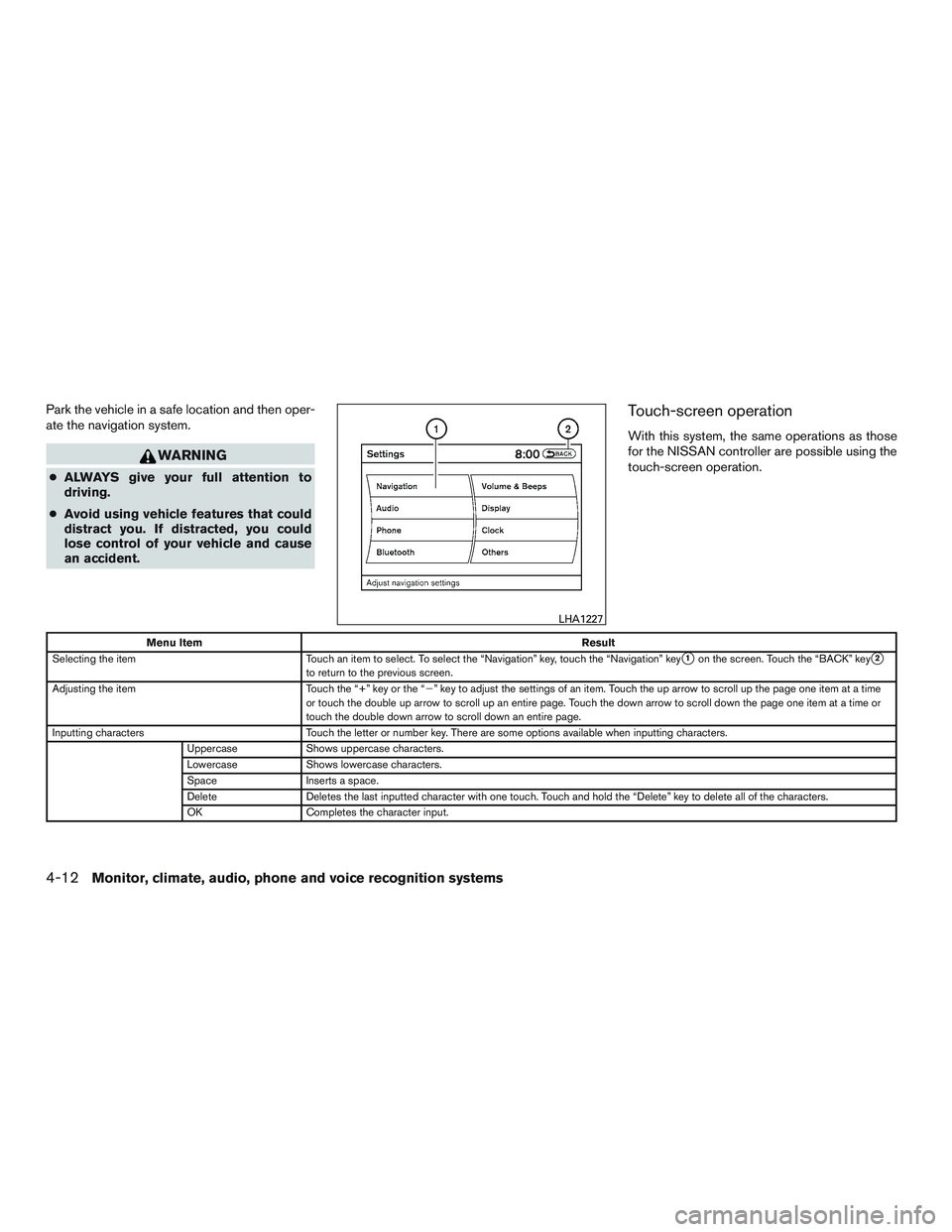

HOW TO USE THE TOUCH-
SCREEN

Park the vehicle in a safe location and then oper-
ate the navigation system.
