2015 NISSAN ALTIMA SEDAN brake fluid

BRAKE FLUID
Check the brake fluid level in the reservoir. If the
fluid level is below the MIN line
Bor the brake
warning light comes on, add Genuine NISSAN
Super Heavy Duty Brake Fluid or equivalent DOT
3 fluid up to the MAX line
A. If fluid must be
added frequently, the system should be checked
by a NISSAN dealer.
WINDSHIELD-WASHER FLUID
RESERVOIR
Fill the windshield-washer fluid reservoir periodi-
cally. Add windshield-washer fluid when the low
windshield-washer fluid warning light comes on.
To fill the windshield-washer fluid reservoir, lift
the cap off the reservoir and pour the windshield-
washer fluid into the reservoir opening.
Add a washer solvent to the washer for better
cleaning. In the winter season, add a windshield
washer antifreeze. Follow the manufacturer’s in-
structions for the mixture ratio. Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid is Genuine NISSAN Wind-
shield Washer Concentrate Cleaner & Antifreeze
or equivalent.
WARNING
Antifreeze is is poisonous and should be
stored carefully in marked containers out
of the reach of children.
CAUTION
●
Do not substitute engine antifreeze
coolant for windshield-washer fluid.
This may result in damage to the paint.
● Do not fill the windshield-washer fluid
reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer fluid reservoir.LDI2125LDI2116
WINDSHIELD-WASHER FLUID
8-16Maintenance and do-it-yourself

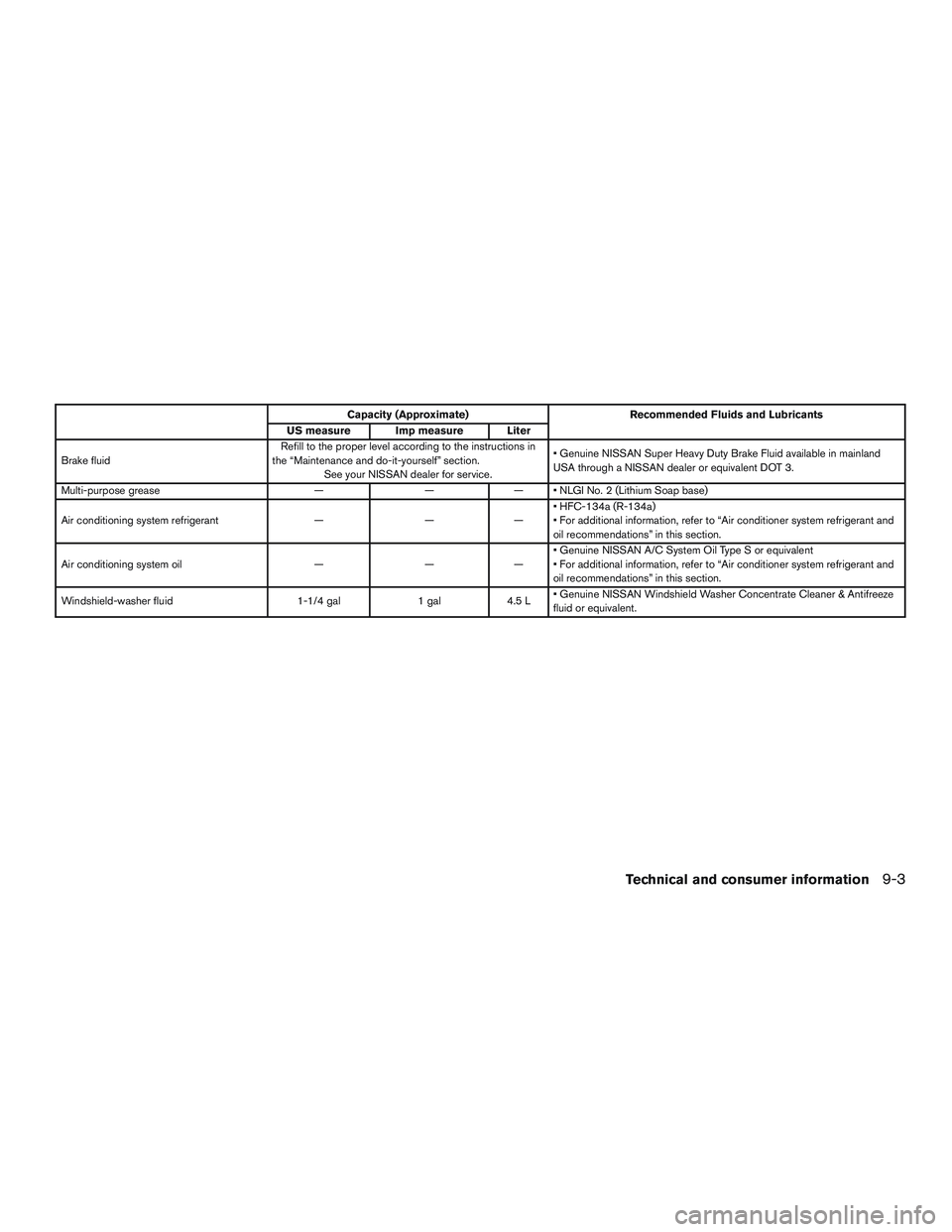

Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Brake fluid Refill to the proper level according to the instructions in
the “Maintenance and do-it-yourself” section. See your NISSAN dealer for service. • Genuine NISSAN Super Heavy Duty Brake Fluid available in mainland
USA through a NISSAN dealer or equivalent DOT 3.
Multi-purpose grease ——— • NLGI No. 2 (Lithium Soap base)
Air conditioning system refrigerant ———• HFC-134a (R-134a)
• For additional information, refer to “Air conditioner system refrigerant and
oil recommendations” in this section.
Air conditioning system oil ———• Genuine NISSAN A/C System Oil Type S or equivalent
• For additional information, refer to “Air conditioner system refrigerant and
oil recommendations” in this section.
Windshield-washer fluid 1-1/4 gal1 gal4.5 L• Genuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze
fluid or equivalent.
Technical and consumer information9-3

10 Index
A
ABS (Anti-lock Braking System) ........5-32
Air bag (See supplemental restraint
system) .....................1-41
Air bag system Front (See supplemental front impact air
bag system) .................1-48
Airbagwarninglight...........1-59,2-14
Air bag warning light, supplemental . .1-59, 2-14
Air cleaner housing filter ............8-21
Air conditioner Air conditioner operation ..........4-28
Air conditioner service ...........4-35
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Air conditioner system refrigerant
recommendations ..............9-7
Heater and air conditioner
controls................4-25,4-33
Servicing air conditioner ..........4-35
Airflowcharts..................4-29
Alarm system (See vehicle security system). .2-27
Anchor point locations .............1-24
Antenna .....................4-82
Anti-lock brake warning light ......2-10,2-11
Anti-lock Braking System (ABS) ........5-32
Apps .......................4-83
Armrests .....................1-7
Audible reminders ...............2-17
Audio system ..................4-35 AMradioreception.............4-36
Bluetooth®audio..........4-78,4-79
Bluetooth® streaming audio
........4-79
Compact disc (CD)
player ......4-45,4-49,4-54,4-60,4-67
FM-AM radio with compact disc (CD)
player ....................4-43
FM/AM/SAT radio with compact disc (CD)
player..........4-47,4-51,4-56,4-62
FMradioreception.............4-35
iPod® Player .............4-73,4-75
iPod® player operation .......4-73,4-75
Radio ....................4-35
USB interface ............4-68,4-70
USB (Universal Serial Bus) Connection
Port..................4-68,4-70
Autolight switch .................2-33
Automatic Automatic power window switch .....2-46
Automatic anti-glare inside mirror .......3-36
Automatic door locks ..............3-6
AUXjack.................4-46,4-68
B
Battery ..................5-39,8-17
Chargewarninglight............2-11
Battery replacement NISSAN Intelligent Key® ..........8-29
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-20 Block heater
Engine ....................5-40
Bluetooth® audio ............4-78,4-79
Bluetooth® hands-free phone
system..............4-85,4-99,4-110
Bluetooth® streaming audio with Navigation
System .....................4-79
Boosterseats..................1-37
Brake Anti-lock Braking System (ABS) ......5-32
Brake fluid ..................8-15
Brakelight(Seestoplight).........8-33
Brake system ................5-32
Brakewarninglight.............2-11
Brakewearindicators........2-17,8-24
Parking brake operation ..........5-19
Self-adjusting brakes ............8-24
Brake fluid ....................8-15
Brakes ......................8-24
Brake system ..................5-32
Break-inschedule ...............5-28
Brightness/contrast button ...........4-9
Brightness control Instrument panel ..............2-35
Bulb check/instrument panel ..........2-10
Bulbreplacement................8-33
C
Capacities and recommended fuel/lubricants..9-2
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-84

F
First aid kit .....................6-3
Flashers (See hazard warning flasher switch) . .6-2
Flat tire .......................6-3
Floor mat positioning aid .............7-6
Fluid Brake fluid ..................8-15
Capacities and recommended
fuel/lubricants .................9-2
Continuously Variable Transmission (CVT)
fluid......................8-14
Engine coolant .................8-9
Engine oil ...................8-11
Power steering fluid .............8-15
Windshield-washerfluid...........8-16
F.M.V.S.S. certification label ...........9-11
Foglightswitch .................2-36
Front air bag system
(See supplemental restraint system) ......1-48
Front and rear sonar system ..........5-37
Front power seat adjustment ...........1-4
Frontseats.....................1-2
Fuel Capacities and recommended
fuel/lubricants .................9-2
Fuel economy ................5-30
Fuel-filler door and cap ...........3-32
Fuel-filler door lock opener lever ......3-32
Fuel gauge ...................2-6
Fuel octane rating ...............9-5
Fuel recommendation .............9-4
Loose fuel cap warning ........2-27,3-32
Fuel gauge .....................2-6
Fuses.......................8-24 Fusiblelinks ...................8-26
G
Garage door opener, HomeLink® Universal
Transceiver .........2-51,2-53,2-53,2-54
Gascap .....................3-32
Gauge Engine coolant temperature gauge .....2-5
Fuel gauge ...................2-6
Odometer ...................2-4
Speedometer .................2-4
Tachometer ..................2-5
Trip odometer .................2-4
General maintenance ...............8-2
Glovebox.....................2-43
Gloveboxlock..................2-43
Grocery hooks ..................2-44
H
Hands-free phone system,
Bluetooth®............4-85,4-99,4-110
Hazard warning flasher switch ..........6-2
Headlight and turn signal switch ........2-31
Headlight control switch ............2-33
Headlights ....................8-30
Head restraints ..................1-7
Heated seats ...................2-37
Heated steering wheel .............2-38
Heater Heater and air conditioner
controls................4-25,4-33
Heater operation ...........4-27,4-34 HomeLink® Universal
Transceiver .........2-51,2-53,2-53,2-54
Hoodrelease...................3-29
Horn .......................2-36
I
Ignition Switch Push-Button Ignition Switch .........5-8
Immobilizer system .........2-28,3-4,5-11
Important vehicle information label .......9-11
In-cabin microfilter ................8-22
Increasing fuel economy .............5-30
Indicator lightsand

audible reminders
(See warning/indicator lights and audible
reminders).................2-10,2-14
Inside automatic anti-glare mirror ........3-36
Inside mirror ...................3-36
Instrument brightness control ..........2-35
Instrumentpanel...............0-6,2-2
Instrument panel dimmer switch ........2-35
Intelligent Key system Key operating range ..........3-9,3-21
Key operation ................3-10
Mechanical key ................3-3
Remote keyless entry operation . . .3-13, 3-21
Troubleshooting guide ........3-18,3-25
Warning signals ............3-18,3-25
Interior light ....................2-49
Interior trunk lid release .............3-31
iPod®Player ............... 4-73, 4-75
ISOFIX child restraints .............1-22
10-3

J
Jump starting ................6-8,8-19
K
Key.........................3-2
Keyless entry With Intelligent Key system
(See Intelligent Key system) .....3-13,3-21
Keys NISSAN Intelligent Key® ..........3-20
L
Labels Air conditioner specification label .....9-12
C.M.V.S.S. certification label ........9-11
Emissioncontrolinformationlabel.....9-12
Engine serial number ............9-11
F.M.V.S.S. certification label .........9-11
Tire and Loading Information label .....9-12
Vehicle identification number (VIN) .....9-10
Vehicle identification number (VIN) plate . .9-10
Warning labels (for SRS) ..........1-59
LATCH (Lower Anchors and Tethers for CHildren)
System ......................1-22
License plate Installing the license plate ..........9-13
Light Airbagwarninglight.........1-59,2-14
Brake light (See stop light) .........8-33
Bulb check/instrument panel ........2-10
Bulb replacement ..............8-33 Charge warning light
............2-11
Consolelight.................2-49
Foglights...................8-30
Foglightswitch ...............2-36
Headlight and turn signal switch ......2-31
Headlight control switch ..........2-33
Headlights..................8-30
Interiorlight..................2-49
Lightbulbs..................8-30
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light......................2-26
Passenger air bag and status light .....1-50
Personal lights ................2-50
Security indicator light ............2-16
Spotlights(Seemaplight) .........2-50
Trunklight ..................2-50
Warning/indicator lights and audible
reminders ...............2-10,2-14
Lights Maplights ..................2-50
Lock Child safety rear door lock ..........3-7
Door locks ...................3-4
Fuel-filler door lock opener lever ......3-32
Gloveboxlock................2-43
Power door locks ............3-5,3-6
Trunk lid lock opener lever ..........3-30
Loose fuel cap warning ..........2-27,3-32
Lowfuelwarninglight ..........2-13,2-25
Low tire pressure warning light .........2-12
Low windshield-washer fluid warning light . . .2-26
Luggage (See vehicle loading information) . .9-13 M
Maintenance General maintenance .............8-2
Insidethevehicle...............8-3
Maintenance precautions ...........8-5
Outside the vehicle ..............8-2
Seat belt maintenance ............1-18
Under the hood and vehicle .........8-4
Maintenance requirements ............8-2
Malfunction indicator light ............2-15
Manual front seat adjustment ...........1-2
Maplights ....................2-50
Mappocket....................2-41
Meters and gauges ................2-3
Instrument brightness control ........2-35
Mirror Automatic anti-glare inside mirror ......3-36
Inside mirror .................3-36
Outside mirror control ............3-38
Outside mirrors ............... 3

-38
Vanity mirror .................3-36
Mirrors ......................3-36
Mobileapps ...................4-83
Moonroof .....................2-47
N
NissanConnect
SM................4-83
NISSAN Intelligent Key® ............3-20
NISSAN vehicle immobilizer
system ................2-28,3-4,5-11
NISSAN voice recognition system ......4-118
10-4

O
Octanerating(Seefueloctanerating)......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-12
Changing engine oil filter ..........8-13
Checking engine oil level ..........8-11
Engine oil ...................8-11
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Oneshotcall......4-88,4- 101, 4-102, 4-112
Outside mirror control ..............3-38
Outside mirrors .................3-38
Overheat Ifyourvehicleoverheats...........6-10
Owner’s manual order form ...........9-21
Owner’s manual/service manual order
information ....................9-21
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-30
Personallights..................2-50
Phone, Bluetooth® hands-free
system ...............4-85,4-99,4-110
Power Power door locks ............3-5,3-6
Power outlet .................2-40
Power rear windows .............2-46 Power steering fluid
.............8-15
Power steering system ...........5-31
Power windows ...............2-44
Rear power windows ............2-46
Power outlet ...................2-40
Power steering ..................5-31
Power steering fluid ...............8-15
Precautions Maintenance precautions ...........8-5
Precautions on booster
seats...........1-20,1-27,1-33,1-38
Precautions on child
restraints .........1-20,1-27,1-33,1-38
Precautions on seat belt usage .......1-11
Precautions on supplemental restraint
system ....................1-41
Precautions when starting and driving ....5-2
Programmablefeatures..............4-7
Push starting ...................6-10
R
Radio Car phone or CB radio ...........4-84
FM-AM radio with compact disc (CD)
player .....................4-43
FM/AM/SAT radio with compact disc (CD)
player ..........4-47,4-51,4-56,4-62
Readiness for inspection maintenance (I/M)
test........................9-20
Rear power windows ..............2-46
Rearseat......................1-5
Rear sonar system ................5-36
RearView Monitor .........4-10,4-11,4-13 Rear window and outside mirror defroster
switch.......................2-31
Recorders
Eventdata..................9-20
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote Start ...............3-27,5-12
Reporting safety defects (US only) .......9-19
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-20,1-27,1-33,1-38
Reporting safetydefects

(US only) .....9-19
Seat adjustment Front manual seat adjustment ........1-2
Front power seat adjustment .........1-4
Rear seat adjustment .............1-5
Seatbackpockets................2-41
Seat belt Child safety ..................1-18
Infants and small children ..........1-19
Injured Person ................1-14
Largerchildren................1-19
Precautions on seat belt usage .......1-11
Pregnant women ...............1-14
Seatbeltextenders .............1-17
Seatbeltmaintenance............1-18
Seatbelts...................1-11
Shoulder belt height adjustment ......1-17
Three-point type with retractor .......1-14
Seat belt extenders ...............1-17
Seatbeltwarninglight..........1-14,2-14
10-5

SeatsAdjustment ...................1-2
Armrests....................1-7
Frontseats...................1-2
Heatedseats.................2-37
Manual front seat adjustment .........1-2
Rear seat ....................1-5
Security indicator light ..............2-16
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-28,3-4,5-11
Security systems Vehicle security system ...........2-27
Self-adjusting brakes ..............8-24
Service manual order form ...........9-21
Servicing air conditioner .............4-35
Setting button ...................4-7
Shifting Continuously Variable Transmission
(CVT) .....................5-14
Shift lever lock release..............5-17
Shoulder belt height adjustment ........1-17
Smartphone connectivity ............4-83
Sonar Rear system .................5-36
Spark plug replacement .............8-21
Spark plugs ...................8-21
Specifications ...................9-8
Speedometer ...................2-4
Spotlights(Seemaplight) ...........2-50
SRS warning label ................1-59
Stability control .................5-34
Starting Before starting the engine ..........5-11
Jump starting ..............6-8,8-19
Precautions when starting and driving ....5-2
Push starting .................6-10 Starting the engine
.............5-12
Starting the engine ...............5-12
Steering Heated steering wheel ...........2-38
Power steering fluid .............8-15
Power steering system ...........5-31
Stoplight.....................8-33
Storage......................2-41
Sunglassescase.................2-41
Sunglassesholder................2-41
Sunroof......................2-47
Sunroof(seeMoonroof).............2-47
Sun visors ....................3-35
Supplemental air bag warning light . . .1-59, 2-14
Supplemental front impact air bag system . . .1-48
Supplemental restraint system Information and warning labels .......1-59
Precautions on supplemental restraint
system ....................1-41
Supplemental restraint system
(Supplemental air bag system) .........1-41
Switch Autolightswitch...............2-33
Automatic power window switch ......2-46
Foglightswitch ...............2-36
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-31
Headlight control switch ..........2-33
Instrument brightness control ........2-35
Power door lock switch .........3-5,3-6
Rear window and outside mirror defroster
switch.....................2-31
Turn signal switch ..............2-35
Vehicle dynamic control (VDC) off switch. .2-39
Windshield wiper and washer switch . . .2-29 T
Tachometer ....................2-5
Temperature gauge Engine coolant temperature gauge .....2-5
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-28,3-4,5-11
Three-way catalyst ................5-2
Tilt Telescopic steering .............3-35
Tire Flat tire .....................6-3
Spare tire ................6-5,8-48
Tire and Loading Information label .....9-12
Tire chains ..................8-44
Tire placard ..................9-12
Tire pressure .................8-36
Tire rotation..................8-45
Types of tires .................8-43
Uniform tire quality grading .........9-17
Wheels and tires ...............8-36
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-12
Tire Pressure Monitoring System (TPMS) ....5-3
Towing Flattowing..................9-17
Towtrucktowing...............6-11
Trailer towing .................9-17
Towing a trailer ..................9-17
Transceiver HomeLink® Universal
Transceiver .......2-51,2-53,2-53,2-54
10-6

TransmissionContinuously Variable Transmission (CVT)
fluid......................8-14
Driving with Continuously Variable
Transmission (CVT) .............5-13
Transmission shift lever lock release ......5-17
Travel (See registering your vehicle in another
country) ......................9-10
Trip odometer ...................2-4
Troubleshooting guide (NISSAN voice recognition
system) .....................4-122
Trunk access through the rear seat .......1-5
Trunk lid lock opener lever ............3-30
Trunklight ....................2-50
Turn signal switch ................2-35
U
Uniform tire quality grading ...........9-17
USB interface ...............4-68,4-70
Audio file operation ..........4-69,4-71
V
Vanity mirror ...................3-36
Variable voltage control system .........8-20
Vehicledimensionsandweights.........9-9
Vehicle dynamic control (VDC) off switch . . .2-39
Vehicle dynamic control (VDC) system .....5-34
Vehicle Dynamic Control (VDC) system ....5-34
Vehicle identification ...............9-10
Vehicle identification number (VIN) .......9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10 Vehicle identification number (VIN) plate
....9-10
Vehicle immobilizer system .....2-28,3-4,5-11
Vehicle loading information ...........9-13
Vehicle recovery .................6-13
Vehicle security system .............2-27
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-28,3-4,5-11
Ventilators ....................4-24
Visors.......................3-35
Voice Prompt
Interrupt.........4-88,4- 101, 4-102, 4-112
Voice recognition system ...........4-118
W
Warning Airbagwarninglight.........1-59,2-14
Anti-lock brake warning light .....2-10,2-11
Battery charge warning light ........2-11
Brake warning light .............2-11
Hazard warning flasher switch ........6-2
Loose fuel cap warning ........2-27,3-32
Lowfuelwarninglight ........2-13,2-25
Low tire pressure warning light .......2-12
Low windshield-washer fluid warning
light......................2-26
Passenger air bag and status light .....1-50
Seatbeltwarninglight........1-14,2-14
Supplemental air bag warning light .1-59, 2-14
Vehicle security system ...........2-27
Warning/indicator lights and audible
reminders...............2-10,2-14
Warning labels (for SRS) ..........1-59
Warning/indicator lights and audible
reminders.................2-10,2-14 Audiblereminders ..........2-10,2-14
Indicatorlights ............2-10,2-14
Warning lights
.............2-10,2-14
Warning lights ...............2-10,2-14
Washer switch Windshield wiper and washer switch . . .2-29
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-36
Wheel/tire size ...................9-9
When traveling or registering your vehicle in
another country .................9-10
Windows .....................2-44
Locking passengers’ windows .......2-46
Power rear windows .............2-46
Power windows ...............
2-
44
Rear power windows ............2-46
Windshield-washerfluid.............8-16
Windshieldwiperandwasherswitch .....2-29
Windshieldwiperblades............8-22
Wiper Windshield wiper and washer switch . . .2-29
Wiperblades.................8-22
10-7
