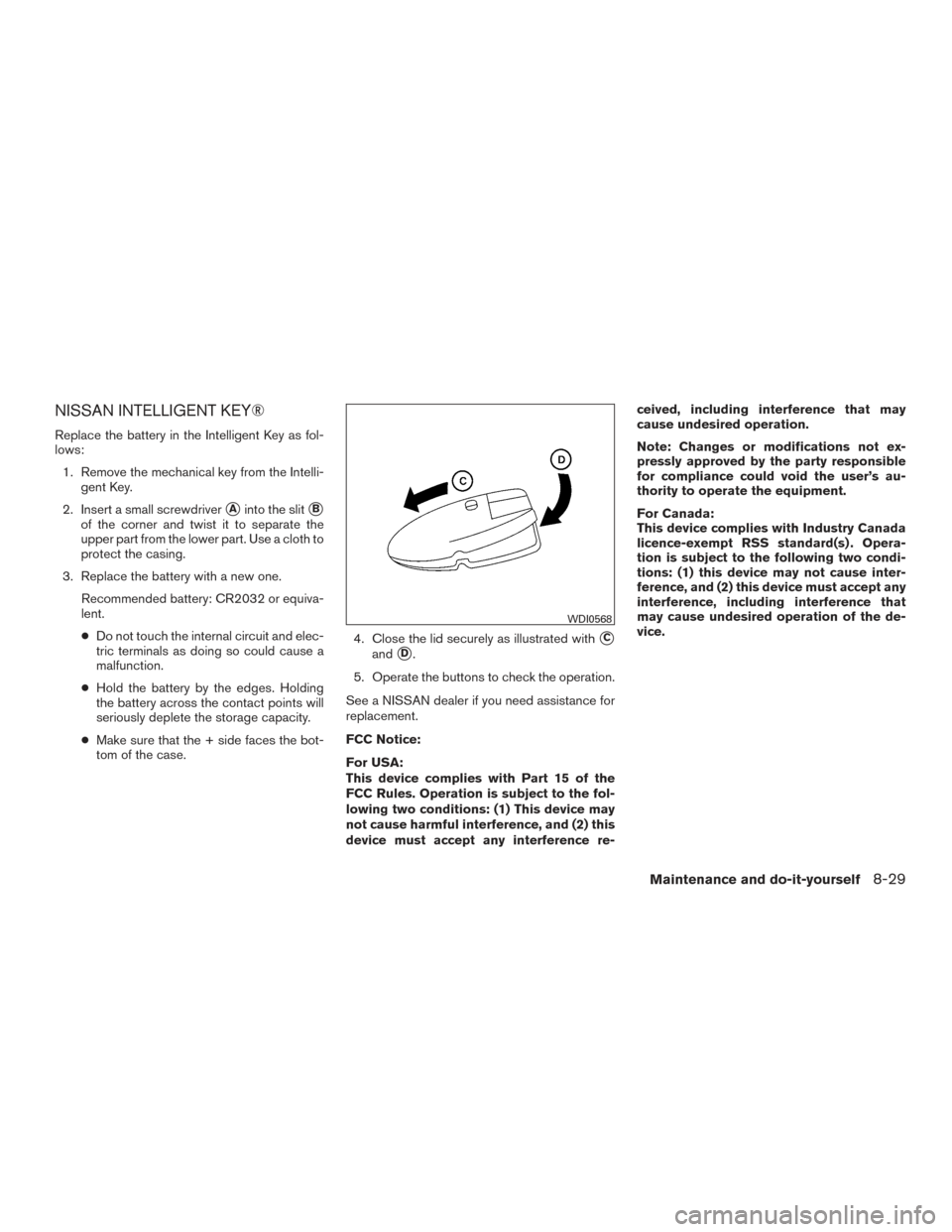

NISSAN INTELLIGENT KEY®
Replace the battery in the Intelligent Key as fol-
lows:1. Remove the mechanical key from the Intelli- gent Key.
2. Insert a small screwdriver
Ainto the slitB
of the corner and twist it to separate the
upper part from the lower part. Use a cloth to
protect the casing.
3. Replace the battery with a new one. Recommended battery: CR2032 or equiva-
lent.
●Do not touch the internal circuit and elec-
tric terminals as doing so could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the bot-
tom of the case. 4. Close the lid securely as illustrated with
C
andD.
5. Operate the buttons to check the operation.
See a NISSAN dealer if you need assistance for
replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re- ceived, including interference that may
cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s au-
thority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause inter-
ference, and (2) this device must accept any
interference, including interference that
may cause undesired operation of the de-
vice.
WDI0568
Maintenance and do-it-yourself8-29
10 Index
A
ABS (Anti-lock Braking System) ........5-32
Air bag (See supplemental restraint
system) .....................1-41
Air bag system Front (See supplemental front impact air
bag system) .................1-48
Airbagwarninglight...........1-59,2-14
Air bag warning light, supplemental . .1-59, 2-14
Air cleaner housing filter ............8-21
Air conditioner Air conditioner operation ..........4-28
Air conditioner service ...........4-35
Air conditioner specification label .....9-12
Air conditioner system refrigerant and
oil recommendations .............9-7
Air conditioner system refrigerant
recommendations ..............9-7
Heater and air conditioner
controls................4-25,4-33
Servicing air conditioner ..........4-35
Airflowcharts..................4-29
Alarm system (See vehicle security system). .2-27
Anchor point locations .............1-24
Antenna .....................4-82
Anti-lock brake warning light ......2-10,2-11
Anti-lock Braking System (ABS) ........5-32
Apps .......................4-83
Armrests .....................1-7
Audible reminders ...............2-17
Audio system ..................4-35 AMradioreception.............4-36
Bluetooth®audio..........4-78,4-79
Bluetooth® streaming audio
........4-79
Compact disc (CD)
player ......4-45,4-49,4-54,4-60,4-67
FM-AM radio with compact disc (CD)
player ....................4-43
FM/AM/SAT radio with compact disc (CD)
player..........4-47,4-51,4-56,4-62
FMradioreception.............4-35
iPod® Player .............4-73,4-75
iPod® player operation .......4-73,4-75
Radio ....................4-35
USB interface ............4-68,4-70
USB (Universal Serial Bus) Connection
Port..................4-68,4-70
Autolight switch .................2-33
Automatic Automatic power window switch .....2-46
Automatic anti-glare inside mirror .......3-36
Automatic door locks ..............3-6
AUXjack.................4-46,4-68
B
Battery ..................5-39,8-17
Chargewarninglight............2-11
Battery replacement NISSAN Intelligent Key® ..........8-29
Before starting the engine ...........5-11
Belt (See drive belt) ..............8-20 Block heater
Engine ....................5-40
Bluetooth® audio ............4-78,4-79
Bluetooth® hands-free phone
system..............4-85,4-99,4-110
Bluetooth® streaming audio with Navigation
System .....................4-79
Boosterseats..................1-37
Brake Anti-lock Braking System (ABS) ......5-32
Brake fluid ..................8-15
Brakelight(Seestoplight).........8-33
Brake system ................5-32
Brakewarninglight.............2-11
Brakewearindicators........2-17,8-24
Parking brake operation ..........5-19
Self-adjusting brakes ............8-24
Brake fluid ....................8-15
Brakes ......................8-24
Brake system ..................5-32
Break-inschedule ...............5-28
Brightness/contrast button ...........4-9
Brightness control Instrument panel ..............2-35
Bulb check/instrument panel ..........2-10
Bulbreplacement................8-33
C
Capacities and recommended fuel/lubricants..9-2
Cargo (See vehicle loading information) . . .9-13
Car phone or CB radio .............4-84
