2015 NISSAN ALTIMA set clock

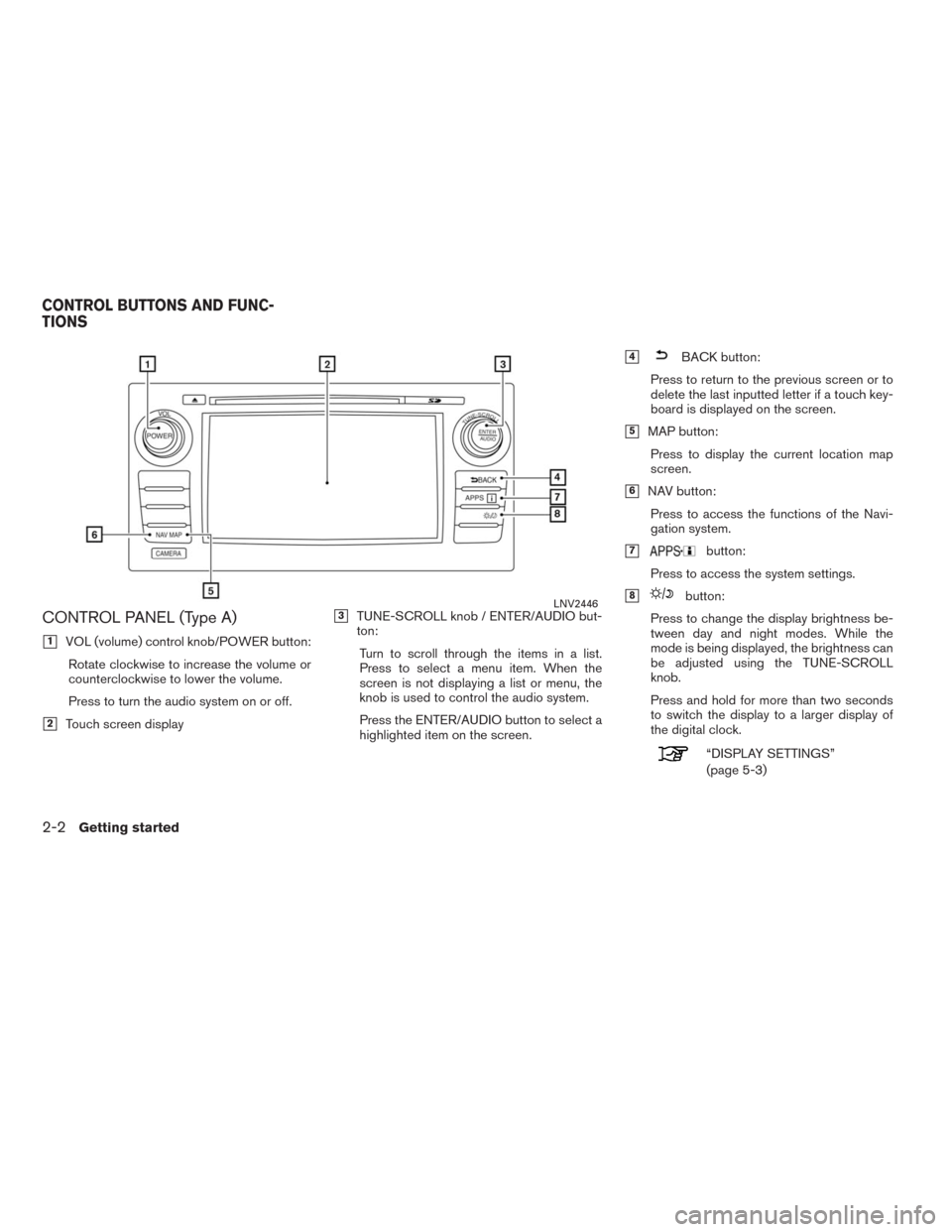

CONTROL PANEL (Type A)
1VOL (volume) control knob/POWER button:
Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
2Touch screen display
3TUNE-SCROLL knob / ENTER/AUDIO but-
ton:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
4BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
5MAP button:
Press to display the current location map
screen.
6NAV button:
Press to access the functions of the Navi-
gation system.
7button:
Press to access the system settings.
8button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE-SCROLL
knob.
Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
LNV2446
CONTROL BUTTONS AND FUNC-
TIONS
2-2Getting started

CONTROL PANEL (Type B)
1button:
Press to access the system settings.
2button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE-SCROLL
knob.Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
3BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key
board is displayed on the screen.
4TUNE-SCROLL knob / ENTER/AUDIO but-
ton:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
5Touch screen display
6MAP button:
Press to display the current location map
screen.
7VOL (volume) control knob/POWER button:
Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
8NAV button:
Press to access the functions of the Navi-
gation system.
LNV2514
Getting started2-3

CONTROL PANEL (Type C)
1button:
Press to access the system settings.
2button:
Press to change the display brightness be-
tween day and night modes. While the
mode is being displayed, the brightness can
be adjusted using the TUNE-SCROLL
knob.Press and hold for more than two seconds
to switch the display to a larger display of
the digital clock.
“DISPLAY SETTINGS”
(page 5-3)
3BACK button:
Press to return to the previous screen or to
delete the last inputted letter if a touch key-
board is displayed on the screen.
4TUNE-SCROLL knob / ENTER/AUDIO but-
ton:
Turn to scroll through the items in a list.
Press to select a menu item. When the
screen is not displaying a list or menu, the
knob is used to control the audio system.
Press the ENTER/AUDIO button to select a
highlighted item on the screen.
5Touch screen display
6MAP button:
Press to display the current location map
screen.
7VOL (volume) control knob/POWER button:
Rotate clockwise to increase the volume or
counterclockwise to lower the volume.
Press to turn the audio system on or off.
8NAV button:
Press to access the functions of the Navi-
gation system.
LNV2515
2-4Getting started

How to select a menu item
1. As an alternative to using the touch screen,
turn the scrolling dial clockwise or counter-
clockwise to scroll through the menu items
until the preferred item is highlighted.
2. To select the preferred item, press the
scrolling dial.
3. Press the BACK or
BACK button.
The previous screen will be displayed and
the changes will be saved.
HOW TO INPUT CHARACTERS
Character (letter and number) input
screen
Alphanumeric characters are used when setting
a destination, searching for an address, editing
stored locations, etc.1. Touch characters on the touch keyboard
and they will appear in the field at the top of
the screen. When the entry is complete,
touch the “OK” key.
Alternatively, use the scrolling dial to high-
light a character and press the dial to select
that character.
NOTE:
●Press the
BACK button to delete the
last inputted character or to return to the pre-
vious screen if no characters have been
inputted.
●On every character entry screen, the touch
keyboard will display only the letters that are
possible to enter after the current letter.
●Symbol and number keys are available when
the “123/ABC” key is touched.●Touch the “123/ABC” key to toggle the dis-
play between the touch keyboard for letters
and the touch keyboard for numbers and
symbols.
2. To delete the last entry, touch the “Delete”
key or hold it to delete all entries at once.
3. After finalizing the entries, touch the “OK”
key or touch the “List” key for the completed
list screen.
NOTE:
●If a phrase is being entered that has been pre-
viously entered into the system, the matched
text may appear in light gray. Touch “OK” to
search for the matched text. Touch “List” to
search for both the matched text and entered
text.(Type C)LNV2476LNV2415
2-10Getting started

SCREEN INFORMATION (2D, 2DN or
3D)
1“Voice” key
Touch to repeat the voice guidance while a
route is active. Touch and hold for two sec-
onds to toggle the voice guidance on or off
(button will be grayed out when voice guid-
ance is turned off) . This option is available
only when a route is set.
2Audio information
Indicates the radio station, CD track num-
ber or other audio information currently
playing.
3Next maneuver road name
Indicates the name of the next road in the
route guidance. This is only shown if route
guidance is active.
4Clock
Indicates the current time.
5Direction indicator and distance to next ma-
neuver on the route
When route guidance is active but you have
deviated from the route, this area displays a
compass icon with an arrow indicating the
destination direction.
When route guidance is active and you are
on the route, this area indicates the dis-
tance (in miles or kilometers) to the next
point and the turning direction at that point.
When the “Voice” key is not shown on the
screen (such as when an audio screen is
displayed on the screen) , touch the direc-
tion indicator to repeat the voice guidance
while a route is active. Touch and hold for
two seconds to toggle the voice guidance
on or off.
6Estimated time of arrival and distance to
destination or remaining time of travel and
distance to destination.
Touch this button to switch the indicator be-
tween estimated arrival time and remaining
travel time. This indicator only appears once
the destination is set and the route guid-
ance is initiated. The estimated arrival time
may not switch to the estimated arrival time
for the destination’s time zone if a time zone
line is crossed as part of the route.
LNV2206
Map settings3-3

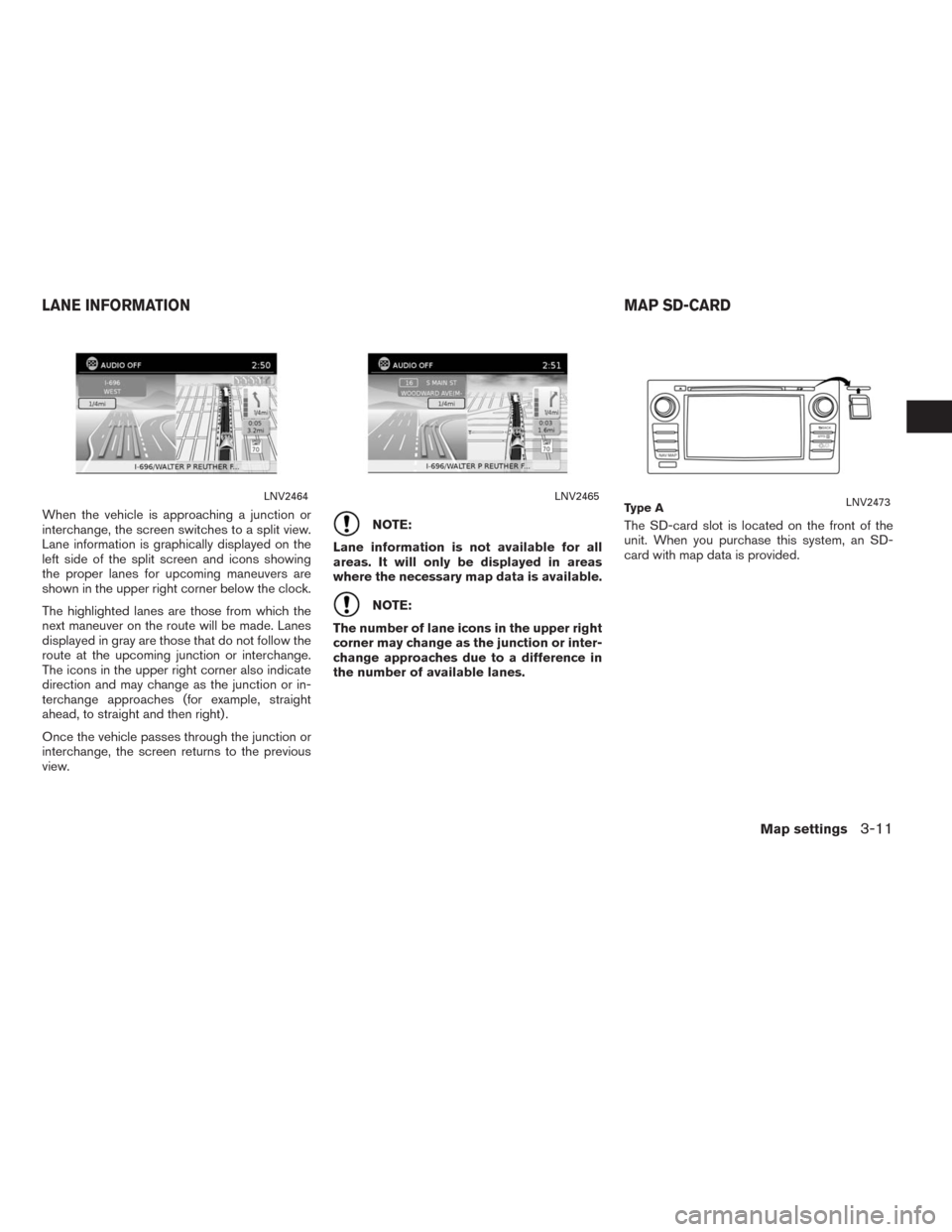

When the vehicle is approaching a junction or
interchange, the screen switches to a split view.
Lane information is graphically displayed on the
left side of the split screen and icons showing
the proper lanes for upcoming maneuvers are
shown in the upper right corner below the clock.
The highlighted lanes are those from which the
next maneuver on the route will be made. Lanes
displayed in gray are those that do not follow the
route at the upcoming junction or interchange.
The icons in the upper right corner also indicate
direction and may change as the junction or in-
terchange approaches (for example, straight
ahead, to straight and then right) .
Once the vehicle passes through the junction or
interchange, the screen returns to the previous
view.NOTE:
Lane information is not available for all
areas. It will only be displayed in areas
where the necessary map data is available.
NOTE:
The number of lane icons in the upper right
corner may change as the junction or inter-
change approaches due to a difference in
the number of available lanes.The SD-card slot is located on the front of the
unit. When you purchase this system, an SD-
card with map data is provided.
LNV2464LNV2465Ty p e ALNV2473
LANE INFORMATION MAP SD-CARD
Map settings3-11

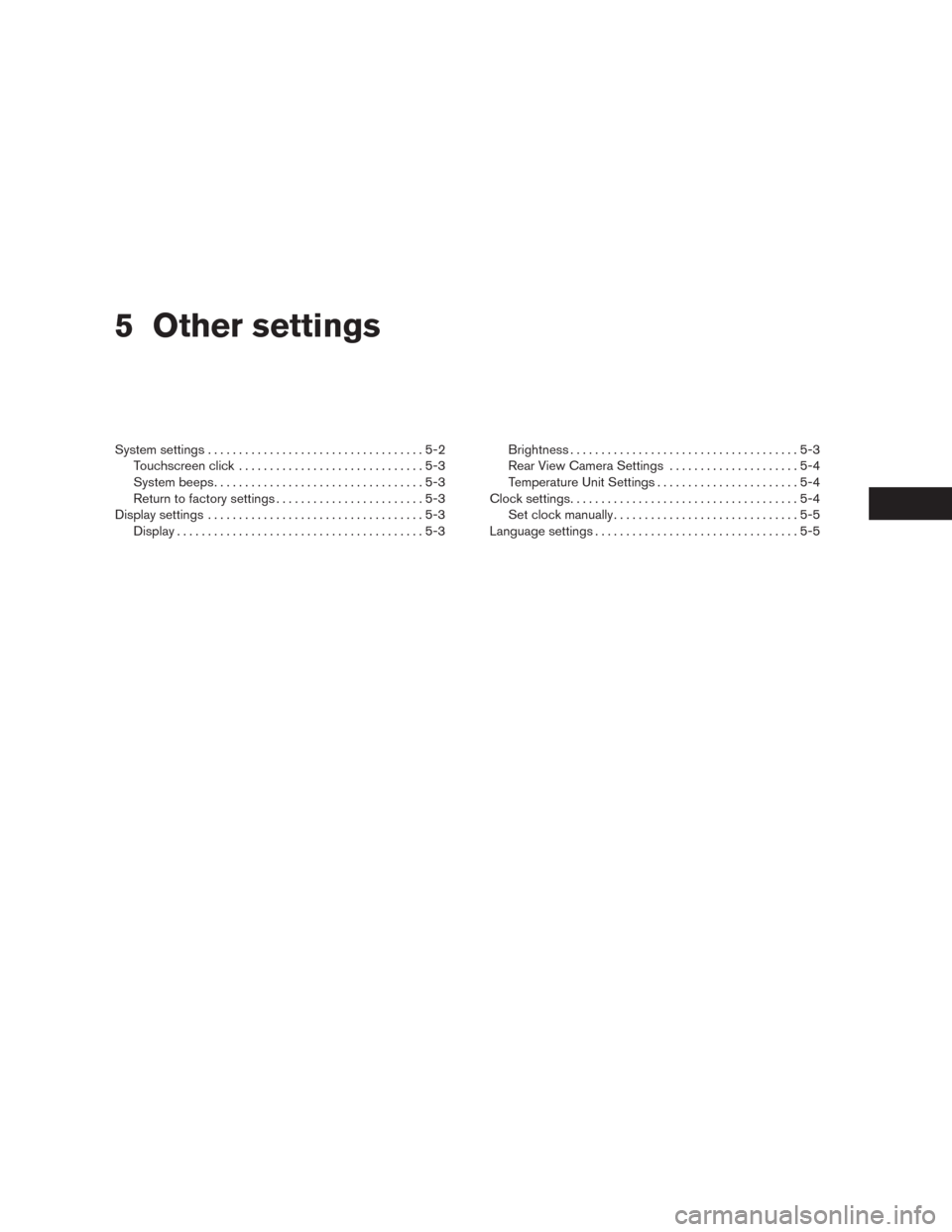

5 Other settings
System settings...................................5-2
Touchscreen click..............................5-3
System beeps..................................5-3
Return to factory settings........................5-3
Display settings...................................5-3
Display........................................5-3Brightness.....................................5-3
Rear View Camera Settings.....................5-4
Temperature Unit Settings.......................5-4
Clock settings.....................................5-4
Set clock manually..............................5-5
Language settings.................................5-5

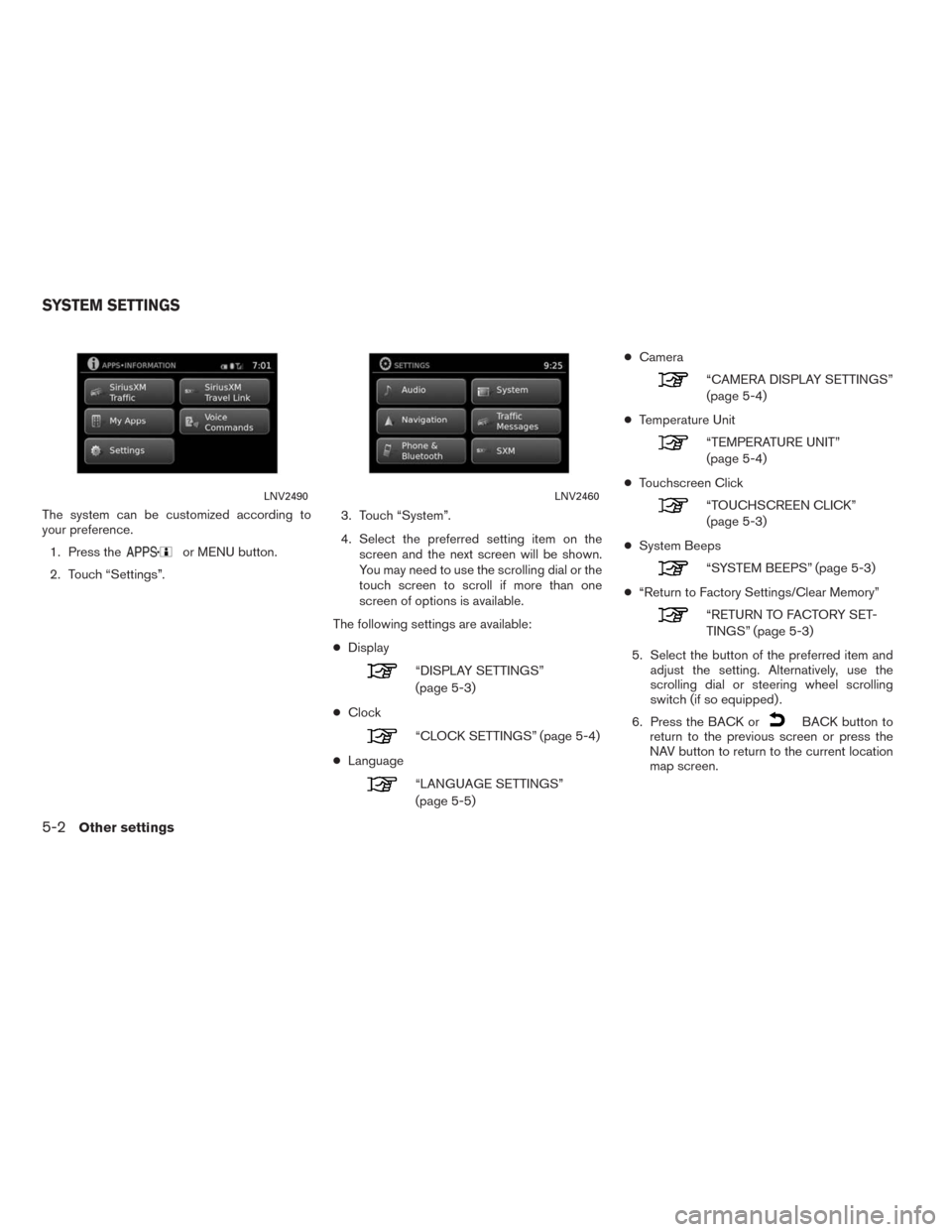

The system can be customized according to
your preference.
1. Press the
or MENU button.
2. Touch “Settings”.3. Touch “System”.
4. Select the preferred setting item on the
screen and the next screen will be shown.
You may need to use the scrolling dial or the
touch screen to scroll if more than one
screen of options is available.
The following settings are available:
●Display
“DISPLAY SETTINGS”
(page 5-3)
●Clock
“CLOCK SETTINGS” (page 5-4)
●Language
“LANGUAGE SETTINGS”
(page 5-5)●Camera
“CAMERA DISPLAY SETTINGS”
(page 5-4)
●Temperature Unit
“TEMPERATURE UNIT”
(page 5-4)
●Touchscreen Click
“TOUCHSCREEN CLICK”
(page 5-3)
●System Beeps
“SYSTEM BEEPS” (page 5-3)
●“Return to Factory Settings/Clear Memory”
“RETURN TO FACTORY SET-
TINGS” (page 5-3)
5. Select the button of the preferred item and
adjust the setting. Alternatively, use the
scrolling dial or steering wheel scrolling
switch (if so equipped) .
6. Press the BACK or
BACK button to
return to the previous screen or press the
NAV button to return to the current location
map screen.
LNV2490LNV2460
SYSTEM SETTINGS
5-2Other settings
