2015 NISSAN ALTIMA display

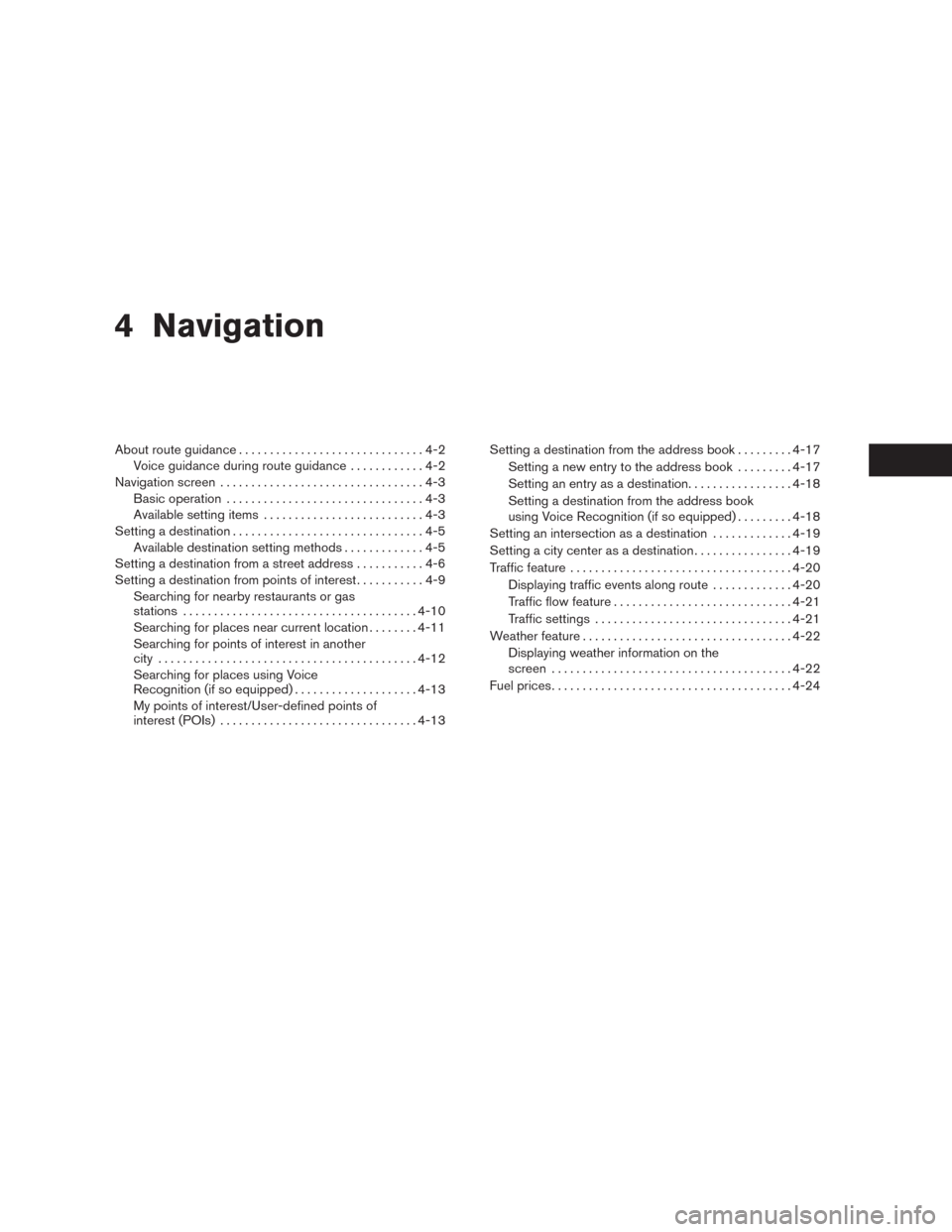

4 Navigation
About route guidance..............................4-2
Voice guidance during route guidance............4-2
Navigation screen.................................4-3
Basic operation................................4-3
Available setting items . . ........................4-3
Setting a destination...............................4-5
Available destination setting methods.............4-5
Setting a destination from a street address...........4-6
Setting a destination from points of interest...........4-9
Searching for nearby restaurants or gas
stations......................................4-10
Searching for places near current location........4-11
Searching for points of interest in another
city..........................................4-12
Searching for places using Voice
Recognition (if so equipped)....................4-13
My points of interest/User-defined points of
interest (POIs)................................4-13Setting a destination from the address book.........4-17
Setting a new entry to the address book.........4-17
Setting an entry as a destination.................4-18
Setting a destination from the address book
using Voice Recognition (if so equipped).........4-18
Setting an intersection as a destination.............4-19
Setting a city center as a destination................4-19
Traffic feature....................................4-20
Displaying traffic events along route.............4-20
Traffic flow feature.............................4-21
Traffic settings................................4-21
Weather feature..................................4-22
Displaying weather information on the
screen.......................................4-22
Fuel prices.......................................4-24

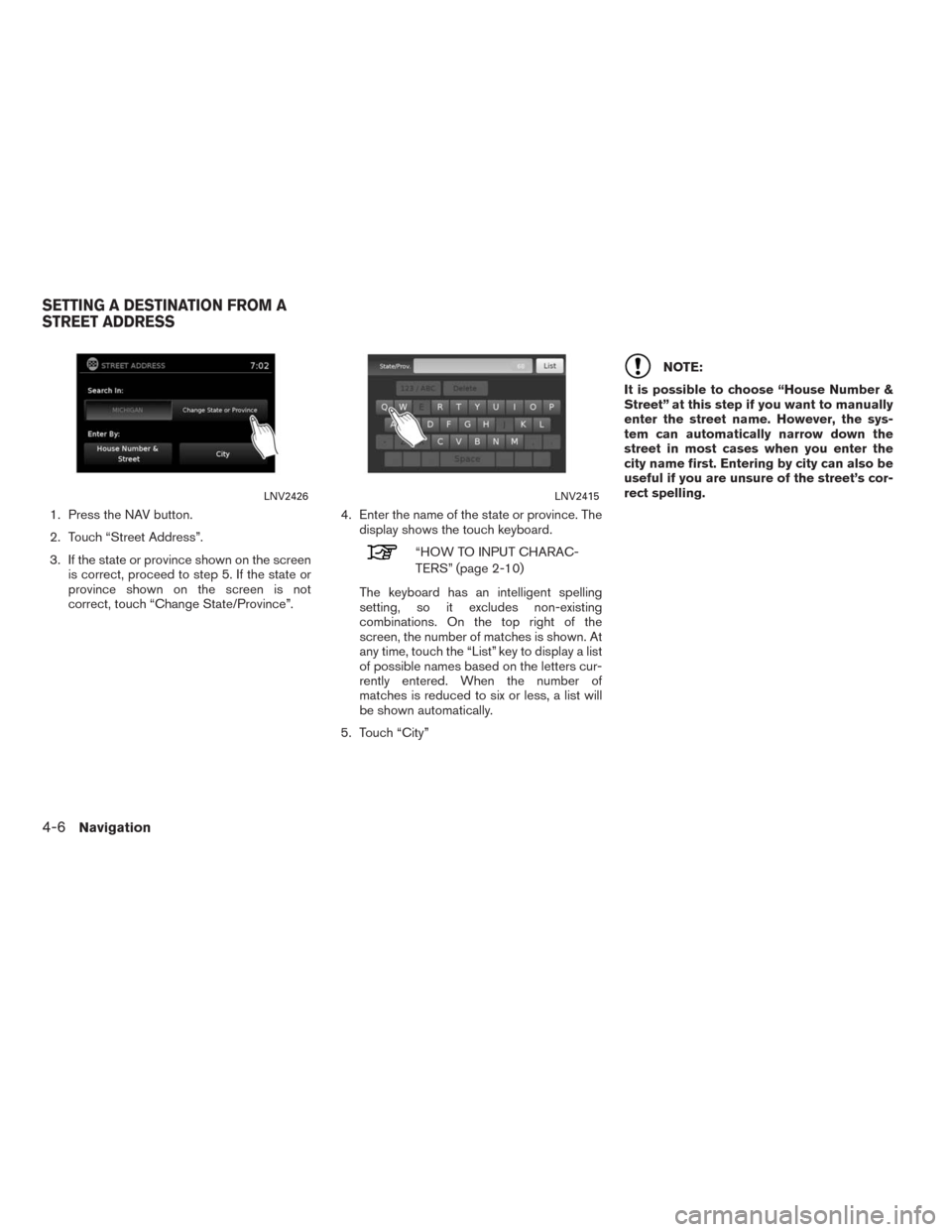

1. Press the NAV button.
2. Touch “Street Address”.
3. If the state or province shown on the screen
is correct, proceed to step 5. If the state or
province shown on the screen is not
correct, touch “Change State/Province”.4. Enter the name of the state or province. The
display shows the touch keyboard.
“HOW TO INPUT CHARAC-
TERS” (page 2-10)
The keyboard has an intelligent spelling
setting, so it excludes non-existing
combinations. On the top right of the
screen, the number of matches is shown. At
any time, touch the “List” key to display a list
of possible names based on the letters cur-
rently entered. When the number of
matches is reduced to six or less, a list will
be shown automatically.
5. Touch “City”
NOTE:
It is possible to choose “House Number &
Street” at this step if you want to manually
enter the street name. However, the sys-
tem can automatically narrow down the
street in most cases when you enter the
city name first. Entering by city can also be
useful if you are unsure of the street’s cor-
rect spelling.
LNV2426LNV2415
SETTING A DESTINATION FROM A
STREET ADDRESS
4-6Navigation

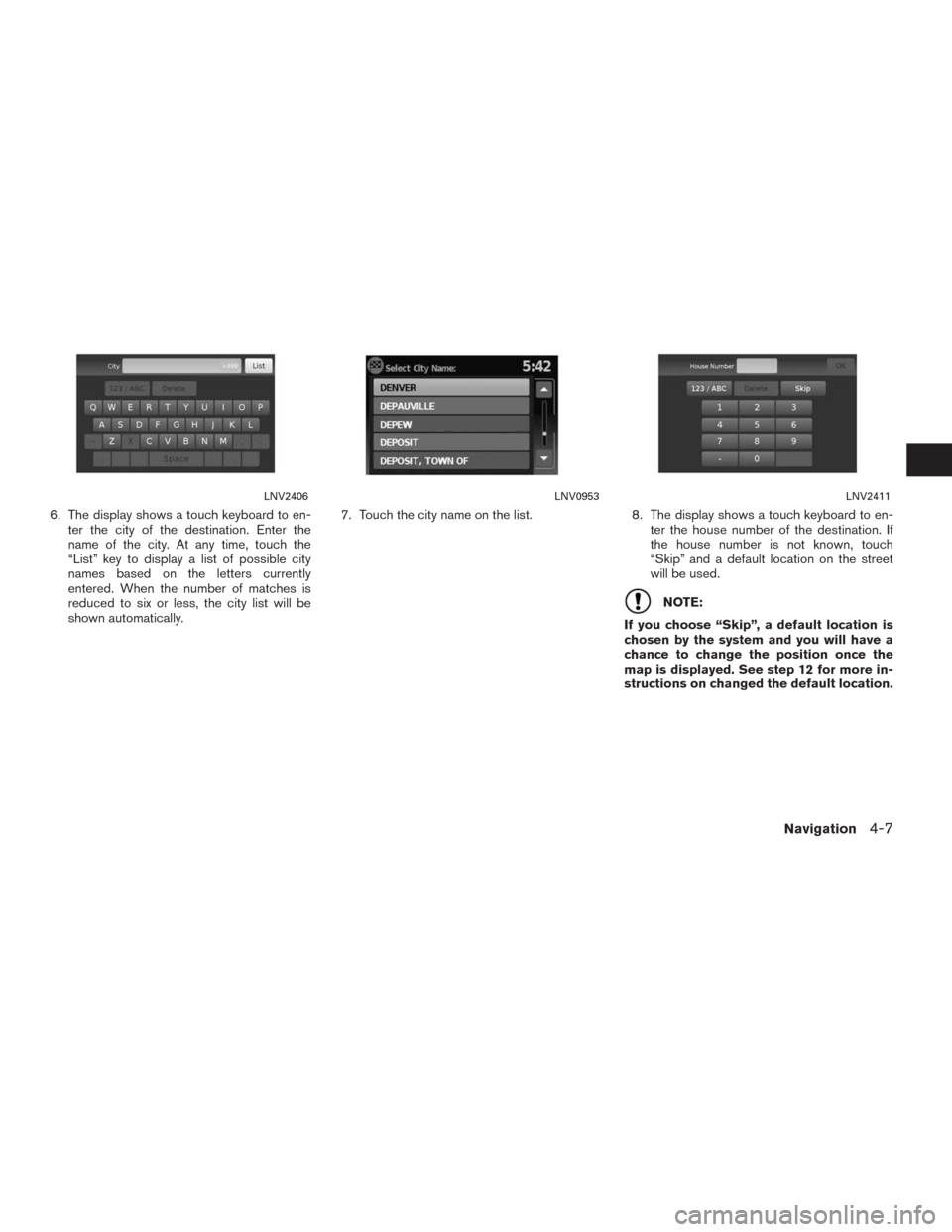

6. The display shows a touch keyboard to en-
ter the city of the destination. Enter the
name of the city. At any time, touch the
“List” key to display a list of possible city
names based on the letters currently
entered. When the number of matches is
reduced to six or less, the city list will be
shown automatically.7. Touch the city name on the list. 8. The display shows a touch keyboard to en-
ter the house number of the destination. If
the house number is not known, touch
“Skip” and a default location on the street
will be used.
NOTE:
If you choose “Skip”, a default location is
chosen by the system and you will have a
chance to change the position once the
map is displayed. See step 12 for more in-
structions on changed the default location.
LNV2406LNV0953LNV2411
Navigation4-7

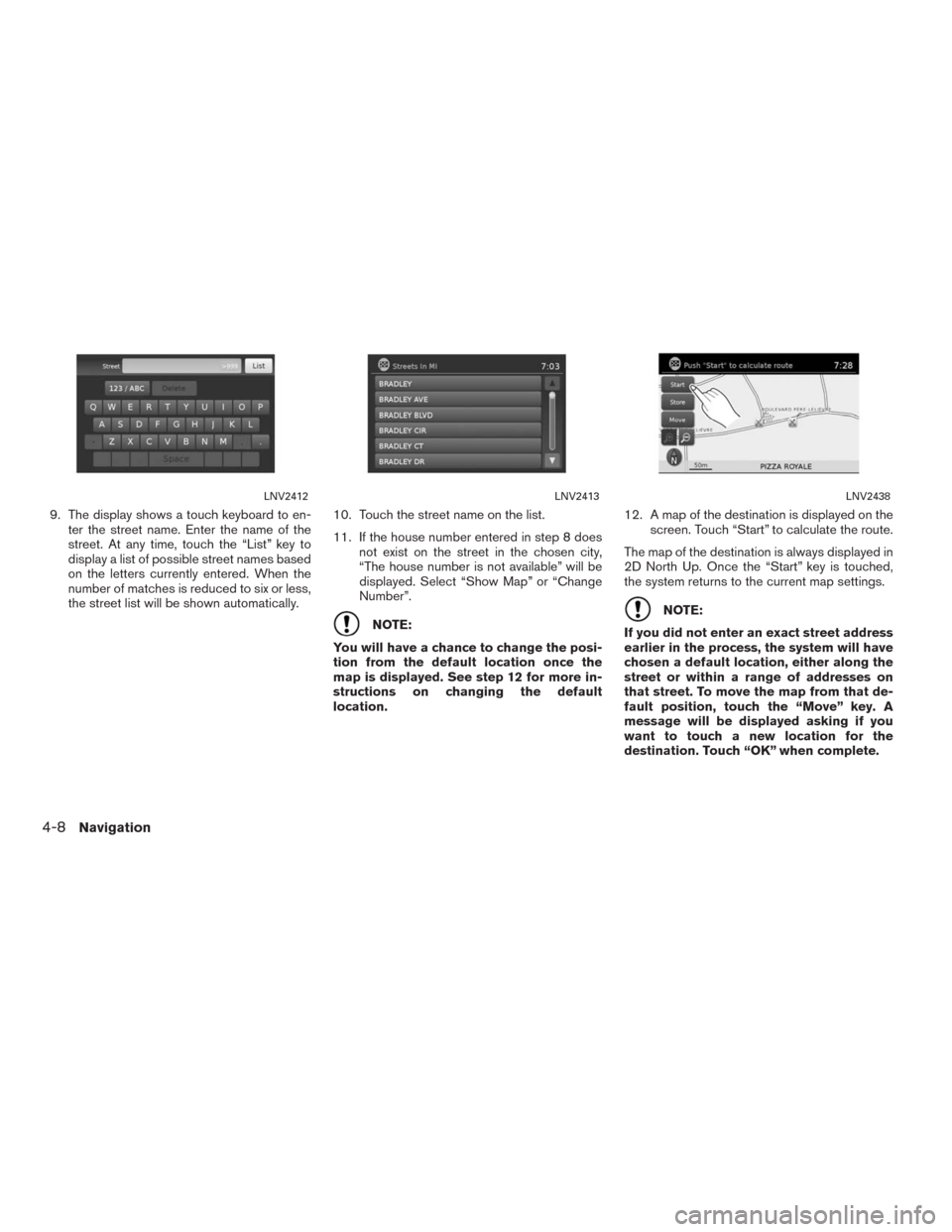

9. The display shows a touch keyboard to en-
ter the street name. Enter the name of the
street. At any time, touch the “List” key to
display a list of possible street names based
on the letters currently entered. When the
number of matches is reduced to six or less,
the street list will be shown automatically.10. Touch the street name on the list.
11. If the house number entered in step 8 does
not exist on the street in the chosen city,
“The house number is not available” will be
displayed. Select “Show Map” or “Change
Number”.
NOTE:
You will have a chance to change the posi-
tion from the default location once the
map is displayed. See step 12 for more in-
structions on changing the default
location.12. A map of the destination is displayed on the
screen. Touch “Start” to calculate the route.
The map of the destination is always displayed in
2D North Up. Once the “Start” key is touched,
the system returns to the current map settings.NOTE:
If you did not enter an exact street address
earlier in the process, the system will have
chosen a default location, either along the
street or within a range of addresses on
that street. To move the map from that de-
fault position, touch the “Move” key. A
message will be displayed asking if you
want to touch a new location for the
destination. Touch “OK” when complete.
LNV2412LNV2413LNV2438
4-8Navigation

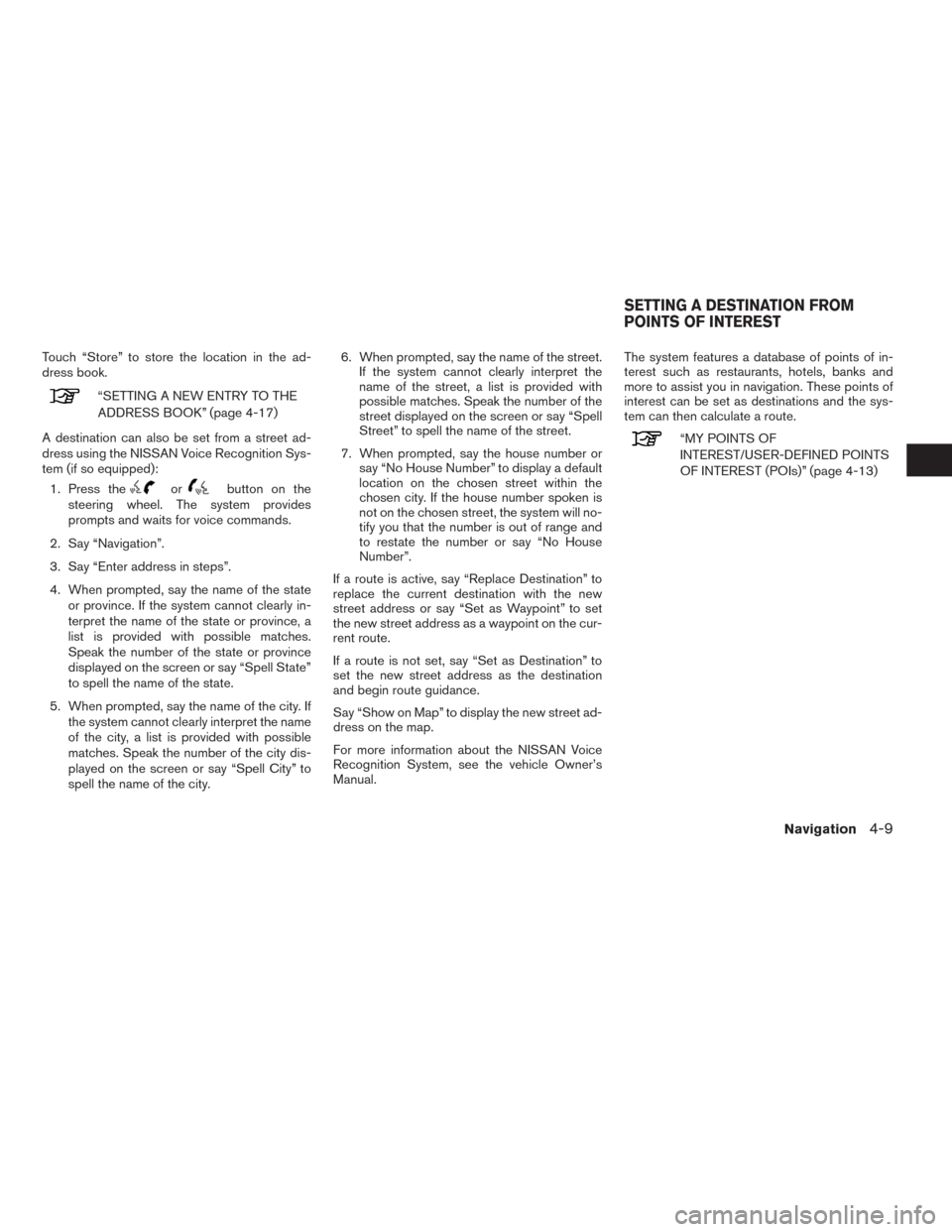

Touch “Store” to store the location in the ad-
dress book.
“SETTING A NEW ENTRY TO THE
ADDRESS BOOK” (page 4-17)
A destination can also be set from a street ad-
dress using the NISSAN Voice Recognition Sys-
tem (if so equipped):
1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Enter address in steps”.
4. When prompted, say the name of the state
or province. If the system cannot clearly in-
terpret the name of the state or province, a
list is provided with possible matches.
Speak the number of the state or province
displayed on the screen or say “Spell State”
to spell the name of the state.
5. When prompted, say the name of the city. If
the system cannot clearly interpret the name
of the city, a list is provided with possible
matches. Speak the number of the city dis-
played on the screen or say “Spell City” to
spell the name of the city.6. When prompted, say the name of the street.
If the system cannot clearly interpret the
name of the street, a list is provided with
possible matches. Speak the number of the
street displayed on the screen or say “Spell
Street” to spell the name of the street.
7. When prompted, say the house number or
say “No House Number” to display a default
location on the chosen street within the
chosen city. If the house number spoken is
not on the chosen street, the system will no-
tify you that the number is out of range and
to restate the number or say “No House
Number”.
If a route is active, say “Replace Destination” to
replace the current destination with the new
street address or say “Set as Waypoint” to set
the new street address as a waypoint on the cur-
rent route.
If a route is not set, say “Set as Destination” to
set the new street address as the destination
and begin route guidance.
Say “Show on Map” to display the new street ad-
dress on the map.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual.The system features a database of points of in-
terest such as restaurants, hotels, banks and
more to assist you in navigation. These points of
interest can be set as destinations and the sys-
tem can then calculate a route.
“MY POINTS OF
INTEREST/USER-DEFINED POINTS
OF INTEREST (POIs)” (page 4-13)
SETTING A DESTINATION FROM
POINTS OF INTEREST
Navigation4-9

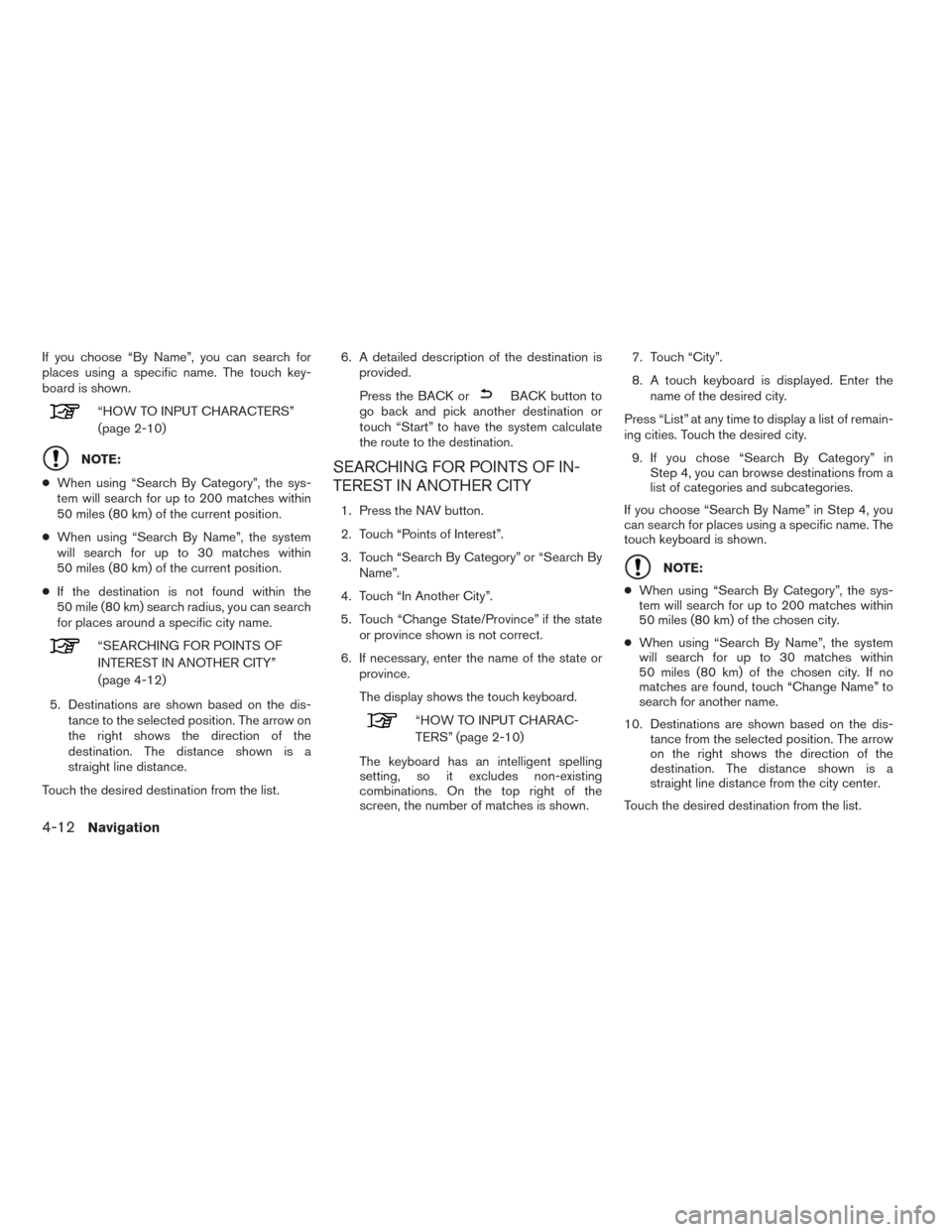

If you choose “By Name”, you can search for
places using a specific name. The touch key-
board is shown.
“HOW TO INPUT CHARACTERS”
(page 2-10)
NOTE:
●When using “Search By Category”, the sys-
tem will search for up to 200 matches within
50 miles (80 km) of the current position.
●When using “Search By Name”, the system
will search for up to 30 matches within
50 miles (80 km) of the current position.
●If the destination is not found within the
50 mile (80 km) search radius, you can search
for places around a specific city name.
“SEARCHING FOR POINTS OF
INTEREST IN ANOTHER CITY”
(page 4-12)
5. Destinations are shown based on the dis-
tance to the selected position. The arrow on
the right shows the direction of the
destination. The distance shown is a
straight line distance.
Touch the desired destination from the list.6. A detailed description of the destination is
provided.
Press the BACK or
BACK button to
go back and pick another destination or
touch “Start” to have the system calculate
the route to the destination.
SEARCHING FOR POINTS OF IN-
TEREST IN ANOTHER CITY
1. Press the NAV button.
2. Touch “Points of Interest”.
3. Touch “Search By Category” or “Search By
Name”.
4. Touch “In Another City”.
5. Touch “Change State/Province” if the state
or province shown is not correct.
6. If necessary, enter the name of the state or
province.
The display shows the touch keyboard.
“HOW TO INPUT CHARAC-
TERS” (page 2-10)
The keyboard has an intelligent spelling
setting, so it excludes non-existing
combinations. On the top right of the
screen, the number of matches is shown.7. Touch “City”.
8. A touch keyboard is displayed. Enter the
name of the desired city.
Press “List” at any time to display a list of remain-
ing cities. Touch the desired city.
9. If you chose “Search By Category” in
Step 4, you can browse destinations from a
list of categories and subcategories.
If you choose “Search By Name” in Step 4, you
can search for places using a specific name. The
touch keyboard is shown.
NOTE:
●When using “Search By Category”, the sys-
tem will search for up to 200 matches within
50 miles (80 km) of the chosen city.
●When using “Search By Name”, the system
will search for up to 30 matches within
50 miles (80 km) of the chosen city. If no
matches are found, touch “Change Name” to
search for another name.
10. Destinations are shown based on the dis-
tance from the selected position. The arrow
on the right shows the direction of the
destination. The distance shown is a
straight line distance from the city center.
Touch the desired destination from the list.
4-12Navigation

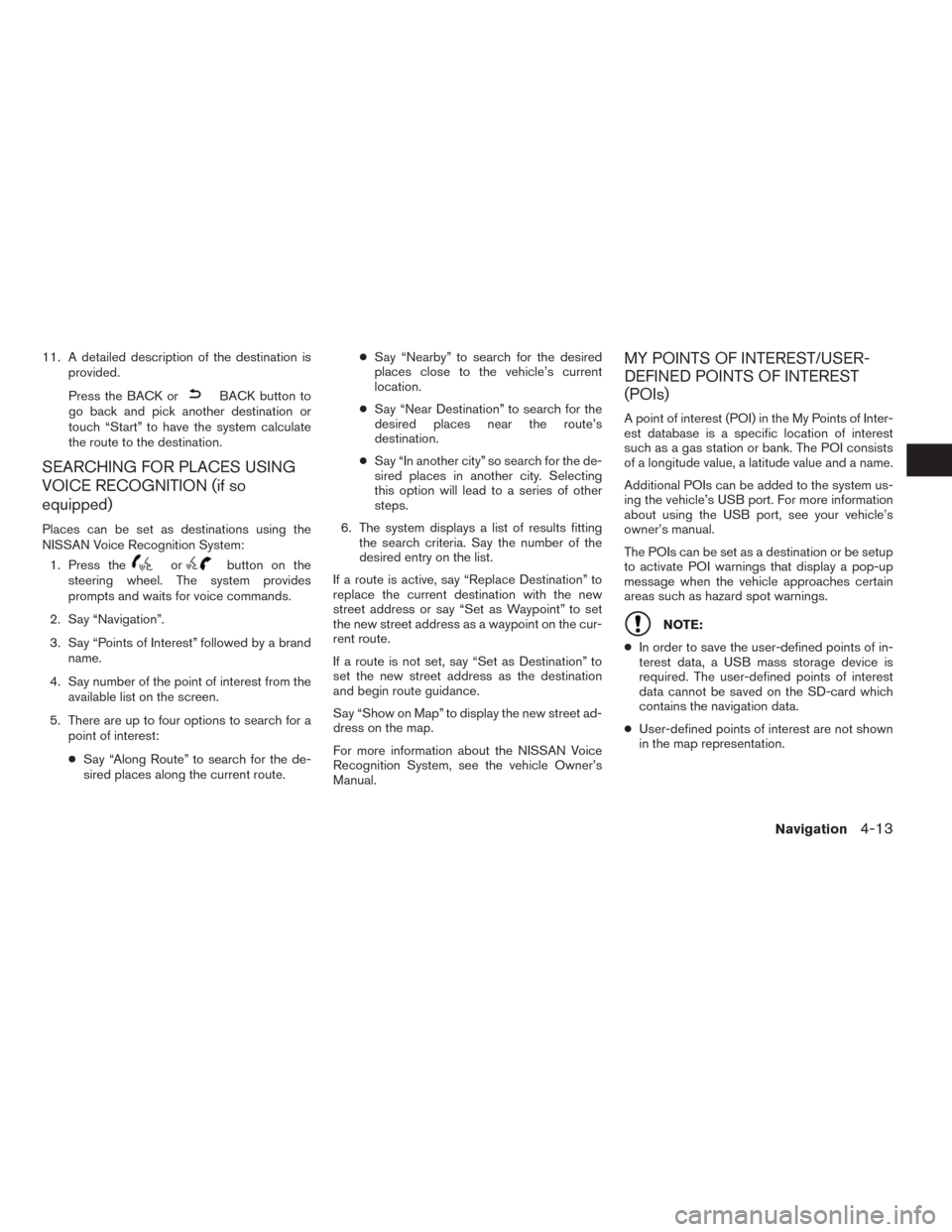

11. A detailed description of the destination is
provided.
Press the BACK or
BACK button to
go back and pick another destination or
touch “Start” to have the system calculate
the route to the destination.
SEARCHING FOR PLACES USING
VOICE RECOGNITION (if so
equipped)
Places can be set as destinations using the
NISSAN Voice Recognition System:
1. Press the
orbutton on the
steering wheel. The system provides
prompts and waits for voice commands.
2. Say “Navigation”.
3. Say “Points of Interest” followed by a brand
name.
4. Say number of the point of interest from the
available list on the screen.
5. There are up to four options to search for a
point of interest:
●Say “Along Route” to search for the de-
sired places along the current route.●Say “Nearby” to search for the desired
places close to the vehicle’s current
location.
●Say “Near Destination” to search for the
desired places near the route’s
destination.
●Say “In another city” so search for the de-
sired places in another city. Selecting
this option will lead to a series of other
steps.
6. The system displays a list of results fitting
the search criteria. Say the number of the
desired entry on the list.
If a route is active, say “Replace Destination” to
replace the current destination with the new
street address or say “Set as Waypoint” to set
the new street address as a waypoint on the cur-
rent route.
If a route is not set, say “Set as Destination” to
set the new street address as the destination
and begin route guidance.
Say “Show on Map” to display the new street ad-
dress on the map.
For more information about the NISSAN Voice
Recognition System, see the vehicle Owner’s
Manual.
MY POINTS OF INTEREST/USER-
DEFINED POINTS OF INTEREST
(POIs)
A point of interest (POI) in the My Points of Inter-
est database is a specific location of interest
such as a gas station or bank. The POI consists
of a longitude value, a latitude value and a name.
Additional POIs can be added to the system us-
ing the vehicle’s USB port. For more information
about using the USB port, see your vehicle’s
owner’s manual.
The POIs can be set as a destination or be setup
to activate POI warnings that display a pop-up
message when the vehicle approaches certain
areas such as hazard spot warnings.
NOTE:
●In order to save the user-defined points of in-
terest data, a USB mass storage device is
required. The user-defined points of interest
data cannot be saved on the SD-card which
contains the navigation data.
●User-defined points of interest are not shown
in the map representation.
Navigation4-13

●The system recognizes the user-defined
points of interest (POI) data and then asks the
user via a pop-up message if the data needs
to be downloaded into the system.
●If you confirm the download, the available user
Points of Interest in the system internal
memory will be deleted and the new ones in
the USB mass storage device will be down-
loaded into the internal memory of the system.
●The progress of the download is shown by a
progress-bar. When the download is finished,
the user is notified that the USB mass storage

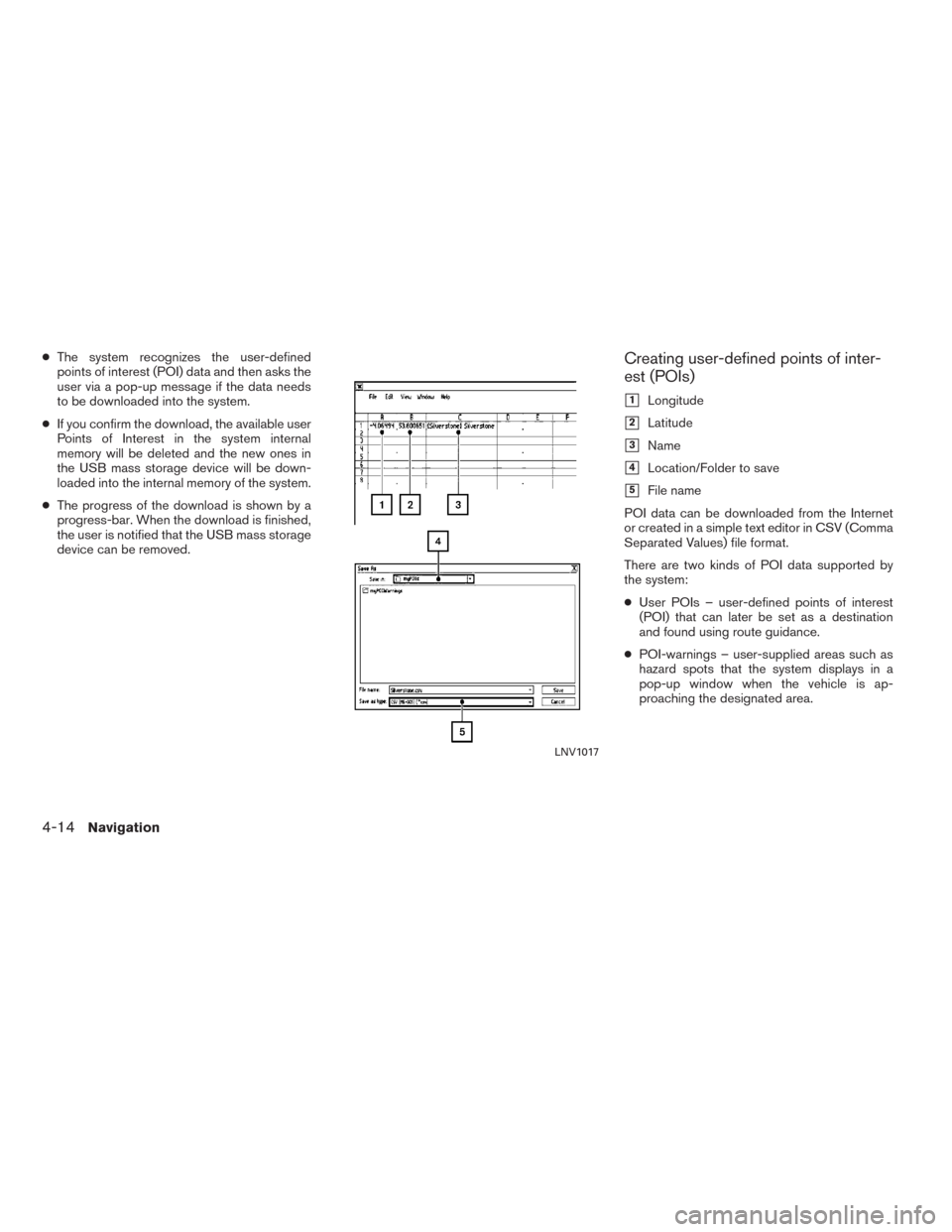

device can be removed.Creating user-defined points of inter-
est (POIs)
1Longitude
2Latitude
3Name
4Location/Folder to save
5File name
POI data can be downloaded from the Internet
or created in a simple text editor in CSV (Comma
Separated Values) file format.
There are two kinds of POI data supported by
the system:
●User POIs – user-defined points of interest
(POI) that can later be set as a destination
and found using route guidance.
●POI-warnings – user-supplied areas such as
hazard spots that the system displays in a
pop-up window when the vehicle is ap-
proaching the designated area.
LNV1017
4-14Navigation
