> (GLW    0RGHO =' @
GUID-C6B42399-76C7-4110-95FB-5AA51B59B2C1.Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (See ªWarning/indicator lights and
audible remindersº (P.2-10) .)GUID-24615BF4-CF94-4B41-80B7-9F4B04D434581. Apply the parking brake.
2.Automatic Transmission (AT) model:
Move the shift lever to the P (Park) or N
(Neutral) position. (P is recommended.)
The starter is designed not to operate unless
the shift lever is in either of the above
positions.
Manual Transmission (MT) model:
Move the shift lever to the N (Neutral)
position. Depress the clutch pedal fully to
the floor.
The starter is designed not to operate unless
the clutch pedal is fully depressed.
The Intelligent Key must be carried
when operating the ignition switch.
3. Push the ignition switch to the ON position. Depress the brake pedal (AT model) or the
clutch pedal (MT model) and push the
ignition switch to start the engine.
To start the engine immediately, push and
release the ignition switch while depressing
the brake pedal with the ignition switch in
any position.
.If the engine is very hard to start inextremely cold weather or when restart-
ing, depress the accelerator pedal a little
(approximately 1/3 to the floor) and while
holding, crank the engine. Release the accelerator pedal when the engine starts.
.If the engine is very hard to start because
it is flooded, depress the accelerator
pedal all the way to the floor and hold it.
Push the ignition switch to the ON
position to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to OFF. After
cranking the engine, release the accel-
erator pedal. Crank the engine with your
foot off the accelerator pedal by
depressing the brake pedal and pushing
the push-button ignition switch to start
the engine. If the engine starts, but fails
to run, repeat the above procedure.
CAUTION
Do not operate the starter for more
than 15 seconds at a time. If the engine
does not start, push the ignition switch
to OFF and wait 10 seconds before
cranking again, otherwise the starter
could be damaged.
4. Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the
engine while warming it up. Drive at
Starting and driving5-11
BEFORE STARTING THE ENGINE STARTING THE ENGINE
&RQGLWLRQ


> (GLW    0RGHO =' @
5-18Starting and driving
gear. Thus, the engine speed may be kept
high depending on the gear position and
vehicle speed.
. When the clutch pedal is depressed with
the transmission in neutral, the system
operates for approximately 2 seconds, and
then the engine speed will decrease to the
idle speed.
. When the engine coolant temperature is low
right after starting the engine, engine speed
synchronization will be delayed or may be
insufficient.
. The system controls the engine speed up to
the rev limit. Note that S-MODE is not a
function that prevents over-revving resulting
from shifting mistakes.
. The system does not operate while the
vehicle is backing up.
. If the engine speed is limited lower than
usual when the engine oil temperature is
extremely high, the system will control up to
the limited engine speed.
. If the malfunction indicator light illuminates,
the system may not operate and the S-
MODE indicator turns off.
SSD0830
SynchroRev Match mode (S-MODE) warn-
ing:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The SynchroRev Match mode (S-MODE) warn-
ing will appear on the vehicle information display
and the S-MODE indicator will turn off if a
system malfunction occurs.
If the warning appears, the S-MODE function
will not operate, but manual transmission will
operate normally and driving can be continued.
Have the system checked by a NISSAN dealer.
SSD0831
Activating the system:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407To activate the S-MODE, push the S-MODE
switch
*A. The S-MODE indicator*Bon the
tachometer will show ªSº. To deactivate, push
and hold the S-MODE switch for more than 1
second. The S-MODE indicator will turn off.
While the S-MODE is off, you can drive the
&RQGLWLRQ


> (GLW    0RGHO =' @

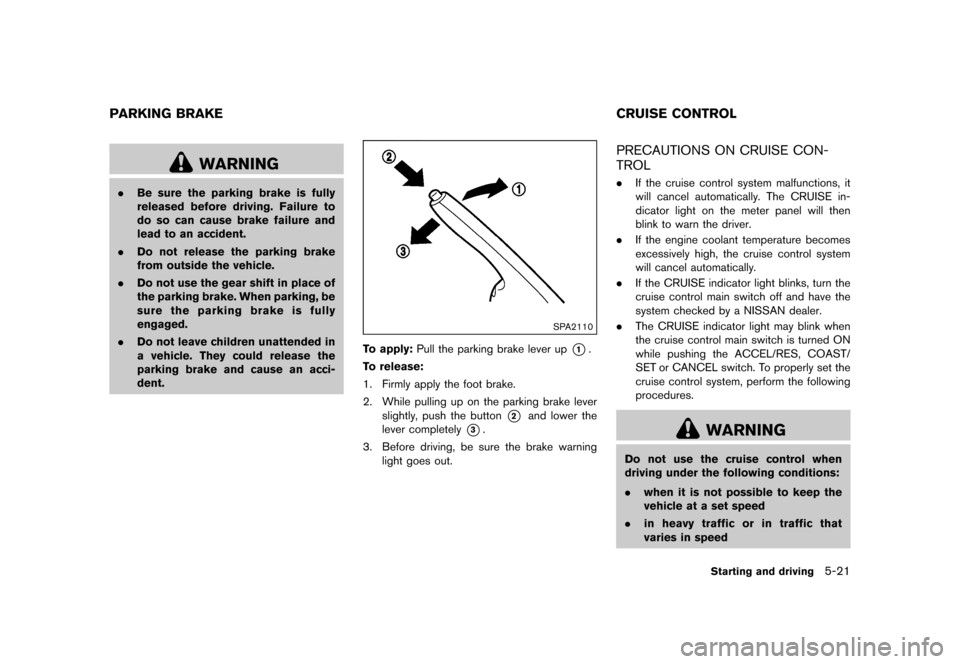

GUID-BE115199-9E58-4B56-9841-5BECF42F2873
WARNING
.Be sure the parking brake is fully
released before driving. Failure to
do so can cause brake failure and
lead to an accident.
. Do not release the parking brake
from outside the vehicle.
. Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully
engaged.
. Do not leave children unattended in
a vehicle. They could release the
parking brake and cause an acci-
dent.
SPA2110
To apply: Pull the parking brake lever up*1.
To release:
1. Firmly apply the foot brake.
2. While pulling up on the parking brake lever slightly, push the button
*2and lower the
lever completely
*3.
3. Before driving, be sure the brake warning light goes out.
GUID-F1AC49C5-206B-4BA5-8CB3-880D359507B1PRECAUTIONS ON CRUISE CON-
TROL
GUID-0E16F5C2-0926-4E8D-8780-368947CC7C46.If the cruise control system malfunctions, it
will cancel automatically. The CRUISE in-
dicator light on the meter panel will then
blink to warn the driver.
. If the engine coolant temperature becomes
excessively high, the cruise control system
will cancel automatically.
. If the CRUISE indicator light blinks, turn the
cruise control main switch off and have the
system checked by a NISSAN dealer.
. The CRUISE indicator light may blink when
the cruise control main switch is turned ON
while pushing the ACCEL/RES, COAST/
SET or CANCEL switch. To properly set the
cruise control system, perform the following
procedures.
WARNING
Do not use the cruise control when
driving under the following conditions:
.when it is not possible to keep the
vehicle at a set speed
. in heavy traffic or in traffic that
varies in speed
Starting and driving5-21
PARKING BRAKE CRUISE CONTROL
&RQGLWLRQ


> (GLW    0RGHO =' @

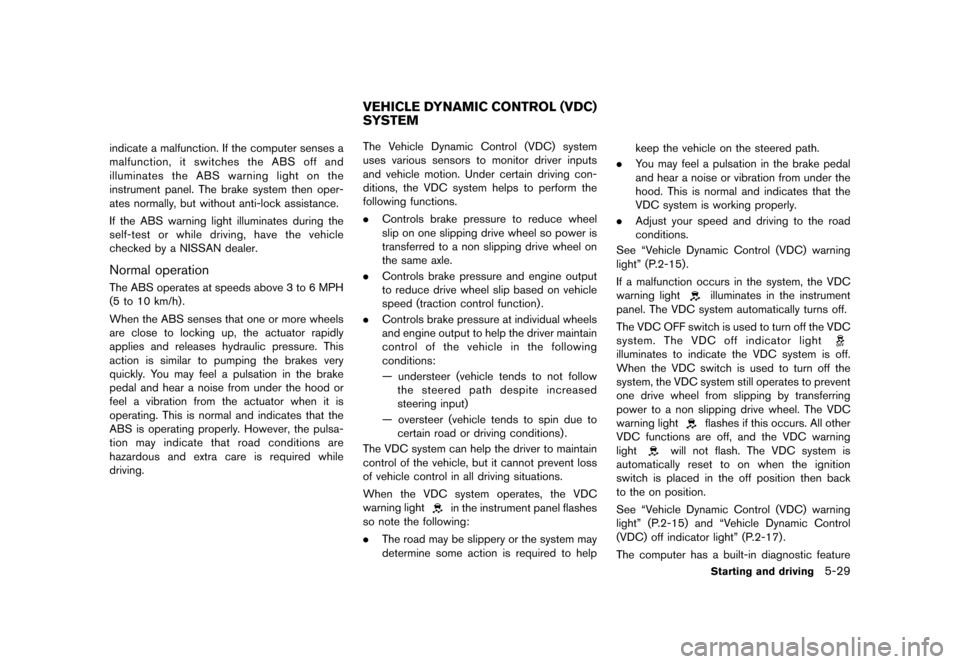

indicate a malfunction. If the computer senses a
malfunction, it switches the ABS off and
illuminates the ABS warning light on the
instrument panel. The brake system then oper-
ates normally, but without anti-lock assistance.
If the ABS warning light illuminates during the
self-test or while driving, have the vehicle
checked by a NISSAN dealer.
Normal operationGUID-BDC138D9-7206-40B2-891C-4FFE2C9E11B2The ABS operates at speeds above 3 to 6 MPH
(5 to 10 km/h) .
When the ABS senses that one or more wheels
are close to locking up, the actuator rapidly
applies and releases hydraulic pressure. This
action is similar to pumping the brakes very
quickly. You may feel a pulsation in the brake
pedal and hear a noise from under the hood or
feel a vibration from the actuator when it is
operating. This is normal and indicates that the
ABS is operating properly. However, the pulsa-
tion may indicate that road conditions are
hazardous and extra care is required while
driving.
GUID-DB1EF854-9E66-4871-AEF9-9DF110D4B99BThe Vehicle Dynamic Control (VDC) system
uses various sensors to monitor driver inputs
and vehicle motion. Under certain driving con-
ditions, the VDC system helps to perform the
following functions.
.Controls brake pressure to reduce wheel
slip on one slipping drive wheel so power is
transferred to a non slipping drive wheel on
the same axle.
. Controls brake pressure and engine output
to reduce drive wheel slip based on vehicle
speed (traction control function) .
. Controls brake pressure at individual wheels
and engine output to help the driver maintain
control of the vehicle in the following
conditions:
Ð understeer (vehicle tends to not follow
the steered path despite increased
steering input)
Ð oversteer (vehicle tends to spin due to certain road or driving conditions) .
The VDC system can help the driver to maintain
control of the vehicle, but it cannot prevent loss
of vehicle control in all driving situations.
When the VDC system operates, the VDC
warning light
in the instrument panel flashes
so note the following:
. The road may be slippery or the system may
determine some action is required to help keep the vehicle on the steered path.
. You may feel a pulsation in the brake pedal
and hear a noise or vibration from under the
hood. This is normal and indicates that the
VDC system is working properly.
. Adjust your speed and driving to the road
conditions.
See ªVehicle Dynamic Control (VDC) warning
lightº (P.2-15).
If a malfunction occurs in the system, the VDC
warning light
illuminates in the instrument
panel. The VDC system automatically turns off.
The VDC OFF switch is used to turn off the VDC
system. The VDC off indicator light
illuminates to indicate the VDC system is off.
When the VDC switch is used to turn off the
system, the VDC system still operates to prevent
one drive wheel from slipping by transferring
power to a non slipping drive wheel. The VDC
warning light
flashes if this occurs. All other
VDC functions are off, and the VDC warning
light
will not flash. The VDC system is
automatically reset to on when the ignition
switch is placed in the off position then back
to the on position.
See ªVehicle Dynamic Control (VDC) warning
lightº (P.2-15) and ªVehicle Dynamic Control
(VDC) off indicator lightº (P.2-17).
The computer has a built-in diagnostic feature
Starting and driving5-29
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM
&RQGLWLRQ


> (GLW    0RGHO =' @

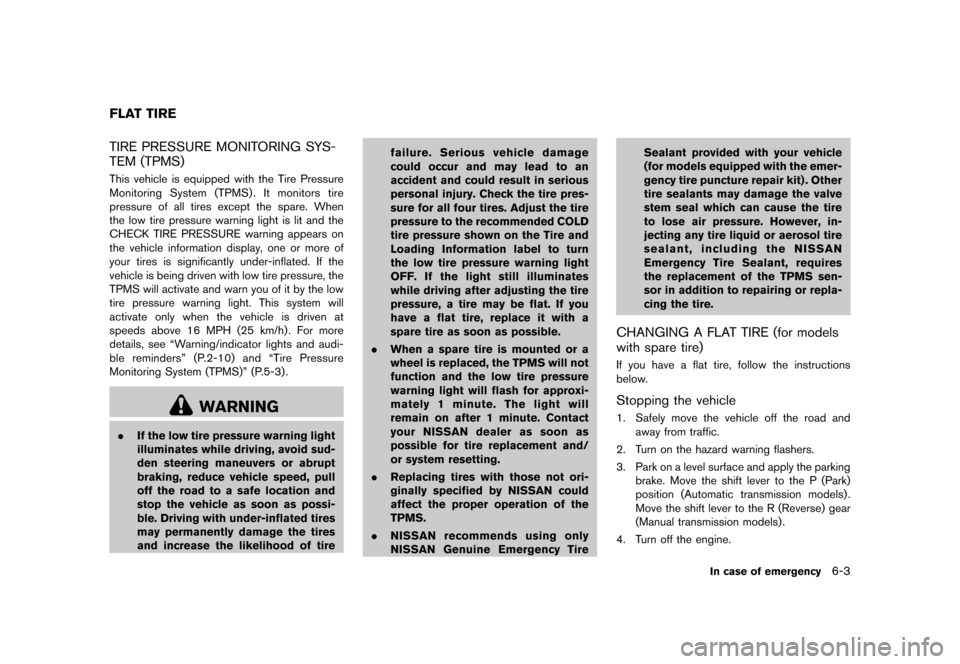

GUID-5DE4E947-B84D-4D47-B2EC-879369E4200DTIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-798990E0-F0C8-4003-8F39-B9227314C28FThis vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit and the
CHECK TIRE PRESSURE warning appears on
the vehicle information display, one or more of
your tires is significantly under-inflated. If the
vehicle is being driven with low tire pressure, the
TPMS will activate and warn you of it by the low
tire pressure warning light. This system will
activate only when the vehicle is driven at
speeds above 16 MPH (25 km/h) . For more
details, see ªWarning/indicator lights and audi-
ble remindersº (P.2-10) and ªTire Pressure
Monitoring System (TPMS)º (P.5-3) .
WARNING
.If the low tire pressure warning light
illuminates while driving, avoid sud-
den steering maneuvers or abrupt
braking, reduce vehicle speed, pull
off the road to a safe location and
stop the vehicle as soon as possi-
ble. Driving with under-inflated tires
may permanently damage the tires
and increase the likelihood of tire failure. Serious vehicle damage
could occur and may lead to an
accident and could result in serious
personal injury. Check the tire pres-
sure for all four tires. Adjust the tire
pressure to the recommended COLD
tire pressure shown on the Tire and
Loading Information label to turn
the low tire pressure warning light
OFF. If the light still illuminates
while driving after adjusting the tire
pressure, a tire may be flat. If you
have a flat tire, replace it with a
spare tire as soon as possible.
. When a spare tire is mounted or a
wheel is replaced, the TPMS will not
function and the low tire pressure
warning light will flash for approxi-
mately 1 minute. The light will
remain on after 1 minute. Contact
your NISSAN dealer as soon as
possible for tire replacement and/
or system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
. NISSAN recommends using only
NISSAN Genuine Emergency Tire Sealant provided with your vehicle
(for models equipped with the emer-
gency tire puncture repair kit) . Other
tire sealants may damage the valve
stem seal which can cause the tire
to lose air pressure. However, in-
jecting any tire liquid or aerosol tire
sealant, including the NISSAN
Emergency Tire Sealant, requires
the replacement of the TPMS sen-
sor in addition to repairing or repla-
cing the tire.
CHANGING A FLAT TIRE (for models
with spare tire)
GUID-9EEE5F08-A8A1-4681-B959-90D7CC9C0736If you have a flat tire, follow the instructions
below.
Stopping the vehicleGUID-89A8F405-FB4B-43D9-8DD7-45B98F63E82A1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the shift lever to the P (Park)
position (Automatic transmission models) .
Move the shift lever to the R (Reverse) gear
(Manual transmission models) .
4. Turn off the engine.
In case of emergency6-3
FLAT TIRE
&RQGLWLRQ


> (GLW    0RGHO =' @
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3
Maintenance precautions ...
........................................................ 8-6
Engine compartment check locations ...
.................................. 8-7
VQ37VHR engine model ...
.................................................. 8-7
Engine cooling system ...
............................................................. 8-8
Checking engine coolant level ...
......................................... 8-9
Changing engine coolant ...
.................................................. 8-9
Engine oil ...
........................................................................\
......... 8-10
Checking engine oil level ...
............................................... 8-10
Changing engine oil and filter ...
....................................... 8-10
Automatic transmission fluid ...
............................................... 8-12
Power steering fluid ...
............................................................... 8-12
Brake and clutch fluid ...
........................................................... 8-13
Brake fluid ...
........................................................................\
.. 8-13
Clutch fluid (Manual transmission models) ...
............... 8-14
Window washer fluid ...
............................................................ 8-14
Battery ...
........................................................................\
............... 8-15
Jump starting ...
..................................................................... 8-17
Variable voltage control system ...
.......................................... 8-17
Drive belts ...
........................................................................\
........ 8-18 Spark plugs
...
........................................................................\
..... 8-18
Replacing spark plugs ...
.................................................. 8-19
Air cleaner ...
........................................................................\
....... 8-19
Windshield wiper blades ...
..................................................... 8-20
Cleaning ...
........................................................................\
... 8-20
Replacing ...
........................................................................\
. 8-20
Brakes ...
........................................................................\
.............. 8-21
Self-adjusting brakes ...
.................................................... 8-21
Brake pad wear warning ...
.............................................. 8-21
Fuses ...
........................................................................\
................ 8-22
Engine compartment ...
..................................................... 8-22
Passenger compartment ...
.............................................. 8-23
Intelligent Key battery replacement ...
................................... 8-24
Lights ...
........................................................................\
................ 8-26
Coupe ...
........................................................................\
....... 8-26
Roadster ...
........................................................................\
... 8-27
Headlights ...
........................................................................\
8-28
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-36
Changing wheels and tires ...
.......................................... 8-37
&RQGLWLRQ


> (GLW    0RGHO =' @

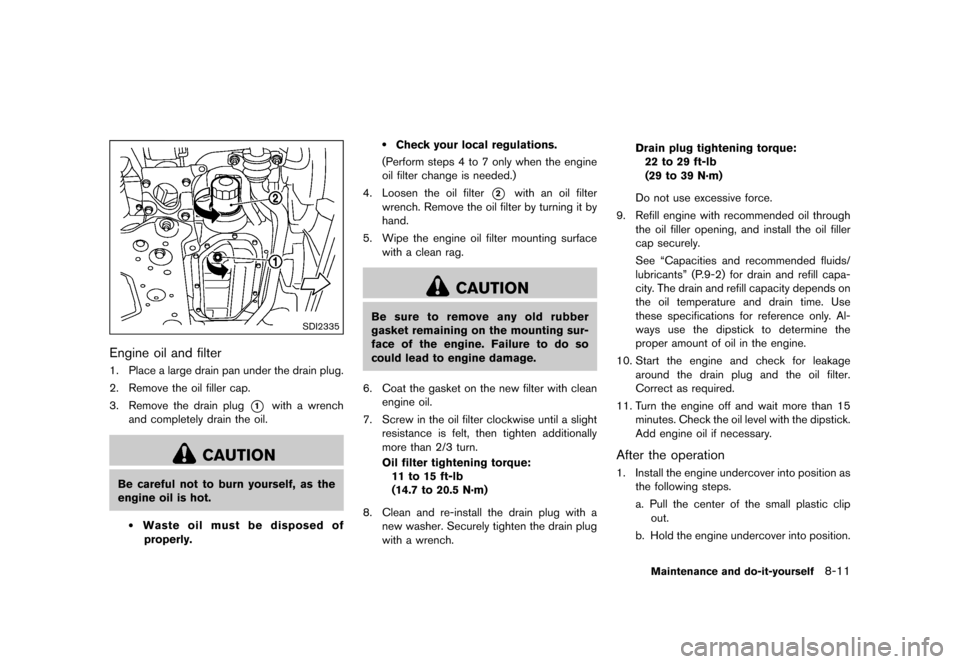

SDI2335
Engine oil and filterGUID-39A1DAC9-917D-40F6-9016-EB7D4F1C88861. Place a large drain pan under the drain plug.
2. Remove the oil filler cap.
3. Remove the drain plug
*1with a wrench
and completely drain the oil.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
.Waste oil must be disposed of properly.
.Check your local regulations.
(Perform steps 4 to 7 only when the engine
oil filter change is needed.)
4. Loosen the oil filter
*2with an oil filter
wrench. Remove the oil filter by turning it by
hand.
5. Wipe the engine oil filter mounting surface with a clean rag.
CAUTION
Be sure to remove any old rubber
gasket remaining on the mounting sur-
face of the engine. Failure to do so
could lead to engine damage.
6. Coat the gasket on the new filter with clean engine oil.
7. Screw in the oil filter clockwise until a slight resistance is felt, then tighten additionally
more than 2/3 turn.
Oil filter tightening torque:11 to 15 ft-lb
(14.7 to 20.5 N´m)
8. Clean and re-install the drain plug with a new washer. Securely tighten the drain plug
with a wrench. Drain plug tightening torque:
22 to 29 ft-lb
(29 to 39 N´m)
Do not use excessive force.
9. Refill engine with recommended oil through the oil filler opening, and install the oil filler
cap securely.
See ªCapacities and recommended fluids/
lubricantsº (P.9-2) for drain and refill capa-
city. The drain and refill capacity depends on
the oil temperature and drain time. Use
these specifications for reference only. Al-
ways use the dipstick to determine the
proper amount of oil in the engine.
10. Start the engine and check for leakage around the drain plug and the oil filter.
Correct as required.
11. Turn the engine off and wait more than 15 minutes. Check the oil level with the dipstick.
Add engine oil if necessary.
After the operationGUID-3A3566B2-A3CE-4A09-8FC9-36E90C21FBBB1. Install the engine undercover into position asthe following steps.
a. Pull the center of the small plastic clipout.
b. Hold the engine undercover into position.
Maintenance and do-it-yourself8-11
&RQGLWLRQ


> (GLW    0RGHO =' @

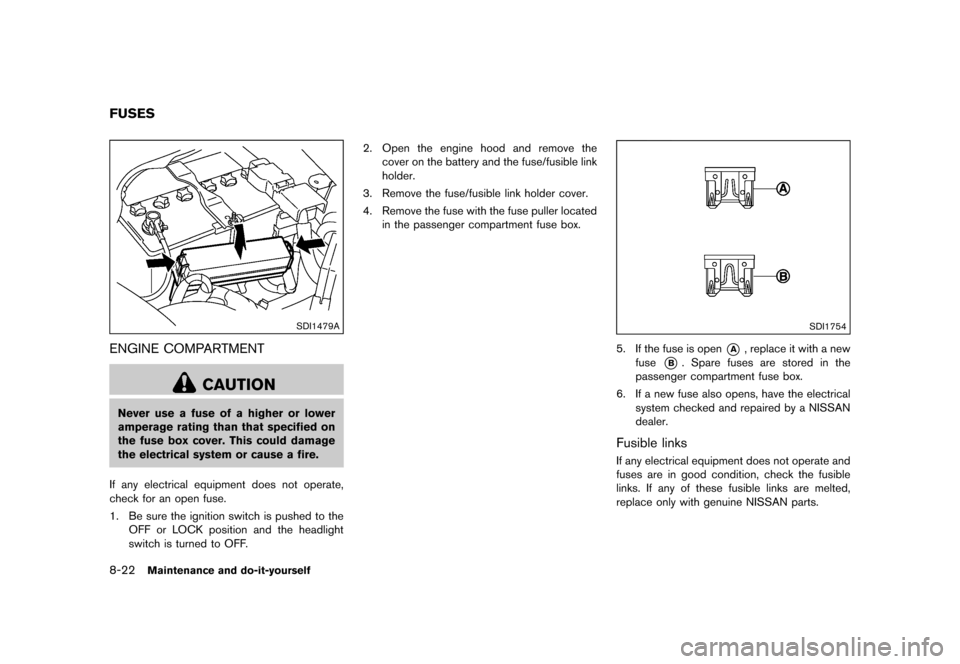

8-22Maintenance and do-it-yourself
GUID-EAEC7372-8402-42CB-9CF1-BDC17D1D5274
SDI1479A
ENGINE COMPARTMENTGUID-1B0A5555-4C9F-4826-AA7F-FB5D14CE6B40
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open*A, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksGUID-A55E79C4-7290-4054-99DD-46FA7A621AD1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
FUSES
&RQGLWLRQ
