2015 NISSAN 370Z ROADSTER fuse


> (GLW    0RGHO =' @
4-84Center display, heater, air conditioner, audio, phone and voice recognition systems
TROUBLESHOOTING GUIDEGUID-3C1AA21E-391A-4C5C-A10B-24DFEFCB1A15The system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command
correctly. 1. Ensure that the command is valid. (See ªNISSAN Voice Recognition System (models with navigation system)º (P.4-98) .)
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too noisy to
use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
The system consistently selects the
wrong voicetag. 1. Ensure that the voicetag requested matches what was originally stored. (See ªQuick Dialº (P.4-78) .)
2. Replace one of the names being confused with a new name.
The system cannot be operated. Close the soft top (for Roadster models) .
&RQGLWLRQ


> (GLW    0RGHO =' @
TROUBLESHOOTING GUIDEGUID-52990EB8-B4AB-4566-9493-212624E597BDThe system should respond correctly to all voice commands without difficulty. If problems are encountered, try the following solutions.
Where the solutions are listed by number, try each solution in turn, starting with number 1, until the problem is resolved.
SymptomSolution
The system fails to interpret the command correctly. 1. Ensure that the command is valid. See ªList of voice commandsº (P.4-91) .
2. Ensure that the command is spoken after the tone.
3. Speak clearly without pausing between words and at a level appropriate to the ambient noise level in the vehicle.
4. Ensure that the ambient noise level is not excessive (for example, windows open or defroster on) . NOTE: If it is too
noisy to use the phone, it is likely that the voice commands will not be recognized.
5. If more than one command was said at a time, try saying the commands separately.
6. If the system consistently fails to recognize commands, the voice training procedure should be carried out to
improve the recognition response for the speaker. See ªSpeaker Adaptation (SA) modeº (P.4-94) .
The system consistently selects the wrong entry from
the phonebook. 1. Ensure that the phonebook entry name requested matches what was originally stored. This can be confirmed by
using the ªList Namesº command. See ªPhonebook (phones without automatic phonebook download function)º
(P.4-92) .
2. Replace one of the names being confused with a new name.
Center display, heater, air conditioner, audio, phone and voice recognition systems4-97
&RQGLWLRQ


> (GLW    0RGHO =' @
6-20In case of emergency
ing to prevent damage to the
drivetrain.
SCE0836
TOWING RECOMMENDED BY
NISSAN (NISMO models)
GUID-D35E8580-C905-4BC9-A219-DEB36E5F9ACA
CAUTION
Do not tow NISMO models with any
wheel on the ground, or with the front
or rear wheels raised, because this may
cause damage to the front bumper with
an aerodynamic splitter, rear bumper
with an aerodynamic diffuser or ex-
haust pipes.
NISSAN recommends that you place the vehicle
on a flatbed truck as illustrated.
&RQGLWLRQ


> (GLW    0RGHO =' @
8 Maintenance and do-it-yourself
Maintenance requirement...
........................................................ 8-3
Scheduled maintenance ...
.................................................... 8-3
General maintenance ...
......................................................... 8-3
Where to go for service ...
.................................................... 8-3
General maintenance ...
............................................................... 8-3
Explanation of maintenance items ...
................................... 8-3
Maintenance precautions ...
........................................................ 8-6
Engine compartment check locations ...
.................................. 8-7
VQ37VHR engine model ...
.................................................. 8-7
Engine cooling system ...
............................................................. 8-8
Checking engine coolant level ...
......................................... 8-9
Changing engine coolant ...
.................................................. 8-9
Engine oil ...
........................................................................\
......... 8-10
Checking engine oil level ...
............................................... 8-10
Changing engine oil and filter ...
....................................... 8-10
Automatic transmission fluid ...
............................................... 8-12
Power steering fluid ...
............................................................... 8-12
Brake and clutch fluid ...
........................................................... 8-13
Brake fluid ...
........................................................................\
.. 8-13
Clutch fluid (Manual transmission models) ...
............... 8-14
Window washer fluid ...
............................................................ 8-14
Battery ...
........................................................................\
............... 8-15
Jump starting ...
..................................................................... 8-17
Variable voltage control system ...
.......................................... 8-17
Drive belts ...
........................................................................\
........ 8-18 Spark plugs
...
........................................................................\
..... 8-18
Replacing spark plugs ...
.................................................. 8-19
Air cleaner ...
........................................................................\
....... 8-19
Windshield wiper blades ...
..................................................... 8-20
Cleaning ...
........................................................................\
... 8-20
Replacing ...
........................................................................\
. 8-20
Brakes ...
........................................................................\
.............. 8-21
Self-adjusting brakes ...
.................................................... 8-21
Brake pad wear warning ...
.............................................. 8-21
Fuses ...
........................................................................\
................ 8-22
Engine compartment ...
..................................................... 8-22
Passenger compartment ...
.............................................. 8-23
Intelligent Key battery replacement ...
................................... 8-24
Lights ...
........................................................................\
................ 8-26
Coupe ...
........................................................................\
....... 8-26
Roadster ...
........................................................................\
... 8-27
Headlights ...
........................................................................\
8-28
Exterior and interior lights ...
............................................ 8-28
Wheels and tires ...
................................................................... 8-30
Tire pressure ...
................................................................... 8-30
Tire labeling ...
..................................................................... 8-33
Types of tires ...
................................................................... 8-35
Tire chains ...
....................................................................... 8-36
Changing wheels and tires ...
.......................................... 8-37
&RQGLWLRQ


> (GLW    0RGHO =' @
You should be aware that incomplete or
improper servicing may result in operating
difficulties or excessive emissions, and could
affect your warranty coverage.If in doubt
about any servicing, we recommend that
it be done by a NISSAN dealer.
GUID-7EA2D50B-7A0C-4012-9C54-7BD3CF10A3D8
JVM0086X
VQ37VHR ENGINE MODELGUID-E1841C16-4100-4792-B654-1F167FCA4F2B1. Fuse/fusible link holder
2. Battery
3. Radiator filler cap
4. Engine oil dipstick
5. Engine oil filler cap
6. Brake fluid reservoir 7.
Clutch fluid reservoir (Manual Transmission
models)
8. Power steering fluid reservoir
9. Window washer fluid reservoir
10 Air cleaner
11. Drive belt location
12. Engine coolant reservoir
Maintenance and do-it-yourself8-7
ENGINE COMPARTMENT CHECK
LOCATIONS
&RQGLWLRQ


> (GLW    0RGHO =' @
8-22Maintenance and do-it-yourself
GUID-EAEC7372-8402-42CB-9CF1-BDC17D1D5274
SDI1479A
ENGINE COMPARTMENTGUID-1B0A5555-4C9F-4826-AA7F-FB5D14CE6B40
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller located in the passenger compartment fuse box.
SDI1754
5. If the fuse is open*A, replace it with a new
fuse
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
Fusible linksGUID-A55E79C4-7290-4054-99DD-46FA7A621AD1If any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
FUSES
&RQGLWLRQ


> (GLW    0RGHO =' @
SDI2361
PASSENGER COMPARTMENTGUID-6D518851-BE98-467C-B161-6C604CC60083
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A.
4. If the fuse is open, replace it with a new fuse. Spare fuses are stored in the fuse box.
5. If a new fuse also opens, have the electrical system checked and repaired by a NISSAN
dealer.
SDI2704
Extended storage fuse switchGUID-9D73A26D-98E9-48FD-AC49-4B6A3894BA9BTo reduce battery drain, the extended storage
fuse switch comes from the factory switched off.
Prior to delivery of your vehicle, the switch is
pushed in (switched on) and should always
remain on.
If the extended storage fuse switch is not
pushed in (switched on), the ªSHIPPING MODE
ON, PUSH STORAGE FUSEº warning may
appear on the vehicle information display. See
ªWarnings and alertsº (P.2-21) .
If any electrical equipment does not operate,
remove the extended storage fuse switch and
check for an open fuse.
Maintenance and do-it-yourself8-23
&RQGLWLRQ


> (GLW    0RGHO =' @
8-24Maintenance and do-it-yourself
NOTE:
If the extended storage fuse switch mal-
functions, or if the fuse is open, it is not
necessary to replace the switch. In this
case, remove the extended storage fuse
switch and replace it with a new fuse of the
same rating.
How to remove the extended storage fuse
switch:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C4071. To remove the extended storage fuse switch,be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.
3. Remove the fuse box cover.
4. Pinch the locking tabs
*1found on each
side of the storage fuse switch.
5. Pull the storage fuse switch straight out from the fuse box
*2.
GUID-19ADB578-1FFA-465C-AF0A-55E3EFD6FDE2
SDI2451
CAUTION
Be careful not to allow children to
swallow the battery and removed parts. Replace the battery as follows:
1. Remove the mechanical key from the key.
2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2032 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom case.

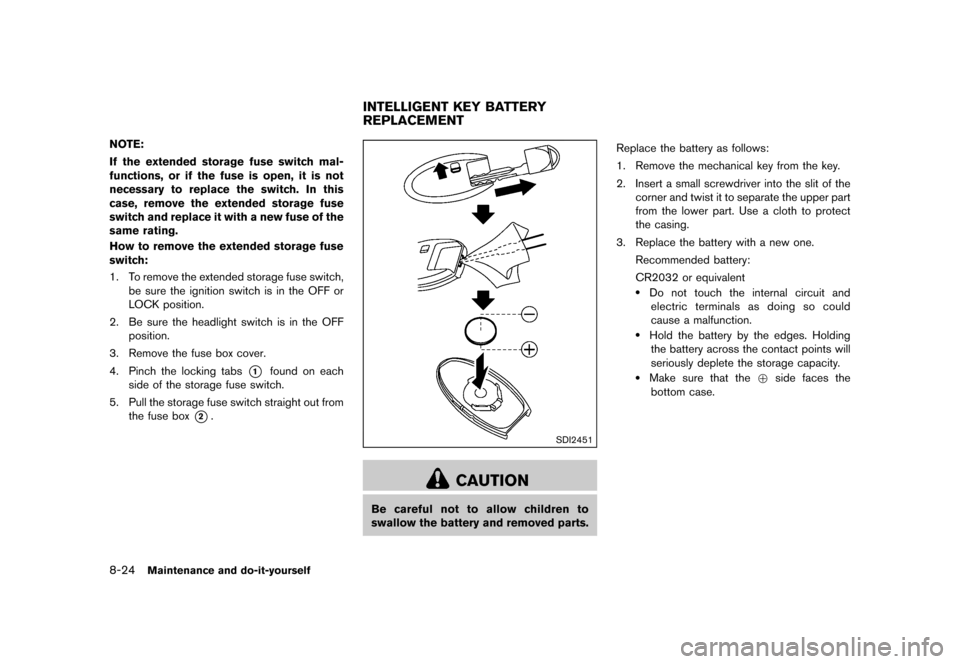

INTELLIGENT KEY BATTERY
REPLACEMENT
&RQGLWLRQ
