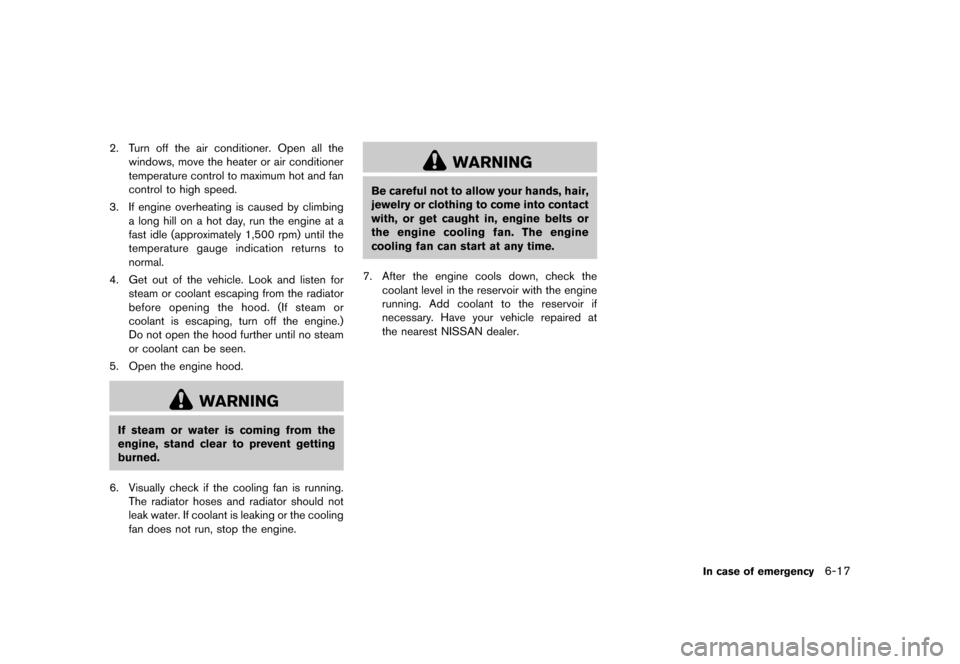

2. Turn off the air conditioner. Open all thewindows, move the heater or air conditioner
temperature control to maximum hot and fan
control to high speed.
3. If engine overheating is caused by climbing a long hill on a hot day, run the engine at a
fast idle (approximately 1,500 rpm) until the
temperature gauge indication returns to
normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radiator
before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no steam
or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check if the cooling fan is running. The radiator hoses and radiator should not
leak water. If coolant is leaking or the cooling
fan does not run, stop the engine.
WARNING
Be careful not to allow your hands, hair,
jewelry or clothing to come into contact
with, or get caught in, engine belts or
the engine cooling fan. The engine
cooling fan can start at any time.
7. After the engine cools down, check the coolant level in the reservoir with the engine
running. Add coolant to the reservoir if
necessary. Have your vehicle repaired at
the nearest NISSAN dealer.
In case of emergency6-17
&RQGLWLRQ


> (GLW    0RGHO =' @
Windshield defroster:Check that the air
comes out of the defroster outlets properly and
in sufficient quantity when operating the heater
or air conditioner.
Windshield wiper and washer*: Check that
the wipers and washer operate properly and that
the wipers do not streak.
Under the hood and vehicleGUID-D0B58847-013F-491F-B263-6B869D9C88DDThe maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery*: Check the fluid level in each cell. It
should be between the MAX and MIN lines.
Vehicles operated in high temperatures or under
severe condition require frequent checks of the
battery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of electro-
nic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances. In these cases, the battery may need to be
charged to maintain battery health.
Brake and clutch fluid levels*:
Make sure
that the brake and clutch fluid levels are
between the MAX and MIN lines on the
reservoirs.
Engine coolant level*: Check the coolant level
when the engine is cold.
Engine drive belts*: Make sure that no belt is
frayed, worn, cracked or oily.
Engine oil level*: Check the level after parking
the vehicle on a level spot and turning off the
engine. Wait more than 15 minutes for the oil to
drain back into the oil pan.
Exhaust system: Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. (See
ªPrecautions when starting and drivingº (P.5-2)
for exhaust gas (carbon monoxide) .)
Fluid leaks: Check under the vehicle for fuel,
oil, water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if fuel fumes are evident,
check for the cause and have it corrected
immediately. Power steering fluid level* and lines:
Check
the level with the engine off. Check the lines for
proper attachment, leaks, cracks, etc.
Radiator and hoses: Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan, frame, fuel
lines and around the exhaust system. At the end
of winter, the underbody should be thoroughly
flushed with plain water, being careful to clean
those areas where mud and dirt may accumu-
late. For additional information, see ªCleaning
exteriorº (P.7-2).
Windshield washer fluid*: Check that there is
adequate fluid in the reservoir.
Maintenance and do-it-yourself8-5
&RQGLWLRQ


> (GLW    0RGHO =' @

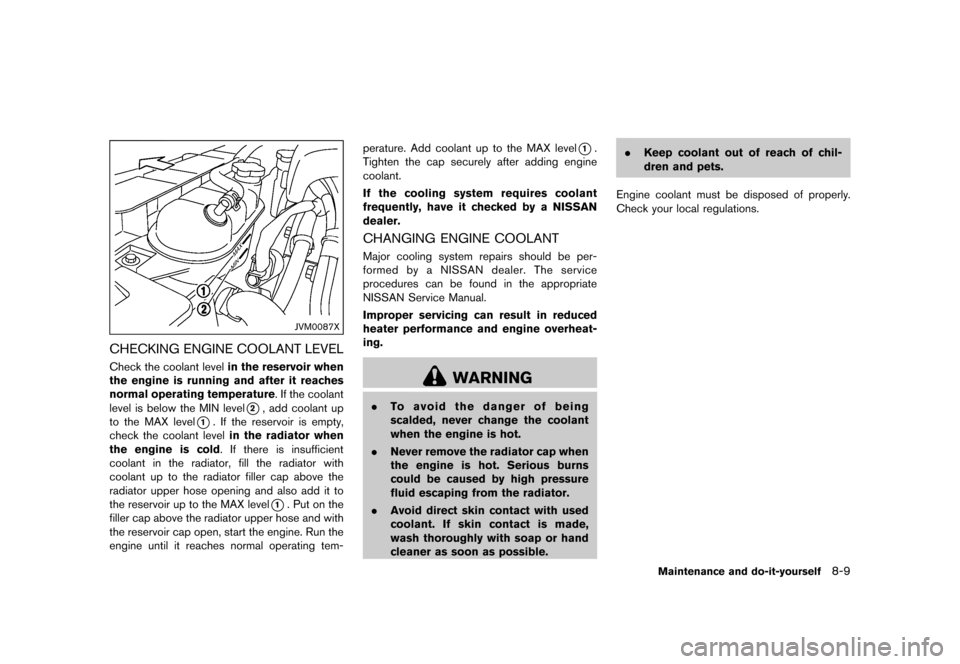

JVM0087X
CHECKING ENGINE COOLANT LEVELGUID-8D88E26B-6554-4240-9753-2F3C8FB26D07Check the coolant levelin the reservoir when
the engine is running and after it reaches
normal operating temperature. If the coolant
level is below the MIN level
*2, add coolant up
to the MAX level
*1. If the reservoir is empty,
check the coolant level in the radiator when
the engine is cold. If there is insufficient
coolant in the radiator, fill the radiator with
coolant up to the radiator filler cap above the
radiator upper hose opening and also add it to
the reservoir up to the MAX level
*1. Put on the
filler cap above the radiator upper hose and with
the reservoir cap open, start the engine. Run the
engine until it reaches normal operating tem- perature. Add coolant up to the MAX level
*1.
Tighten the cap securely after adding engine
coolant.
If the cooling system requires coolant
frequently, have it checked by a NISSAN
dealer.
CHANGING ENGINE COOLANTGUID-7F6F3245-7935-4F2B-B499-406A6E070196Major cooling system repairs should be per-
formed by a NISSAN dealer. The service
procedures can be found in the appropriate
NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine overheat-
ing.
WARNING
. To avoid the danger of being
scalded, never change the coolant
when the engine is hot.
. Never remove the radiator cap when
the engine is hot. Serious burns
could be caused by high pressure
fluid escaping from the radiator.
. Avoid direct skin contact with used
coolant. If skin contact is made,
wash thoroughly with soap or hand
cleaner as soon as possible. .
Keep coolant out of reach of chil-
dren and pets.
Engine coolant must be disposed of properly.
Check your local regulations.
Maintenance and do-it-yourself8-9
&RQGLWLRQ


> (GLW    0RGHO =' @
9-2Technical and consumer information
GUID-80082F43-58D6-4C2E-8F86-1E99B1A7B004The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the ª8. Maintenance and do-it-yourselfº section to determine the proper refill capacity.
Capacity (Approximate)Recommended specifications
US measure Imp measure Liter
Fuel 19 gal 15-7/8 gal 71.9See ªFuel informationº (P.9-4) .
Engine oil
Drain and refill With oil filter change
5-1/8 qt 4-3/8 qt 4.9.
For additional information, see ªEngine oilº (P.8-10) for changing engine oil.
. NISSAN recommends Genuine NISSAN Ester Oil available at a NISSAN dealer.
. Genuine NISSAN engine oil or equivalent
. Engine oil with API Certification Mark
. Viscosity SAE 5W-30
. For additional information, see ªEngine oil and oil filter recommendationº (P.9-6).
Without oil filter change
4-7/8 qt 4 qt4.6
Cooling system With reservoirAutomatic transmission
model
9-5/8 qt 8 qt
9.1
Pre-diluted Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent
Manual transmission
model 9-3/4 qt 8-1/8 qt
9.2
Reservoir 7/8 qt 3/4 qt0.8
Automatic transmission fluid ÐÐÐ.
Genuine NISSAN Matic S ATF
. Using automatic transmission fluid other than Genuine NISSAN Matic S ATF will
cause deterioration in driveability and automatic transmission durability, and
may damage the automatic transmission, which is not covered by the NISSAN
new vehicle limited warranty.
Manual transmission gear oil ÐÐÐ.
Genuine NISSAN Manual Transmission Fluid (MTF) HQ Multi 75W-85 or API GL-4,
Viscosity SAE 75W-85
Differential gear oil ÐÐÐFor AT and NISMO models:
.
API GL-5 synthetic gear oil, Viscosity SAE 75W-90
. See a NISSAN dealer for service for synthetic oil.
Except for AT and NISMO models:
. Genuine NISSAN Differential Oil Hypoid Super GL-5 80W-90 or API GL-5, Viscosity SAE
80W-90
. For hot climates, Viscosity SAE 90 is suitable for ambient temperatures above 328F (08C).
Power steering fluid (PSF) Refill to the proper oil level according to the
instructions in the ª8. Maintenance and do-it-
yourselfº section..
Genuine NISSAN PSF or equivalent
. DEXRON
TMVI type ATF may also be used.
CAPACITIES AND RECOMMENDED
FLUIDS/LUBRICANTS
&RQGLWLRQ


> (GLW    0RGHO =' @
10-2
CoolantCapacities and
recommended fluids/lubricants ...
............................ 9-2
Changing engine coolant ...
...................................... 8-9
Checking engine coolant level ...
............................. 8-9
Corrosion protection ...
.................................................... 7-8
Cover, Cargo cover ...
.................................................... 2-44
Cruise control ...
............................................................... 5-21
Cup holders ...
.................................................................. 2-42
D
Dampers, Performance dampers ...
............................ 5-31
Daytime running light system ...
................................... 2-35
Defroster switch, Rear window
defroster switch ...
........................................................... 2-32
Dimensions ...
................................................................... 9-10
Drive belts ...
..................................................................... 8-18
Driving Cold weather driving ...
........................................... 5-32
Driving with automatic transmission ...
................ 5-12
Driving with manual transmission ...
..................... 5-16
Precautions when starting and driving ...
.............. 5-2
DVD player operation ...
................................................. 4-55
E
Economy, Fuel ...
.............................................................. 5-25
Elapsed time ...
................................................................. 2-25
Emergency tire puncture repair kit ...
........................... 6-8
Emission control information label ...
.......................... 9-12
Emission control system warranty ...
........................... 9-22
Engine Before starting the engine ...
................................. 5-11
Break-in schedule ...
................................................ 5-23
Capacities and
recommended fluids/lubricants ...
............................ 9-2 Changing engine coolant
...
...................................... 8-9
Changing engine oil and filter ...
........................... 8-10
Checking engine coolant level ...
............................. 8-9
Checking engine oil level ...
................................... 8-10
Coolant temperature gauge ...
................................. 2-7
Emergency engine shut off ...
................................ 5-10
Engine block heater ...
............................................. 5-33
Engine compartment check locations ...
................ 8-7
Engine cooling system ...
........................................... 8-8
Engine oil ...
................................................................ 8-10
Engine oil and oil filter recommendation ...
........... 9-6
Engine oil replacement indicator ...
...................... 2-22
Engine oil temperature gauge ...
.............................. 2-8
Engine oil viscosity ...
.................................................. 9-6
Engine serial number ...
........................................... 9-12
Engine specifications ...
............................................. 9-8
Engine start operation indicator ...
....................... 2-19
Engine start operation indicator (Manual
Transmission models) ...
......................................... 2-20
If your vehicle overheats ...
..................................... 6-16
Starting the engine ...
.............................................. 5-11
Event Data Recorders (EDR) ...
................................... 9-24
Exhaust gas (carbon monoxide) ...
................................ 5-2
Extended storage fuse warning ...
............................... 2-22
Exterior light indicator ...
................................................ 2-15F
F.M.V.S.S./C.M.V.S.S. certification label ...
............... 9-12
Filter Air cleaner housing filter ...
.................................... 8-19
Changing engine oil and filter ...
........................... 8-10
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Repairing flat tire (with emergency tire
puncture repair kit) ...
................................................. 6-8
Flat towing ...
.................................................................... 9-21 Floor mat cleaning
...
........................................................ 7-6
Fluid Automatic transmission fluid (ATF) ...
.................. 8-12
Brake and clutch fluid ...
......................................... 8-13
Brake fluid ...
.............................................................. 8-13
Capacities and
recommended fluids/lubricants ...
............................ 9-2
Engine coolant ...
......................................................... 8-8
Engine oil ...
................................................................ 8-10
Power steering fluid ...
............................................. 8-12
Window washer fluid ...
.......................................... 8-14
FM-AM radio with Compact Disc (CD) player ...
.... 4-43
FM-AM-SAT radio with Compact Disc
(CD) player ...
................................................................... 4-52
Fog light switch ...
........................................................... 2-37
Front manual seat adjustment ...
.................................... 1-4
Front passenger air bag and status light ...
.............. 1-36
Front power seat adjustment ...
..................................... 1-2
Front seat, Front seat adjustment ...
............................. 1-2
Front-seat active head restraints ...
.............................. 1-9
Fuel Capacities and
recommended fluids/lubricants ...
............................ 9-2
Fuel economy ...
........................................................ 5-25
Fuel economy information (display) ...
.................... 4-9
Fuel information ...
....................................................... 9-4
Fuel octane rating ...
................................................... 9-4
Fuel-filler cap ...
......................................................... 3-34
Fuel-filler door ...
....................................................... 3-34
Gauge ...
........................................................................ 2-8
LOOSE FUEL CAP warning ...
............................. 3-35
Fuel efficient driving tips ...
........................................... 5-24
Fuses ...
.............................................................................. 8-22
Fusible links ...
.................................................................. 8-22
&RQGLWLRQ


> (GLW    0RGHO =' @
Rear hatch opener switch...
......................................... 3-17
Rear parcel box ...
........................................................... 2-43
Rear window defroster switch ...
................................. 2-32
RearView Monitor (models with
navigation system) ...
...................................................... 4-17
Recorders, Event data ...
............................................... 9-24
Registering your vehicle in another country ...
......... 9-11
Remote keyless entry system ...
................................... 3-13
Repairing flat tire (with emergency tire puncture
repair kit) ...
......................................................................... 6-8
Reporting safety defects ...
........................................... 9-23
Rollover ...
............................................................................ 5-6
Roof, Soft top ...
.............................................................. 3-21
S
Safety, Child seat belts ...
............................................. 1-16
Satellite radio operation ...
............................................ 4-52
Seat adjustment Front manual seat adjustment ...
.............................. 1-4
Front power seat adjustment ...
............................... 1-2
Front seats ...
................................................................ 1-2
Seat belt(s) Child safety ...
............................................................ 1-16
Infants ...
...................................................................... 1-16
Injured persons ...
..................................................... 1-12
Larger children ...
...................................................... 1-17
Precautions on seat belt usage ...
........................ 1-10
Pregnant women ...
.................................................. 1-12
Seat belt cleaning ...
................................................... 7-7
Seat belt extenders ...
.............................................. 1-15
Seat belt maintenance ...
........................................ 1-15
Seat belt warning light and chime ...
................... 2-14
Seat belts ...
............................................................... 1-10
Seat belts with pretensioners ...
........................... 1-40
Three-point type ...
................................................... 1-12 Seat(s)
Climate controlled seats ...
..................................... 2-39
Heated seats ...
......................................................... 2-37
Seats ...
.......................................................................... 1-2
Secondary rear hatch release ...
.................................. 3-18
Secondary trunk lid release ...
...................................... 3-20
Security system (NISSAN Vehicle Immobilizer
System) , Engine start ...
................................................. 2-29
Security system, Vehicle security system ...
............. 2-28
Servicing air conditioner ...
............................................ 4-30
SETTING button ...
.......................................................... 4-11
Shift lever, Shift lock release ...
................................... 5-16
Shift lock release, Transmission ...
.............................. 5-16
Shift ªPº warning (Automatic
Transmission models) ...
................................................ 2-20
Shifting Automatic transmission ...
....................................... 5-12
Manual transmission ...
............................................ 5-16
Soft top Care and cleaning ...
................................................... 7-3
If the top does not open or close ...
.................... 3-28
Opening using the Intelligent Key ...
.................... 3-26
Soft top indicator light ...
............................. 2-16, 3-24
Soft top operation ...
................................................ 3-21
Spare tire ...
......................................................................... 9-9
Spark plugs ...
.................................................................. 8-18
Speedometer ...
.................................................................. 2-6
Starting Before starting the engine ...
................................. 5-11
Jump starting ...
......................................................... 6-14
Precautions when starting and driving ...
.............. 5-2
Push starting ...
......................................................... 6-16
Starting the engine ...
.............................................. 5-11
STATUS button ...
.............................................................. 4-7
Status light, Front passenger air bag ...
.................... 1-36
Steering Power steering fluid ...
............................................. 8-12 Power steering system
...
....................................... 5-26
Steering-wheel-mounted controls
for audio ...
................................................................. 4-72
Storage ...
.......................................................................... 2-41
Sun visors ...
..................................................................... 3-36
Supplemental air bag warning labels ...
..................... 1-41
Supplemental air bag warning light ...
............ 1-41, 2-14
Supplemental restraint system ...
................................. 1-29
Precautions on supplemental
restraint system ...
..................................................... 1-29
Switch Autolight switch ...
.................................................... 2-34
Fog light switch ...
.................................................... 2-37
Hazard warning flasher switch ...
............................. 6-2
Headlight switch ...
................................................... 2-33
Ignition switch ...
....................................................... 5-12
Ignition switch manual
transmission models ...
............................................ 5-16
Power door lock switch ...
......................................... 3-5
Rear window defroster switch ...
.......................... 2-32
Turn signal switch ...
................................................ 2-36
Vehicle dynamic control (VDC) off switch ...
..... 2-40
SynchroRev Match mode (S-MODE) ...
.................... 5-17
T
Tachometer ...
..................................................................... 2-7
Temperature gauge, Engine coolant
temperature gauge ...
........................................................ 2-7
Theft (NISSAN Vehicle Immobilizer System) ,
Engine start ...
................................................................... 2-29
Three-way catalyst ...
........................................................ 5-3
Tilt steering ...
................................................................... 3-36
Tire Pressure, Low tire pressure warning light ...
..... 2-13
Sealant ...
....................................................................... 6-8
Tire replacement indicator ...
................................. 2-22
10-5
&RQGLWLRQ
