2015 NISSAN 370Z COUPE check engine


> (GLW    0RGHO =' @

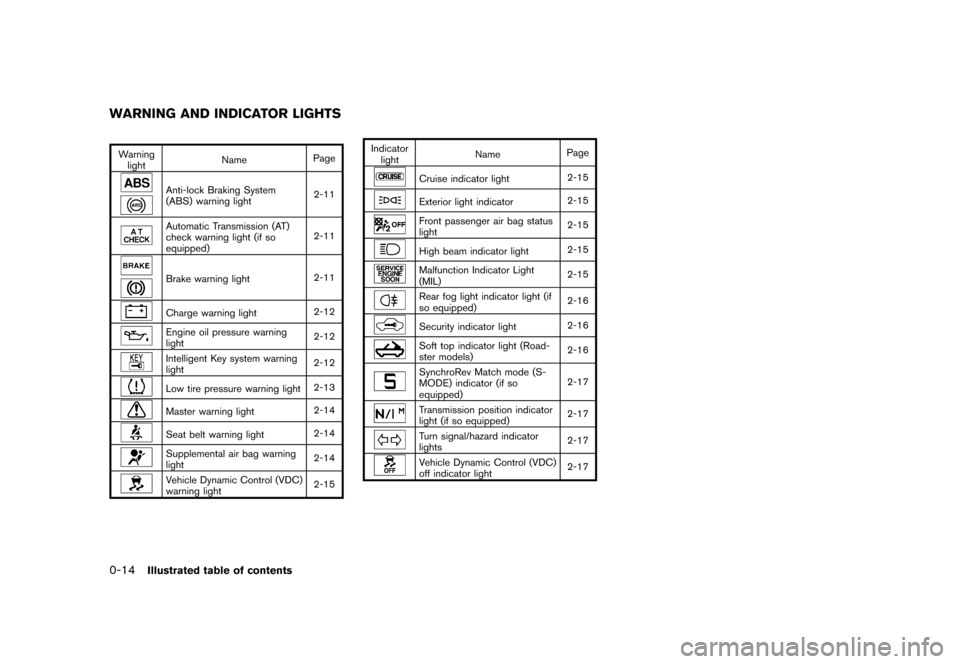

0-14Illustrated table of contents
GUID-2A805EB9-8ED6-49C4-8B1B-5A6F6731FA9F
Warninglight Name
Page
Anti-lock Braking System
(ABS) warning light 2-11
Automatic Transmission (AT)
check warning light (if so
equipped)2-11
Brake warning light
2-11
Charge warning light2-12
Engine oil pressure warning
light2-12
Intelligent Key system warning
light
2-12
Low tire pressure warning light
2-13
Master warning light2-14
Seat belt warning light2-14
Supplemental air bag warning
light2-14
Vehicle Dynamic Control (VDC)
warning light2-15Indicator
light Name
Page
Cruise indicator light 2-15
Exterior light indicator2-15
Front passenger air bag status
light2-15
High beam indicator light
2-15
Malfunction Indicator Light
(MIL)2-15
Rear fog light indicator light (if
so equipped)2-16
Security indicator light
2-16
Soft top indicator light (Road-
ster models)2-16
SynchroRev Match mode (S-
MODE) indicator (if so
equipped)2-17
Transmission position indicator
light (if so equipped)
2-17
Turn signal/hazard indicator
lights
2-17
Vehicle Dynamic Control (VDC)
off indicator light2-17
WARNING AND INDICATOR LIGHTS
&RQGLWLRQ


> (GLW    0RGHO =' @

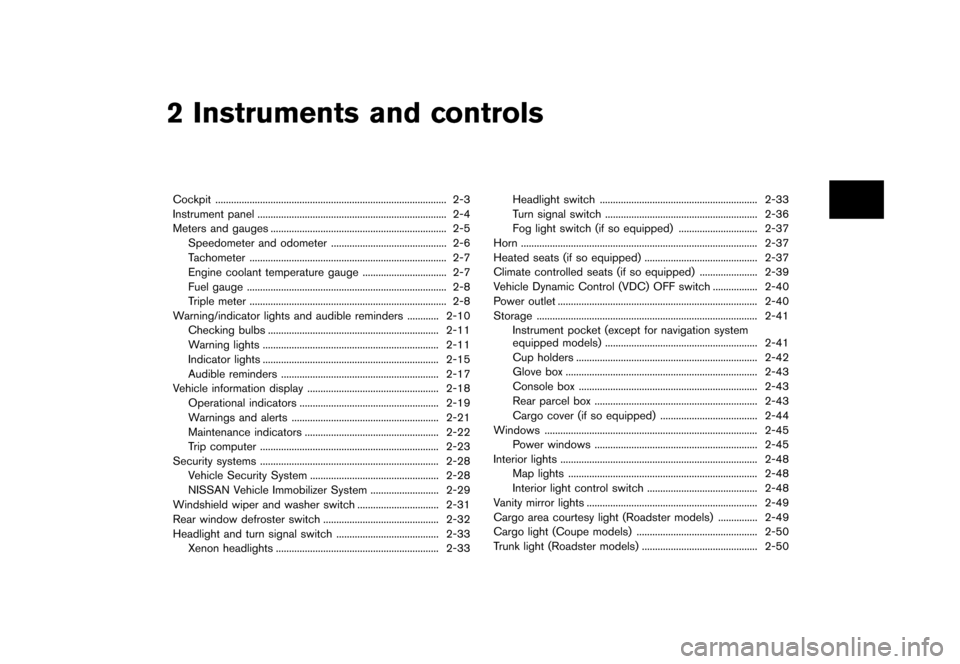

2 Instruments and controls
Cockpit...
........................................................................\
................ 2-3
Instrument panel ...
........................................................................\
2-4
Meters and gauges ...
................................................................... 2-5
Speedometer and odometer ...
............................................ 2-6
Tachometer ...
........................................................................\
... 2-7
Engine coolant temperature gauge ...
................................ 2-7
Fuel gauge ...
........................................................................\
.... 2-8
Triple meter ...
........................................................................\
... 2-8
Warning/indicator lights and audible reminders ...
............ 2-10
Checking bulbs ...
................................................................. 2-11
Warning lights ...
................................................................... 2-11
Indicator lights ...
................................................................... 2-15
Audible reminders ...
............................................................ 2-17
Vehicle information display ...
.................................................. 2-18
Operational indicators ...
..................................................... 2-19
Warnings and alerts ...
........................................................ 2-21
Maintenance indicators ...
................................................... 2-22
Trip computer ...
.................................................................... 2-23
Security systems ...
.................................................................... 2-28
Vehicle Security System ...
................................................. 2-28
NISSAN Vehicle Immobilizer System ...
.......................... 2-29
Windshield wiper and washer switch ...
............................... 2-31
Rear window defroster switch ...
............................................ 2-32
Headlight and turn signal switch ...
....................................... 2-33
Xenon headlights ...
.............................................................. 2-33 Headlight switch
...
............................................................ 2-33
Turn signal switch ...
.......................................................... 2-36
Fog light switch (if so equipped) ...
.............................. 2-37
Horn ...
........................................................................\
.................. 2-37
Heated seats (if so equipped) ...
........................................... 2-37
Climate controlled seats (if so equipped) ...
...................... 2-39
Vehicle Dynamic Control (VDC) OFF switch ...
................. 2-40
Power outlet ...
........................................................................\
.... 2-40
Storage ...
........................................................................\
............ 2-41
Instrument pocket (except for navigation system
equipped models) ...
.......................................................... 2-41
Cup holders ...
..................................................................... 2-42
Glove box ...
........................................................................\
. 2-43
Console box ...
.................................................................... 2-43
Rear parcel box ...
.............................................................. 2-43
Cargo cover (if so equipped) ...
..................................... 2-44
Windows ...
........................................................................\
......... 2-45
Power windows ...
.............................................................. 2-45
Interior lights ...
........................................................................\
... 2-48
Map lights ...
........................................................................\
2-48
Interior light control switch ...
.......................................... 2-48
Vanity mirror lights ...
................................................................. 2-49
Cargo area courtesy light (Roadster models) ...
............... 2-49
Cargo light (Coupe models) ...
.............................................. 2-50
Trunk light (Roadster models) ...
............................................ 2-50
&RQGLWLRQ
!


> (GLW    0RGHO =' @

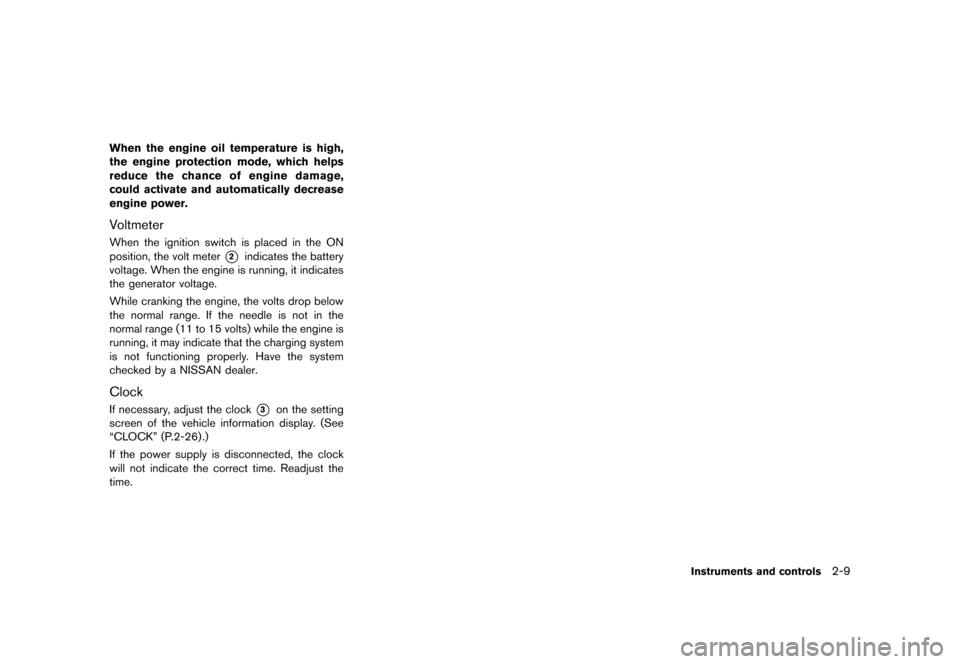

When the engine oil temperature is high,
the engine protection mode, which helps
reduce the chance of engine damage,
could activate and automatically decrease
engine power.
VoltmeterGUID-609889CD-E5DF-4590-8E80-A6657A493AA2When the ignition switch is placed in the ON
position, the volt meter
*2indicates the battery
voltage. When the engine is running, it indicates
the generator voltage.
While cranking the engine, the volts drop below
the normal range. If the needle is not in the
normal range (11 to 15 volts) while the engine is
running, it may indicate that the charging system
is not functioning properly. Have the system
checked by a NISSAN dealer.
ClockGUID-879883DE-B11E-430D-B0A2-0F8D8EBE2D2CIf necessary, adjust the clock*3on the setting
screen of the vehicle information display. (See
ªCLOCKº (P.2-26) .)
If the power supply is disconnected, the clock
will not indicate the correct time. Readjust the
time.
Instruments and controls2-9
&RQGLWLRQ


> (GLW    0RGHO =' @

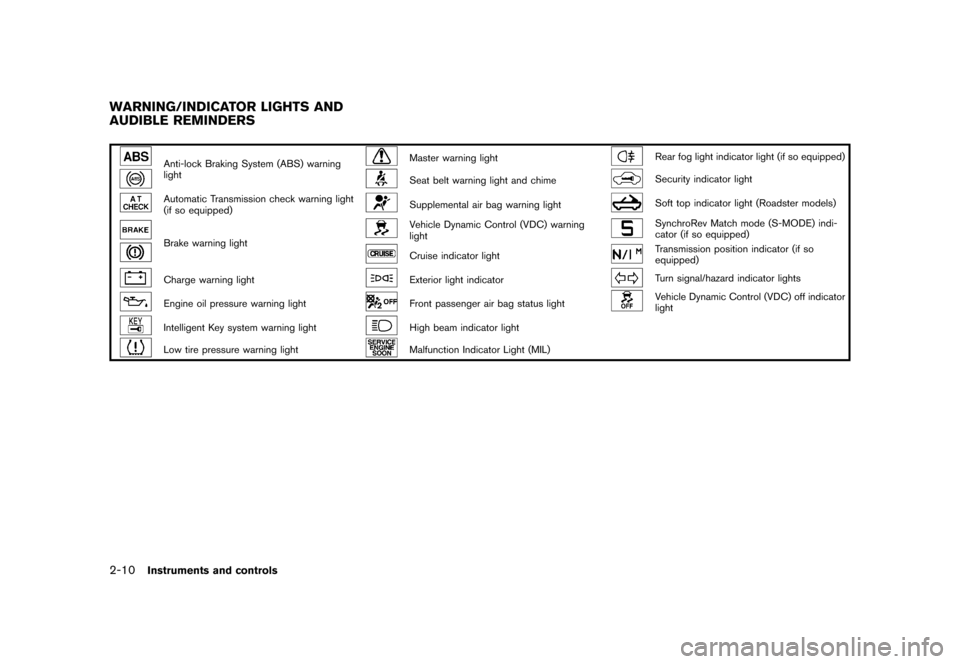

2-10Instruments and controls
GUID-52146703-2911-4E30-8A08-F0D74C3F9294
Anti-lock Braking System (ABS) warning
lightMaster warning lightRear fog light indicator light (if so equipped)
Seat belt warning light and chimeSecurity indicator light
Automatic Transmission check warning light
(if so equipped)Supplemental air bag warning lightSoft top indicator light (Roadster models)
Brake warning light
Vehicle Dynamic Control (VDC) warning
lightSynchroRev Match mode (S-MODE) indi-
cator (if so equipped)
Cruise indicator lightTransmission position indicator (if so
equipped)
Charge warning lightExterior light indicatorTurn signal/hazard indicator lights
Engine oil pressure warning lightFront passenger air bag status lightVehicle Dynamic Control (VDC) off indicator
light
Intelligent Key system warning lightHigh beam indicator light
Low tire pressure warning lightMalfunction Indicator Light (MIL)
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
&RQGLWLRQ


> (GLW    0RGHO =' @

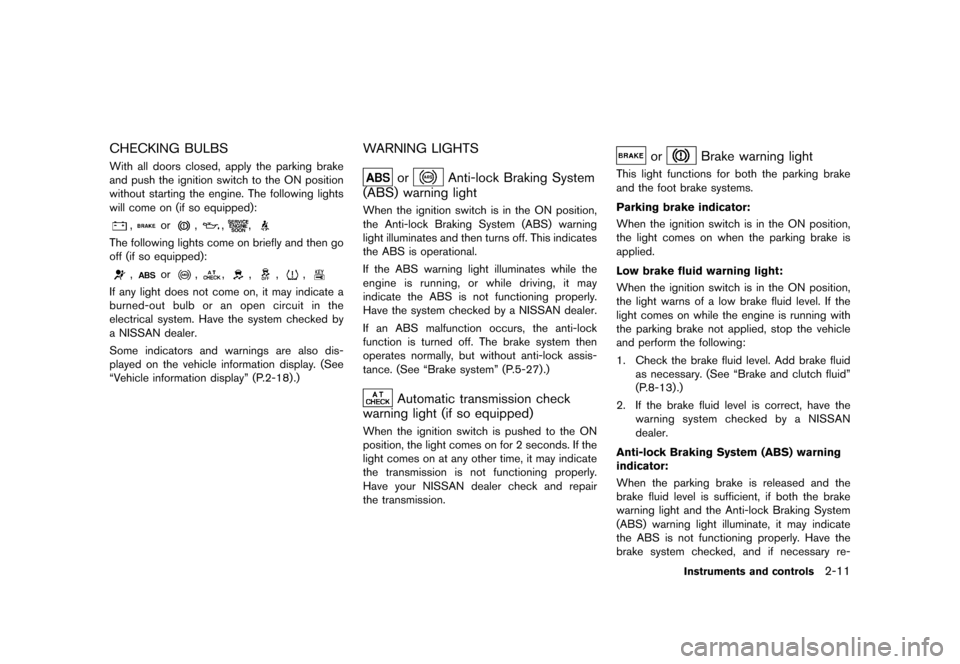

CHECKING BULBSGUID-C04DB64B-AC44-4819-B58A-A7A9F54E634FWith all doors closed, apply the parking brake
and push the ignition switch to the ON position
without starting the engine. The following lights
will come on (if so equipped):
,or,,,
The following lights come on briefly and then go
off (if so equipped):
,or,,,,,
If any light does not come on, it may indicate a
burned-out bulb or an open circuit in the
electrical system. Have the system checked by
a NISSAN dealer.
Some indicators and warnings are also dis-
played on the vehicle information display. (See
ªVehicle information displayº (P.2-18) .)
WARNING LIGHTSGUID-4CBE8FA1-A3C1-4160-BDD8-430307A19C51
orAnti-lock Braking System
(ABS) warning light
GUID-8A62F588-9043-44FD-BA02-00E8EAA88718When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly.
Have the system checked by a NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (See ªBrake systemº (P.5-27).)
Automatic transmission check
warning light (if so equipped)
GUID-6828EAE9-482F-4B37-8FF0-56507FE3882EWhen the ignition switch is pushed to the ON
position, the light comes on for 2 seconds. If the
light comes on at any other time, it may indicate
the transmission is not functioning properly.
Have your NISSAN dealer check and repair
the transmission.
orBrake warning lightGUID-33FDE1A6-1ABD-4F4A-A7EA-AFDD0FFF6734This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (See ªBrake and clutch fluidº
(P.8-13) .)
2. If the brake fluid level is correct, have the warning system checked by a NISSAN
dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. Have the
brake system checked, and if necessary re-
Instruments and controls2-11
&RQGLWLRQ


> (GLW    0RGHO =' @
2-12Instruments and controls

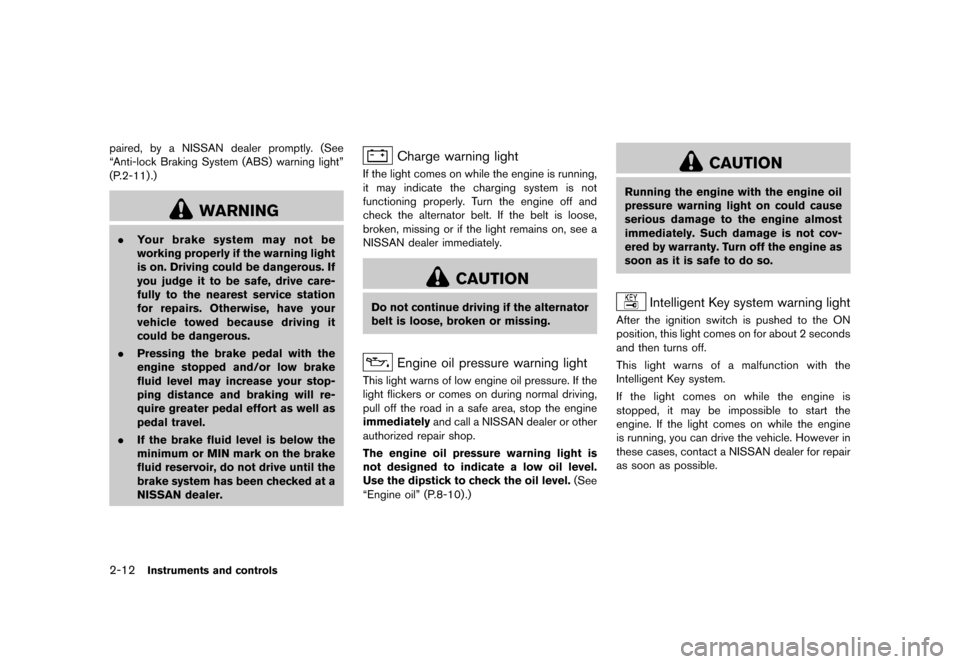

paired, by a NISSAN dealer promptly. (See
ªAnti-lock Braking System (ABS) warning lightº
(P.2-11) .)
WARNING
.Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Charge warning lightGUID-61CDA76E-B03B-43C3-B2F2-DACCD86DA730If the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning lightGUID-F709B958-74AD-4877-A8AB-75DDC2976B52This light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a NISSAN dealer or other
authorized repair shop.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Use the dipstick to check the oil level. (See
ªEngine oilº (P.8-10) .)
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Such damage is not cov-
ered by warranty. Turn off the engine as
soon as it is safe to do so.
Intelligent Key system warning lightGUID-C57A3CE7-7650-43F7-9A41-369EF95E8D13After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
Intelligent Key system.
If the light comes on while the engine is
stopped, it may be impossible to start the
engine. If the light comes on while the engine
is running, you can drive the vehicle. However in
these cases, contact a NISSAN dealer for repair
as soon as possible.
&RQGLWLRQ


> (GLW    0RGHO =' @

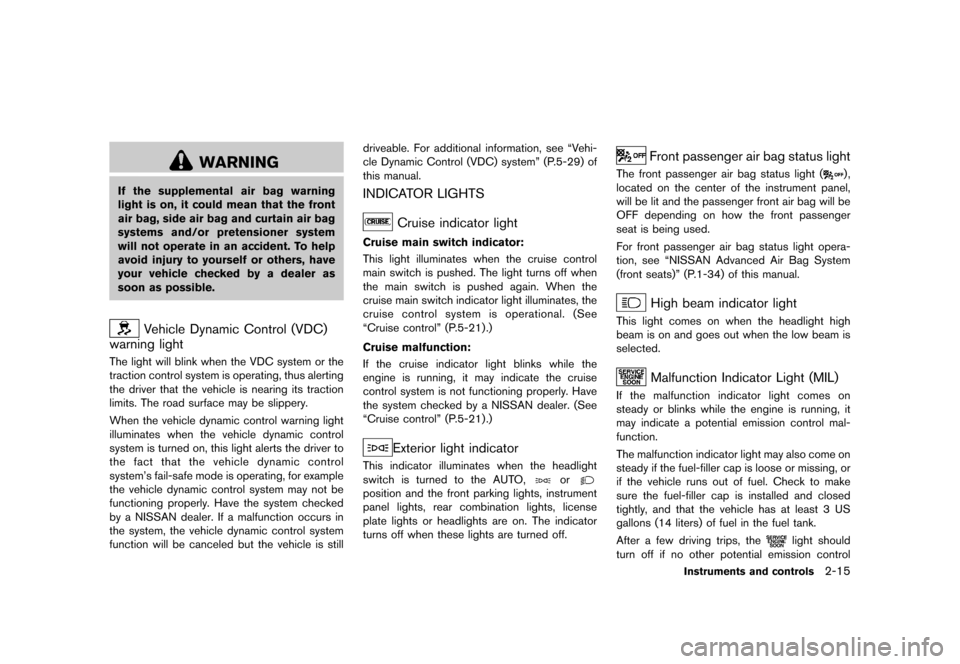

WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag and curtain air bag
systems and/or pretensioner system
will not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a dealer as
soon as possible.
Vehicle Dynamic Control (VDC)
warning light
GUID-5A9BB12B-5478-42C2-BF85-08F700A010D9The light will blink when the VDC system or the
traction control system is operating, thus alerting
the driver that the vehicle is nearing its traction
limits. The road surface may be slippery.
When the vehicle dynamic control warning light
illuminates when the vehicle dynamic control
system is turned on, this light alerts the driver to
the fact that the vehicle dynamic control
system's fail-safe mode is operating, for example
the vehicle dynamic control system may not be
functioning properly. Have the system checked
by a NISSAN dealer. If a malfunction occurs in
the system, the vehicle dynamic control system
function will be canceled but the vehicle is still driveable. For additional information, see ªVehi-
cle Dynamic Control (VDC) systemº (P.5-29) of
this manual.
INDICATOR LIGHTSGUID-5C08865B-DCE3-4E16-93AB-6B77D32CE96B
Cruise indicator lightGUID-2461EE07-B4FE-4009-B529-37E16578538F
Cruise main switch indicator:GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This light illuminates when the cruise control
main switch is pushed. The light turns off when
the main switch is pushed again. When the
cruise main switch indicator light illuminates, the
cruise control system is operational. (See
ªCruise controlº (P.5-21).)
Cruise malfunction:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407If the cruise indicator light blinks while the
engine is running, it may indicate the cruise
control system is not functioning properly. Have
the system checked by a NISSAN dealer. (See
ªCruise controlº (P.5-21).)
Exterior light indicatorGUID-CA4BF6C0-A5BD-4A04-95DE-903720E77D96This indicator illuminates when the headlight
switch is turned to the AUTO,
or
position and the front parking lights, instrument
panel lights, rear combination lights, license
plate lights or headlights are on. The indicator
turns off when these lights are turned off.
Front passenger air bag status lightGUID-DD654487-22A6-4A1B-9743-5306D27CD18DThe front passenger air bag status light () ,
located on the center of the instrument panel,
will be lit and the passenger front air bag will be
OFF depending on how the front passenger
seat is being used.
For front passenger air bag status light opera-
tion, see ªNISSAN Advanced Air Bag System
(front seats)º (P.1-34) of this manual.
High beam indicator lightGUID-C52945F9-7FB1-4FB4-902C-011D40C80C81This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)GUID-9E78C1B0-5871-4B15-924B-0676AB904329If the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control mal-
function.
The malfunction indicator light may also come on
steady if the fuel-filler cap is loose or missing, or
if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least 3 US
gallons (14 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
Instruments and controls2-15
&RQGLWLRQ


> (GLW    0RGHO =' @
2-16Instruments and controls

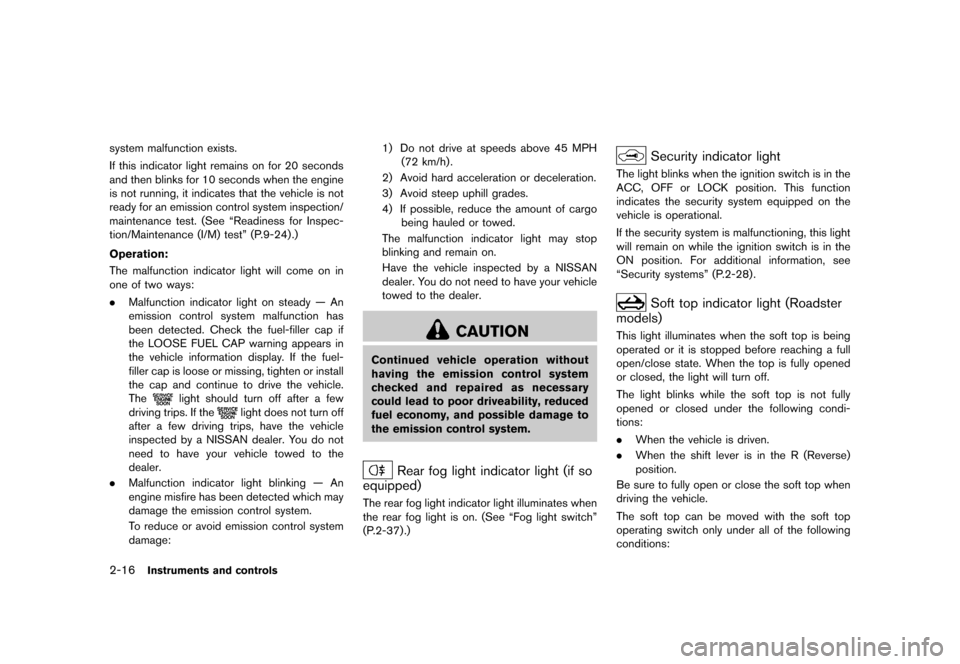

system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See ªReadiness for Inspec-
tion/Maintenance (I/M) testº (P.9-24) .)
Operation:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407The malfunction indicator light will come on in
one of two ways:
.Malfunction indicator light on steady Ð An
emission control system malfunction has
been detected. Check the fuel-filler cap if
the LOOSE FUEL CAP warning appears in
the vehicle information display. If the fuel-
filler cap is loose or missing, tighten or install
the cap and continue to drive the vehicle.
The
light should turn off after a few
driving trips. If the
light does not turn off
after a few driving trips, have the vehicle
inspected by a NISSAN dealer. You do not
need to have your vehicle towed to the
dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage: 1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Rear fog light indicator light (if so
equipped)
GUID-17119FCB-67E9-4F8A-A2B5-A378FF3B2866The rear fog light indicator light illuminates when
the rear fog light is on. (See ªFog light switchº
(P.2-37) .)
Security indicator lightGUID-9F729430-3E34-44B2-AF7C-8A7F9C95A94AThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
ªSecurity systemsº (P.2-28) .
Soft top indicator light (Roadster
models)
GUID-0030E277-2F8A-4DD8-BC11-0858364444B4This light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the shift lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
&RQGLWLRQ
