2015 MITSUBISHI OUTLANDER Owners Manual

Interior lights 5-212 Features and controls
5
N00537601165
Regardless of the dome light switch position, when you press the lens (A), the light on the side that is pressed
illuminates; when you
press the lens (A) agai
n, the light goes out.
N00525801245
3- (OFF) The dome light stays off regardless of anydoor or the liftgate being opened or closed.
Reading lights Dome light (rear)
1- (ON)The dome light illumin
ates regardless of
any door or the liftgate being opened or closed. 2- (
)
When any of the doors or the liftgate is opened, the dome li
ght illuminates;
when any of them are closed, the domelight goes off after approximately 30 sec- onds. However, the light goes off imme- diately if:  The door and the liftgate are closed while the ignition switch is in the“ON” position or the operation mode is in ON.  The driver’s door is closed while the its lock knob is in the lock position, after all the other doors are closed.  The door and the liftgate are closed and the power door lock function is used to lock the doors.  The keyless entr
y system remote
control transmitter is used to lock the doors.  In vehicles equipped with the F.A.S.T.-key, the doors and the lift- gate are locked using the F.A.S.T.- key.
NOTE
 When the engine is started using the key while the doors and liftgate are closed, if youremove the key, the do
me light will illumi-
nate for approximately 30 seconds then go off.  When the engine is started using the F.A.S.T.-key while the doors and liftgate are closed, if the operation mode is put in OFF,the dome light will il
luminate for approxi-
mately 30 seconds and then go off.  When the dome light switch is in the “ON” position, the light will not go off, even when all the doors and the liftgate are closed.  The time until the light goes off can be adjusted. See your authorized MitsubishiMotors dealer for details. For vehicles equipped with the Mitsubishi Multi-Commu- nication System, adjustments can be madeusing screen operations
. For details, refer to
the separate owner’s manual.
BK0211800US.book 212 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Storage spaces
Features and controls 5-213
5
N00526101186
1- (ON) The cargo room light illuminates regard- less of the liftgate being opened or closed.2- (
)
When the liftgate is opened, the cargo room light illuminates;
when it is closed,
it goes out. 3- (OFF) The cargo room light
stays out regardless
of the liftgate being opened or closed.
N00526301449
 If interior lights are left on with the igni- tion switch in the “LOCK” position or the operation mode in OFF, the lights go off automatically after approximately 30 min-utes.  The lights come on again if the ignition switch or the engine
switch is operated, if
any door or liftgate is opened or closed, or if the keyless entry or F.A.S.T.-key isoperated.
N00526401538
Cargo room light
Interior light auto-cutout func- tion (dome light and other lights)
NOTE
 The interior light auto
-cutout function can be
deactivated. The time until the lights auto- matically go off can
be adjusted. See your
authorized Mitsubishi Motors dealer fordetails. For vehicles equipped
with the Mitsubishi
Multi-Communication System, adjustmentscan be made using sc
reen operations. For
details, refer to the
separate owner’s manual.
Storage spaces
CAUTIONNever leave lighters,
carbonated drink cans,
or spectacles in the cabin when parking thevehicle in hot suns
hine. The cabin will
become extremely hot,
so lighters and other
flammable items may catch fire andunopened drink cans (i
ncluding beer cans)
may rupture. The heat may also deform or crack plastic spectacle
lenses and other spec-
tacle parts that are made of plastic. Keep the lids of storage spaces closed while driving the vehicle. A li
d or the contents of a
storage space could otherwise cause injuries during a sudden stop.NOTE
 Do not leave valuables
in any storage space
when leaving the vehicle.
BK0211800US.book 213 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Storage spaces 5-214 Features and controls
5
N00551501298
To open, pull the lever (A).
There is a card holder on the inside of the glove compartment.
1- Luggage floor box 2- Floor console box 3- Glove compartment
Glove compartment
WA R N I N G An open glove compartment door can cause a serious injury or death to the frontpassenger in an accident, even if the pas- senger is wearing his/
her seat belt. Always
keep the glove comp
artment door closed
when driving.NOTE
 When the lights are illuminated with the light switch in the “ ”, “ ”or “AUTO” position (vehicles with
automatic light con-
trol), the glove compartment light illumi- nates.
Card holder
BK0211800US.book 214 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Storage spaces
Features and controls 5-215
5
N00551601244
To open the console box, lift the release lever (A) and raise the lid. The floor console box can also be used as anarm rest.
N00552301046
There is a luggage floor box under the lug-gage floor board. To use the box, raise the luggage floor board.
The luggage floor board can be folded at the indicated positions (A). 1. Fold the second seatback forward. Refer to “Folding the second row seats” on page 4-13. 2. Insert your hand in the gap (B) and foldthe board as illustrated.
Floor console box B- Tissue holderC- Pen holderD- Tray
NOTE
 The USB input terminal is located in the floor console box (if
so equipped). For
details, refer to “USB input terminal” onpage 5-206.
Luggage floor box 5 persons 1- Luggage floor box (front) 2- Luggage floor box (center) 3- Luggage floor box (rear)
4- Luggage floor board (front)5- Luggage floor board (rear)
To access the lu
ggage floor box
(front)
BK0211800US.book 215 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Storage spaces 5-216 Features and controls
5
3. To access the center of the luggage floor box (front), insert your hand in the gap (C) and raise the board as illustrated.
1. Raise the luggage floor board (rear) by pulling up on the strap (D). 2. Insert your hand in the gap (E) and raise the board as illustrated.
*: Front of the vehicle

To access the lu
ggage floor box
(center)
7 persons
BK0211800US.book 216 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Cup holders
Features and controls 5-217
5
N00527301417
The cup holder is designed for holding cups or drink-cans secu
rely in its holes.
The cup holder is located in front of the floor console.
N00537001185
This cup holder is located in the second rowseat arm rest. Pull the arm rest down to use the cup holder.
N00532401038
The cup holder is located at the right side of the third row seat.
Cup holders For the front seat
For the second row seat For the third row seat
BK0211800US.book 217 ページ ２０１４年３月１２日　水曜日　午後２時４２分

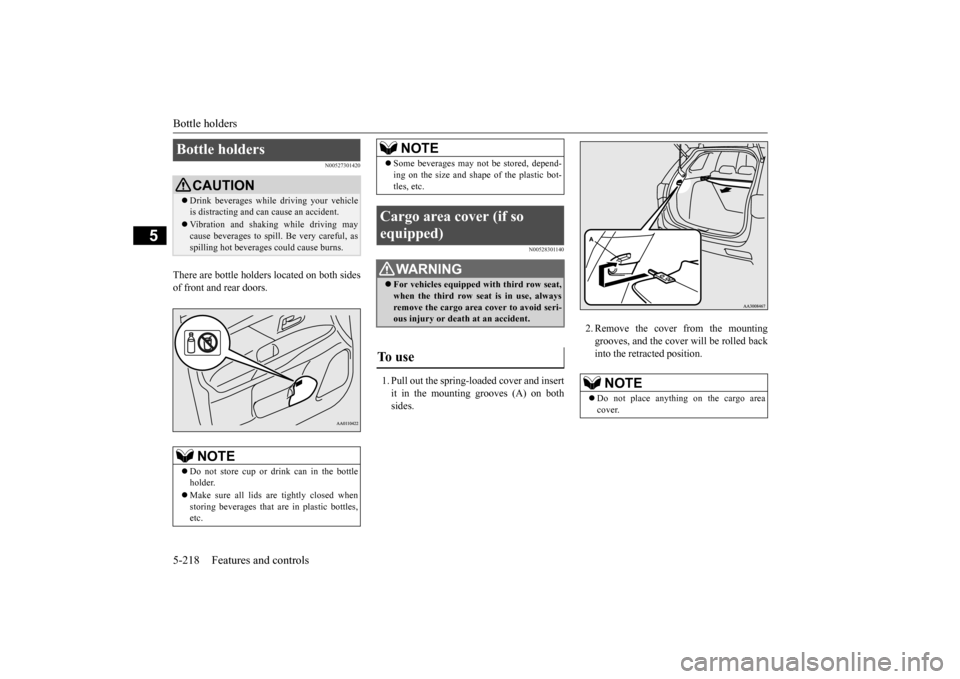

Bottle holders 5-218 Features and controls
5
N00527301420
There are bottle holders located on both sides of front and rear doors.
N00528301140
1. Pull out the spring-loaded cover and insertit in the mounting grooves (A) on both sides.
2. Remove the cover from the mounting grooves, and the cover will be rolled back into the retracted position.
Bottle holders
CAUTION Drink beverages while
driving your vehicle
is distracting and ca
n cause an accident.
Vibration and shaking while driving may cause beverages to spill.
Be very careful, as
spilling hot beverage
s could cause burns.
NOTE
Do not store cup or drink can in the bottle holder.  Make sure all lids are tightly closed when storing beverages that
are in plastic bottles,
etc.
 Some beverages may not be stored, depend- ing on the size and shape of the plastic bot-tles, etc.
Cargo area cover (if so equipped)
WA R N I N G For vehicles equipped with third row seat, when the third row seat is in use, always remove the cargo area cover to avoid seri-ous injury or death at an accident.
To u s e
NOTE
NOTE
 Do not place anything on the cargo area cover.
BK0211800US.book 218 ページ ２０１４年３月１２日　水曜日　午後２時４２分

Cargo area cover (if so equipped)
Features and controls 5-219
5
There are 2 installation holes (B) for the cargo area cover. 1. Move one of the sliders (C) toward the inside of the vehicle, and fit the protrud- ing portion (D) into the installation hole that is to be used. Move the oppositeslider in the same fashion.
2. After changing the position, gently shake the entire cargo area cover to make sure itis securely retained.
1. Roll back the cargo area cover. 2. Move one of the sliders (C) toward the inside of the vehicle and lift it to remove the cargo area cover.
To refit the cargo area cover, follow the removal steps in reverse. Gently shake theentire cargo area cover after fitting it to make sure it is securely retained.
To change position
NOTE
 If the second row seat
touches the cargo area
cover, move the cargo
area cover rearward.
The cargo area cover co
uld be damaged if it
supports the seatback of the second row seats.
To remove To refit
BK0211800US.book 219 ページ ２０１４年３月１２日　水曜日　午後２時４２分
