Indicators
Features and controls 5-143
5
The rest time can be set.
N00519900127 N00520000216
The arrows will flash in
time with the corre-
sponding exterior turn signals when the turnsignal lever is used. Both arrows will flas
h when the hazard warn-
ing flasher switch is pressed.
N00520100086
A blue light comes on when the headlightsare on high beam.
N00520200205
This indicator comes on while the front fog lights are on.
N00551300026
This indicator light illuminates while theposition lights are on.
Screen type 1
Screen type 2
Do this
Park the vehicle in a safe place, turn off the engine, and take a rest. Use this display as rough guide for taking rests during a long drive. The interval from the start of your trip un
til this message is displayed can be set.
Refer to “Changing the function settings (With
ignition switch in the “ON” position)” on
page 5-123. The display and buzzer alert the driver when the set time is reached. If you continue to drive without having a rest, the buzzer sounds
about every 5 minutes to encourage you to
take a rest.  In the following cases, the time driven is re
set and the display returns to the previous
display screen. After this, when the set time
is reached again, the display and buzzer
encourage you to take a rest. • The buzzer sounds 3 times.• The ignition switch is turned to the “OFF” position. • The multi-information meter switch is
held (for about 2 seconds or more).
Indicators Turn signal indicators/Hazard warning lights
NOTE
 If the indicator flashes faster than usual or if the indicator stays on without flashing, checkfor a malfunctioning turn signal light bulb or turn signal connection.
High beam indicator
Front fog light indicator
(if so
equipped)Position indicator
BK0210300US.book
143 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Hazard warning flasher switch Features and controls 5-153
5
does not return to the neutral position. This usually happens when the steering wheel is turned only slightly. You can easily return the lever by hand.Also, when you move the lever to (1) slightly then release it, the turn signal lights and indi- cator light in the instrument cluster will flashthree times.
N00522700217
If you press the flasher switch, the front andrear turn signals will flash intermittently, andso will the hazard warning lights. This is an emergency warning system and should not be
used when the vehicle is in motion, except for emergencies. If you need to leave your vehicle, the flashers will keep working afte
r the ignition key is
removed.
N00522800377
The front fog lights illuminate only when the headlights are on low beam. Turning the knob in the direction of the “ON”position turns on the front fog lights as well as the indicator in the instrument cluster. To turn them off, turn the knob in the direction ofthe “OFF” position. The knob will return to the neutral position when it is released.
NOTE
 A light in the instrument panel flashes to show when the front and rear turn signal lights are working properly. If this light flashes faster than usual, checkfor a burned out light bulb or malfunctioning connection. If the panel light does not come on when thelever is moved, check for a blown fuse or a burned out bulb in the panel. Have the vehicle inspected by an authorizedMitsubishi Motors dealer or a repair facility of your choice.
 The turn signal light 3-flash function for lane changes can be deactivated. See your authorized Mitsubishi Motors dealer for details.  You can adjust the time required to operate the lever for the 3-flash function. See your authorized Mitsubishi Motorsdealer for details.
Hazard warning flasher switch
NOTE
NOTE
 If you keep the flashers on for several hours with the engine turned off, the battery will run down.
Front fog light switch
(if so
equipped)
BK0210300US.book
153 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Replacement of light bulbs 9-34 Vehicle care and maintenance
9
N00942900219
Before replacing a bulb, be sure the light is off. Do not touch the glass part of the newbulb with your bare fi
ngers; the oil from your
skin will stay on the glass and dim or destroy the bulb when it gets hot.
N00943000099
The bulb should only be replaced with a newbulb with the same ra
ting and type. The type
and rating are listed on the base of the bulb.
N00950301932
[Except for vehicles with high intensity dis-charge headlights]
 If the replacement fuse blows again after a short time, have the electrical system checked by an authorized Mitsubishi Motors dealer or a repair faci
lity of your choice to
find and correct the cause.
Replacement of light bulbs
CAUTION Bulbs are extremely hot immediately after being turned off. When replacing a bulb, wait for it to coolsufficiently before touching it. You could otherwise be burned.NOTE
 If you are unsure of how to carry out the work as required, it is recommended that these procedures be carried out by an autho-rized Mitsubishi Motors dealer or a repair facility of your choice.  Be careful not to scratch the vehicle body when removing a light and lens.CAUTION
 When it rains, or when the vehicle has been washed, the inside of the lens sometimes becomes temporarily foggy. This is the same phenomenon as when window glass mists up on a humid day, and does not indicate a func-tional problem. When the light is switched on, the heat will remove the fog. However, if water gathersinside the light, please have it checked by an authorized Mitsubishi Motors dealer or a repair facility of your choice.
Bulb capacity Outside
NOTE
Front
Description
Wattage
ANSI Trade No. or Bulb type
1-
Front turn sig- nal light
21 W WY21W
2-
Head light, high beam
60 W
9005 HB3
3-
Head light, low beam/Daytime running light(if so equipped) (Halogen bulb)
51 W
9006 HB4
4-
Front fog light (if so equipped)
55 W H11
5-
Front side- marker and parking light
5 W W5W
6-
Side turn signal light (on out-side rear-view mirror) (If so equipped)
——
7-
Side turn signal light (on fender) (If so equipped)
5 W —
BK0210300US.bo
ok 34 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Replacement of light bulbs
Vehicle care and maintenance 9-35
9
[For vehicles with high intensity discharge headlights]
Description
Wattage or Can-dle power
ANSI Trade No. or Bulb type
1-
Front turn sig- nal light
21 W WY21W
2-
Daytime run- ning light
27 W
1156
32 cp
3-
Head light, low/high beam (Discharge bulb)
35 W —
5-
Front side- marker and parking light
5 W WY5W
6-
Side turn signal light (on out-side rear-view mirror)
——
WA R N I N G Check with an authorized Mitsubishi Motors dealer or a repair facility of your choice when it is necessary to repair a dis- charge headlight or to replace the bulb. The power circuit, bulb and electrodesgenerate high voltages that may cause a severe electrical shock.NOTE
 The side turn signal light (on outside rear- view mirror) uses LEDs rather than bulbs. For repair and replacement, contact an authorized Mitsubishi Motors dealer or arepair facility of your choice.  It is not possible to re
pair or replace only the
bulb for the side turn signal light (on fender). Check with an authorized Mitsubishi Motors dealer or a repair facility of your choicewhen the light needs to be repaired or replaced.Rear
Description
Wattage
ANSI Trade No. or Bulb type
8-
High-mounted stop light
——
9-
License plate light
5 W W5W
10- Back-up light 21 W 7440 11- Tail light 5 W W5W 12-
Tail and stop light
21/5 W 7443
13-
Rear turn sig- nal light
21 W 7440
14-
Rear side- marker light
5 W W5W
NOTE
 The high-mounted stop light uses LEDs rather than bulbs. For repair and replace- ment, contact an authorized MitsubishiMotors dealer or a repair facility of your choice.
BK0210300US.bo
ok 35 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Replacement of light bulbs 9-40 Vehicle care and maintenance
9
5. To install the bulb, perform the removal steps in reverse.
N00917300538
1. To create enough work space, turn thesteering wheel all the way in the direction opposite to the side you wish to replace. 2. Remove the clips (A), and screws (B) orbolts (B) to turn up the cover (C).
3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket. 5. To install the bulb, perform the removal steps in reverse.
N00943400325

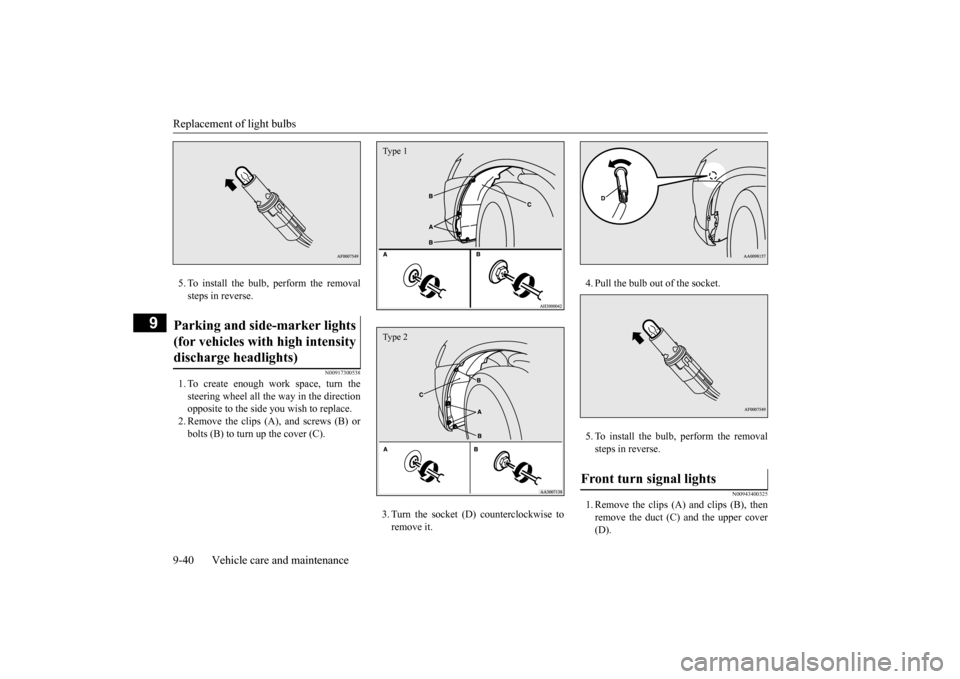

1. Remove the clips (A) and clips (B), then remove the duct (C) and the upper cover (D).
Parking and side-marker lights (for vehicles with high intensity discharge headlights)
Type 1Type 2
Front turn signal lights
BK0210300US.bo
ok 40 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Replacement of light bulbs 9-44 Vehicle care and maintenance
9
N00943701514
1. Remove the screws (A) from the light unit.
2. Remove the light unit in the rear direc- tion. 3. Remove the socket and bulb assemblies by turning them counterclockwise. 4. Remove the bulb by pulling it out.
CAUTION Handle halogen light bulbs with care. The gas inside a halogen light bulb is highly pres- surized, so dropping, knocking, or scratchinga halogen light bulb can cause it to shatter. Never hold the halogen lights bulb with a bare hand, dirty glove, etc. The oil from your hand could cause the bulb to break the next time the fog lights are used.If the glass surface is dirty, clean it with alcohol and let it dry completely before installing the bulb.NOTE
Rear combination lights Tail and stop lights, rear turn sig- nal lights and rear side-marker lights
B- Tail and stop light C- Rear turn signal lightD- Rear side-marker light
BK0210300US.bo
ok 44 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Replacement of light bulbs
Vehicle care and maintenance 9-45
9
5. To install the bulb, perform the removal steps in reverse. 1. Open the trunk lid.
Remove the clips (A) and remove the cover (B). 2. Remove the socket and bulb assemblies by turning them counterclockwise. 3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
N00944000331
1. Remove the screws (A) from the licenseplate light lens (B). Then, remove the lensand gasket (C), and withdraw the bulb. 2. Remove the socket and bulb assembly together by turning it counterclockwise.
NOTE
 When mounting the light unit, align the pins (E) on the light unit with the holes in the body.
Tail lights and back-up lights
Rear side-marker light
Tail and stop light and Rear turn signal light
C- Tail light D- Back-up light
License plate light
Tail light
Back-up light
BK0210300US.bo
ok 45 ページ ２０１４年４月８日　火曜日　午前１０時４６分
