2015 MITSUBISHI LANCER cooling

Starting and stopping the engine 5-58 Features and controls
5
the idle speed when the power steering sys- tem and other systems operate. It does not indicate a malfunction.
N00542300088
1. Bring the vehicle to a complete stop. 2. Fully engage the parking brake while depressing the brake pedal. 3. For vehicles with a manual transaxle, turnthe ignition switch to the “LOCK” posi- tion to stop the engine, and then move the gearshift lever to the 1st (on a uphill) or“R” (Reverse) (on a downhill) position. For vehicles with continuously variable transmission (CVT) or Twin Clutch SST,place the selector lever (CVT) or the gear- shift lever (Twin Clutch SST) in the “P” (PARK) position, and then turn the igni-tion switch to the “LOCK” position to stop the engine.
Stopping the engine
NOTE
 For vehicles with Twin Clutch SST, the engine will stop and the vehicle power will turn off approximately 1 second after the ignition switch is turned to the “LOCK”; position. The reason for this is that, in the time from when the ignition switch is turned to the“LOCK” position until the engine stops, the gears inside the Twin Clutch SST disengage so that the engine will start smoothly thenext time it is started. Two clutches installed in the Twin Clutch SST alternately engage and disengage toachieve smooth shifting. In addition, the gear on the side with the free clutch is engaged, therefore, quick shifting isperformed. If the engine was stopped with the gear engaged like this, it would provide resistancethe next time the engine is started. Therefore, the gear disengages in the approximately 1- second period until the engine stops.  For vehicles with Twin Clutch SST, do not operate the gearshift lever or the acceleratorpedal for approximately 1 second until the engine stops.
 For vehicles with Twin
Clutch SST, if the
temperature inside the engine compartment is high, the cooling fans (A) will continue to operate for some time even if the engine is stopped.Therefore, the operation sound of the cooling fans may be heard even after the engine is stopped. This sound is normal and does notindicate a malfunction. After operating for a period of time, the cool- ing fans will stop automatically.NOTE
BK0210300US.bo
ok 58 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Vents 7-2 Comfort controls
7
N00729900210 N00730200301
Move the knob to make adjustments. To close the vent, move the knob to the inside as far as possible.
Move the knob to make adjustments. To close the vent, move the knob to the out-side as far as possible.
N00736400493
To change the position and amount of airflowing from the vents, turn the mode selec- tion dial. Refer to “Mode selection dial” on page 7-5, 7-8, 7-13, 7-19, 7-24.
Ve n t s 1- Center vents2- Side ventsAir flow and direction adjust- ments Center vents
A- Knob 1- Close 2- OpenSide vents Left Right
A- Knob 1- Close 2- Open
NOTE
 On rare occasions, air from the vents of an air-conditioned vehicle may be foggy. This isonly moist air cooling suddenly and does not indicate a problem.  Do not let drinks or ot
her liquids get into the
vents as they could prevent the air condition- ing from operating normally.
Changing the mode selection Left Right
BK0210300US.bo
ok 2 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Manual air conditioning with
MAX A/C mode (if so equipped)
7-8 Comfort controls
7
N00736600219
Turn the temperature control dial clockwise to make the air warmer. Turn it counterclock-wise to make the air cooler.
N00736700151
To change the amount of
air flowing from the
vents, turn the mode selection dial. Refer to“Changing the mode selection” on page 7-2.
N00736800367
Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch. A sound will be madeevery time you push the switch.  Outside air {Indicator light (A) OFF}  Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection is controlled automatically. When the air conditioning turns off, the airselection automatically goes back to the out- side air position. The air selection indicator light (A) shows theselected position.
Temperature control dial

NOTE
 While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with thedial.  For instructions on how to use the “MAX A/C” position (A), refer to “For quick cool- ing” on page 7-11.

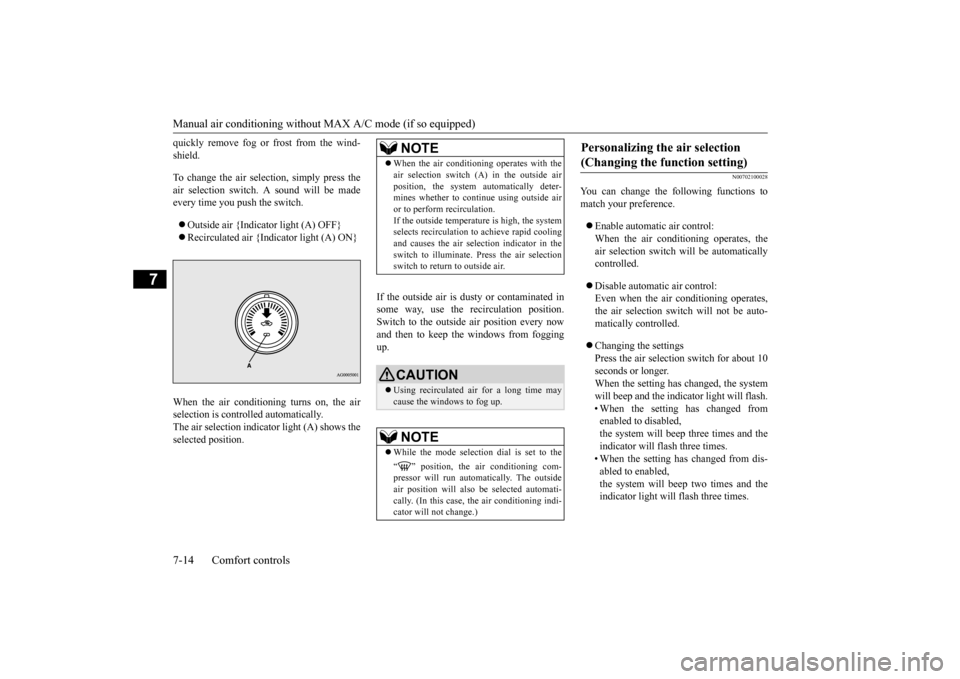

Mode selection dial

Air selection switch

NOTE
 When the air conditioning operates with the air selection switch (A) in the outside air position, the system automatically deter-mines whether to continue using outside air or to perform recirculation. If the outside temperature is high, the systemselects recirculation to achieve rapid cooling and causes the air selection indicator in the switch to illuminate. When the air condition-ing turns off or the blower speed selection dial is set to the “OFF” position, the air selection automatically goes back to the out-side position.
BK0210300US.bo
ok 8 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Manual air conditioning with
MAX A/C mode (if so equipped)
Comfort controls 7-11
7
N00731200278
For ordinary cooling 1. Set the mode selection dial to the “ ” 2. Push the air selection switch (A) to set itto the outside air position.3. Push the air conditioning switch (B). 4. Change the temperature by turning the control dial clockwise or counterclock-wise. 5. Set the desired blower speed.
For quick cooling 1. Set the mode selection dial to the “ ” 2. Set the temperature control dial to the“MAX A/C” position. 3. Set the blower speed to the highest posi- tion.
N00731300211
Set the mode selection dial to one of the posi-tions shown in the illustration and set the air selection switch (A) to the outside air posi- tion. Warm air flows to the leg area and unheated or slightly warm air (depending upon the position of the temperature control dial) flows to the upper part of the passenger compart-ment.
Cooling

NOTE
 If the outside air is dusty or contaminated in some way, push the air selection switch (A)to set it to the recirculation position. Let in some outside air from time to time for good ventilation.
 To cool the leg areas, set the mode selection dial to the “ ” position.NOTE
 When the temperature control dial is set to the “MAX A/C” position, the air condition-ing compressor will run automatically and the light will come on. The recirculation position will be selected automatically. Inthis case, you cannot turn the air condition- ing off or select the outside air position.NOTE
 When the temperature control dial is set to a position other than “MAX A/C”, the air selection will automatically change to out- side air. The air conditioning will revert to the previous condition in which the “MAXA/C” position was not selected.
Combination of unheated air and heated air

NOTE
BK0210300US.bo
ok 11 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Manual air conditioning without
MAX A/C mode (if so equipped)
7-14 Comfort controls
7
quickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch. A sound will be made every time you push the switch.  Outside air {Indicator light (A) OFF}  Recirculated air {Indicator light (A) ON}
When the air conditioning turns on, the air selection is controlled automatically. The air selection indicator light (A) shows theselected position.
If the outside air is dusty or contaminated in some way, use the recirculation position.Switch to the outside air position every now and then to keep th
e windows from fogging
up.
N00702100028
You can change the following functions to match your preference.  Enable automatic air control: When the air conditioning operates, theair selection switch will be automatically controlled.  Disable automatic air control: Even when the air conditioning operates, the air selection switch will not be auto-matically controlled.  Changing the settings Press the air selection switch for about 10 seconds or longer.When the setting has changed, the system will beep and the indicator light will flash. • When the setting has changed fromenabled to disabled, the system will beep three times and the indicator will flash three times.• When the setting has changed from dis- abled to enabled, the system will beep two times and theindicator light will flash three times.
NOTE
 When the air conditioning operates with the air selection switch (A) in the outside air position, the system automatically deter- mines whether to continue using outside air or to perform recirculation.If the outside temperature is high, the system selects recirculation to achieve rapid cooling and causes the air selection indicator in theswitch to illuminate. Press the air selection switch to return to outside air.CAUTION Using recirculated air for a long time may cause the windows to fog up.NOTE
 While the mode selection dial is set to the “ ” position, the air conditioning com- pressor will run automatically. The outside air position will also be selected automati- cally. (In this case, the air conditioning indi-cator will not change.)
Personalizing the air selection (Changing the function setting)

BK0210300US.bo
ok 14 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Manual air conditioning without
MAX A/C mode (if so equipped)
7-16 Comfort controls
7
N00731200249
For ordinary cooling 1. Set the mode selection dial to the “ ” 2. Push the air selection switch (A) to set itto the outside air position.3. Push the air conditioning switch (B). 4. Change the temperature by turning the control dial clockwise or counterclock-wise. 5. Set the desired blower speed.
N00731300224
Set the mode selection dial to the positions shown in the illustration and set the air selec- tion switch (A) to the outside air position. The air flow will be di
rected to the leg area
and the upper part of the passenger compart-ment. Set the desired blower speed. Warm air flows to the leg area and unheated or slightly warm air (depending upon theposition of the temperat
ure control dial) flows
to the upper part of the passenger compart- ment.
Cooling

NOTE
 If the outside air is dusty or contaminated in some way, push the air selection switch (A)to set it to the recirculation position. Let in some outside air from time to time for good ventilation.
 To cool the leg areas, set the mode selection dial to the “ ” position.
Combination of unheated air and heated air

NOTE
BK0210300US.bo
ok 16 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Automatic air conditioning with
Fahrenheit scale (if so equipped)
7-18 Comfort controls
7
N00736900094
When the ignition switch is in the “ON” posi- tion, select the blower speed by turning the blower speed selection dial. Turning the dial clockwise will increase theblower speed; turning the dial counterclock- wise will decrease it. When the dial is set to the “OFF” position, all fan-driven airflowwill stop.
N00737001350
Use this dial to adjust the temperature in thepassenger compartment. Turn the temperaturecontrol dial clockwise to make the air warmer. Turn it counterclockwise to make the air cooler.
The above indicates the factory settings. You can personalize the air selection switch and air conditioning switch to match your per-sonal preferences. Contact your Mitsubishi Motors dealer or a repair facility of your choice for assistance.Refer to “Personalizing the air conditioning switch (Changing the function setting)” on page 7-20.Refer to “Personalizing the air selection (Changing the function setting)” on page
3- Blower speed selection dial 4- Air conditioning switch5- Mode selection dial 6- Electric rear window defogger switch
 P.5-158NOTE
There is an interior air temperature sensor (A) in the illustrated position.Never place anything over the sensor, since doing so will prevent it from functioning properly.
Blower speed selection dial

Temperature control dial

NOTE
 While the engine coolant temperature is low, the temperature of the air from the heater will be cool/cold until the engine warms up, even if you have selected warm air with the dial.  When the temperature is set to the highest or the lowest setting under the AUTO opera-tion, the air selection and the air conditioning will be automatically changed as follows. • Quick Heating (When the temperature is set to the highest setting) Outside air will be introduced and the airconditioning will stop. In this case, manual operation is possible. • Quick Cooling (When the temperature is set to the lowest setting) Inside air will be recirculated and the airconditioning will operate. In this case, you cannot select outside air and turn the air conditioning off.
BK0210300US.bo
ok 18 ページ ２０１４年４月８日　火曜日　午前１０時４６分

Automatic air conditioning with
Fahrenheit scale (if so equipped)
Comfort controls 7-19
7
7-19.
N00737100093
To change the amount of air flowing from the vents, turn the mode selection dial. Refer to“Changing the mode selection” on page 7-2.
N00737200238
Normally, use the outside air position to keepthe windshield and side windows clear and toquickly remove fog or frost from the wind- shield. To change the air selection, simply press the air selection switch. A sound will be madeevery time you press the switch.  Outside air {Indicator light (A) OFF}
Outside air is introduced into the passen- ger compartment.  Recirculated air {Indicator light (A) ON} Air is recirculated inside the passengercompartment.
When the air conditioning turns on, the air selection is controll
ed automatically. When
the air conditioning turns off, the air selectionautomatically goes back to the outside air position. If high cooling performance is desired, or ifthe outside air is dusty or contaminated in some way, use the recirculation position. Switch to the outside air position every nowand then to keep th
e windows from fogging
up.
N00760000018
You can change the following functions tomatch your preference.  Enable automatic air control: When the mode selection dial or theblower speed selection dial is set to the “AUTO” position, the air selection switch will also be automatically controlled.  Disable automatic air control: Even when the mode selection dial or theblower speed selection dial is set to the “AUTO” position, the air selection switch will not be automatically controlled.  Changing the settings
Mode selection dial

Air selection switch

CAUTIONUsing recirculated air for a long time may cause the windows to fog up.
NOTE
 If the mode selection dial is set between “ ” and “ ”, you cannot turn the air con- ditioning off or select the recirculation posi- tion.This prevents the windows from fogging up.  When the mode selection dial or the blower speed selection dial is set to the “AUTO” selection switch will also be automaticallycontrolled.
Personalizing the air selection (Changing the function setting)

BK0210300US.bo
ok 19 ページ ２０１４年４月８日　火曜日　午前１０時４６分
