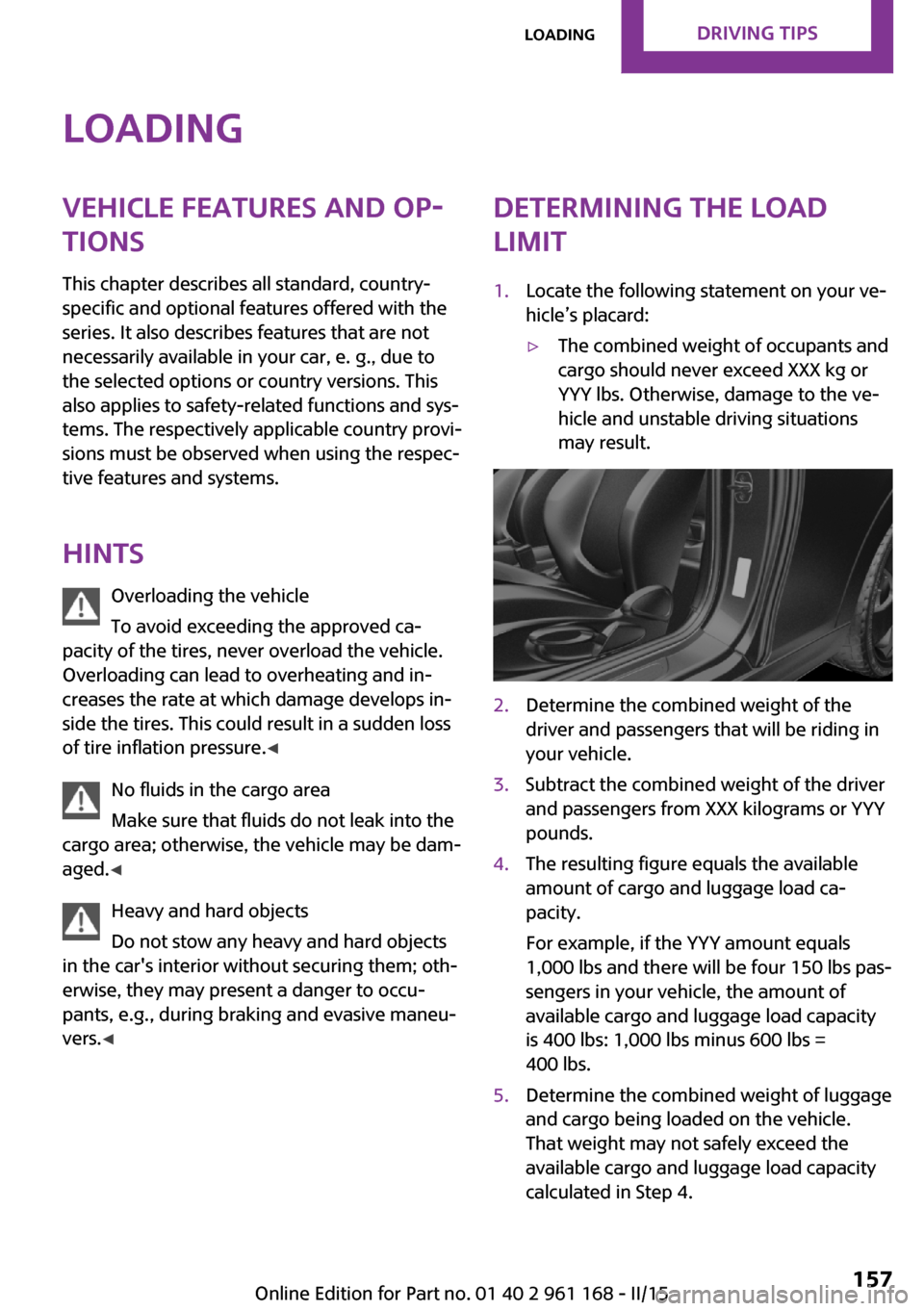

2015 MINI Hardtop 2 Door load capacity

LoadingVehicle features and op‐tions
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and sys‐
tems. The respectively applicable country provi‐
sions must be observed when using the respec‐
tive features and systems.
Hints Overloading the vehicle
To avoid exceeding the approved ca‐
pacity of the tires, never overload the vehicle. Overloading can lead to overheating and in‐
creases the rate at which damage develops in‐
side the tires. This could result in a sudden loss
of tire inflation pressure. ◀
No fluids in the cargo area
Make sure that fluids do not leak into the
cargo area; otherwise, the vehicle may be dam‐ aged. ◀
Heavy and hard objects
Do not stow any heavy and hard objects
in the car's interior without securing them; oth‐
erwise, they may present a danger to occu‐
pants, e.g., during braking and evasive maneu‐
vers. ◀Determining the load
limit1.Locate the following statement on your ve‐
hicle’s placard:▷The combined weight of occupants and
cargo should never exceed XXX kg or
YYY lbs. Otherwise, damage to the ve‐
hicle and unstable driving situations
may result.2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.4.The resulting figure equals the available
amount of cargo and luggage load ca‐
pacity.
For example, if the YYY amount equals
1,000 lbs and there will be four 150 lbs pas‐
sengers in your vehicle, the amount of
available cargo and luggage load capacity
is 400 lbs: 1,000 lbs minus 600 lbs =
400 lbs.5.Determine the combined weight of luggage
and cargo being loaded on the vehicle.
That weight may not safely exceed the
available cargo and luggage load capacity
calculated in Step 4.Seite 157LoadingDRIVING TIPS157
Online Edition for Part no. 01 40 2 961 168 - II/15

Seite 221Technical dataREFERENCE221
Online Edition for Part no. 01 40 2 961 168 - II/15
MINI 5-doorWidth with mirrorsinches/mm76.1/1,932Width without mirrorsinches/mm68.0/1,727Heightinches/mm56.1/1,425LengthCooperinches/mm157.4/3,998Cooper Sinches/mm158.0/4,013Wheelbaseinches/mm101.1/2,567Smallest turning radius diam.ft/m36.2/11.02
Weights
The values preceding the slash apply to vehicles
with manual transmission; the values following
the slash apply to vehicles with Steptronic
transmission.
MINI Cooper, 3-doorApproved gross vehicle weightlbs
kg
3,565
1,617
Loadlbs
kg
790/725
358/329
Approved front axle loadlbs
kg
1,920/1,990
871/903
Approved rear axle loadlbs
kg
1,725/1,685
782/764
Approved roof load capacitylbs
kg
132
60
Cargo area capacitycu ft
L
8.7–34.0
211–731

Seite 222REFERENCETechnical data222
Online Edition for Part no. 01 40 2 961 168 - II/15
MINI Cooper, 5-doorApproved gross vehicle weightlbs
kg
3,795
1,721
Loadlbs
kg
885/820
401/372
Approved front axle loadlbs
kg
1,995/2,065
905/937
Approved rear axle loadlbs
kg
1,880/1,860
853/844
Approved roof load capacitylbs
kg
165
75
Cargo area capacitycu ft
L
13.1–40.7
278–941

MINI Cooper S, 3-doorApproved gross vehicle weightlbs
kg
3,620/3,650
1,642/1,656
Loadlbs
kg
775/770
352/349
Approved front axle loadlbs
kg
2,025/2,060
919/934
Approved rear axle loadlbs
kg
1,690
767
Approved roof load capacitylbs
kg
132
60
Cargo area capacitycu ft
L
8.7–34.0
211–731

Seite 223Technical dataREFERENCE223
Online Edition for Part no. 01 40 2 961 168 - II/15
MINI Cooper S, 5-doorApproved gross vehicle weightlbs
kg
3,860/3,900
1,751/1,769
Loadlbs
kg
885
401
Approved front axle loadlbs
kg
2,085/2,125
946/964
Approved rear axle loadlbs
kg
1,880
853
Approved roof load capacitylbs
kg
165
75
Cargo area capacitycu ft
L
13.1–40.7
278–941

MINI John Cooper Works, 3-doorApproved gross vehicle weightlbs
kg
3,720/3,765
1,687/1,708
Loadlbs
kg
775
352
Approved front axle loadlbs
kg
2,065/2,105
937/955
Approved rear axle loadlbs
kg
1,725
782
Approved roof load capacitylbs
kg
132
60
Cargo area capacitycu ft
L
8.7–34.0
211–731

Recirculated-air filter 137
Recirculated-air mode 133, 137
Recommended fuel grade 172
Recommended tire brands 181
Refueling 170
Remaining range 78
Remote control/key 34
Remote control, blocking 35
Remote control, malfunc‐ tion 38
Remote control, replacing the battery 34
Remote control, univer‐ sal 139
Replacement fuse 208
Replacing parts 197
Replacing the battery, remote control 34
Replacing wheels/tires 181
Reporting safety defects 10
RES button 117
Reserve warning, refer to Range 78
Reset, Tire Pressure Monitor TPM 99
Retaining straps, securing cargo 158
Retreaded tires 181
Roadside parking lights 90
RON recommended fuel grade 172
Roofliner 17
Roof load capacity 221
Roof-mounted luggage rack 158
Rope for tow-starting/ towing 212
RSC Run Flat System Compo‐ nent, refer to Run-flat
tires 182
Rubber components, care 216
Run-flat tires 182 S
Safe braking 155
Safety belt reminder for driv‐ er's seat and front passenger
seat 51
Safety belts 50
Safety belts, care 216
Safety reel, windows 46
Safety systems, airbags 95
Saving fuel 161
Screen, refer to Control Dis‐ play 18
Screwdriver 197
Screw thread for tow fit‐ ting 213
Sealant 183
Seat belts, refer to Safety belts 50
Seat heating, front 50
Seating position for chil‐ dren 56
Seats 48
Selection list in instrument cluster 81
Selector lever, Steptronic transmission 69
Sensors, care 217
Service and warranty 8
Service requirements, Condi‐ tion Based Service CBS 195
Service requirements, dis‐ play 78
Settings, locking/unlocking 42
Settings, mirrors 53
Settings on Control Display 84
Shift paddles on the steering wheel 70
Side airbags 95
Signaling, horn 14
Signals when unlocking 43
Sitting safely 48
Size 220
Slide/tilt glass roof 46
Snow chains 186
Socket 143 Socket, OBD Onboard Diag‐
nostics 196
Spare fuse 208
Spare tire, refer to Emergency wheel 205
Specified engine oil types 192
Speed, average 82
Speed limit detection, com‐ puter 82
Speed limiter, display 79
Speed Limit Information 79
Speed warning 83
Split screen 24
Sport displays 83
Sport instruments, cockpit 87
SPORT program, Dynamic Driving Control 113
Sport program, transmis‐ sion 69
Stability control systems 111
Standard view, Head-up Dis‐ play 87
Start/stop, automatic func‐ tion 62
Start/Stop button 60
Start function during malfunc‐ tion 35
Starting the engine 61
Status control display, tires 99
Status information, onboard monitor 23
Status of Owner's Manual 7
Steering wheel, adjusting 55
Steptronic Sport transmission, see Steptronic transmis‐
sion 68
Steptronic transmission 68
Stopping the engine 61
Storage compartments 147
Storage, tires 182
Storing the vehicle 217
Suitable engine oils 192
Summer tires, tread 180
Sun visor 143
Supplementary text mes‐ sages 76 Seite 236REFERENCEEverything from A to Z236
