Tachometer
It is imperative that you avoid engine speeds in
the red warning field. In this range, the fuel
supply is interrupted to protect the engine.
Coolant temperature A warning lamp will come on if the coolant, and
therefore the engine, becomes too hot.
Check the coolant level, refer to page 168.
Fuel gauge
The arrow next to the fuel pump symbol on the
fuel gauge indicates the side of the vehicle with
the fuel filler flap.
The vehicle inclination may cause the display to
vary.
Notes on refueling, refer to page 148.
Filling capacities, refer to page 209.
Range After the reserve range is reached:
▷The remaining LEDs change from orange to
red, arrow.▷The remaining range is shown on the tach‐
ometer.▷When a dynamic driving style is used, such
as when corners are taken rapidly, engine
functions are not ensured.
A warning light lights up below a range of ap‐
prox. 30 miles/50 km.
Refuel promptly
At the latest, refuel at a range below
30 miles/50 km; otherwise, the engine function
is not ensured and damage may occur. ◀
Computer
Opening information in the tachometer
Press the button on the turn indicator lever.
Overview of the information
The following information is displayed consecu‐
tively by repeatedly pressing the button on the
turn indicator lever:
▷Range.▷Average fuel consumption.▷Current fuel consumption.▷Average speed.
To set the corresponding units of measure, re‐
fer to page 61.
Seite 59DisplaysCONTROLS59
Online Edition for Part no. 01 40 2 961 084 - II/15

RefuelingVehicle equipmentThis chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series. Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
General information Refuel promptly
At the latest, refuel at a range below
30 miles/50 km; otherwise, the engine function
is not ensured and damage may occur. ◀
Notes Switch off the engine before refueling
Always switch off the engine before refu‐
eling; otherwise, fuel cannot be added to the
tank and a message will be displayed. ◀
Observe when handling fuel▷Take all precautionary measures and
observe all applicable regulations
when handling fuel.▷Do not carry any spare fuel containers in
your vehicle. They can develop a leak and
cause an explosion or cause a fire in the
event of an accident. ◀Fuel cap
Opening1.Open fuel filler flap.2.Turn the fuel cap counterclockwise.3.Place the fuel cap in the bracket attached
to the fuel filler flap.
Closing
1.Fit the fuel cap and turn it clockwise until
you clearly hear a click.2.Close the fuel filler flap.
Do not pinch the retaining strap
Do not pinch the retaining strap attached
to the cap; otherwise, the cap cannot be closed
properly and fuel vapors can escape. ◀
A message is displayed if the cap is loose or
missing.
Manually unlocking fuel filler flap In the event of a malfunction, the fuel filler flap
can be released manually:
MINI Countryman:
Seite 148MOBILITYRefueling148
Online Edition for Part no. 01 40 2 961 084 - II/15

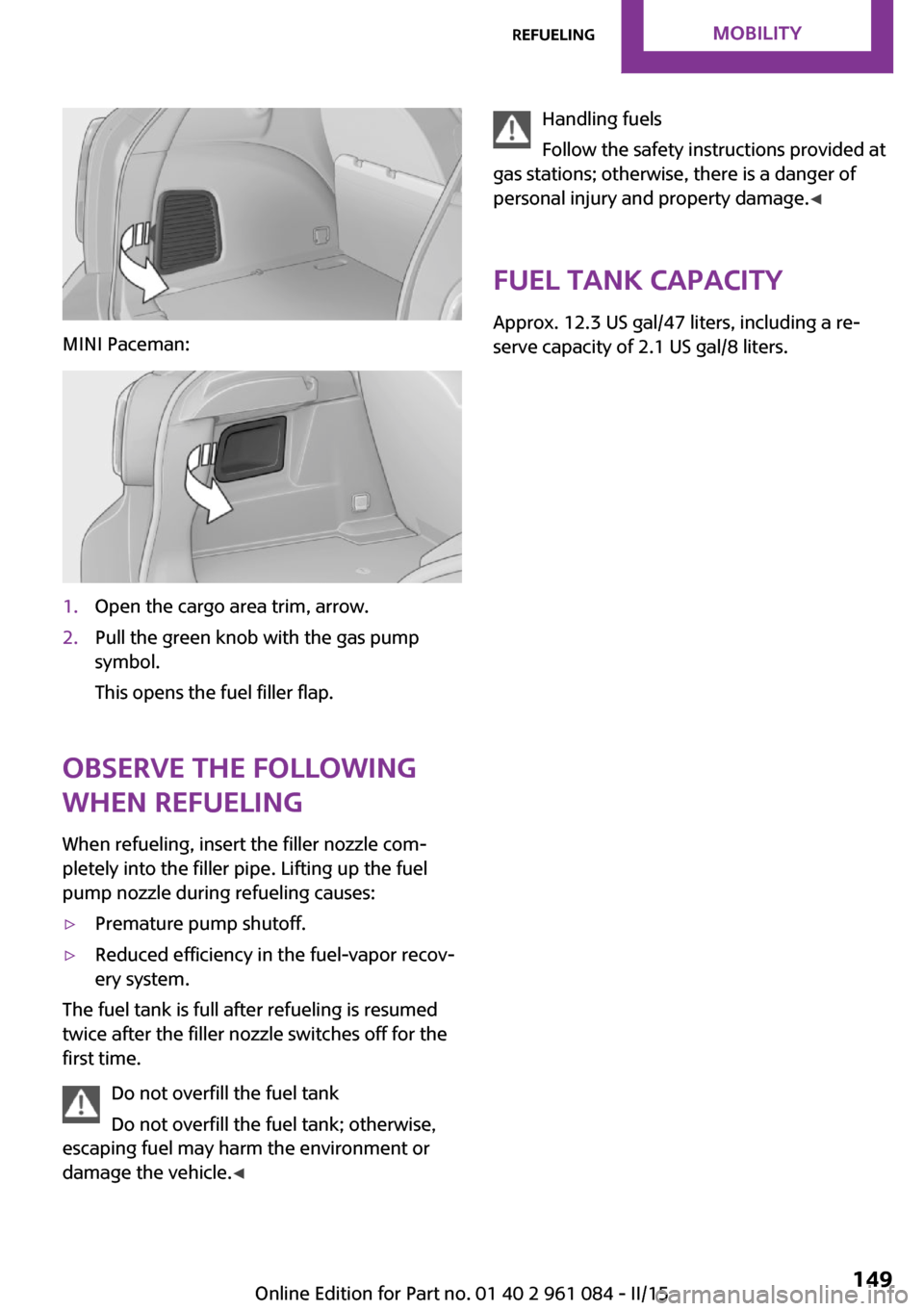

MINI Paceman:
1.Open the cargo area trim, arrow.2.Pull the green knob with the gas pump
symbol.
This opens the fuel filler flap.
Observe the following
when refueling
When refueling, insert the filler nozzle com‐
pletely into the filler pipe. Lifting up the fuel
pump nozzle during refueling causes:
▷Premature pump shutoff.▷Reduced efficiency in the fuel-vapor recov‐
ery system.
The fuel tank is full after refueling is resumed
twice after the filler nozzle switches off for the
first time.
Do not overfill the fuel tank
Do not overfill the fuel tank; otherwise,
escaping fuel may harm the environment or
damage the vehicle. ◀
Handling fuels
Follow the safety instructions provided at
gas stations; otherwise, there is a danger of
personal injury and property damage. ◀
Fuel tank capacity Approx. 12.3 US gal/47 liters, including a re‐
serve capacity of 2.1 US gal/8 liters.Seite 149RefuelingMOBILITY149
Online Edition for Part no. 01 40 2 961 084 - II/15

Socket for OBD Onboard
Diagnosis
Socket for Onboard Diagnosis
The socket for Onboard Diagnosis may
only be used by the service center, by work‐
shops that operate according to the specifica‐
tions of the vehicle manufacturer with appro‐
priately trained personnel, and by other
authorized persons. Otherwise, its use may
lead to vehicle malfunctions. ◀
Primary components in the vehicle emissions
can be checked via the OBD socket using a de‐
vice.
Emissions The warning lamps light up. The vehicle
is producing higher emissions. You can
continue your journey, but moderate
your speed and exercise due caution. Have the
vehicle checked as soon as possible.
Under certain circumstances, one of the lamps
flashes or lights up continuously. This indicates
that there is excessive misfiring or a malfunc‐
tion in the engine. If this happens, reduce the
vehicle speed and drive to the next service cen‐
ter promptly. Serious engine misfiring within a
brief period can seriously damage emission
control components, in particular the catalytic
converter. In addition, the mechanical engine
components may become damaged.
If the fuel filler cap is not properly tight‐
ened, the OBD system may conclude
that fuel vapor is escaping; this will cause a dis‐
play to light up. If the filler cap is then tight‐
ened, the display should go out in a few days.Seite 170MOBILITYMaintenance170
Online Edition for Part no. 01 40 2 961 084 - II/15

12CauseHow to respondLights up briefly:
Approx. 2.1 US gal/8 liters of fuel remain in
the tank.
Remains on:
The remaining range is no more than
30 miles/50 km, refer to page 59.The engine refuses to start.Depress the brake or clutch to start
the engine, refer to page 49.The ignition is switched on and driver's door
is open.Switch off the ignition, refer to
page 48, or close the driver's door.The lights are still switched on.Switch off the lights, refer to
page 66.The roadside parking lamps are still on.Switch off the roadside parking
lights, refer to page 67.A door is open.The hood is open.The tailgate is open.The fuel cap is missing or loose.Make sure that the fuel cap is cor‐
rectly positioned and close it until it
clicks audibly. Do not jam the strap
between the fuel cap and the vehi‐
cle.The windshield washer fluid level is too low.Add washer fluid, refer to page 54,
as soon as possible.Lights up in red:Service is due.Arrange a service appointment.
Check the service requirements, re‐
fer to page 169.Seite 192MOBILITYIndicator/warning lamps192
Online Edition for Part no. 01 40 2 961 084 - II/15

Capacities
NotesFuel tank, approx.US gal/liters12.4/47Fuel quality, refer to
page 150Seite 209Technical dataREFERENCE209
Online Edition for Part no. 01 40 2 961 084 - II/15

Cradle for telephone or mobilephone, refer to Snap-in
adapter 143
Cruise control 85
Cupholders 98
Current fuel consumption 60
Curve lights, refer to Adaptive Light Control 68
D Dashboard lighting, refer to Instrument lighting 69
Dashboard, refer to Cock‐ pit 12
Dashboard, refer to Dis‐ plays 14
Date, display format 61
Date, setting 62
Daytime running lights 67
Decorative trim, care 189
Defogging windows 89
Defroster, rear window, auto‐ matic climate control 92
Defroster, rear window, with air conditioner 89
Defrosting windows 89
Defrost setting, refer to De‐ frosting windows 89
Digital compass 96
Dip stick, engine oil 166
Directional indicators, refer to Turn signals 51
Display lighting, refer to In‐ strument lighting 69
Displays 14
Displays and controls 12
Displays, care 189
Displays, cleaning 189
Displays, refer to Instrument cluster 14
Disposal, remote control bat‐ tery 30
Distance warning, refer to Park Distance Control
PDC 86 Door key, refer to Remote
control with integrated
key 20
Door lock 24
Door lock, confirmation sig‐ nals 23
Doors, manual operation 25
Doors, unlocking and locking, confirmation signals 23
Doors, unlocking and locking from the inside 25
Doors, unlocking and locking, from the outside 22
DOT Quality Grades 156
Drive-off assistant, refer to Hill drive-off assistant 83
Driving notes, breaking in 110
Driving off on hills, refer to Hill drive-off assistant 83
Driving on poor roads 113
Driving stability control sys‐ tems 81
Driving tips, refer to Driving notes 110
Dry air, refer to Cooling func‐ tion 92
DSC Dynamic Stability Con‐ trol 81
DTC Dynamic Traction Con‐ trol 82
Dynamic Stability Control DSC 81
Dynamic Traction Control DTC 82
E
Electrical malfunction, door lock 25
Electrical malfunction, fuel filler flap 148
Electronic brake-force distri‐ bution 81 Electronic Stability Program
ESP, refer to Dynamic Stabil‐
ity Control DSC 81
Emergency operation, fuel filler flap, unlocking man‐
ually 148
Emergency operation, refer to Manual operation 25
Emergency operation, Step‐ tronic transmission, refer to
Selector lever lock, overrid‐
ing 57
Energy, saving, refer to Saving fuel 118
Engine, breaking in 110
Engine compartment 164
Engine oil, adding 166
Engine oil, additives, refer to Approved engine oils 167
Engine oil, alternative oil types 167
Engine oil change intervals, refer to Service require‐
ments 63
Engine oil, dip stick 166
Engine oil, filling capacity 209
Engine oil, MINI maintenance system 169
Engine oil types, alterna‐ tive 167
Engine oil types, ap‐ proved 167
Engine, overheating, refer to Coolant temperature 59
Engine start, assistance 181
Engine, starting 49
Engine, starting, Comfort Ac‐ cess 28
Engine, starting, Start/Stop button 48
Engine, stopping, Start/Stop button 48
Engine, switching off 50
Equipment, interior 94 Seite 212REFERENCEEverything from A to Z212
Online Edition for Part no. 01 40 2 961 084 - II/15

ESP Electronic Stability Pro‐gram, refer to Dynamic Sta‐
bility Control DSC 81
Exchanging wheels/tires 159
Exterior mirrors 40
Exterior mirrors, adjusting 40
Exterior mirrors, folding in and out 41
Exterior sensors, care 189
External temperature dis‐ play 58
External temperature display, changing the units 61
External temperature warn‐ ing 58
F Failure messages, refer to Check Control 64
False alarm, refer to Avoiding unintentional alarms 31
Fan, refer to Air flow rate for air conditioner 89
Fan, refer to Air flow rate with automatic climate con‐
trol 91
Fastening safety belts, refer to Safety belts 37
Fault messages, refer to Check Control 64
Filling capacities 209
Filter, refer to Activated-char‐ coal filter 90
Filter, refer to Microfilter 90
Filter, refer to Microfilter/acti‐ vated-charcoal filter with au‐
tomatic climate control 92
First aid kit 181
First aid, refer to First aid kit 181
Flashing when locking/unlock‐ ing 23
Flat tire, Flat Tire Monitor 75
Flat tire, indicator/warning lamp 75 Flat Tire Monitor FTM 74
Flat Tire Monitor FTM, flat tire message 75
Flat Tire Monitor FTM, initializ‐ ing the system 74
Flat Tire Monitor FTM, snow chains 74
Flat Tire Monitor FTM, system limits 74
Flat tire, run-flat tire 75
Flat tire, Tire Pressure Moni‐ tor 76
Flat tire, Tire Pressure Monitor TPM 76
Flat tire, wheel change 178
Floor mats, care 189
Fog lights 69
Foot brake 111
Footwell lights, refer to Inte‐ rior lights 69
Four-wheel drive, refer to ALL4 83
Front airbags 71
Front fog light, bulb replace‐ ment 174
Front fog lights 69
Front lights, bulb replace‐ ment 173
Front passenger airbags, de‐ activating 72
FTM Flat Tire Monitor 74
Fuel 150
Fuel, additives 150
Fuel, average consump‐ tion 60
Fuel cap, closing 148
Fuel consumption display, average fuel consump‐
tion 60
Fuel filler flap, closing 148
Fuel filler flap, opening 148
Fuel filler flap, unlocking in case of an electrical malfunc‐
tion 148
Fuel gauge 59 Fuel, refer to Average fuel
consumption 60
Fuel, saving 118
Fuel tank capacity, refer to Filling capacities 209
Fuel tank contents, refer to Filling capacities 209
Fuel tank, refer to Filling ca‐ pacities 209
Fuse 179
G Garage door opener, refer to Integrated universal remote
control 94
Gasoline 150
Gasoline gauge, refer to Fuel gauge 59
Gear change, manual trans‐ mission 55
Gear change, Steptronic trans‐ mission 56
Gear display, Steptronic trans‐ mission 55
Glare protection 96
Glass sunroof, electrical 31
Glass sunroof, electrical, open‐ ing/closing 32
Glass sunroof, electrical, rais‐ ing 32
Glass sunroof, electric, con‐ venient operation 23
Glass sunroof, electric, remote control 23
H Halogen headlights, bulb re‐ placement 173
Handbrake, refer to Parking brake 50
Hand car wash, care 187
Hand-held transmitter, alter‐ nating code 95
Hands-free microphone 15 Seite 213Everything from A to ZREFERENCE213
Online Edition for Part no. 01 40 2 961 084 - II/15
