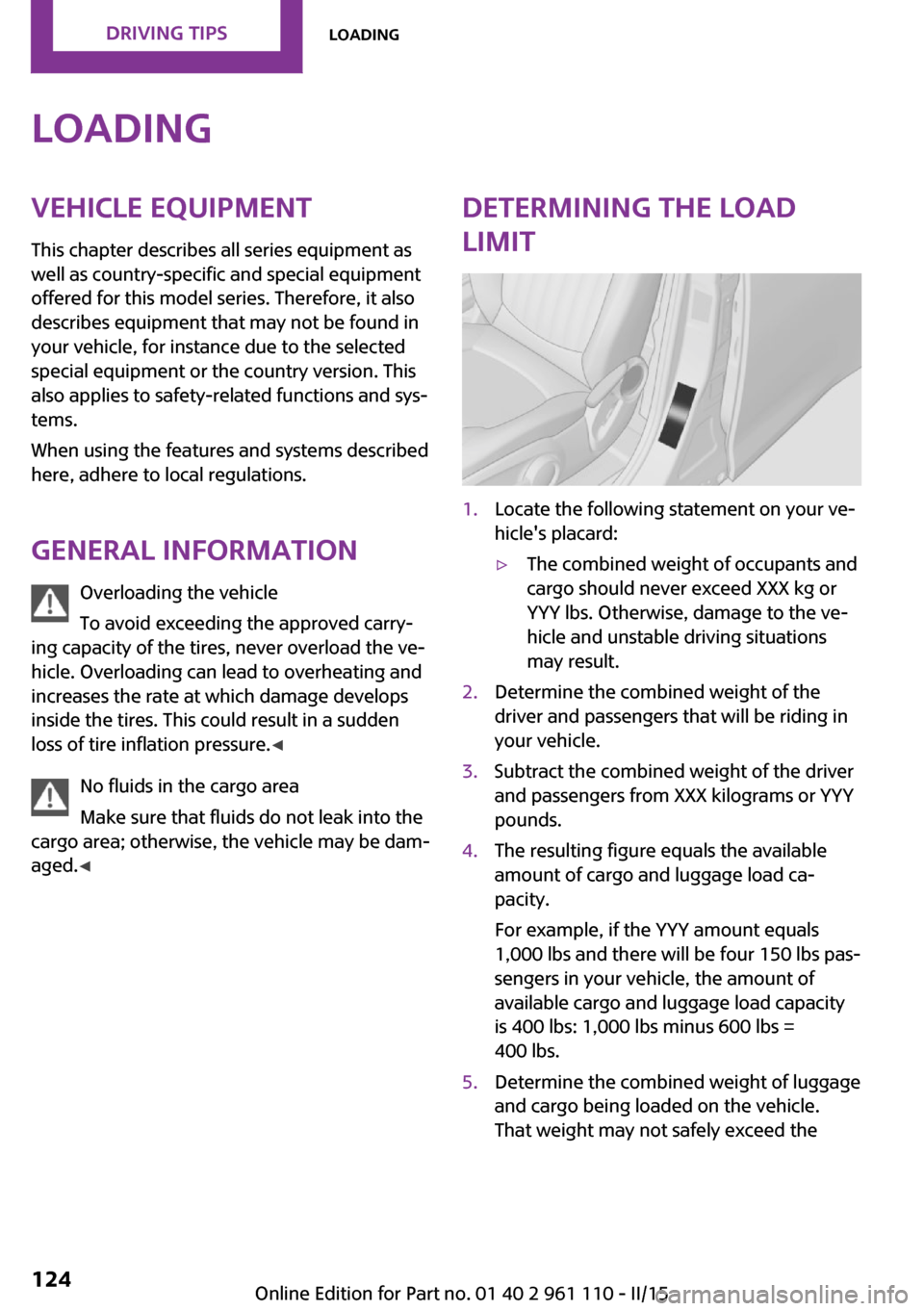

2015 MINI Countryman load capacity

LoadingVehicle equipment
This chapter describes all series equipment as
well as country-specific and special equipment
offered for this model series. Therefore, it also
describes equipment that may not be found in
your vehicle, for instance due to the selected
special equipment or the country version. This
also applies to safety-related functions and sys‐
tems.
When using the features and systems described
here, adhere to local regulations.
General information Overloading the vehicle
To avoid exceeding the approved carry‐
ing capacity of the tires, never overload the ve‐
hicle. Overloading can lead to overheating and
increases the rate at which damage develops
inside the tires. This could result in a sudden
loss of tire inflation pressure. ◀
No fluids in the cargo area
Make sure that fluids do not leak into the
cargo area; otherwise, the vehicle may be dam‐ aged. ◀Determining the load
limit1.Locate the following statement on your ve‐
hicle's placard:▷The combined weight of occupants and
cargo should never exceed XXX kg or
YYY lbs. Otherwise, damage to the ve‐
hicle and unstable driving situations
may result.2.Determine the combined weight of the
driver and passengers that will be riding in
your vehicle.3.Subtract the combined weight of the driver
and passengers from XXX kilograms or YYY
pounds.4.The resulting figure equals the available
amount of cargo and luggage load ca‐
pacity.
For example, if the YYY amount equals
1,000 lbs and there will be four 150 lbs pas‐
sengers in your vehicle, the amount of
available cargo and luggage load capacity
is 400 lbs: 1,000 lbs minus 600 lbs =
400 lbs.5.Determine the combined weight of luggage
and cargo being loaded on the vehicle.
That weight may not safely exceed theSeite 124DRIVING TIPSLoading124
Online Edition for Part no. 01 40 2 961 110 - II/15

available cargo and luggage load capacity
calculated in Step 4.6.If your vehicle will be towing a trailer, load
from your trailer will be transfered to your
vehicle. Consult the manual for transporting
a trailer to determine how this may reduce
the available cargo and luggage load ca‐
pacity of your vehicle.
Load
4-seater:
5-seater:
The maximum load is the sum of the weight of
the occupants and the cargo.
The greater the weight of the occupants, the
less cargo that can be transported.
Stowing cargo
▷Very heavy cargo: when the rear seat is not
occupied, secure each of the outer safety
belts in the opposite buckle.▷Heavy cargo: stow as far forward and as
low as possible, ideally directly behind the
backrests.▷Cover sharp edges and corners.▷Do not pile cargo higher than the top edge
of the backrests.▷If necessary, fold down the rear backrests
to stow cargo.▷Use the partition net, refer to page 113, to
protect passengers. Make sure that objects
cannot penetrate the partition net.▷Place protective material around any sharp-
edged or pointed objects that could bump
against the rear window while the vehicle is
in motion.
MINI Countryman
MINI Paceman
Seite 125LoadingDRIVING TIPS125
Online Edition for Part no. 01 40 2 961 110 - II/15

MINI Paceman
MINI PacemanCooperCooper SJohn Cooper WorksWidth with mirrorsinches/mm78.6/1,99678.6/1,99678.6/1,996Width without mirrorsinches/mm70.3/1,78670.3/1,78670.3/1,786Heightinches/mm60.4/1,53360.4/1,53360.1/1,527Length
With aerodynamic bumperinches/mm
inches/mm162.2/4,119
-162.4/4,124
162.8/4,134162.8/4,134Wheelbaseinches/mm102.2/2,596102.2/2,596102.2/2,596Smallest turning circle dia.ft/m38.1/11.638.1/11.638.1/11.6Weights
Never exceed either the approved axle loads or
the gross vehicle weight.MINI Countryman

CooperCooper SApproved gross vehicle weightManual transmissionlbs/kg3,860/1,7513,990/1,810Steptronic transmissionlbs/kg3,925/1,7804,035/1,830Loadlbs/kg830/376830/376Approved front axle loadManual transmissionlbs/kg2,060/9342,145/973Steptronic transmissionlbs/kg2,125/9642,200/998Approved rear axle loadlbs/kg1,920/8711,920/871Approved roof load capacitylbs/kg165/75165/75Cargo area capacitycu ft/liter17.5-42.2/ 350–1,17017.5-42.2/ 350–1,170

Cooper S ALL4John Cooper WorksApproved gross vehicle weightManual transmissionlbs/kg4,100/1,8604,155/1,885Seite 259Technical dataREFERENCE259
Online Edition for Part no. 01 40 2 961 110 - II/15

Cooper S ALL4
John Cooper Works
Steptronic transmission lbs/kg 4,145/1,8804,200/1,905
Load lbs/kg 830/376830/376
Approved front axle load
Manual transmission lbs/kg 2,210/1,0022,210/1,002
Steptronic transmission lbs/kg 2,260/1,0252,260/1,025
Approved rear axle load lbs/kg 2,015/9142,070/939
Approved roof load capacity lbs/kg 165/75 165/75
Cargo area capacity cu ft/liter 17.5-42.2/ 350–1,170 17.5-42.2/ 350–1,170MINI Paceman
Cooper
Cooper SCooper S ALL4 John Cooper Works
Approved gross vehicle weight
Manual transmission lbs/kg 3,850/1,746 3,960/1,796 4,100/1,860 4,150/1,882
Steptronic transmis‐
sion lbs/kg 3,920/1,778 4,010/1,819 4,140/1,878 4,200/1,905
Load lbs/kg 830/376 830/376 830/376 830/376
Approved front axle load
Manual transmission lbs/kg 2,050/930 2,120/962 2,180/989 2,200/998
Steptronic transmis‐
sion lbs/kg 2,120/962 2,170/984 2,220/1,007 2,240/1,016
Approved rear axle
load lbs/kg 1,910/866 1,910/866 2,020/916 2,060/934
Approved roof load ca‐
pacity lbs/kg 165/75 165/75 165/75 165/75
Cargo area capacity cu ft/ liter13.9-40.7/
330–1,080 13.9-40.7/
330–1,08013.9-40.7/
330–1,08013.9-40.7/
330–1,080
Seite 260
REFERENCE
Technical data
260 Online Edition for Part no. 01 40 2 961 110 - II/15
