2015 MERCEDES-BENZ SPRINTER headlamp

No. Consumer Fuse
rating 13 Cigarette lighter/glove
box lamp/radio/body
manufacturer loading
tailgate/PND (personal
navigation device) power
socket 15 A
14 Diagnostics connec-
tion/light switch/instru-
ment cluster/deactivat-
ing reverse warning
device/anti-theft pro-
tection with vehicle
tracking 5 A
15 Headlamp range con-
trol/front-compartment
heating 5 A
16 Terminal 87 (1)
Terminal 87 (3)
1 10 A
17 Air bag control unit 10 A
18 Terminal 15 vehicle/
brake light switch 7.5 A
19 Interior lighting 7.5 A
20 Front-passenger door
power window switch/
terminal 30/2 SAM (sig-
nal acquisition and
actuation module) 25 A
21 Engine control unit 5 A
22 Brake system (ABS) 5 A
23 Starter motor 20 A
Terminal 87 (6)
1 10 A No. Consumer Fuse
rating 24 Diesel engine, engine
components/control
unit, vehicles with a nat-
ural gas engine NGT
2 10 A
25 12 V socket (center con-
sole) for tire sealant 25 A
Fuse block F55/1
No. Consumer Fuse
rating 1 Driver's door control unit 25 A
2 Diagnostics connection 10 A
3 Brake system (valves) 25 A
4 Brake system (delivery
pump) 40 A
5 Terminal 87 (2a) engine
M272, OM651 7.5 A
Terminal 87 (2a) engine
OM642, OM651
3 10 A
6 Terminal 87 (1a) engine
OM642
6 10 A
Terminal 87 (1a) engine
OM651
6 7.5 A
Terminal 87 (3a) engine
M272, M271, OM651 7.5 A
7 Headlamp cleaning sys-
tem 30 A
1
Vehicles with code MI6/MH3/XM0.
2 Natural Gas Technology.
3 NAFTA
6 Vehicles with code XM0. Fuses and relays
5 Z

Relays in the seat base of the left front seat
No. Relays Description
R1 K6
Starter relay, right-hand drive
6R2 K41 Load relief relay, terminal 15
R3 K41/5 Starter relay, terminal 15
R4 K64
K110 Secondary air injection/secondary air pump relay
SCR relay
8
, vehicles with exhaust gas aftertreatment R5 K27 Fuel pump relay
R6 K23/1 Blower relay, front, blower setting 1
R7 K41/2 Load relief relay, terminal 15 R
R8 K6/1 Starter relay, additional battery
K6
Starter relay, left-hand drive
6R9 K13/5 Rear window defroster relay 1
R10 K13/6 Rear window defroster relay 2 with ATA (Anti-Theft
Alarm system)
K51/15 Snow plow relay, low-beam headlamps, left
R11 K117/3 Electrical step relay 1, left
K51/16 Snow plow relay, low-beam headlamps, right
R12 K117/4 Electrical step relay 2, left
6
Vehicles with code XM0.
8 Selective Catalytic Reduction. Fuses and relays

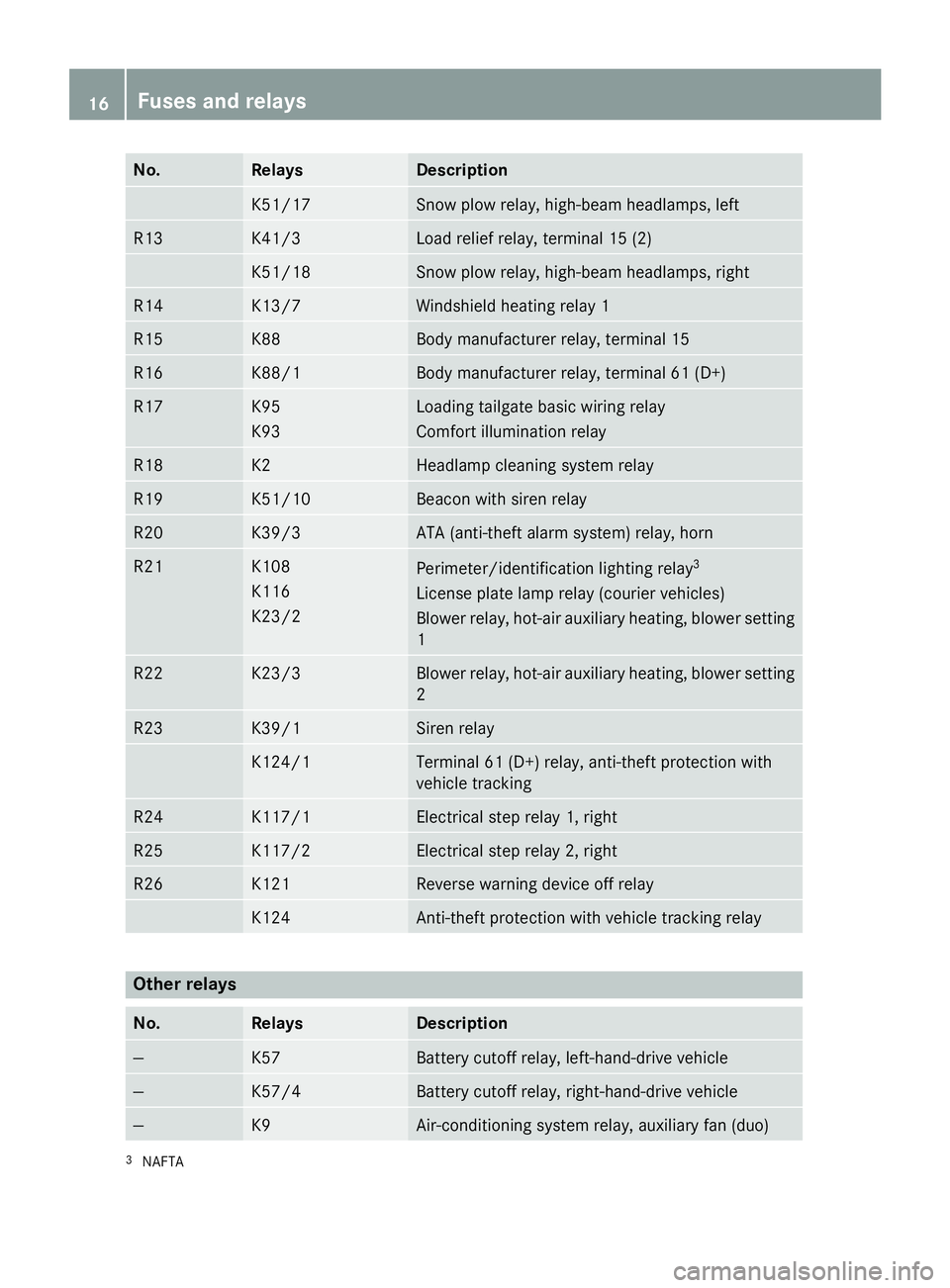

15 Z

No. Relays Description
K51/17 Snow plow relay, high-beam headlamps, left
R13 K41/3 Load relief relay, terminal 15 (2)
K51/18 Snow plow relay, high-beam headlamps, right
R14 K13/7 Windshield heating relay 1
R15 K88 Body manufacturer relay, terminal 15
R16 K88/1 Body manufacturer relay, terminal 61 (D+)
R17 K95
K93 Loading tailgate basic wiring relay
Comfort illumination relay
R18 K2 Headlamp cleaning system relay
R19 K51/10 Beacon with siren relay
R20 K39/3 ATA (anti-theft alarm system) relay, horn
R21 K108
K116
K23/2
Perimeter/identification lighting relay
3
License plate lamp relay (courier vehicles)
Blower relay, hot-air auxiliary heating, blower setting
1 R22 K23/3 Blower relay, hot-air auxiliary heating, blower setting
2 R23 K39/1 Siren relay
K124/1 Terminal 61 (D+) relay, anti-theft protection with
vehicle tracking R24 K117/1 Electrical step relay 1, right
R25 K117/2 Electrical step relay 2, right
R26 K121 Reverse warning device off relay
K124 Anti-theft protection with vehicle tracking relay
Other relays
No. Relays Description
— K57 Battery cutoff relay, left-hand-drive vehicle
— K57/4 Battery cutoff relay, right-hand-drive vehicle
— K9 Air-conditioning system relay, auxiliary fan (duo)
3
NAFTA 16
Fuses and relays
