Relays in the main fuse box
No. Relays Description
R1 K40/9 Horn relay
R2 K40/9 Windshield wiper setting 1/2 relay
R3 K40/9
K40/9
Fuel pump relay
5
Starter relay, terminal 15 1R4 K40/9 Windshield wipers on/off relay
R5 K40/9 Starter relay, terminal 50
R6 K40/9 Relay, terminal 15 R (normally open contact)
R7 K40/9 Engine control unit relay, terminal 87
R8 K40/9 Relay, terminal 15 (reinforced relay)
5
Not on vehicles with code MI6/MH3/XM0.
1 Vehicles with code MI6/MH3/XM0. Fuses and relays
9 Z
Page 12 of 22
Fuse box under the left front seat
Fuse box on the outside of the seat base
X To open: move the front seat to the highest
position.
X Press both latching springs 0043down and
remove the cover.
X To close: attach the bottom edge of the
cover and fold upwards.
The cover must engage. 10
Fuses and relays
Page 13 of 22
Configuration
Fuses
Fuse block F55/3
No. Consumer Fuse
rating 1 Mirror setting/rear win-
dow defroster 5 A
2 Rear window wiper 30 A
3 Auxiliary heating, digital
timer/rear view cam-
era/neutral gate switch,
starting-off aid and all-
wheel drive/engine run-
on/DIN slot basic wiring
(roof)/FleetBoard/anti-
theft protection with
vehicle tracking/emer-
gency hammer lighting in
the rear compartment 5 A
4 Tachograph/ADR work-
ing speed governor/
power take-off/AAG
(trailer control unit) 7.5 A
5 ECO Start/control unit 5 A No. Consumer Fuse
rating EGS (electronic gearbox
control) 10 A
6 All-wheel drive control
unit 5 A
Auxiliary oil pump 10 A
7 ESM (electronic selector
module) 10 A
8 Loading tailgate/tipper
vehicle
PARKTRONIC
6 10 A
9 Rear compartment air
conditioning, compres-
sor clutch, disengagea-
ble reverse warning
device 7.5 A
6
Vehicles with code XM0. Fuses and relays
11 Z
Page 14 of 22

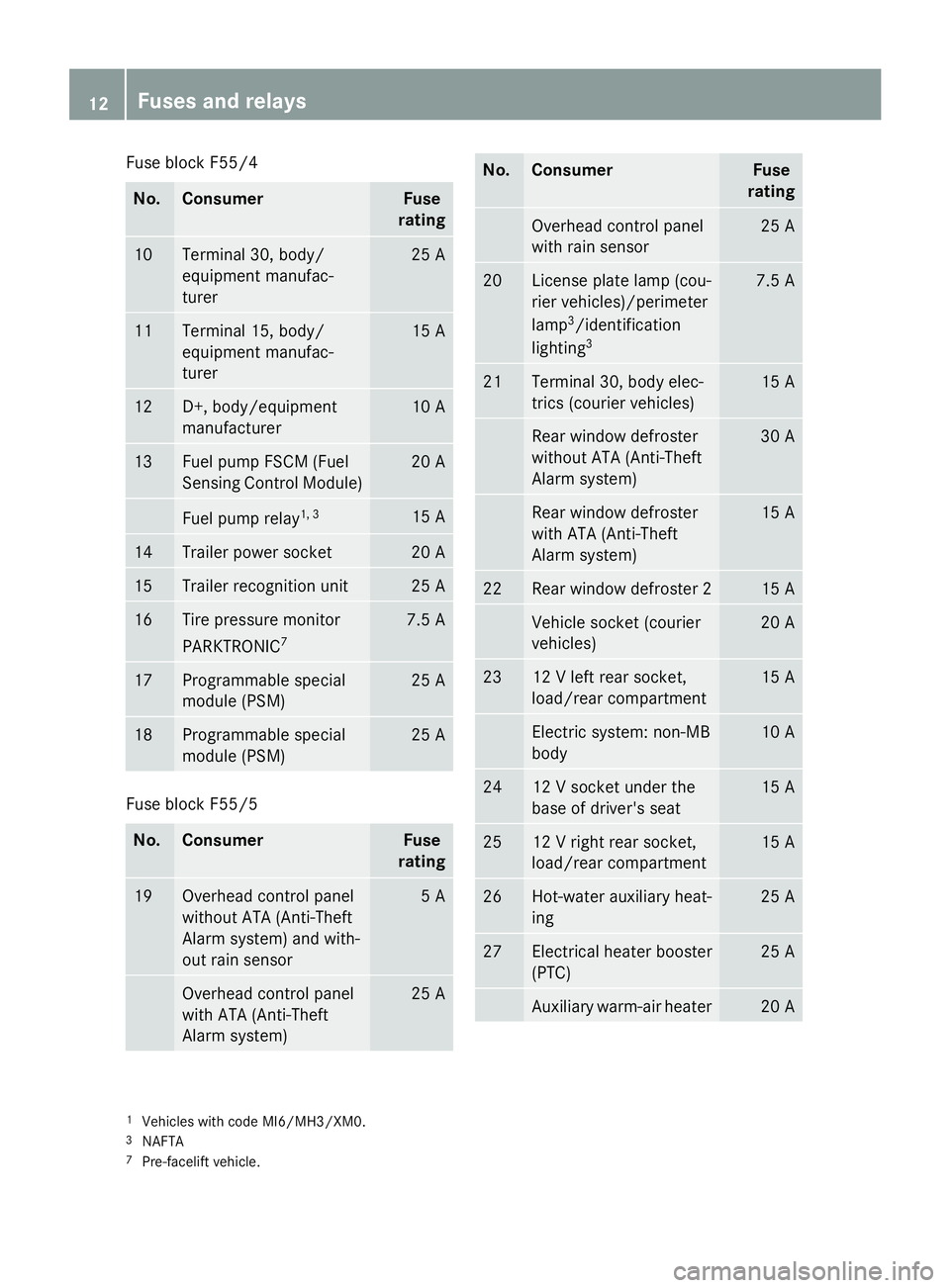

Fuse block F55/4
No. Consumer Fuse
rating 10 Terminal 30, body/
equipment manufac-
turer 25 A
11 Terminal 15, body/
equipment manufac-
turer 15 A
12 D+, body/equipment
manufacturer 10 A
13 Fuel pump FSCM (Fuel
Sensing Control Module) 20 A
Fuel pump relay
1, 3 15 A
14 Trailer power socket 20 A
15 Trailer recognition unit 25 A
16 Tire pressure monitor
PARKTRONIC
7 7.5 A
17 Programmable special
module (PSM) 25 A
18 Programmable special
module (PSM) 25 A
Fuse block F55/5
No. Consumer Fuse
rating 19 Overhead control panel
without ATA (Anti-Theft
Alarm system) and with-
out rain sensor 5 A
Overhead control panel
with ATA (Anti-Theft
Alarm system) 25 A No. Consumer Fuse
rating Overhead control panel
with rain sensor 25 A
20 License plate lamp (cou-
rier vehicles)/perimeter
lamp
3
/identification
lighting 3 7.5 A
21 Terminal 30, body elec-
trics (courier vehicles) 15 A
Rear window defroster
without ATA (Anti-Theft
Alarm system) 30 A
Rear window defroster
with ATA (Anti-Theft
Alarm system) 15 A
22 Rear window defroster 2 15 A
Vehicle socket (courier
vehicles) 20 A
23 12 V left rear socket,
load/rear compartment 15 A
Electric system: non-MB
body 10 A
24 12 V socket under the
base of driver's seat 15 A
25 12 V right rear socket,
load/rear compartment 15 A
26 Hot-water auxiliary heat-
ing 25 A
27 Electrical heater booster
(PTC) 25 A
Auxiliary warm-air heater 20 A
1
Vehicles with code MI6/MH3/XM0.
3 NAFTA
7 Pre-facelift vehicle. 12
Fuses and relays
Page 15 of 22

Fuse block F55/6
No. Consumer Fuse
rating 28 SRB starter relay (fuse
and relay module)
3, 6
Starter for electrical sup- ply support using the
additional battery 25 A
29 Terminal 87 (7), gas sys-
tem, vehicles with a nat-
ural gas engine (NGT)
2 7.5 A
SCR
8
control unit, vehi-
cles with exhaust gas
aftertreatment 3 10 A
Terminal 30, all-wheel
drive, control unit 30 A
30 Auxiliary heat exchanger
fan 15 A
Brake booster
3 30 A
31 Rear compartment heat-
ing blower 30 A
Sliding door closing
assistance, left 15 A
Electric sliding door, left 30 A
32
SCR
8
relay supply, vehi-
cles with exhaust gas
aftertreatment 5 A
KEYLESS ENTRY 10 A
33 Electric sliding door,
right 30 A
Sliding door closing
assistance, right 15 A No. Consumer Fuse
rating ENR (level control) con-
trol unit 30 A
Compressor air suspen-
sion 30 A
34
SCR
8
heater 3 DEF (Die-
sel Exhaust Fluid) supply reservoir, vehicles with
exhaust gas aftertreat-
ment, 6 cyl. diesel 9, 3 15 A
SCR
8
heater 1 DEF ®
,
vehicles with exhaust
gas aftertreatment die-
sel 10 20 A
35
SCR
8
heater 2 hose,
vehicles with exhaust
gas aftertreatment, 6
cyl. diesel 9, 3 15 A
SCR
8
heater 2 DEF, vehi-
cles with exhaust gas
aftertreatment diesel 10 25 A
36
SCR
8
heater 1 delivery
pump, vehicles with
exhaust gas aftertreat-
ment, 6 cyl. diesel 9, 3 10 A
SCR
8
heater control 3
DEF, vehicles with
exhaust gas aftertreat-
ment diesel 10 15 A
3
NAFTA
6 Vehicles with code XM0.
2 Natural Gas Technology.
8 Selective Catalytic Reduction.
9 Vehicles with code MH3.
10 Not for vehicles with code MH3. Fuses and relays
13 Z
Page 16 of 22

Fuse block F55/7
No. Consumer Fuse
rating 37 COLLISION PREVEN-
TION ASSIST/FCW
(Forward Collision Warn-
ing) 5 A
Blind Spot Assist/BSM
(Blind Spot Monitor) 5 A
38 Multifunction camera
with Highbeam Assist 10 A
With a warning when
leaving a lane 10 A
39 Body electrics (courier
vehicles) 7.5 A
Rear-compartment air-
conditioning system 7.5 A
Roof ventilator 15 A
Siren 15 A
40 Auxiliary battery charge
current
11 15 A
41 SAM (signal acquisition
and actuation module)
auxiliary battery refer-
ence voltage
11 7.5 A
42 Rear-compartment air-
conditioning system 30 A
43 Electrical step/sliding
door, right 10 A
44 Electrical step/sliding
door, left 10 A
45 Electrical step, control
system and warning buz-
zer 5 A Fuses in the seat base of the left front
seat
There are additional fuses in the seat base, for
example:
R for the rear-compartment air conditioning
R for the windshield heating
R for other vehicle components, such as
power steering pumps, auxiliary batteries,
battery cutoff relays and PTC heater boos-
ters
R from the body manufacturers for retarders,
loading tailgates, hydraulic pump and tip-
pers
Always have the fuses in the seat base
replaced at a qualified specialist workshop.
11 Vehicles with auxiliary battery. 14
Fuses and relays
Page 17 of 22
Relays in the seat base of the left front seat
No. Relays Description
R1 K6
Starter relay, right-hand drive
6R2 K41 Load relief relay, terminal 15
R3 K41/5 Starter relay, terminal 15
R4 K64
K110 Secondary air injection/secondary air pump relay
SCR relay
8
, vehicles with exhaust gas aftertreatment R5 K27 Fuel pump relay
R6 K23/1 Blower relay, front, blower setting 1
R7 K41/2 Load relief relay, terminal 15 R
R8 K6/1 Starter relay, additional battery
K6
Starter relay, left-hand drive
6R9 K13/5 Rear window defroster relay 1
R10 K13/6 Rear window defroster relay 2 with ATA (Anti-Theft
Alarm system)
K51/15 Snow plow relay, low-beam headlamps, left
R11 K117/3 Electrical step relay 1, left
K51/16 Snow plow relay, low-beam headlamps, right
R12 K117/4 Electrical step relay 2, left
6
Vehicles with code XM0.
8 Selective Catalytic Reduction. Fuses and relays
15 Z
Page 18 of 22

No. Relays Description
K51/17 Snow plow relay, high-beam headlamps, left
R13 K41/3 Load relief relay, terminal 15 (2)
K51/18 Snow plow relay, high-beam headlamps, right
R14 K13/7 Windshield heating relay 1
R15 K88 Body manufacturer relay, terminal 15
R16 K88/1 Body manufacturer relay, terminal 61 (D+)
R17 K95
K93 Loading tailgate basic wiring relay
Comfort illumination relay
R18 K2 Headlamp cleaning system relay
R19 K51/10 Beacon with siren relay
R20 K39/3 ATA (anti-theft alarm system) relay, horn
R21 K108
K116
K23/2
Perimeter/identification lighting relay
3
License plate lamp relay (courier vehicles)
Blower relay, hot-air auxiliary heating, blower setting
1 R22 K23/3 Blower relay, hot-air auxiliary heating, blower setting
2 R23 K39/1 Siren relay
K124/1 Terminal 61 (D+) relay, anti-theft protection with
vehicle tracking R24 K117/1 Electrical step relay 1, right
R25 K117/2 Electrical step relay 2, right
R26 K121 Reverse warning device off relay
K124 Anti-theft protection with vehicle tracking relay
Other relays
No. Relays Description
— K57 Battery cutoff relay, left-hand-drive vehicle
— K57/4 Battery cutoff relay, right-hand-drive vehicle
— K9 Air-conditioning system relay, auxiliary fan (duo)
3
NAFTA 16
