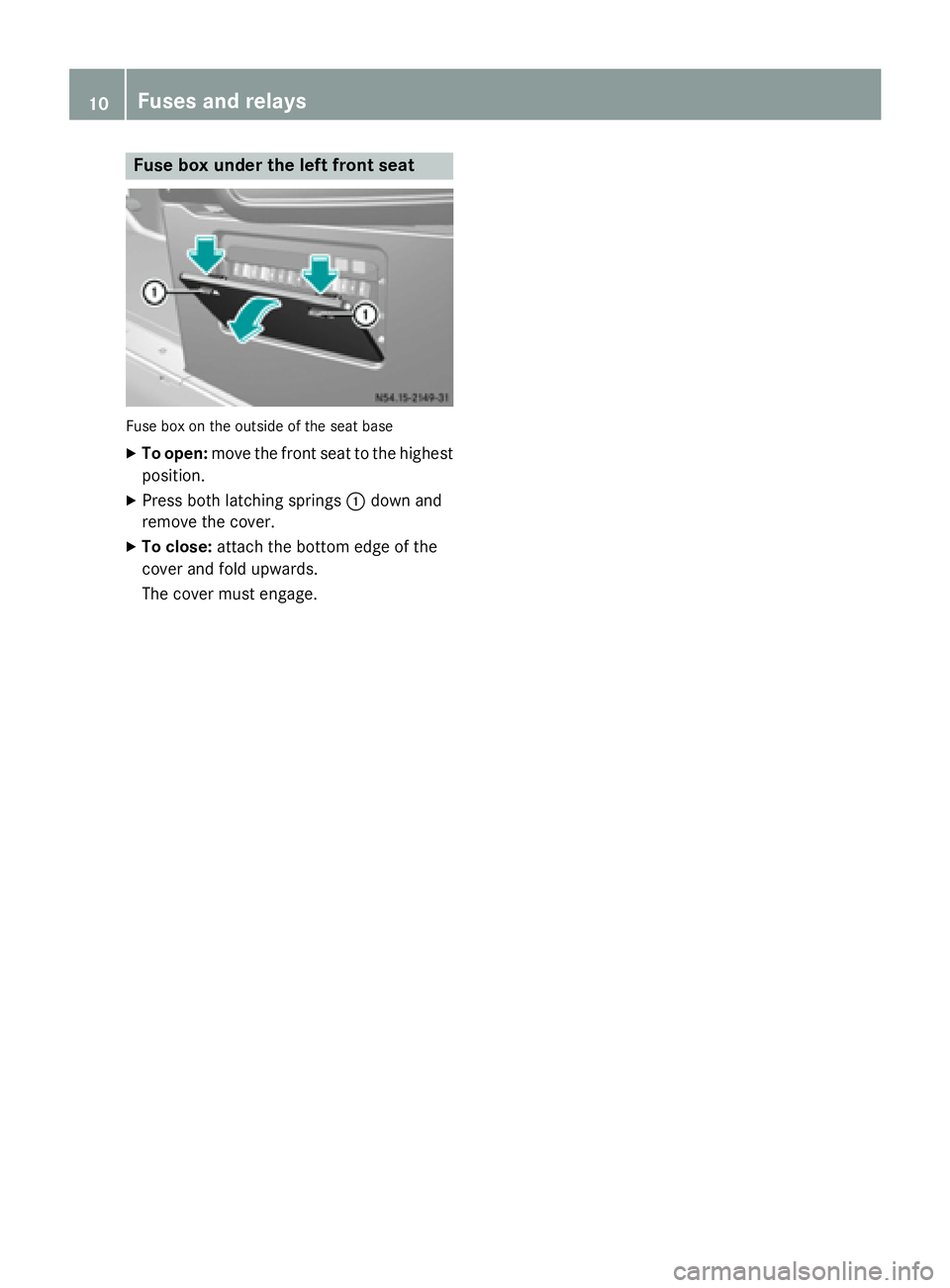

Fuse box under the left front seat
Fuse box on the outside of the seat base
X To open: move the front seat to the highest
position.
X Press both latching springs 0043down and
remove the cover.
X To close: attach the bottom edge of the
cover and fold upwards.
The cover must engage. 10
Fuses and relays
Configuration
Fuses
Fuse block F55/3
No. Consumer Fuse
rating 1 Mirror setting/rear win-
dow defroster 5 A
2 Rear window wiper 30 A
3 Auxiliary heating, digital
timer/rear view cam-
era/neutral gate switch,
starting-off aid and all-
wheel drive/engine run-
on/DIN slot basic wiring
(roof)/FleetBoard/anti-
theft protection with
vehicle tracking/emer-
gency hammer lighting in
the rear compartment 5 A
4 Tachograph/ADR work-
ing speed governor/
power take-off/AAG
(trailer control unit) 7.5 A
5 ECO Start/control unit 5 A No. Consumer Fuse
rating EGS (electronic gearbox
control) 10 A
6 All-wheel drive control
unit 5 A
Auxiliary oil pump 10 A
7 ESM (electronic selector
module) 10 A
8 Loading tailgate/tipper
vehicle
PARKTRONIC
6 10 A
9 Rear compartment air
conditioning, compres-
sor clutch, disengagea-
ble reverse warning
device 7.5 A
6
Vehicles with code XM0. Fuses and relays
