Engine
Check Engine warning lamp .......... .327
Display message ............................ 300
ECO start/stop function ................ 162
Engine number ............................... 447
Irregular running ............................ 167
Jump-starting ................................. 391
Starting problems .......................... 167
Starting the engine with the
SmartKey ....................................... 160
Starting with KEYLESS-GO ............. 160
Switching off .................................. 183
Tow-starting (vehicle) ..................... 396
Engine electronics
Problem (malfunction) ................... 167
Engine jump starting
see Jump starting (engine)
Engine oil
Adding .......................................... .368
Additives ........................................ 453
Checking the oil level ..................... 367
Checking the oil level using the
dipstick .......................................... 367
Display message ............................ 302
Filling capacity ............................... 452
Notes about oil grades ................... 452
Notes on oil level/consumption .... 367
Temperature (on-board com-
puter) ............................................. 281
Viscosity ........................................ 453
ESP ®
(Electronic Stability Pro-
gram) AMG menu (on-board computer) ... 281
Characteristics ................................. 73
Deactivating/activating ................... 73
Display message ............................ 285
ETS/4ETS ........................................ 72
Function/notes ................................ 72
General notes .................................. 72
Important safety information ........... 73
Trailer stabilization ........................... 74
Warning lamp ................................. 323
ETS/4ETS (Electronic Traction Sys-
tem) ...................................................... 72
Exhaust check ................................... 186
Exhaust pipe (cleaning instruc-
tions) ................................................. .376 Exterior lighting
see Lights
Exterior mirrors
Adjusting ....................................... 114
Dipping (automatic) ....................... 115
Folding in/out (automatically) ....... 115
Folding in/out (electrically) ........... 115
Folding in when locking (on-board computer) ...................................... 280
Out of position (troubleshooting) ... 115
Setting ........................................... 115
Storing settings (memory func-
tion) ............................................... 116
Storing the parking position .......... 116
Eyeglasses compartment ................. 336 F
Filler cap see Fuel filler flap
Flat tire
MOExtended tire s.......................... 383
Preparing the vehicle ..................... 383
TIREFIT kit ...................................... 384
see Emergency spare wheel
Floormats ........................................... 364
Folding the rear bench seat for-
wards/back ....................................... 337
Fording Off-road ......................................... 190
On flooded roads ........................... 190
Fuel
Additives ........................................ 449
Consumption statistics .................. 269
Displaying the current consump-
tion ................................................ 270
Displaying the range ...................... 270
Driving tips .................................... 186
Flexible fuel vehicles ...................... 450
Fuel gaug e....................................... 35
Grade (gasoline )............................ 448
Important safety notes .................. 448
Low outside temperature s............. 450
Premium-grade unleaded gaso-
line ................................................. 448
Problem (malfunction) ................... 180
Quality (diesel )............................... 449 Index
11

Refuelin
g ........................................ 177
Tank content/reserv e fuel .............448
Fuel filler flap
Opening ......................................... 179
Fuel filter (display message) ............ 303
Fuel level Calling up the range (on-board
computer) ...................................... 270
Fuel tank
Capacity ........................................ 448
Problem (malfunction) ................... 180
Fuses
Allocation chart ............................ .396
Before changing ............................ .396
Dashboard fuse box ....................... 397
Fuse box in the engine compart-
ment .............................................. 397
Fuse box under rear bench sea t.... 398
Important safety notes .................. 396 G
Garage door opener Clearing the memory ..................... 363
General notes ................................ 360
Important safety notes .................. 361
Opening/closing the garage doo r..3 63
Programming (button in the rear-
view mirror) ................................... 361
Gear indicator (on-board com-
puter) ................................................. .281
Genuine parts ...................................... 24
Glove box .......................................... .335
GTW (Gross Trailer Weight) (defini-
tion) .................................................... 421 H
Handbrake see Parking brake
Hazard warning lamps ......................124
Headlamps Cleaning system (function) ............ 125
Fogging up ..................................... 127
see Automatic headlamp mode
Head restraints
Adjusting ....................................... 106
Adjusting (electrically) ................... 107 Adjusting (manually) .....................
.107
Adjusting (rear) .............................. 108
Installing/removing (rear) .............. 108
Luxury ............................................ 107
Heating
see Climate control
High-beam headlamps
Adaptive Highbeam Assist ............. 126
Changing bulbs .............................. 131
Display message ............................ 298
Switching on/off ........................... 124
Hill start assist .................................. 161
HOLD function Deactivating ................................... 211
Display message ............................ 307
Function/notes ............................ .210
Hood
Closing .......................................... .367
Display message ............................ 316
Important safety notes .................. 366
Opening ......................................... 366
Horn ...................................................... 34
Hydroplaning ..................................... 190 I
Ignition lock see Key positions
Immobilizer .......................................... 77
Indicator lamps see Warning and indicator lamps
Indicators
see Turn signals
Insect protection on the radiator .... 367
Instrument cluster Overview .......................................... 35
Warning and indicator lamps ........... 36
Instrument cluster lighting .............. 266
Interior lighting Automatic control .......................... 128
Delayed switch-off (on-board
computer) ...................................... 279
Emergency lighting ........................ 129
Manual control ............................... 128
Overview ........................................ 127
Reading lamp ................................. 127 12
Index

In the Instrument cluster .................35
Segments ...................................... 267
Selecting the unit of measure-
ment .............................................. 277
see Instrument cluster
Standing lamps
Changing bulb s.............................. 131
Display message ............................ 299
Switching on/of f........................... 123
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 159
STEER CONTROL .................................. 77
Steering (display message) .............. 316
Steering wheel Adjusting (electrically) ................... 112
Adjusting (manually) ...................... 111
Button overview ............................... 37
Buttons (on-board computer) ......... 267
Cleaning ......................................... 378
Important safety notes .................. 111
Paddle shifters ............................... 172
Steering wheel heating .................. 112
Storing settings (memory func-
tion) ............................................... 116
Steering wheel heating
Problem (malfunction) ................... 113
Switching on/of f........................... 112
Steering wheel paddle shifters ........ 172
Stopwatch (RACETIMER) ................... 282
Stowage areas ................................... 334
Stowage compartments Armrest (under) ............................. 336
Center console .............................. 336
Center console (rear) ..................... 336
Cup holders ................................... 345
Eyeglasses compartment ............... 336
Glove box ....................................... 335
Important safety information ......... 335
Stowage net ................................... 337
Stowage net ....................................... 337
Summer tires ..................................... 402
Sun visor ............................................ 347
Surround lighting (on-board com-
puter) .................................................. 278 Suspension tuning
AMG adaptive sport suspension
system ........................................... 216
SETUP (on-board computer) .......... 281
SUV
(Sport Utility Vehicle) ....................... 27
Switching air-recirculation mode
on/off ................................................. 151 T
Tachometer ........................................ 267
Tailgate Display message ............................ 316
Emergency unlocking ....................... 93
Important safety notes .................... 89
Limiting the opening angle ............... 93
Opening/closing (automatically
from inside) ...................................... 92
Opening/closing (automatically
from outside) ................................... 91
Opening/closing (from outside) ....... 90
Opening dimensions ...................... 456
Power closing .................................. 88
Tail lamps
Display message ............................ 298
Tank
see Fuel tank
Tank content
Fuel gauge ....................................... 35
Technical data
Capacities ...................................... 447
Emergency spare wheel ................. 443
Information .................................... 446
Tires/wheels ................................. 428
Trailer load s................................... 460
Vehicle data ................................... 456
TELEAID
Call priority .................................... 356
Downloading destinations
(COMAND) ..................................... 356
Downloading routes ....................... 359
Emergency call .............................. 353
General notes ................................ 352
Geo fencing ................................... 360
Locating a stolen vehicle ............... 358
MB info call button ........................ 355
Remote vehicle locking .................. 358 Index
19

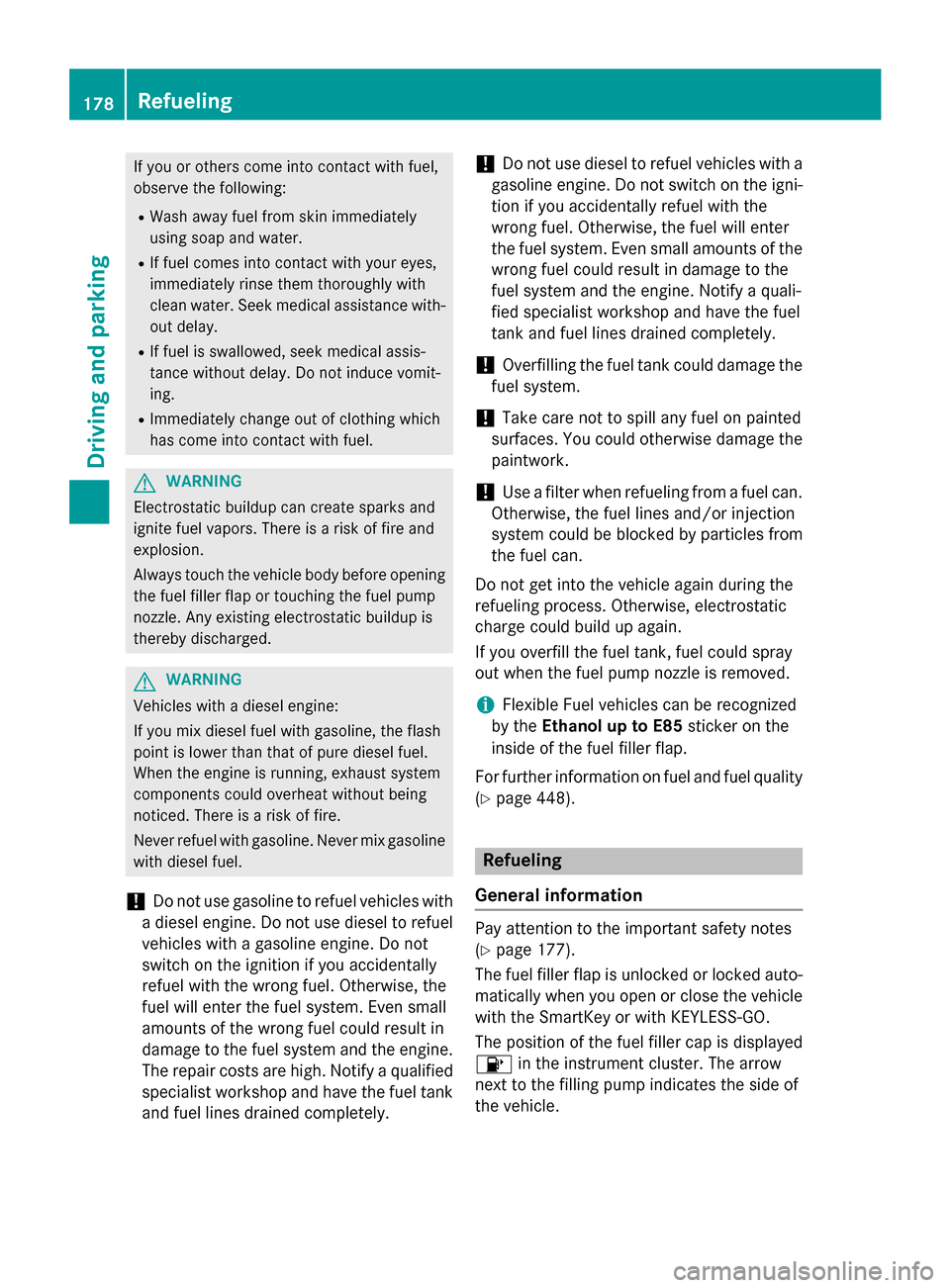

If you or others come into contact with fuel,
observe the following:
R Wash away fuel from skin immediately
using soap and water.
R If fuel comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with- out delay.
R If fuel is swallowed, seek medical assis-
tance without delay. Do not induce vomit-
ing.
R Immediately change out of clothing which
has come into contact with fuel. G
WARNING
Electrostatic buildup can create sparks and
ignite fuel vapors. There is a risk of fire and
explosion.
Always touch the vehicle body before opening the fuel filler flap or touching the fuel pump
nozzle. Any existing electrostatic buildup is
thereby discharged. G
WARNING
Vehicles with a diesel engine:
If you mix diesel fuel with gasoline, the flash
point is lower than that of pure diesel fuel.
When the engine is running, exhaust system
components could overheat without being
noticed. There is a risk of fire.
Never refuel with gasoline. Never mix gasoline with diesel fuel.
! Do not use gasoline to refuel vehicles with
a diesel engine. Do not use diesel to refuel
vehicles with a gasoline engine. Do not
switch on the ignition if you accidentally
refuel with the wrong fuel. Otherwise, the
fuel will enter the fuel system. Even small
amounts of the wrong fuel could result in
damage to the fuel system and the engine. The repair costs are high. Notify a qualified
specialist workshop and have the fuel tank and fuel lines drained completely. !
Do not use diesel to refuel vehicles with a
gasoline engine. Do not switch on the igni-
tion if you accidentally refuel with the
wrong fuel. Otherwise, the fuel will enter
the fuel system. Even small amounts of the wrong fuel could result in damage to the
fuel system and the engine. Notify a quali-
fied specialist workshop and have the fuel
tank and fuel lines drained completely.
! Overfilling the fuel tank could damage the
fuel system.
! Take care not to spill any fuel on painted
surfaces. You could otherwise damage the
paintwork.
! Use a filter when refueling from a fuel can.
Otherwise, the fuel lines and/or injection
system could be blocked by particles from
the fuel can.
Do not get into the vehicle again during the
refueling process. Otherwise, electrostatic
charge could build up again.
If you overfill the fuel tank, fuel could spray
out when the fuel pump nozzle is removed.
i Flexible Fuel vehicles can be recognized
by the Ethanol up to E85 sticker on the
inside of the fuel filler flap.
For further information on fuel and fuel quality
(Y page 448). Refueling
General information Pay attention to the important safety notes
(Y
page 177).
The fuel filler flap is unlocked or locked auto-
matically when you open or close the vehicle
with the SmartKey or with KEYLESS-GO.
The position of the fuel filler cap is displayed
00B6 in the instrument cluster. The arrow
next to the filling pump indicates the side of
the vehicle. 178
RefuelingDriving and parking

Opening the fuel filler flap
0043
To open the fuel filler flap
0044 To insert the fuel filler cap
0087 Fuel type to be used
0085 Tire pressure table
X Switch the engine off.
X Remove the SmartKey from the ignition
lock.
X KEYLESS-GO: open the driver’s door.
This corresponds to key position 0: "key
removed".
The driver’s door can be closed again.
X Press the fuel filler flap in the direction of
arrow 0043.
The fuel filler flap swings up.
X Turn the fuel filler flap counter-clockwise
and remove it.
X Insert the fuel filler cap into the holder
bracket on the inside of filler flap 0044.
X Completely insert the filler neck of the fuel
pump nozzle into the tank, hook in place
and refuel.
X Only fill the tank until the pump nozzle
switches off.
i Vehicles with a diesel engine: the filler
neck is designed for refueling at diesel fill-
ing pumps.
i Do not add any more fuel after the pump
stops filling for the first time. Otherwise,
fuel may leak out. Closing the fuel filler flap X
Replace the cap on the filler neck and turn
clockwise until it engages audibly.
X Close the fuel filler flap.
i Close the fuel filler flap before locking the
vehicle.
i If you are driving with the fuel filler cap
open, the 00B6reserve fuel warning lamp
flashes.
In addition, the 00B9Check Engine warning
lamp may light up (Y page 327).
A message appears in the multifunction
display (Y page 302).
For further information on warning and indi-
cator lamps in the instrument cluster, see
(Y page 327). Refueling
179Driving and parking Z

Important safety notes on the refilling
procedure DEF is a water-soluble fluid for the exhaust
gas aftertreatment of diesel engines. It is:
R not poisonous
R colorless and odorless
R not flammable
When you open the DEF container, small
amounts of ammonia vapor may be released. Ammonia vapors have a pungent odor and are
particularly irritating to the skin, to mucous
membranes and to the eyes. You may expe-
rience a burning sensation in your eyes, nose and throat. Coughing and watering of the
eyes are possible.
Do not inhale ammonia vapors. Fill the DEF
tank only in well-ventilated areas.
DEF must not come into contact with your
skin, eyes or clothing and must not be swal-
lowed. Keep DEF away from children.
If you or other persons come into contact with
DEF, observe the following:
R Rinse DEF from your skin immediately with
soap and water.
R If DEF comes into contact with your eyes,
immediately rinse them thoroughly with
clean water. Seek medical assistance with-
out delay.
R If DEF has been swallowed, rinse your
mouth out immediately. Drink plenty of
water. Seek medical assistance without
delay.
R Change out of clothing contaminated with
DEF immediately.
! Only use DEF in accordance with
ISO 22241. Do not mix any additives with
DEF, and do not dilute DEF with water. This
may destroy the BlueTEC exhaust gas after- treatment system.
! The vehicle must be parked on level
ground to fill the DEF tank. The DEF tank
can only be filled as intended with the vehi-
cle parked on a level surface. This avoids
false level readings. Filling the tank is not permitted if the vehicle is not parked on a
level surface. There is a danger of overfill-
ing, which could result in damage to com-
ponents of the BlueTEC exhaust gas after-
treatment.
! Rinse surfaces that have come into con-
tact with DEF immediately with water or
remove DEF using a damp cloth and cold
water. If the DEF has already crystallized,
use a sponge and cold water to clean it. DEF
residues crystallize after time and contam- inate the affected surfaces.
! DEF is not a fuel additive and must not be
added to the fuel tank. If DEF is added to
the fuel tank, this can lead to engine dam-
age.
For further information on DEF, see
(Y page 451).
You will find further information on DEF in the printed Operator's Manual under "Technical
data".
Opening the DEF filler cap The fuel filler flap is unlocked or locked auto-
matically when you open or close the vehicle
with the SmartKey or with KEYLESS-GO.
X Switch the ignition off.
X Press the fuel filler flap in the direction of
arrow 0043.
The fuel filler flap swings up.
X Turn blue DEF filler cap 0044counter-clock-
wise and remove it.
DEF filler cap 0044is secured with a plastic
strip. Refueling
181Driving and pa rking Z

DEF refill bottle
!
Only screw on the DEF refill bottle hand-
tight. It could otherwise be damaged. X
Unscrew the protective cap from DEF refill
bottle 0043.
X Place DEF refill bottle 0043on the filler neck
as shown and screw it on clockwise until
hand-tight.
X Press DEF refill bottle 0043towards the filler
neck.
The DEF tank is filled. This may take up to
one minute.
i When DEF refill bottle
0043is no longer
pressed, filling stops and the bottle may be
taken off again after being only partially
emptied.
X Release DEF refill bottle 0043.
X Turn DEF refill bottle 0043counter-clockwise
and remove it.
X Screw the protective cap onto DEF refill
bottle 0043again.
DEF refill bottles can be obtained at many gas
stations or at an authorized Mercedes-Benz
Center. Refill bottles without a threaded cap
do not provide overfill protection. DEF may
leak if overfilled. Mercedes Benz offers spe-
cial refill bottles with a threaded seal. These
are available at any authorized Mercedes-
Benz Center. Closing the DEF filler cap
X
Mount DEF filler cap 0044on the filler neck
and turn it clockwise.
X To close the fuel filler flap, press it in the
direction of arrow 0043.
X Drive faster than 10 mph (16 km/h).
The Check Additive See Operator's
Check Additive See Operator's
Manual Manual message goes out after approx-
imately one minute.
i If the
Check Additive See Opera‐
Check Additive See Opera‐
tor's Manual
tor's Manual message continues to be
shown in the multifunction display, you
must add more DEF. Parking
Important safety notes
G
WARNING
Flammable material such as leaves, grass or
twigs may ignite if they come into contact with hot parts of the exhaust system or exhaust
gas flow. There is a risk of fire.
Park the vehicle so that no flammable mate-
rials come into contact with parts of the vehi-cle which are hot. Take particular care not to
park on dry grassland or harvested grain
fields. G
WARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could affect, for example, the power steering and the brake
boosting effect. You will require considerably 182
Pa
rkingDriving an d parking

Check the engine oil level. The engine oil
warning lamp warning must not be ignored. Continuing the journey while the symbol is
displayed could lead to engine damage.
X Engine oil level: check the engine oil level
and add oil if necessary.
When driving on steep gradients, the
engine oil level must be sufficiently high to
ensure a correct oil supply in the vehicle.
X DEF tank (BlueTEC vehicles): check the
level and top up if necessary (Y page 180).
X Tire-changing tool kit: check that the jack
is working and make sure you have the lug
wrench, a robust tow cable and a folding
spade in the vehicle.
X Wheels and tires: check the tire tread
depth and tire pressure.
X Check for damage and remove any foreign
objects, e.g. small stones, from the
wheels/tires.
X Replace any missing valve caps.
X Replace dented or damaged wheels.
X Rims: dented or bent rims can result in a
loss of tire pressure and damage the tire
bead. Therefore, check your rims before
driving off-road and replace them as
required.
Checklist after driving off-road !
If you detect damage to the vehicle after
driving off-road, have the vehicle checked
immediately at a qualified specialist work-
shop.
X Vehicles with the ON&OFFROAD pack-
age: activate the on-road program
(Y page 251).
X Deactivate the LOW RANGE off-road gear
(Y page 253).
X Deactivate DSR (Y page 250).
X Vehicles with the AIRMATIC package:
lower the vehicle to a ride height suitable
for the road conditions, e.g. to the high-
way/high-speed level. X
Clean the headlamps and rear lights and
check for damage.
X Clean the front and rear license plates.
X Clean the wheels/tires with a water jet and
remove any foreign objects.
X Clean the wheels, wheel housings and the
vehicle underside with a water jet; check
for any foreign objects and damage.
X Check whether twigs or other parts of
plants have become trapped. These
increase the risk of fire and can damage
fuel pipes, brake hoses or the rubber bel-
lows of the axle joints and propeller shafts.
X After the trip, examine without fail the
entire undercarriage, wheels, tires, brakes,
bodywork structure, steering, chassis and
exhaust system for damage.
X After driving for extended periods across
sand, mud, gravel, water or in similarly dirty
conditions, have the brake discs, wheels,
brake pads/linings and axle joints checked
and cleaned.
X If you detect strong vibrations after off-road
travel, check for foreign objects in the
wheels and drive train and remove them if
necessary. Foreign objects can disturb the
balance and cause vibrations.
Driving over rough terrain places greater
demands on your vehicle than driving on nor-
mal roads. After driving off-road, check the
vehicle. This allows you to detect damage
promptly and reduce the risk of an accident to
yourself and other road users.
Driving on sand Observe the following rules when driving on
sand:
R Vehicles with the ON&OFFROAD pack-
age: select off-road program 1
(Y page 251).
R Vehicles with the AIRMATIC package:
select a raised vehicle level.
R Avoid high engine speeds. Driving tips
193Driving and pa rking Z
