2015 MERCEDES-BENZ M-Class climat control

light sensor activates the low-beam head-
lamps.
If you are driving at speeds above approx-
imately 16 mph (25 km/h):
The headlamp range is set automatically
depending on the distance between the
vehicle and other road users.
If you are driving at speeds above approx-
imately 19 mph (30 km/h) and no other
road users have been detected:
The high-beam headlamps are switched on
automatically. The 0057indicator lamp in
the instrument cluster also lights up.
If you are driving at speeds below approx-
imately 16 mph (25 km/h) or other road
users have been detected or the roads are adequately lit:
The high-beam headlamps are switched off
automatically. The 0057indicator lamp in
the instrument cluster goes out. The 00CE
indicator lamp in the multifunction display
remains lit.
X To switch off: move the combination
switch back to its normal position or move the light switch to another position.
The 00CE indicator lamp in the multifunc-
tion display goes out. Headlamps fogged up on the inside
Certain climatic and physical conditions may
cause moisture to form in the headlamp. This moisture does not affect the functionality of
the headlamp. Interior lighting
Overview of interior lighting
Overhead control panel
0043
003D To switch the left-hand front reading
lamp on/off
0044 004A To switch the front interior lighting
on
0087 0043 To switch the on/off
0085 0033 To switch the front interior lighting/
automatic interior lighting control off
0083 003D To switch the right-hand front read-
ing lamp on/off
0084 To switch the automatic interior lighting
control on Interior lighting control
General notes In order to prevent the vehicle's battery from
discharging, the interior lighting functions are
automatically deactivated after some time
except for when the SmartKey is in position 2
in the ignition lock.
The color and brightness of the ambient light- ing can be adjusted using the on-board com-
puter (Y page 278). Interior lighting
127Lights and windshield wipers Z

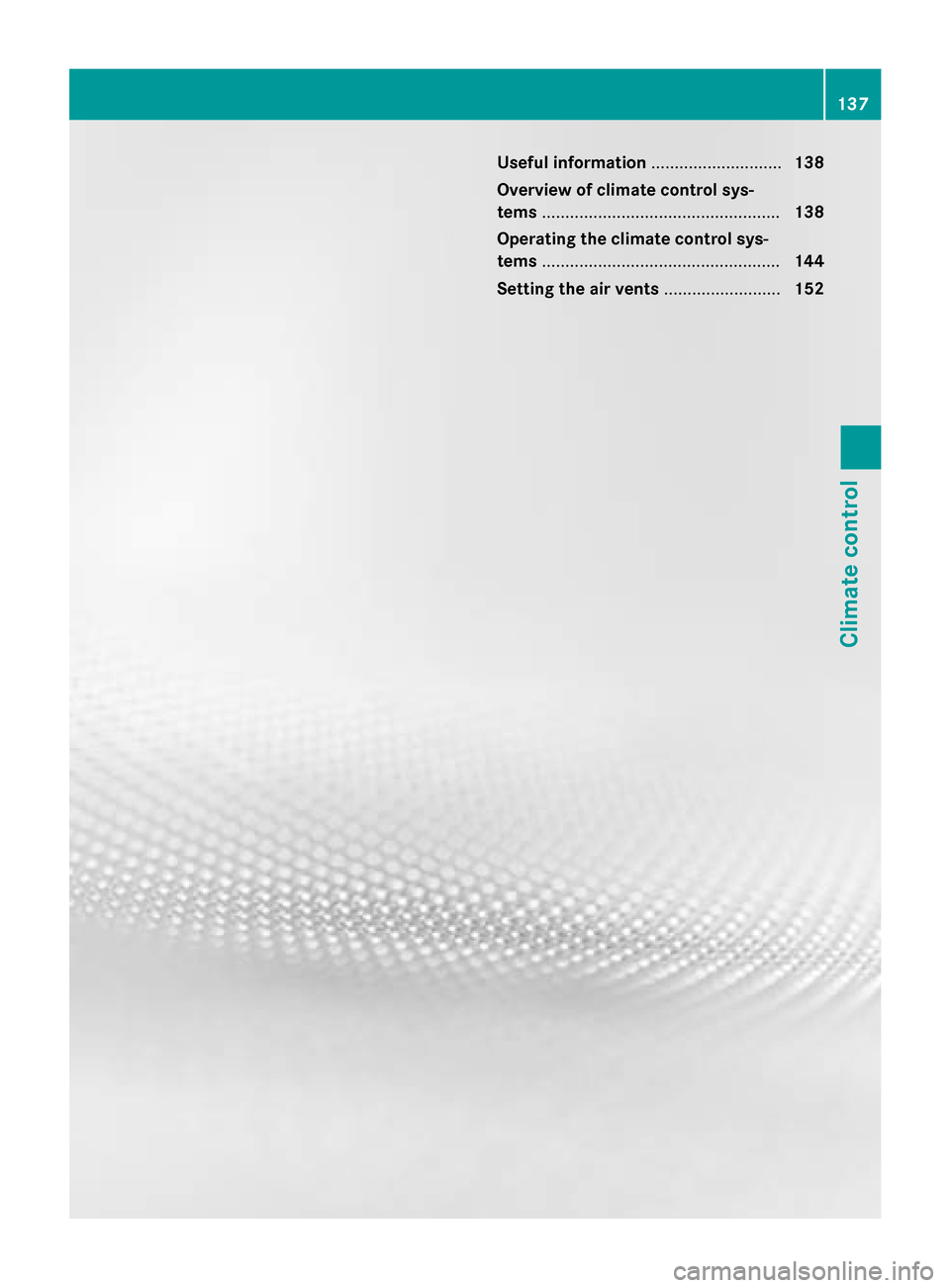

Useful information
............................138
Overview of climate control sys-
tems ................................................... 138
Operating the climate control sys-
tems ................................................... 144
Setting the air vents .........................152 137Climate control

Useful information
i This Operator's Manual describes all
models and all standard and optional equip- ment of your vehicle available at the time of
publication of the Operator's Manual.
Country-specific differences are possible.
Please note that your vehicle may not be
equipped with all features described. This
also applies to safety-related systems and
functions.
i Read the information on qualified special-
ist workshops (Y page 29). Overview of climate control systems
General notes
Observe the settings recommended on the
following pages. The windows could other-
wise fog up.
To prevent the windows from fogging up:
R switch off climate control only briefly
R switch on air-recirculation mode only
briefly
R switch on the cooling with air dehumidifi-
cation function
R switch on the defrost windshield function
briefly, if required
Climate control regulates the temperature
and the humidity in the vehicle interior and
filters undesirable substances out of the air.
Climate control can only be operated when
the engine is running. Optimum operation is
only achieved with the side windows and roof closed.
The residual heat function can only be acti-
vated or deactivated with the ignition
switched off (Y page 151).
i Ventilate the vehicle for a brief period
during warm weather, e.g. using the con-
venience opening feature (Y page 95).
This will speed up the cooling process and
the desired interior temperature will be
reached more quickly. i
The integrated filter filters out most par-
ticles of dust and soot and completely fil-
ters out pollen. It also reduces gaseous pol-
lutants and odors. A clogged filter reduces the amount of air supplied to the vehicle
interior. For this reason, you should alwaysobserve the interval for replacing the filter,which is specified in the Maintenance
Booklet. As it depends on environmental
conditions, e.g. heavy air pollution, the
interval may be shorter than stated in the
Maintenance Booklet.
i It is possible that the residual heat func-
tion may be activated automatically an hour
after the SmartKey has been removed in
order to dry the air-conditioning system.
The vehicle is then ventilated for 30
minutes. 138
Overview of climate control systemsClimate control

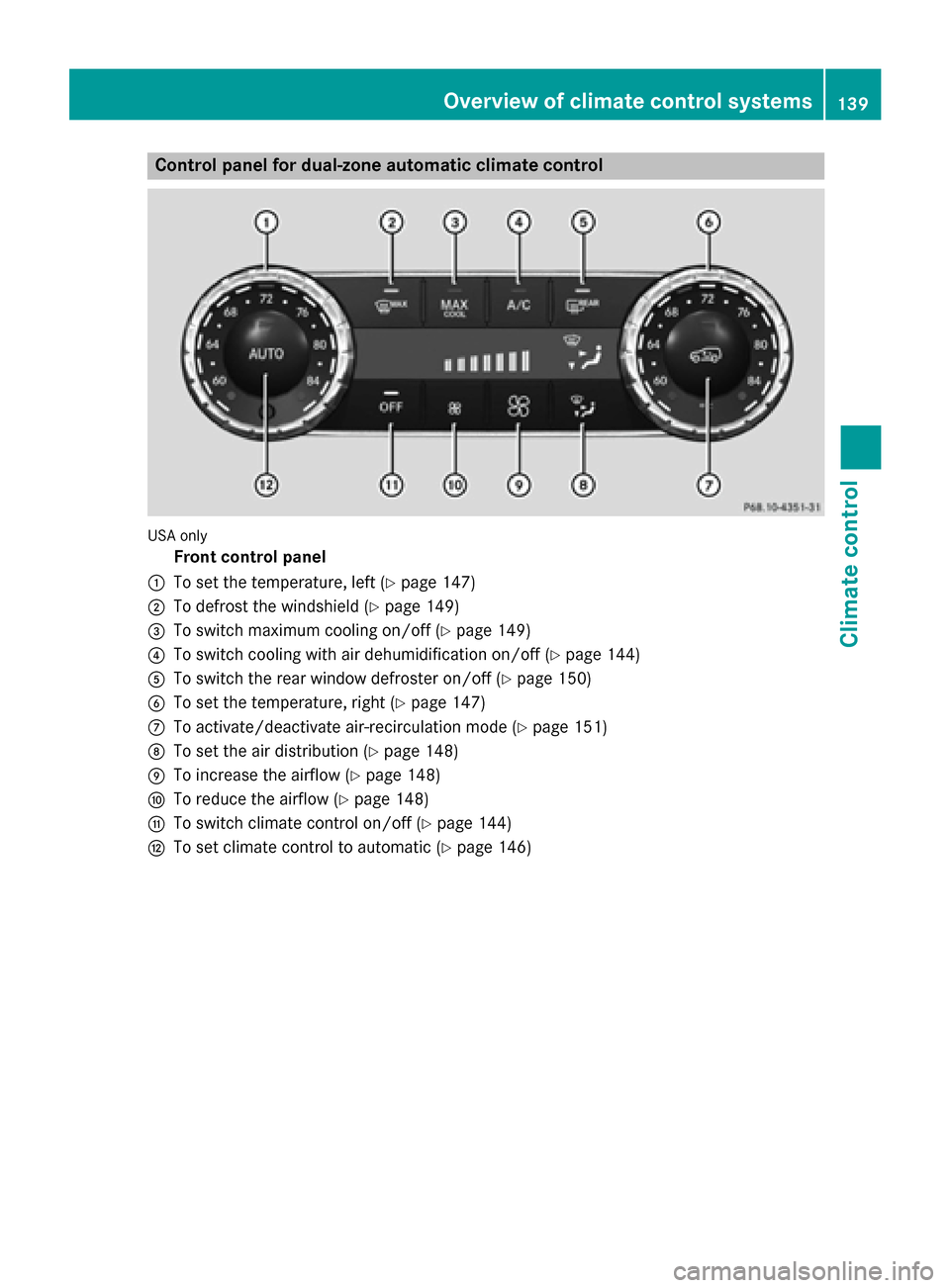

Control panel for dual-zone automatic climate control
USA only
Front control panel
0043 To set the temperature, left (Y page 147)
0044 To defrost the windshield (Y page 149)
0087 To switch maximum cooling on/off (Y page 149)
0085 To switch cooling with air dehumidification on/off (Y page 144)
0083 To switch the rear window defroster on/off (Y page 150)
0084 To set the temperature, right (Y page 147)
006B To activate/deactivate air-recirculation mode (Y page 151)
006C To set the air distribution (Y page 148)
006D To increase the airflow (Y page 148)
006E To reduce the airflow (Y page 148)
006F To switch climate control on/off (Y page 144)
0070 To set climate control to automatic (Y page 146) Overview of climate control systems
139Climate control

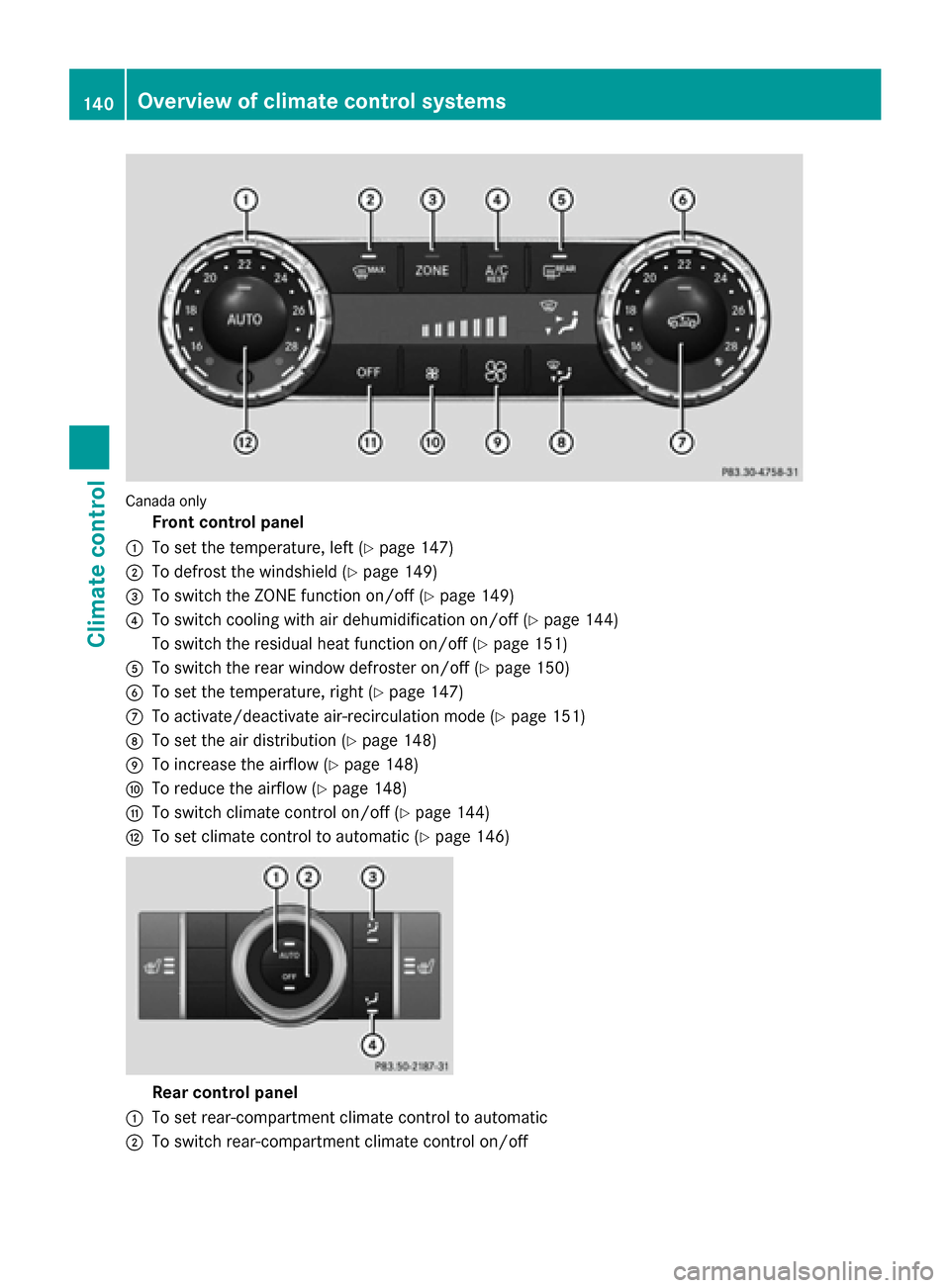

Canada only
Front control panel
0043 To set the temperature, left (Y page 147)
0044 To defrost the windshield (Y page 149)
0087 To switch the ZONE function on/off (Y page 149)
0085 To switch cooling with air dehumidification on/off (Y page 144)
To switch the residual heat function on/off (Y page 151)
0083 To switch the rear window defroster on/off (Y page 150)
0084 To set the temperature, right (Y page 147)
006B To activate/deactivate air-recirculation mode (Y page 151)
006C To set the air distribution (Y page 148)
006D To increase the airflow (Y page 148)
006E To reduce the airflow (Y page 148)
006F To switch climate control on/off (Y page 144)
0070 To set climate control to automatic (Y page 146)Rear control panel
0043 To set rear-compartment climate control to automatic
0044 To switch rear-compartment climate control on/off 140
Overview of climate control systemsClimate control

0087
To direct the airflow through the rear air vents
0085 To direct the airflow through the footwell vents Optimum use of dual-zone automatic
climate control
The following contains notes and recommen-
dations on optimum use of the dual-zone
automatic climate control.
R Activate climate control using the 0058and
005A/0056 buttons. The indicator lamps in
the 0058 and005A/0056 buttons light up.
R Set the temperature to 72 ‡ (22 †).
R Only use the "Windshield defrosting" func-
tion briefly until the windshield is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odors or
when in a tunnel. The windows could oth-
erwise fog up, since no fresh air is drawn
into the vehicle in air-recirculation mode.
R Use the ZONE function to adopt the tem-
perature settings on the driver's side for
the front-passenger side as well. The indi-
cator lamp above the 00D6button goes
out.
R Vehicles with COMAND: if you change the
settings of the climate control system, the
climate status display appears for approx-
imately three seconds at the bottom of the
screen in the COMAND display. See also
the separate COMAND operating instruc-
tions. You will see the current settings of
the various climate control functions.
During automatic engine switch-off, the cli-
mate control system only operates at a
reduced capacity. If you require the full cli-
mate control output, you can switch off the
ECO start/stop function by pressing the ECO
button (Y page 163). Overview of climate control systems
141Climate control

Control panel for 3-zone automatic climate control
USA only
Front control panel
0043 To set the temperature, left (Y page 147)
0044 To defrost the windshield (Y page 149)
0087 To switch maximum cooling on/off (Y page 149)
0085 To switch cooling with air dehumidification on/off (Y page 144)
0083 To switch the rear window defroster on/off (Y page 150)
0084 To set the temperature, right (Y page 147)
006B To switch the ZONE function on/off (Y page 149)
006C To switch climate control on/off (Y page 144)
006D To set the air distribution (Y page 148)
006E To increase the airflow (Y page 148)
006F To reduce the airflow (Y page 148)
0070 Display
0071 To adjust the climate mode settings (Y page 147)
0072 To activate/deactivate air-recirculation mode (Y page 151)
0073 To set climate control to automatic (Y page 146)
Rear control panel
0074 To increase the airflow (Y page 148)
0075 To set the temperature (Y page 147)
0076 To set rear-compartment climate control to automatic (Y page 146)
0077 To direct the airflow through the rear air vents (Y page 148)
0078 To direct the airflow through the footwell vents (Y page 148)
0079 To switch rear-compartment climate control on/off (Y page 144)
007A To reduce the airflow (Y page 148)142
Overview of climate control systemsClimate control

Canada only
Front control panel
0043 To set the temperature, left (Y page 147)
0044 To defrost the windshield (Y page 149)
0087 To switch the residual heat function on/off (Y page 151)
0085 To switch cooling with air dehumidification on/off (Y page 144)
0083 To switch the rear window defroster on/off (Y page 150)
0084 To set the temperature, right (Y page 147)
006B To switch the ZONE function on/off (Y page 149)
006C To switch climate control on/off (Y page 144)
006D To set the air distribution (Y page 148)
006E To increase the airflow (Y page 148)
006F To reduce the airflow (Y page 148)
0070 Display
0071 To adjust the climate mode settings (Y page 147)
0072 To activate/deactivate air-recirculation mode (Y page 151)
0073 To set climate control to automatic (Y page 146)
Rear control panel
0074 To increase the airflow (Y page 148)
0075 To set the temperature (Y page 147)
0076 To set rear-compartment climate control to automatic (Y page 146)
0077 To direct the airflow through the rear air vents (Y page 148)
0078 To direct the airflow through the footwell vents (Y page 148)
0079 To switch rear-compartment climate control on/off (Y page 144)
007A To reduce the airflow (Y page 148) Overview of climate control systems
143Climate control
