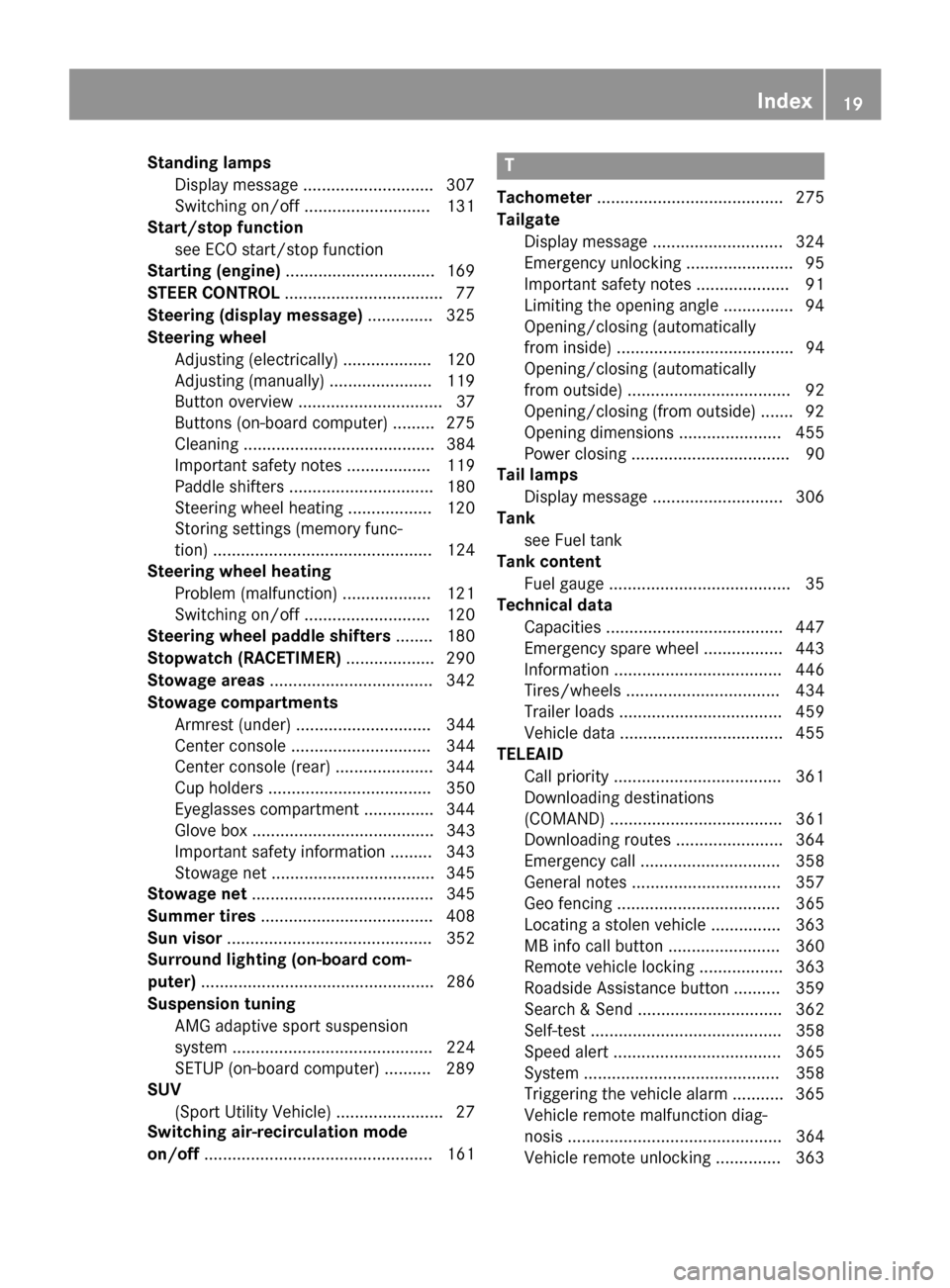

Standing lamps
Display message ............................3 07
Switching on/off ........................... 131
Start/stop function
see ECO start/stop function
Starting (engine) ................................ 169
STEER CONTROL .................................. 77
Steering (display message) .............. 325
Steering wheel Adjusting (electrically) ................... 120
Adjusting (manually) ...................... 119
Button overview ............................... 37
Buttons (on-board computer) ......... 275
Cleaning ......................................... 384
Important safety notes .................. 119
Paddle shifters ............................... 180
Steering wheel heating .................. 120
Storing settings (memory func-
tion) ............................................... 124
Steering wheel heating
Problem (malfunction) ................... 121
Switching on/of f........................... 120
Steering wheel paddle shifters ........ 180
Stopwatch (RACETIMER) ................... 290
Stowage areas ................................... 342
Stowage compartments Armrest (under) ............................. 344
Center console .............................. 344
Center console (rear) ..................... 344
Cup holders ................................... 350
Eyeglasses compartment ............... 344
Glove box ....................................... 343
Important safety information ......... 343
Stowage net ................................... 345
Stowage net ....................................... 345
Summer tires ..................................... 408
Sun visor ............................................ 352
Surround lighting (on-board com-
puter) .................................................. 286
Suspension tuning AMG adaptive sport suspension
system ........................................... 224
SETUP (on-board computer) .......... 289
SUV
(Sport Utility Vehicle) ....................... 27
Switching air-recirculation mode
on/off ................................................. 161 T
Tachometer ........................................ 275
Tailgate Display message ............................ 324
Emergency unlocking ....................... 95
Important safety notes .................... 91
Limiting the opening angle ............... 94
Opening/closing (automatically
from inside) ...................................... 94
Opening/closing (automatically
from outside) ................................... 92
Opening/closing (from outside) ....... 92
Opening dimensions ...................... 455
Power closing .................................. 90
Tail lamps
Display message ............................ 306
Tank
see Fuel tank
Tank content
Fuel gauge ....................................... 35
Technical data
Capacities ...................................... 447
Emergency spare wheel ................. 443
Information .................................... 446
Tires/wheels ................................. 434
Trailer load s................................... 459
Vehicle data ................................... 455
TELEAID
Call priority .................................... 361
Downloading destinations
(COMAND) ..................................... 361
Downloading routes ....................... 364
Emergency call .............................. 358
General notes ................................ 357
Geo fencing ................................... 365
Locating a stolen vehicle ............... 363
MB info call button ........................ 360
Remote vehicle locking .................. 363
Roadside Assistance button .......... 359
Search & Send ............................... 362
Self-test ......................................... 358
Speed alert .................................... 365
System .......................................... 358
Triggering the vehicle alarm ........... 365
Vehicle remote malfunction diag-
nosis .............................................. 364
Vehicle remote unlocking .............. 363 Index
19

Replacin
g ...................................... .429
Service life ..................................... 408
Sidewall (definition) ....................... 428
Speed rating (definition) ................ 427
Storing .......................................... .430
Structure and characteristics
(definition) ..................................... 426
Temperature .................................. 422
TIN (Tire Identification Number)
(definition) ..................................... 428
Tire bead (definition) ..................... .428
Tire pressure (definition) ................ 428
Tire pressures (recommended) ...... 427
Tire size (data) ............................... 434
Tire size designation, load-bearing capacity, speed rating .................... 423
Tire tread ....................................... 407
Tire tread (definition) ..................... 428
Total load limit (definition) ............. 429
Traction ......................................... 422
Traction (definition) ....................... 428
Tread wea r..................................... 422
TWR (permissible trailer drawbar
noseweight) (definition) ................. 428
Uniform Tire Quality Grading
Standards ...................................... 421
Uniform Tire Quality Grading
Standards (definition) .................... 427
Wear indicator (definition) ............. 429
Wheel and tire combination ........... 436
Wheel rim (definition) .................... 427
see Flat tire
Tool
see Vehicle tool kit
Top Tether ............................................ 64
Towing a trailer Active Parking Assist ..................... 232
Axle load, permissibl e.................... 459
Cleaning the trailer tow hitch ......... 382
Coupling up a traile r...................... 267
Decoupling a traile r....................... 269
Driving tips .................................... 265
ESP ®
(Electronic Stability Pro-
gram) ............................................... 75
Important safety notes .................. 264
Installing the ball coupling ............. 266
Mounting dimensions .................... 458 Power supply ................................. 271
Pulling away with a traile
r.............. 171
Removing the ball coupling ............ 270
Storing the ball coupling ................ 270
Trailer drive progra m..................... 257
Trailer load s................................... 459
Towing away
Important safety guidelines ........... 399
Installing the towing eye ................ 400
Removing the towing eye ............... 401
With both axles on the ground ....... 401
With the rear axle raised ................ 401
Tow-starting
Emergency engine starting ............ 402
Important safety notes .................. 399
Trailer coupling
see Towing a trailer
Trailer loads and drawbar nose-
weights ............................................... 270
Trailer towing Active Blind Spot Assist ................. 252
Active Lane Keeping Assist ............ 255
Blind Spot Assist ............................ 247
PARKTRONIC ................................. 227
Permissible trailer loads and
drawbar noseweights ..................... 270
Transfer case ..................................... 185
Transmission see Automatic transmission
Transmission position display ......... 176
Transmission position display
(DIRECT SELECT lever) ...................... 176
Transporting the vehicle .................. 401
Traveling uphill Brow of hill ..................................... 203
Driving downhill ............................. 203
Maximum gradient-climbing capa-
bility ............................................... 203
Trim pieces (cleaning instruc-
tions) .................................................. 384
Trip computer (on-board com-
puter) .................................................. 277
Trip odometer Calling up ....................................... 277
Resetting (on-board computer) ...... 278
Trunk
see Tailgate Index
21

Turn signals
Display message ............................ 305
Switching on/off ........................... 131
TWR (Tongue Weight Rating) (defi-
nition) ................................................. 428
Type identification plate see Vehicle identification plate U
Unlocking Emergency unlocking ....................... 90
From inside the vehicle (central
unlocking button) ............................. 89 V
Vanity mirror (in the sun visor) ........ 352
Vehicle Correct use ...................................... 29
Data acquisition ............................... 30
Display message ............................ 323
Equipment ....................................... 25
Individual settings .......................... 285
Limited Warranty ............................. 30
Loading .......................................... 418
Locking (in an emergency) ............... 90
Locking (SmartKey) .......................... 82
Lowering ........................................ 434
Maintenance .................................... 26
Parking for a long period ................ 193
Pulling away ................................... 170
Raising ........................................... 431
Reporting problems ......................... 29
Securing from rolling away ............ 430
Towing away .................................. 399
Transporting .................................. 401
Unlocking (in an emergency) ........... 90
Unlocking (SmartKey) ...................... 82
Vehicle data ................................... 455
Vehicle battery
see Battery (vehicle)
Vehicle data ....................................... 455
Vehicle data (off-road driving) Approach/departure angle ............ 457
Fording depth ................................ 456
Maximum gradient climbing abil-
ity .................................................. 457 Vehicle dimensions
........................... 455
Vehicle emergency locking ................ 90
Vehicle identification number see VIN
Vehicle identification plate .............. 446
Vehicle level AMG adaptive sport suspension
system ........................................... 224
Vehicle level (display message) ....... 312
Vehicle maintenance see ASSYST PLUS
Vehicle tool kit .................................. 388
Video Operating the DVD ........................ .281
VIN ...................................................... 446 W
Warning and indicator lamps ABS ................................................ 329
Brakes .......................................... .328
Check Engine ................................. 335
Coolant .......................................... 336
Distance warning ........................... 338
DISTRONIC PLUS ........................... 338
ESP ®
.............................................. 331
ESP ®
OFF ....................................... 332
Overview .......................................... 36
PASSENGER AIR BAG OFF .............. .45
Reserve fuel .................................. .335
Restraint system ............................ 334
Seat belt ........................................ 327
Tire pressure monitor .................... 339
Warranty .............................................. 25
Washer fluid Display message ............................ 325
Wheel and tire combination
see Tires
Wheel bolt tightening torque ........... 434
Wheel chock ...................................... 430
Wheels Changing a wheel .......................... 429
Checking ........................................ 407
Cleaning ......................................... 380
Cleaning (warning) ......................... 430
Emergency spare wheel ................. 440
Important safety notes .................. 406 22
Index

X
Take the mechanical key out of the Smart-
Key (Y page 84).
X Insert the mechanical key into the lock of
the driver's door as far as it will go. X
Turn the mechanical key clockwise as far as
it will go to position 0047.
X Turn the mechanical key back and remove
it.
X Make sure that the doors and the tailgate
are locked.
X Insert the mechanical key into the Smart-
Key.
i If you lock the vehicle as described above,
the fuel filler flap is not locked. The anti-
theft alarm system is not armed. Cargo compartment
Important safety notes
G
WARNING
If persons, particularly children are subjected to prolonged exposure to extreme heat or
cold, there is a risk of injury, possibly even
fatal. Never leave children unattended in the
vehicle. G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning. Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
G
WARNING
If objects, luggage or loads are not secured or not secured sufficiently, they could slip, tip
over or be flung around and thereby hit vehicle
occupants. There is a risk of injury, particu-
larly in the event of sudden braking or a sud-
den change in direction.
Always store objects so that they cannot be
flung around. Secure objects, luggage or
loads against slipping or tipping before the
journey.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and
behind the tailgate.
i Tailgate opening dimensions
(Y page 455).
You should preferably place luggage or loads
in the cargo compartment. Observe the load- ing guidelines (Y page 342).
Do not leave the SmartKey in the cargo com- partment. You could otherwise lock yourself
out.
You can:
R close the tailgate manually from outside
R open and close the tailgate automatically
from outside
R open and close the tailgate automatically
from inside
R limit the opening angle of the tailgate
R unlock the tailgate from inside with the
emergency release Tailgate reversing feature
On vehicles with tailgate remote closing fea-
ture, the tailgate is equipped with automatic
obstacle recognition with a reversing feature. If a solid object blocks or restricts the tailgate
when automatically opening or closing, this Cargo compartment
91Opening and closing Z

G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and behind the tailgate.
i Tailgate opening dimensions
(Y page 455).
i Notes on the reversing feature for the tail-
gate (Y page 91).
Opening the tailgate automatically You can open the tailgate automatically with
the SmartKey or the handle in the tailgate.
X Press and hold the 0054button on the
SmartKey until the tailgate opens.
or X If the tailgate is unlocked, pull the handle
and let it go again immediately.
Closing the tailgate automatically G
WARNING
Parts of the body could become trapped dur-
ing automatic closing of the tailgate. More-
over, people, e.g. children, may be standing in the closing area or may enter the closing area
during the closing process. There is a risk of
injury.
Make sure that nobody is in the vicinity of the closing area during the closing process.
Use one of the following options to stop the
closing process:
R press the 0054button on the SmartKey.
R press the remote operating switch on the
driver's door. R
press the closing or locking button on the
tailgate.
R pull the handle on the tailgate. Closing and locking button (example: vehicle with
KEYLESS-GO)
X To close: press closing button 0043on the
tailgate.
or
X Press and hold the 0054button on the
SmartKey until the tailgate closes.
Vehicles with KEYLESS-GO: you can simulta-
neously close and lock the tailgate. X Press locking button 0044on the tailgate.
If a KEYLESS-GO key is detected outside
the vehicle, the tailgate closes and locks.
All the doors must be shut and the Smart-
Key located in the vicinity of the tailgate.
i The tailgate cannot be opened and closed
with the SmartKey if there is a SmartKey in
the ignition.
If the tailgate touches an object while clos-
ing, the closing procedure is interrupted
and the tailgate reopens.
i If a KEYLESS-GO key is detected in the
cargo compartment, the tailgate will not
lock. Cargo compartment
93Opening and closing Z

Opening/closing automatically from
inside
Important safety notes G
WARNING
Parts of the body could become trapped dur-
ing automatic closing of the tailgate. More-
over, people, e.g. children, may be standing in the closing area or may enter the closing area
during the closing process. There is a risk of
injury.
Make sure that nobody is in the vicinity of the closing area during the closing process.
Use one of the following options to stop the
closing process:
R press the 0054button on the SmartKey.
R press the remote operating switch on the
driver's door.
R press the closing or locking button on the
tailgate.
R pull the handle on the tailgate. G
WARNING
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. If the tailgate is open when the engine is running, particu-
larly if the vehicle is moving, exhaust fumes
could enter the passenger compartment.
There is a risk of poisoning.
Turn off the engine before opening the tail-
gate. Never drive with the tailgate open.
! The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and behind the tailgate.
i Tailgate opening dimensions
(Y page 455).
i Notes on the reversing feature for the tail-
gate (Y page 91). Opening and closing
You can open and close the tailgate from the
driver's seat when the vehicle is stationary
and unlocked.
X To open: pull remote operating switch 0043
for the tailgate until the tailgate opens.
X To close: turn the SmartKey to position 1
or 2in the ignition lock.
X Press remote operating switch for tail-
gate 0043until the tailgate is closed. Limiting the opening angle of the tail-
gate
Important safety notes !
Make sure there is sufficient clearance to
open the tailgate fully when setting the
opening angle. The tailgate could otherwise be damaged. Ideally, set the opening angleoutside.
Activating You can limit the opening angle of the tail-
gate. This is possible in the top half of its
opening range, up to approximately 4 in
(10 cm) before the stop.
This could be useful, for example, if there is
insufficient space above the tailgate.
X To open the tailgate: pull the handle on
the tailgate.
X To stop the opening procedure at the
desired position: press the closing button94
Cargo compartmentOpening and closing

(Y
page 92) in the tailgate or pull the handle
on the outside of the tailgate again.
X To store the position: press and hold the
closing button in the tailgate until you hear a short tone.
The opening angle limiter is activated. The
tailgate will now stop in the stored positionwhen opening.
Deactivating X
Press and hold the closing button
(Y page 92) in the tailgate until you hear
two short tones. Tailgate emergency release
Important safety notes !
The tailgate swings upwards and to the
rear when opened. Therefore, make sure
that there is sufficient clearance above and behind the tailgate.
i Tailgate opening dimensions
(Y page 455).
If the tailgate can no longer be opened from
outside the vehicle, use the emergency
release on the inside of the tailgate.
Opening X
Take the mechanical key out of the Smart-
Key (Y page 84).
X Insert mechanical key 0044into the opening
in paneling 0043. X
Turn mechanical key 004490° clockwise.
X Push mechanical key 0044in the direction of
the arrow and open the tailgate.
X Insert the mechanical key into the Smart-
Key.
i When you lock the vehicle (Y
page 90),
the cargo compartment is also locked. Side windows
Important safety notes
G
WARNING
While opening the side windows, body parts
could become trapped between the side win- dow and the door frame as the side window
moves. There is a risk of injury.
Make sure that nobody touches the side win-
dow during the opening procedure. If some-
body becomes trapped, release the switch or pull the switch to close the side window again. G
WARNING
While closing the side windows, body parts in the closing area could become trapped. There is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody
becomes trapped, release the switch or press
the switch to open the side window again. G
WARNING
If children operate the side windows they
could become trapped, particularly if they are left unsupervised. There is a risk of injury.
Activate the override feature for the rear side
windows. When leaving the vehicle, always
take the SmartKey with you and lock the vehi-
cle. Never leave children unsupervised in the
vehicle. Side window reversing feature
The side windows are equipped with an auto- matic reversing feature. If a solid object Side windows
95Opening and closing Z

R
uphill or downhill gradient in percentage
R on-road/off-road program selected
R condition of the differential lock for the
transfer case
R the LOW RANGE off-road gear is selected
R condition of the LOW RANGE off-road
gear
R the on-road trailer program is selected Towing a trailer
Important safety notes
G
WARNING
Installing an unsuitable ball coupling may
result in overloading of the trailer tow hitch
and the rear axle. This applies especially if the ball coupling in question is longer or angled
differently. This could seriously impair the
driving characteristics and the trailer can
come loose. There is a risk of an accident.
You should only ever install a ball coupling
that has the permissible dimensions and that
is designed to meet your trailer-towing
requirements. Do not modify the ball coupling
or the trailer tow hitch.
You will find the values approved by the man-
ufacturer on the vehicle identification plates
and those for the towing vehicle under "Tech- nical data" (Y page 459). G
WARNING
If the ball coupling is not installed correctly or not secured with the bolt provided and the
corresponding spring cotter, the trailer may
come loose. There is a risk of an accident.
Always install and secure the ball coupling as
described. Before every journey, ensure that
the ball coupling is secured with the bolt and
the corresponding spring cotter. G
WARNING
If you rest your foot on the brake pedal while
driving, the braking system can overheat. This increases the stopping distance and can even cause the braking system to fail. There is a
risk of an accident.
Never use the brake pedal as a footrest. Never
depress the brake pedal and the accelerator
pedal at the same time. G
WARNING
When the vehicle/trailer combination begins
to lurch, you could lose control of it. The vehi- cle/trailer combination could even rollover.
There is a risk of an accident.
On no account should you attempt to
straighten up the vehicle/trailer combination
by increasing the speed. Reduce vehicle
speed and do not countersteer. Apply the
brake as necessary.
! Depressing the brake pedal constantly
results in excessive and premature wear to
the brake pads.
Please observe the manufacturer's operating instructions for the trailer coupling if a
detachable trailer coupling is used.
Couple and uncouple the trailer carefully. If
you do not couple the trailer to the towing
vehicle correctly, the trailer could become
detached.
Make sure that the following values are not
exceeded:
R the permissible trailer drawbar noseweight
R the permissible trailer load
R the permissible rear axle load of the towing
vehicle
R the maximum permissible gross vehicle
weight of both the towing vehicle and the
trailer
The applicable permissible values, which
must not be exceeded, can be found:
R in the vehicle documents
R on the identification plates for the trailer
tow hitch and the trailer
R on the vehicle identification plate
If the values differ, the lowest value applies. 264
Towing a trailerDriving and pa
rking
