2015 MAZDA MODEL MX-5 MIATA PRHT tow

Black plate (300,1)
Parking in an Emergency
The hazard warning lights should always
be used when you stop on or near a
roadway in an emergency.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Depress the hazard warning flasher and all
the turn signals will flash.
NOTE
lThe turn signals do not work when the
hazard warning lights are on.
lCheck local regulations about the use of
hazard warning lights while the vehicle is
being towed to verify that it is not in
violation of the law.
7-2
In Case of an Emergency
Parking in an Emergency
MX-5_8EN7-EA-14E_Edition3 Page300
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (322,1)
NOTElBefore installing the battery cover, make
sure both of the cables connecting the
negative battery terminal (right side of
battery) are connected with the cables
routed toward the right and back of the
battery as shown in the figure.
lVerify that the covers are securely installed.
Push-Starting
Do not push-start your Mazda.
WARNING
Never tow a vehicle to start it:Towing a vehicle to start it is
dangerous. The vehicle being towed
could surge forward when its engine
starts, causing the two vehicles to
collide. The occupants could be
injured.
CAUTION
Do not push-start a vehicle that has
a manual transmission. It can
damage the emission control system.
NOTE
You can't start a vehicle with an automatic
transmission by pushing it.
7-24
In Case of an Emergency
Emergency Starting
MX-5_8EN7-EA-14E_Edition3 Page322
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (323,1)
Towing Description
We recommend that towing be done only
by an Authorized Mazda Dealer or a
commercial tow-truck service.
Proper lifting and towing are necessary to
prevent damage to the vehicle.
Government and local laws must be
followed.
A towed vehicle usually should have its
drive wheels (rear wheels) off the ground.
If excessive damage or other conditions
prevent this, use wheel dollies.
Wheel dollies
CAUTION
Do not tow the vehicle pointed
forward with driving wheels on the
ground. This may cause internal
damage to the transmission.
CAUTION
Do not tow with sling-type
equipment. This could damage your
vehicle. Use wheel-lift or flatbed
equipment.
In Case of an Emergency
Emergency Towing
7-25
MX-5_8EN7-EA-14E_Edition3 Page323
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (324,1)

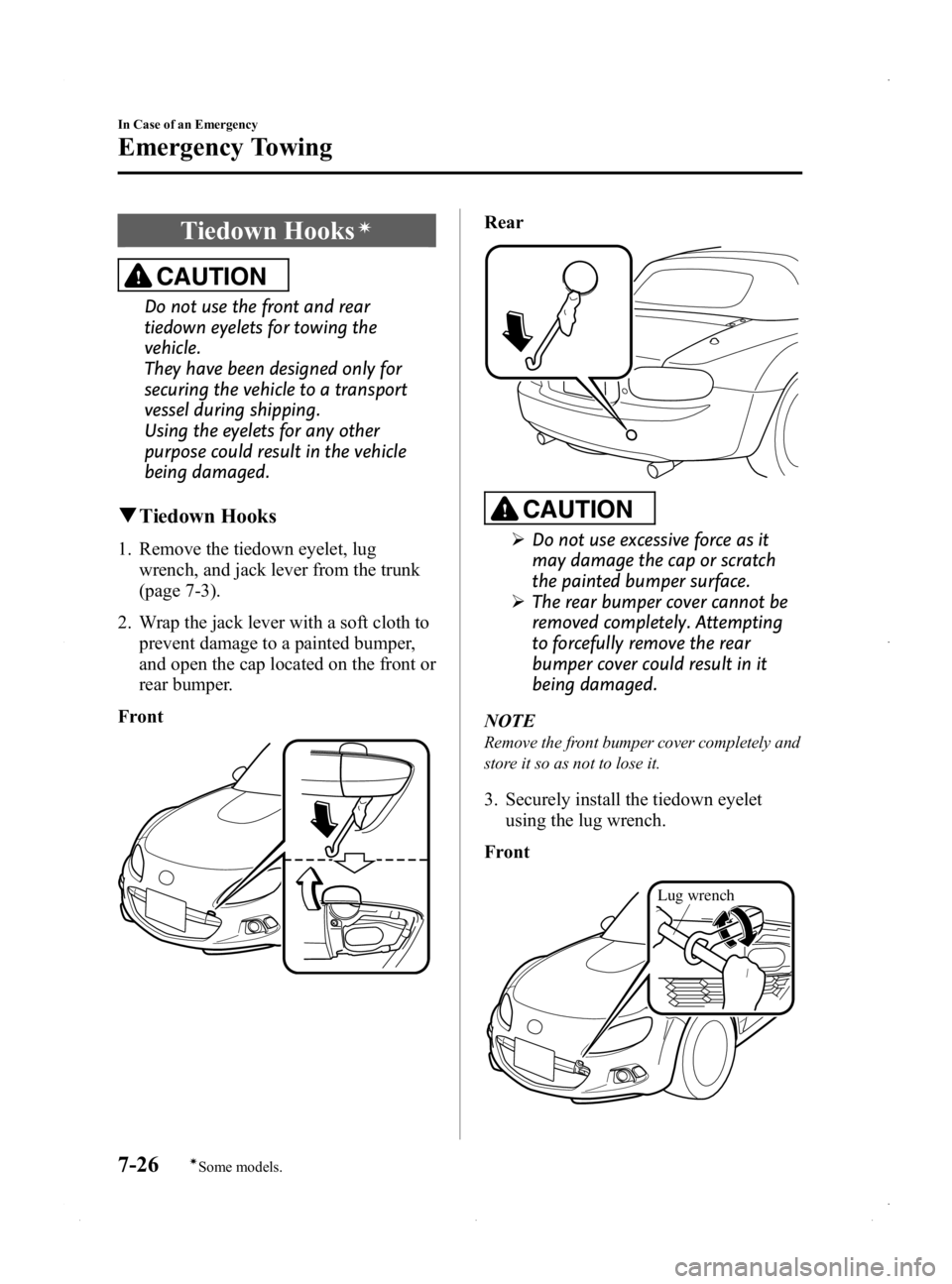

Tiedown Hooksí
CAUTION
Do not use the front and rear
tiedown eyelets for towing the
vehicle.
They have been designed only for
securing the vehicle to a transport
vessel during shipping.
Using the eyelets for any other
purpose could result in the vehicle
being damaged.
qTiedown Hooks
1. Remove the tiedown eyelet, lug
wrench, and jack lever from the trunk
(page 7-3).
2. Wrap the jack lever with a soft cloth to prevent damage to a painted bumper,
and open the cap located on the front or
rear bumper.
Front
Rear
CAUTION
Ø Do not use excessive force as it
may damage the cap or scratch
the painted bumper surface.
Ø The rear bumper cover cannot be
removed completely. Attempting
to forcefully remove the rear
bumper cover could result in it
being damaged.
NOTE
Remove the front bumper cover completely and
store it so as not to lose it.
3. Securely install the tiedown eyelet using the lug wrench.
Front
Lug wrench
7-26
In Case of an Emergency
íSome models.
Emergency Towing
MX-5_8EN7-EA-14E_Edition3 Page324
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (325,1)
Rear
Lug wrench
4. Hook the tying rope to the tiedowneyelet.
Front
Tiedown eyelet
Rear
Tiedown eyelet
CAUTION
If the tiedown eyelet is not securely
tightened, it may loosen or disengage
from the bumper when tying down
the vehicle. Make sure that the
tiedown eyelet is securely tightened
to the bumper.
In Case of an Emergency
Emergency Towing
7-27
MX-5_8EN7-EA-14E_Edition3 Page325
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (326,1)
Recreational Towing
An example of“recreational towing ”is
towing your vehicle behind a motorhome.
The transmission is not designed for
towing this vehicle on all 4 wheels.
When doing recreational towing refer to
“ Towing Description ”(page 7-25) and
“ Tiedown Hooks ”(page 7-26) and
carefully follow the instructions.
7-28
In Case of an Emergency
Emergency Towing
MX-5_8EN7-EA-14E_Edition3 Page326
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (354,1)
4. Carefully insert the new blade rubber.Then install the blade assembly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are toward the
bottom of the wiper arm.
8-28
Maintenance and Care
Owner Maintenance
MX-5_8EN7-EA-14E_Edition3 Page354
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E

Black plate (357,1)

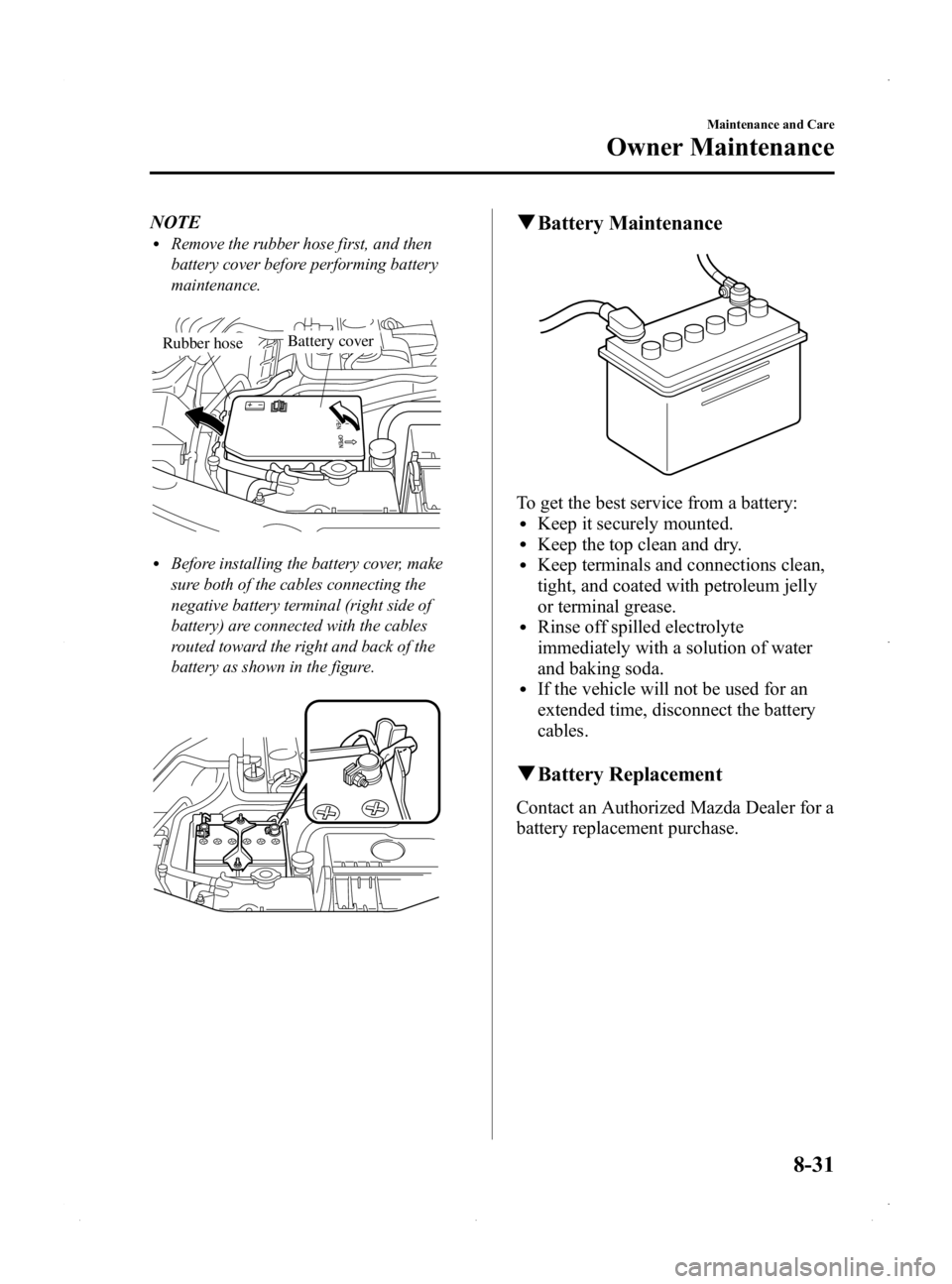

NOTElRemove the rubber hose first, and then
battery cover before performing battery
maintenance.
Battery coverRubber hose
lBefore installing the battery cover, make
sure both of the cables connecting the
negative battery terminal (right side of
battery) are connected with the cables
routed toward the right and back of the
battery as shown in the figure.
qBattery Maintenance
To get the best service from a battery:lKeep it securely mounted.lKeep the top clean and dry.lKeep terminals and connections clean,
tight, and coated with petroleum jelly
or terminal grease.
lRinse off spilled electrolyte
immediately with a solution of water
and baking soda.
lIf the vehicle will not be used for an
extended time, disconnect the battery
cables.
qBattery Replacement
Contact an Authorized Mazda Dealer for a
battery replacement purchase.
Maintenance and Care
Owner Maintenance
8-31
MX-5_8EN7-EA-14E_Edition3 Page357
Friday, September 5 2014 3:20 PM
Form No.8EN7-EA-14E
