2015 MAZDA MODEL CX-9 display

Black plate (280,1)
Fully Automatic Type
Climate control information is displayed on the information display.
Temperature setting display (driver)Ambient temperature /Temperature
setting display (front passenger)
Mode selector display
Airflow display
A/C
DUALAU TO
Air intake display
Information display
Passenger temperature control dial
Windshield defroster switch
Fan control dial
Driver temperature control dial
Rear window defogger switch Air intake selector
OFF switch
AUTO switch
Mode selector switch A/C switchDUAL switch
OUTSIDE (Ambient
temperature) switch
6-6
Interior Comfort
Climate Control System
CX-9_8DU1-EA-14H_Edition1 Page280
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (281,1)
qControl Switches
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:
lAirflow temperaturelAmount of airflowlSelection of airflow modelOutside/Recirculated air selectionlAir conditioner operation
NOTE
AUTO switch indicator lightlWhen on, it indicates AUTO operation, and
the system will function automatically.
lIf any of the following dials or switches are
operated while in AUTO control, the AUTO
switch indicator turns off.
lMode selector switchlFan control diallWindshield defroster switch
The functions for dials and switches other
than those operated in the above continue
to operate in AUTO control.
OFF switch
Pressing the OFF switch shuts off the
climate control system.
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
lWhen the DUAL switch is off:
Turn the driver temperature control dial
to control the temperature.
lWhen the DUAL switch is on:
Turn the driver or front passenger
temperature control dial to control the
temperature.
NOTE
The climate control system changes to the
individual operation mode (DUAL switch
indicator light illuminated) by turning the front
passenger temperature control dial even when
the DUAL switch is off, which allows
individual control of the set temperature for
the driver and front passenger.
Fan control dial
Slow Fast
The fan has seven speeds. The selected
speed will be displayed.
Interior Comfort
Climate Control System
6-7
CX-9_8DU1-EA-14H_Edition1 Page281
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (283,1)
OUTSIDE (Ambient Temperature)
switch
Press the OUTSIDE switch to display the
ambient temperature.
NOTE
lThe displayed ambient temperature may
vary from the actual ambient temperature
depending on the surrounding area and
vehicle conditions.
lPress the OUTSIDE switch for three
seconds or longer to switch the display
from Fahrenheit to Centigrade or vice
versa.
lPress the OUTSIDE switch again to switch
the display from ambient temperature to the
temperature set for the air conditioner.
DUAL switch
Use the DUAL switch to change the mode
between the individual operation (driver
and passenger) and interconnection
(simultaneous) modes.Individual operation mode (indicator
light illuminated)
The set temperature can be controlled
individually for the driver and front
passenger.
Interconnection mode (indicator light
turned off)
The set temperature for the driver and
front passenger is controlled
simultaneously.
NOTE
lThe set temperature for the front passenger
changes to that of the driver while in the
interconnected mode.
lis displayed on the information
display while in the individual operation
mode.
lThe system changes to the interconnection
mode automatically if the windshield
defroster switch is pressed. The system will
not change to the individual operation
mode by pressing the DUAL switch or
turning the front passenger temperature
control dial.
Windshield defroster switch
Press the switch to defrost the windshield
and front door windows.
Interior Comfort
Climate Control System
6-9
CX-9_8DU1-EA-14H_Edition1 Page283
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (288,1)
Fully Automatic Type (Rear)
Mode selector display
Rear airflow display AU TO
Fan control switch
Temperature control
switch
OFF switch Mode selector switch
AUTO switch
AUTO switch
REAR switchFront
Rear
SYNC Temperature setting display
qControl Switches
Rear switch
Press the rear switch to operate the rear air
conditioning.
The indicator illuminates to indicate that
the rear air conditioning is operating.
AUTO switch
By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the set
temperature:
lAirflow temperature
6-14
Interior Comfort
Climate Control System
CX-9_8DU1-EA-14H_Edition1 Page288
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (290,1)
NOTElIf the AUTO switch is pressed while the
front A/C switch is off, the rear air
conditioning operates only to circulate air.
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
lWhen the rear air conditioner is controlled
to the same temperature setting as the front
air conditioner for the driver's side,
“SYNC” is displayed on the rear screen.
Operation from rear seats
1. Turn the front air conditioning on.
2. Press the AUTO switch. The selection
of the airflow mode and airflow
amount will be automatically
controlled.
3. Use the temperature control switch toset the desired temperature.
NOTElIf the AUTO switch is pressed while the
front A/C switch is off, the rear air
conditioning operates only to circulate air.
lSetting the temperature to the maximum
high or low will not provide the desired
temperature at a faster rate.
lWhen selecting heat, the system will restrict
airflow until it has warmed to prevent cold
air from blowing out of the vents.
lWhen the rear air conditioner is operated
automatically, “AUTO ”is displayed on the
rear screen.
lWhen the rear air conditioner is controlled
to the same temperature setting as the front
air conditioner for the driver's side,
“ SYNC” is displayed on the rear screen.
4. To turn off the system, press the OFF
switch.
6-16
Interior Comfort
Climate Control System
CX-9_8DU1-EA-14H_Edition1 Page290
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (296,1)
lDo not insert any disc with a peel-off
seal affixed to it.
lThis unit may not be able to play
certain CD-R/CD-RWs made using a
computer or music CD recorder due to
disc characteristics, scratches,
smudges, dirt, etc., or due to dust or
condensation on the lens inside the
unit.
lStoring CDs in the vehicle exposed to
direct sunlight or high temperature may
damage the CD-R/CD-RWs, and make
them unplayable.
lCD-R/CD-RW exceeding 700 MB
cannot be played.
lThis unit may not be able to play
certain discs made using a computer
due to the application (writing
software) setting used. (For details,
consult the store where the application
was purchased.)
lIt is possible that certain text data, such
as titles, recorded on a CD-R/CD-RW
may not be displayed when musical
data (CD-DA) is playing.
lThe period from when a CD-RW is
inserted to when it begins playing is
longer than a normal CD or CD-R.
lCompletely read the instruction manual
and cautions for CD-R/CD-RWs.
lDo not use discs with cellophane tape
adhering, partially peeled off labels, or
adhesive material exuding from the
edges of the CD label. Also, do not use
discs with a commercially-available
CD-R label affixed. The disc may not
eject resulting in a malfunction.
qOperating tips for MP3
NOTE
Supply of this product only conveys a license
for private, non-commercial use and does not
convey a license nor imply any right to use this
product in any commercial (i.e. revenue-
generating) real time broadcasting (terrestrial,
satellite, cable and/or any other media),
broadcasting/streaming via the Internet,
intranets and/or other networks or in other
electronic content distribution systems, such as
pay-audio or audio-on-demand applications.
An independent license for such use is
required. For details, please visit
http://www.mp3licensing.com.
lThis audio system handles MP3 files
that have been recorded on CD-R/CD-
RW/CD-ROMs. Discs that have been
recorded using the following formats
can be played:
lISO 9660 level 1lISO 9660 level 2lJoliet extended formatlRomeo extended formatlThis unit handles MP3 files
conforming to the MP3 format
containing both header frames and data
frames.
lThis unit can play multi-session
recorded discs that have up to 50
sessions.
lThis unit can play MP3s with sampling
frequencies of 8/11.025/12/16/22.05/
24/32/44.1/48 kHz.
lThis unit can play MP3 files that have
been recorded in bit rates of 8 kbps to
320 kbps. Nonetheless, to insure
enjoyment of music with consistent
sound quality, it is recommended to use
discs that have been recorded at a bit
rate of 128 kbps or more.
6-22
Interior Comfort
Audio System
CX-9_8DU1-EA-14H_Edition1 Page296
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (297,1)
lIf a disc has both music data (CD-DA)
and MP3 files, playback of the two file
types differs depending on how the
disc was recorded.
lPacket written discs cannot be played
on this unit.
lThis unit does not play CDs recorded
using MP3i (MP3 interactive), MP3
PRO and RIFF MP3 formats.
About folders and files
lThe arrangement and playing order of a
recorded disc containing MP3 files is
as follows:
05
06
010203
04
15 4 2 3
Folder
No.
Level1
Level2 Level3
Level4
Playback may not occur in the above
hierarchy depending on the audio unit. : Track (File)
: Folder
lThe folder order is automatically
assigned and this order cannot be
optionally set.
lAny folder without an MP3 file will be
ignored. (It will be skipped and the
folder number will not be displayed.)
lMP3 files not conforming to the MP3
format containing both header frames
and data frames will be skipped and
not played.
lThis unit will play MP3 files that have
up to eight levels. However, the more
levels a disc has, the longer it will take
to initially start playing. It is
recommended to record discs with two
levels or less.
lA single disc with up to 512 files can
be played and a single folder with up to
255 files can be played.
lWhen naming an MP3 file, be sure to
add an MP3 file extension (.mp3) after
the file name.
lThe number of characters which can be
displayed is restricted.
CAUTION
This unit can only play MP3 files that
have an MP3 file extension (.mp3)
attached. Do not attach an MP3 file
extension to any other type file as it
could cause noise to be emitted or a
malfunction in the unit.
About ID3 Tag display
lThis unit can only display ID3 Tag
album, track and artist names that have
been input using Ver.1.0/1.1/2.2/2.3/2.4
formats. Any other data that may have
been input cannot be displayed.
lThis unit cannot display some
characters. Characters which cannot be
displayed are indicated by an asterisk
(
).
Interior Comfort
Audio System
6-23
CX-9_8DU1-EA-14H_Edition1 Page297
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H

Black plate (299,1)

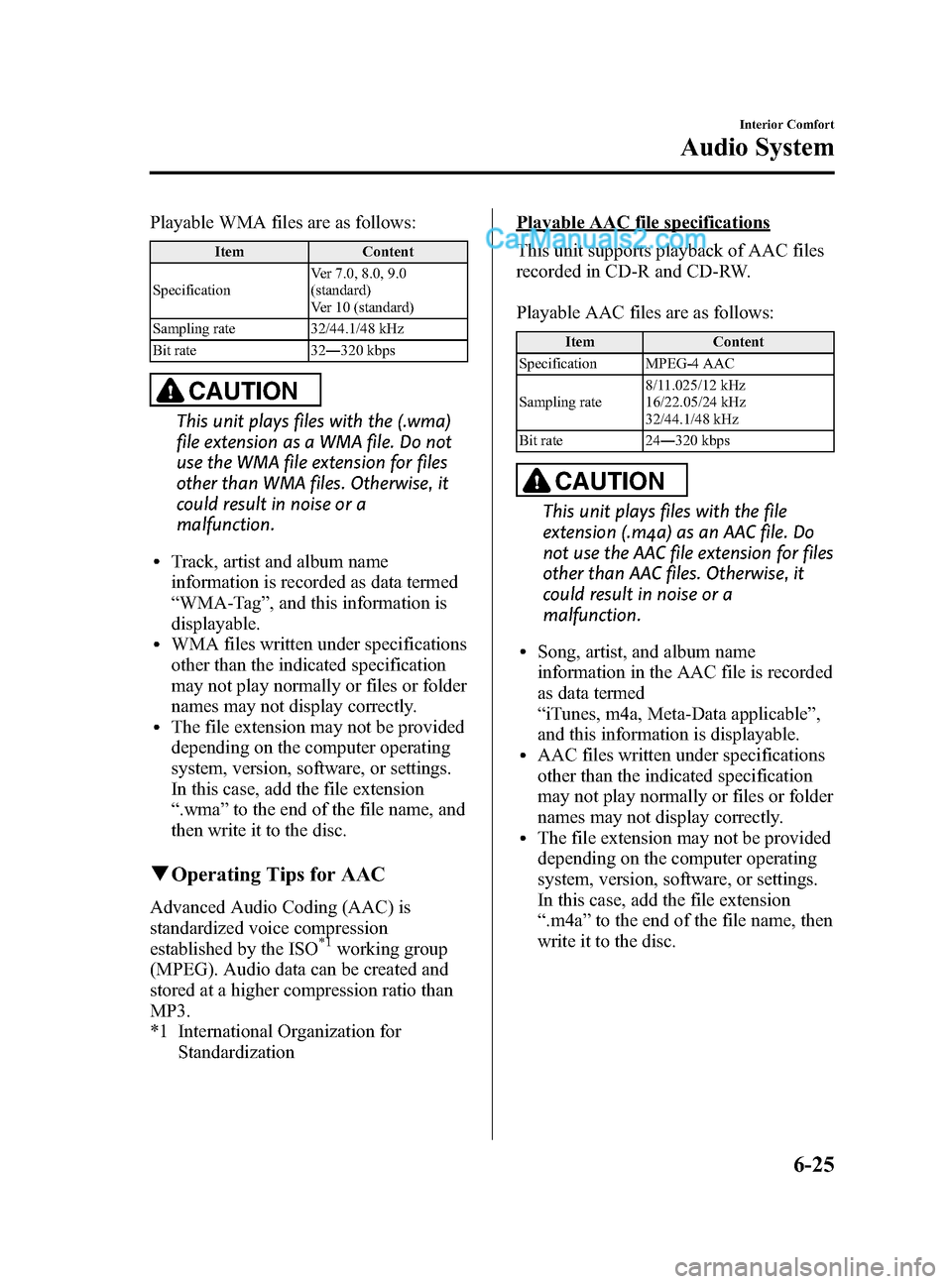

Playable WMA files are as follows:
ItemContent
Specification Ver 7.0, 8.0, 9.0
(standard)
Ver 10 (standard)
Sampling rate 32/44.1/48 kHz
Bit rate 32―320 kbps
CAUTION
This unit plays files with the (.wma)
file extension as a WMA file. Do not
use the WMA file extension for files
other than WMA files. Otherwise, it
could result in noise or a
malfunction.
lTrack, artist and album name
information is recorded as data termed
“WMA-Tag ”, and this information is
displayable.
lWMA files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
lThe file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension
“ .wma ”to the end of the file name, and
then write it to the disc.
q Operating Tips for AAC
Advanced Audio Coding (AAC) is
standardized voice compression
established by the ISO
*1working group
(MPEG). Audio data can be created and
stored at a higher compression ratio than
MP3.
*1 International Organization for Standardization
Playable AAC file specifications
This unit supports playback of AAC files
recorded in CD-R and CD-RW.
Playable AAC files are as follows:
Item Content
Specification MPEG-4 AAC
Sampling rate 8/11.025/12 kHz
16/22.05/24 kHz
32/44.1/48 kHz
Bit rate 24―320 kbps
CAUTION
This unit plays files with the file
extension (.m4a) as an AAC file. Do
not use the AAC file extension for files
other than AAC files. Otherwise, it
could result in noise or a
malfunction.
lSong, artist, and album name
information in the AAC file is recorded
as data termed
“iTunes, m4a, Meta-Data applicable ”,
and this information is displayable.
lAAC files written under specifications
other than the indicated specification
may not play normally or files or folder
names may not display correctly.
lThe file extension may not be provided
depending on the computer operating
system, version, software, or settings.
In this case, add the file extension
“ .m4a ”to the end of the file name, then
write it to the disc.
Interior Comfort
Audio System
6-25
CX-9_8DU1-EA-14H_Edition1 Page299
Thursday, June 5 2014 4:18 PM
Form No.8DU1-EA-14H
