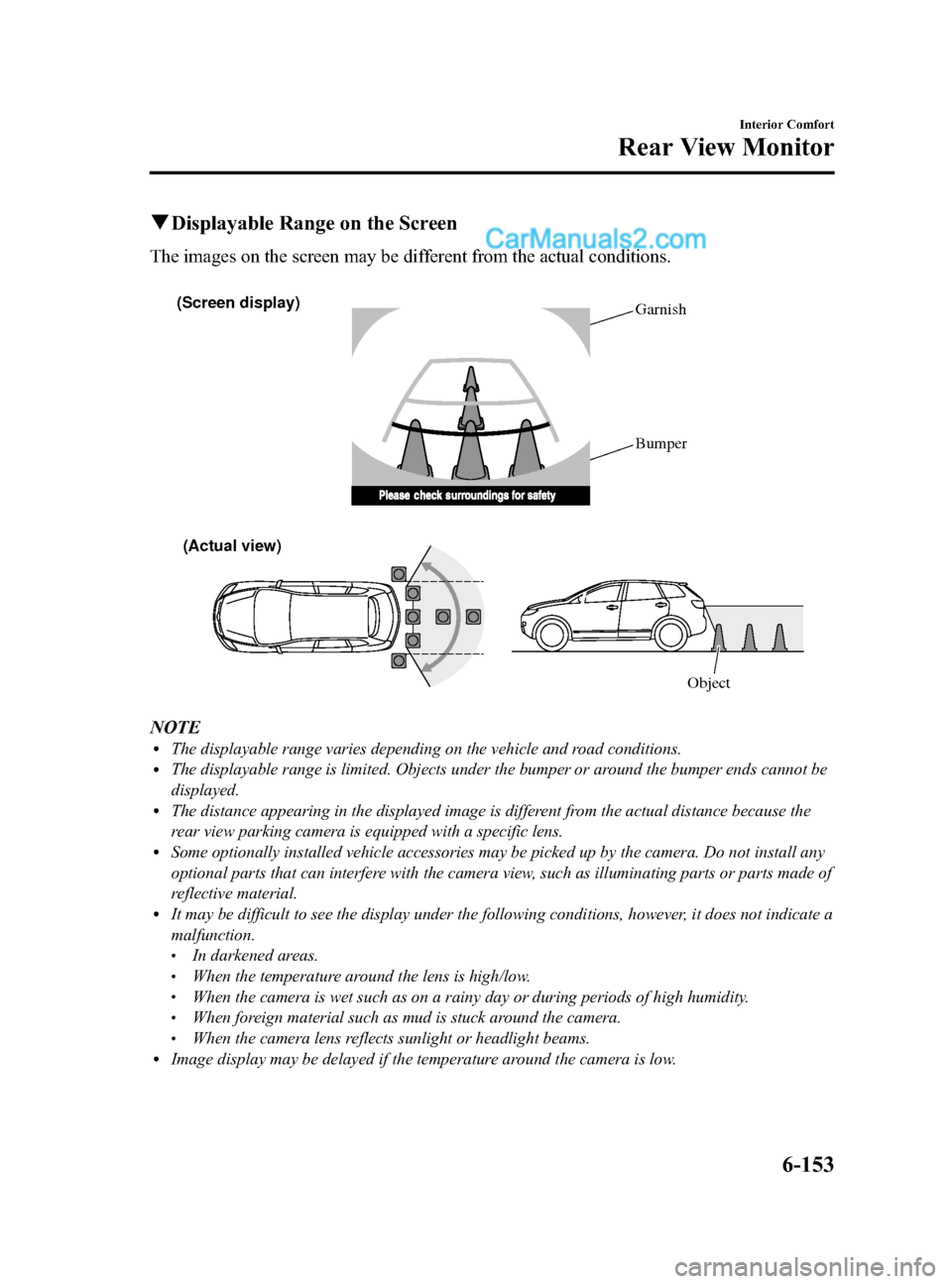

qDisplayable Range on the Screen
The images on the screen may be different from the actual conditions.
(Screen display)
(Actual view) ObjectGarnish
Bumper
NOTElThe displayable range varies depending on the vehicle and road conditions.lThe displayable range is limited. Objects under the bumper or around the bumper ends cannot be
displayed.
lThe distance appearing in the displayed image is different from the actual distance because the
rear view parking camera is equipped with a specific lens.
lSome optionally installed vehicle accessories may be picked up by the camera. Do not install any
optional parts that can interfere with the camera view, such as illuminating parts or parts made of
reflective material.
lIt may be difficult to see the display under the following conditions, however, it does not indicate a
malfunction.
lIn darkened areas.lWhen the temperature around the lens is high/low.lWhen the camera is wet such as on a rainy day or during periods of high humidity.lWhen foreign material such as mud is stuck around the camera.lWhen the camera lens reflects sunlight or headlight beams.lImage display may be delayed if the temperature around the camera is low.
Interior Comfort
Rear View Monitor
6-153
CX-9_8DU1-EA-14H_Edition1 Page427
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (428,1)
qViewing the Display
Guide lines which indicate the width of
the vehicle (yellow) are displayed on the
screen as a reference to the approximate
width of the vehicle in comparison to the
width of the parking space you are about
to back into.
Use this display view for parking your
vehicle in a parking space or garage.
b
a
a) Vehicle width guide lines (yellow)
Guide lines serve as a reference to the
approximate width of the vehicle.
b) Distance guide lines
These guide lines indicate the
approximate distance to a point
measured from the vehicle's rear (from
the end of the bumper).
The red and yellow lines indicate the
points about 50 cm (20 in) (red) and 1
m (3 ft) (yellow) from the rear bumper
(at the center point of each of the
lines).
CAUTION
The guide lines on the screen are
fixed lines. They are not synced to the
driver's turning of the steering wheel.
Always be careful and check the area
to the vehicle's rear and the
surrounding area directly with your
eyes while backing up.
6-154
Interior Comfort
Rear View Monitor
CX-9_8DU1-EA-14H_Edition1 Page428
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (429,1)
qRear View Monitor Operation
The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes
and steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.
NOTE
Images displayed on the monitor from the rear view parking camera are reversed images (mirror
images).
1. Shift the shift lever to R to switch the display to the rear view monitor display.
2. Confirming the surrounding conditions, reverse the vehicle.
(Display condition) (Vehicle condition)
3. After your vehicle begins entering the parking space, continue backing up slowly so that
the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.
4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to the left and right sides of the parking space.
Interior Comfort
Rear View Monitor
6-155
CX-9_8DU1-EA-14H_Edition1 Page429
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (430,1)
5. Once they are parallel, straighten the wheels and back your vehicle slowly into theparking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)
(Display condition) (Vehicle condition)
6. When the shift lever is shifted from R to another shift lever position, the screen returns
to the previous display.
6-156
Interior Comfort
Rear View Monitor
CX-9_8DU1-EA-14H_Edition1 Page430
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (431,1)
NOTE
Because there may be a difference between the displayed image, such as indicated below, and the
actual conditions when parking, always verify the safety at the rear of the vehicle and the
surrounding area directly with your eyes.
lIn the image of the parking space (or garage) displayed below, even though the back end and
distance guide lines appear parallel in the monitor, they may not actually be parallel on the
ground.
lWhen parking in a space with a division line on only one side of the parking space, the division
line and the vehicle width guide line may appear parallel on the monitor, but they may not
actually be parallel on the ground.
Interior Comfort
Rear View Monitor
6-157
CX-9_8DU1-EA-14H_Edition1 Page431
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (432,1)
qVariance Between Actual Road Conditions and Displayed Image
Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may
cause a variance in distance perspective.
When the vehicle is tilted due to the weight of passengers and load
When the vehicle rear is lowered, the object displayed on the screen appears farther than
the actual distance.
VarianceObject
6-158
Interior Comfort
Rear View Monitor
CX-9_8DU1-EA-14H_Edition1 Page432
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (433,1)
When there is a steep grade behind the vehicle
When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.
Appears
farther than
actual
distanceAppears
closer than
actual
distance
Object at actual
position
Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object. Object on screen
Interior Comfort
Rear View Monitor
6-159
CX-9_8DU1-EA-14H_Edition1 Page433
Thursday, June 5 2014 4:20 PM
Form No.8DU1-EA-14H

Black plate (434,1)
Three-dimensional object on vehicle rear
Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.
ACB
(Actual distance) B>C=A (Actual condition)
A
C B
Sensed distance on screen A>B>C (Screen display)
q
Image Quality Adjustment
WARNING
Always adjust the picture quality of the rear view monitor while the vehicle is
stopped:
Do not adjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast,
color, and tint while driving the vehicle is dangerous as it could distract your
attention from the vehicle operation which could lead to an accident.
Picture quality adjustment can be done while the shift lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, color, and
tint. When adjusting, pay sufficient attention to the vehicle surroundings.
1. Press the setup button (
) to display the picture quality adjustment screen.
2. Touch the
andon-screen buttons to change the set value.
Touch the
on-screen button to return to the camera image display.
