Black plate (515,1)
qCapacities
(Approximate Quantities)
Item Capacity
Engine oil
SKYACTIV-G 2.0With oil filter replacement 4.2 L (4.4 US qt, 3.7 Imp qt)
Without oil filter replacement 4.0 L (4.2 US qt, 3.5 Imp qt)
SKYACTIV-G 2.5With oil filter replacement4.5 L (4.8 US qt, 4.0 Imp qt)
Without oil filter replacement 4.3 L (4.5 US qt, 3.8 Imp qt)
Coolant U.S.A. and
Canada
SKYACTIV-G 2.0
Manual transaxle
7.3 L (7.7 US qt, 6.4 Imp qt)
Automatic
transaxle 7.5 L (7.9 US qt, 6.6 Imp qt)
SKYACTIV-G 2.5 7.7 L (8.1 US qt, 6.8 Imp qt)
Mexico SKYACTIV-G 2.0
7.7 L (8.1 US qt, 6.8 Imp qt)
SKYACTIV-G 2.5 7.9 L (8.3 US qt, 7.0 Imp qt)
Manual transaxle oil 1.65 L (1.74 US qt, 1.45 Imp qt)
Automatic transaxle fluid 7.8 L (8.2 US qt, 6.9 Imp qt)
Transfer case oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Rear differential oil 0.45 L (0.48 US qt, 0.40 Imp qt)
Fuel tank 2WD
56.0 L (14.8 US gal, 12.3 Imp gal)
AWD 58.0 L (15.3 US gal, 12.8 Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Vehicle specification
Overall length 4,540 mm (178.7 in)
Overall width 1,840 mm (72.4 in)
Overall height 1,710 mm (67.3 in)
Front tread 1,585 mm (62.4 in)
Rear tread 1,590 mm (62.6 in)
Wheelbase 2,700 mm (106.3 in)
qWeights
U.S.A. and Canada
SKYACTIV-G 2.0
(2WD)
Item Weight
Manual transaxle Automatic transaxle
GVWR (Gross Vehicle Weight Rating) 1,940 kg (4,277 lb) 1,975 kg (4,354 lb)
GAWR (Gross Axle Weight Rating) Front 972 kg (2,143 lb) 1,009 kg (2,224 lb)
Rear 971 kg (2,141 lb) 969 kg (2,136 lb)
Specifications
9-5
CX-5_8DR2-EA-14A_Edition1 Page515
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A
Black plate (517,1)
qAir Conditioner
The type of refrigerant used is indicated on a label attached to the inside of the engine compartment. Check the
label before recharging the refrigerant. Refer to Climate Control System on page 5-2.
Item Classification
Refrigerant Type HFC134a (R-134a)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R (SAE)
With halogen bulb headlights
Headlights Low beam 55 H11 (H11)
High beam
65 HB3 (9005)
Daytime running lights
With xenon fusion bulb headlights
Headlights High/Low beam 35 D4S (D4S)
Daytime running lights 13 P13W ( ―)
Front turn signal lights/
Parking lights (Front side-marker lights) 27/8
―(1157NA)
Fog lights
í55 H11 (H11)
Side turn signal lights LED*1―(― )
High-mount brake light LED*1― (― )
Rear turn signal lights 21 WY21W (7443NA)
Brake lights/Taillights 21/5 W21/5W (7443)
Rear side-marker lights 5 W5W ( ―)
Taillights (Liftgate side) 5 W5W ( ―)
Reverse lights 18 W16W (921)
License plate lights 5 W5W ( ―)
*1 LED is the abbreviation for Light Emitting Diode.
Interior light
Light bulb Category
Wattage ECE R
Overhead lights (Front)/Map lights 8 ―
Rear map lights 8 ―
Luggage compartment light 5 ―
Vanity mirror lights
í2 ―
Specifications
9-7íSome models.
CX-5_8DR2-EA-14A_Edition1 Page517
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A

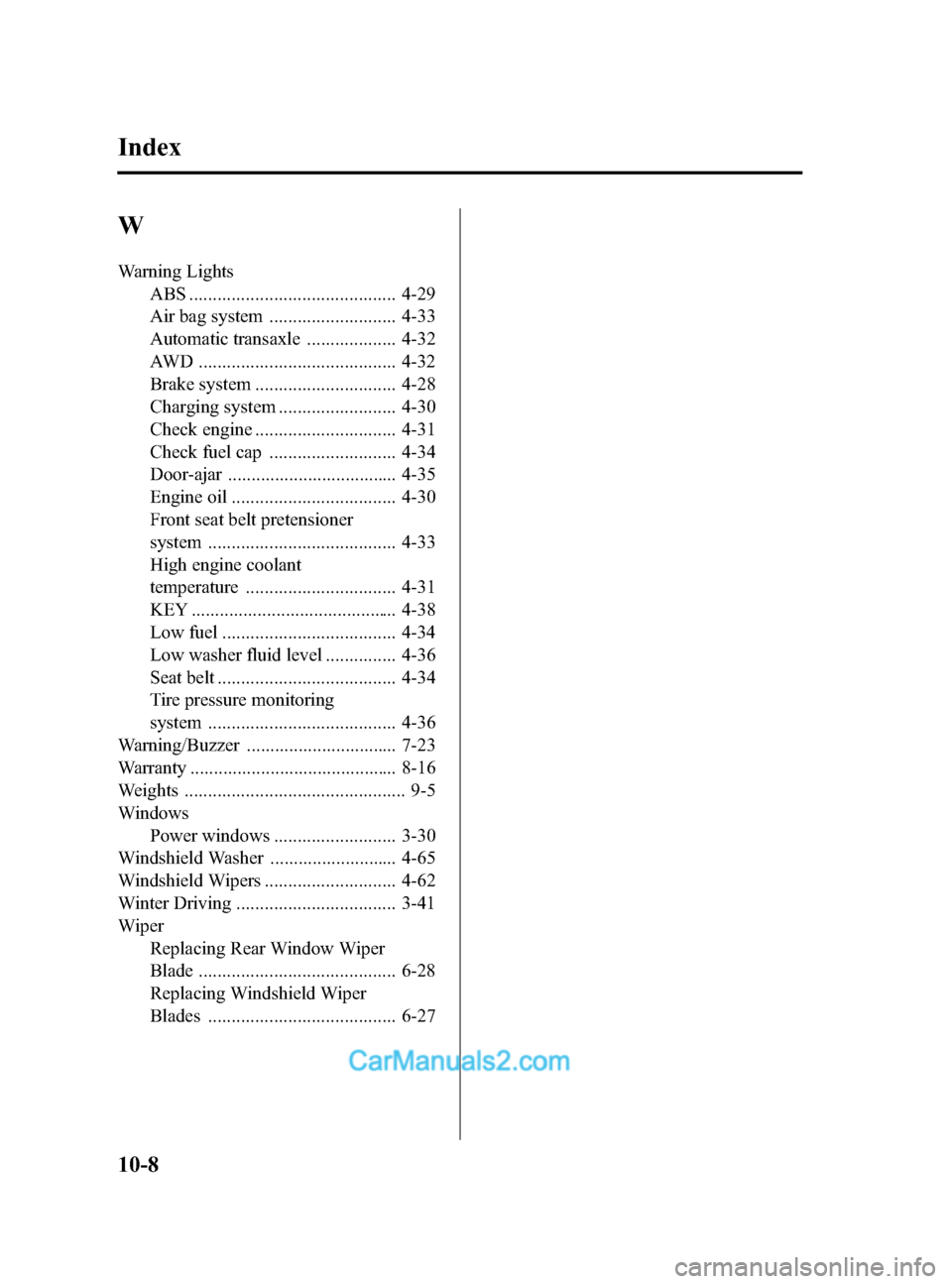

Black plate (532,1)
W
Warning LightsABS ............................................ 4-29
Air bag system ........................... 4-33
Automatic transaxle ................... 4-32
AWD .......................................... 4-32
Brake system .............................. 4-28
Charging system ......................... 4-30
Check engine .............................. 4-31
Check fuel cap ........................... 4-34
Door-ajar .................................... 4-35
Engine oil ................................... 4-30
Front seat belt pretensioner
system ........................................ 4-33
High engine coolant
temperature ................................ 4-31
KEY ............................................ 4-38
Low fuel ..................................... 4-34
Low washer fluid level ............... 4-36
Seat belt ...................................... 4-34
Tire pressure monitoring
system ........................................ 4-36
Warning/Buzzer ................................ 7-23
Warranty ............................................ 8-16
Weights ............................................... 9-5
Windows Power windows .......................... 3-30
Windshield Washer ........................... 4-65
Windshield Wipers ............................ 4-62
Winter Driving .................................. 3-41
Wiper
Replacing Rear Window Wiper
Blade .......................................... 6-28
Replacing Windshield Wiper
Blades ........................................ 6-27
10-8
Index
CX-5_8DR2-EA-14A_Edition1 Page532
Thursday, November 21 2013 8:50 AM
Form No.8DR2-EA-14A
