2015 MAZDA MODEL 6 dashboard

10
DASHBOARD ILLUMINATION/
DIMMER1/TRIP METER2
1 • Rotate the knob to adjust the brightness of the
instrument cluster and other dashboard illuminations.
2 • Push to toggle between trip meter (A & B). • When a trip meter is selected, push and hold
to r
eset to zero.
www.MazdaUSA.com
Br ake Warning Light
Parking brake on/low brake
fluid/malfunction
Master Warning Light
Low Fuel Level
TYPE B INSTRUMENT CLUSTER
WARNING LIGHTS ONLY.
These warnings are displayed as text in the Type
A Information display.
Lo w Engine Oil Pressure
Po wer Steering Malfunction
Au tomatic Transaxle

Warning Light
Cha rging System
Malfunction
Doo r/Trunk Ajar
Lo w Washer Fluid Level
Warning Light
KEY Warning Light RED
KE Y Indicator Light GREEN
Check Fuel Cap
P erform Maintenance FUEL
GAUGE
ODOMETER/

TRIP METER
ENGINE COOLANT TEMP LIGHTS Since this vehicle does not use an
engine coolant temperature gauge, red
and blue engine coolant temperature
lights are used to indicate high
and low coolant temperature.
Red Coolant Temp Light Flashing: Engine is starting
to run hot. Drive slowly to
reduce engine load.
On: E

ngine is overheating. Safely pull
over to the side of the road and turn
the engine off. Refer to the Owner’s
Manual for more information.
Blue Coolant Temp Light On: Engine coolant is cold
and no warm air is available
for heater/defroster.
Of

f: Engine coolant is warm and
warm air is available for heater/
defroster. The light may stay on for a
few minutes after start-up when the
engine is cold, but the vehicle can
be driven with the light on or off.
INFORMATION D I S P L AY
See page 6 or the
Owner’s Manual for
further information.
TYPE B CLUSTER
INFORMATION D I S P L AY
1660320_15b_Mazda6_SSG_021714.indd 102/17/14 11:12 AM

11
Lights
LIGHTING CONTROL/TURN SIGNAL LEVER
: Turns tail, parking, dashboard,
a nd headlights on.
: Turns tail,
p
arking, and
dashboard
lights on.
Pull
to Flash
High BeamsPush for

High Beams
NOTE: The DRL (Daytime Running Lights) automatically turn on when the ignition is
switched ON. To disable/enable this feature see your Authorized Mazda Dealer.
AUTO: The light sensor
automatically determines
when to turn the headlights
on or off.: Turns fog lights
on
only when
headlights
are on.
Smart Turn: To signal a lane
change, push the turn signal lever
up or down halfway and release.
After releasing the lever, the turn
signal indicator will flash three times.
(Refer to page 6 or Owner’s Manual
for “Personalization Features”)
1660320_15b_Mazda6_SSG_021714.indd 112/17/14 11:12 AM

27
Dashboar d
vents



Dashboar
d
and floor vents



Floor
vents



Defr
oster and
floor vents



W
indshield
defroster
Manual Climate Control
NOTE: When set
to MA X A /C with
dashboard vents
or dashboard and
floor vents, the A /C
will turn on, and
recirculated air will
be selected for
maximum cooling.
Temperature
Control Dial
Rotate the dial for
temperatur

e control. Fan Control Dial
Rotate the dial to set desired
fan speed.



Push to recir
culate
cabin air to reduce
outside odors and
improve cooling.
Push for fresh


air circulation.
Push to manually turn air


conditioning on or off.
Push to defrost the


rear window.Mode Selector Dial
Rotate the dial to
select airflow mode.
Best Cooling Settings
Indicator ON (automatically)
NOTE: • When selecting either defroster mode ( or ), the air conditioner and fresh
air mode are automatically turned on by the system. This helps defrost the
windows more efficiently by dehumidifying the air. Manually set the fan control
and temperature control dials as desired.
•
In e

ither defroster mode (
or ), air will blow from the side dashboard vents.
To defrost the side windows faster, point the vents toward the side windows.
Best Heating Settings
1660320_15b_Mazda6_SSG_021714.indd 272/17/14 11:12 AM

28

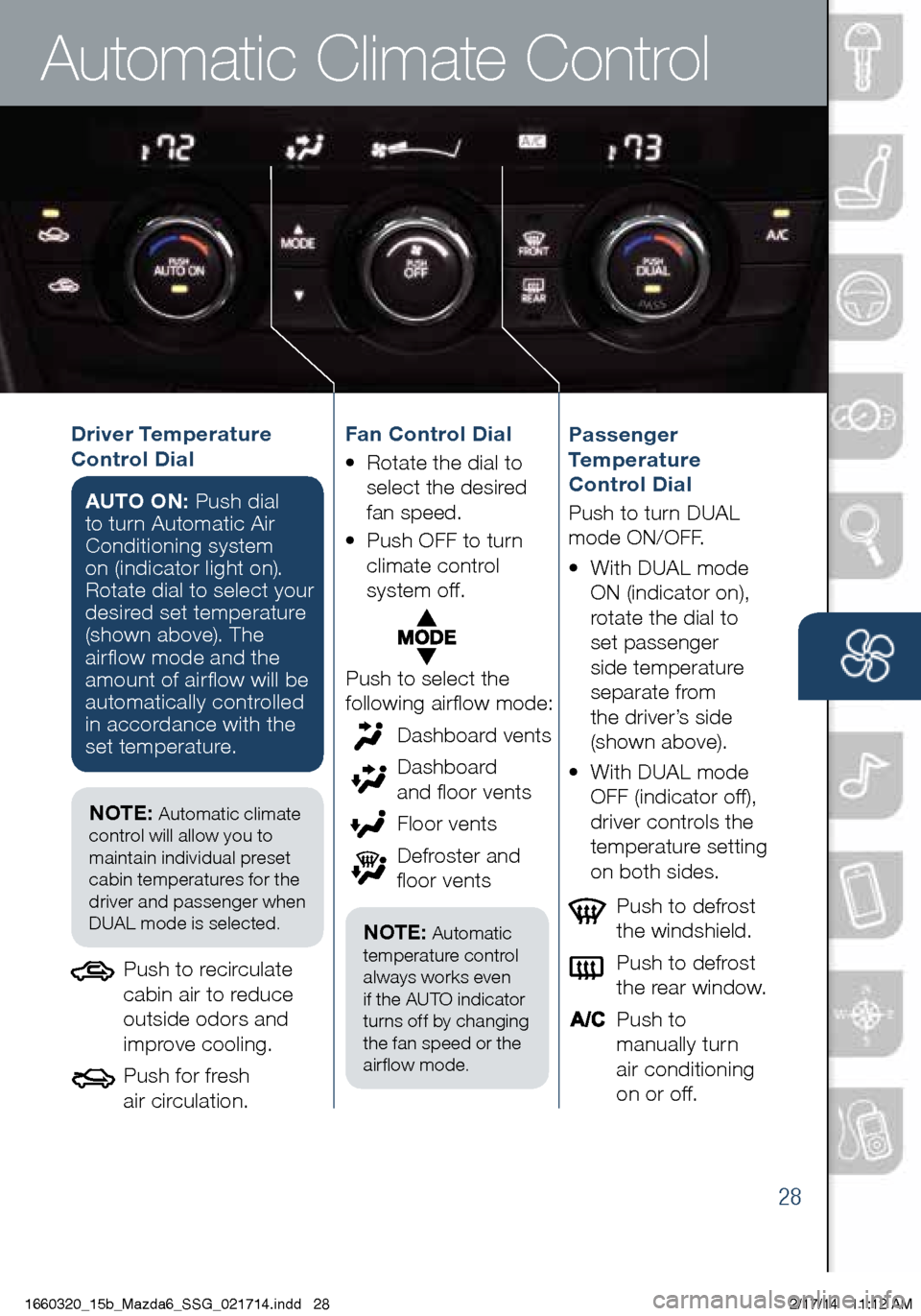

Automatic Climate Control
NOTE: Automatic climate
control will allow you to
maintain individual preset
cabin temperatures for the
driver and passenger when
DUAL mode is selected.
Driver Temperature
Control Dial
AUTO ON: Push dial
to turn Automatic Air
Conditioning system
on (indicator light on).
Rotate dial to select your
desired set temperature
(shown above). The
airflow mode and the
amount of airflow will be
automatically controlled
in accordance with the
set temperature.
Push to defrost
the windshield.
Push to defrost
the rear window.
Push to
manually turn
air conditioning
on or off.Passenger
Temperature
Control Dial
Push to turn DUAL
mode ON/OFF.
•



W
ith DUAL mode
ON (indicator on),
rotate the dial to
set passenger
side temperature
separate from
the driver’s side
(shown above).
•



With DUAL mode

OFF (indicator off),
driver controls the
temperature setting
on both sides.
Push to select the
following airflow mode:
Push to recirculate
cabin air to reduce
outside odors and
improve cooling.
Push for fresh
air circulation.


Dashboar
d vents
Dashboard



and floor vents
Floor vents


Defr
oster and

floor vents
NOTE: Automatic
temperature control
always works even
if the AUTO indicator
turns off by changing
the fan speed or the
airflow mode.
Fan Control Dial
•



Rotate the dial to
select the desir

ed
fan speed.
•



Push OFF to turn

climate control
system off.
