qElectronic Brake Force
Distribution System Warning
If the electronic brake force distribution
control unit determines that some
components are operating incorrectly, the
control unit may illuminate the brake
system warning light and the ABS
warning light simultaneously. The
problem is likely to be the electronic
brake force distribution system.
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qCharging System Warning
Indication/Warning Light
Type B
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
Type A/Type B
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qEngine Oil Warning Indication/
Warning Light
Type B
This warning light illuminates when the
ignition is switched ON and turns off
when the engine is started.
When Driving
Instrument Cluster and Display
4-31
Mazda6_8DQ8-EA-13L_Edition3 Page155
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (220,1)

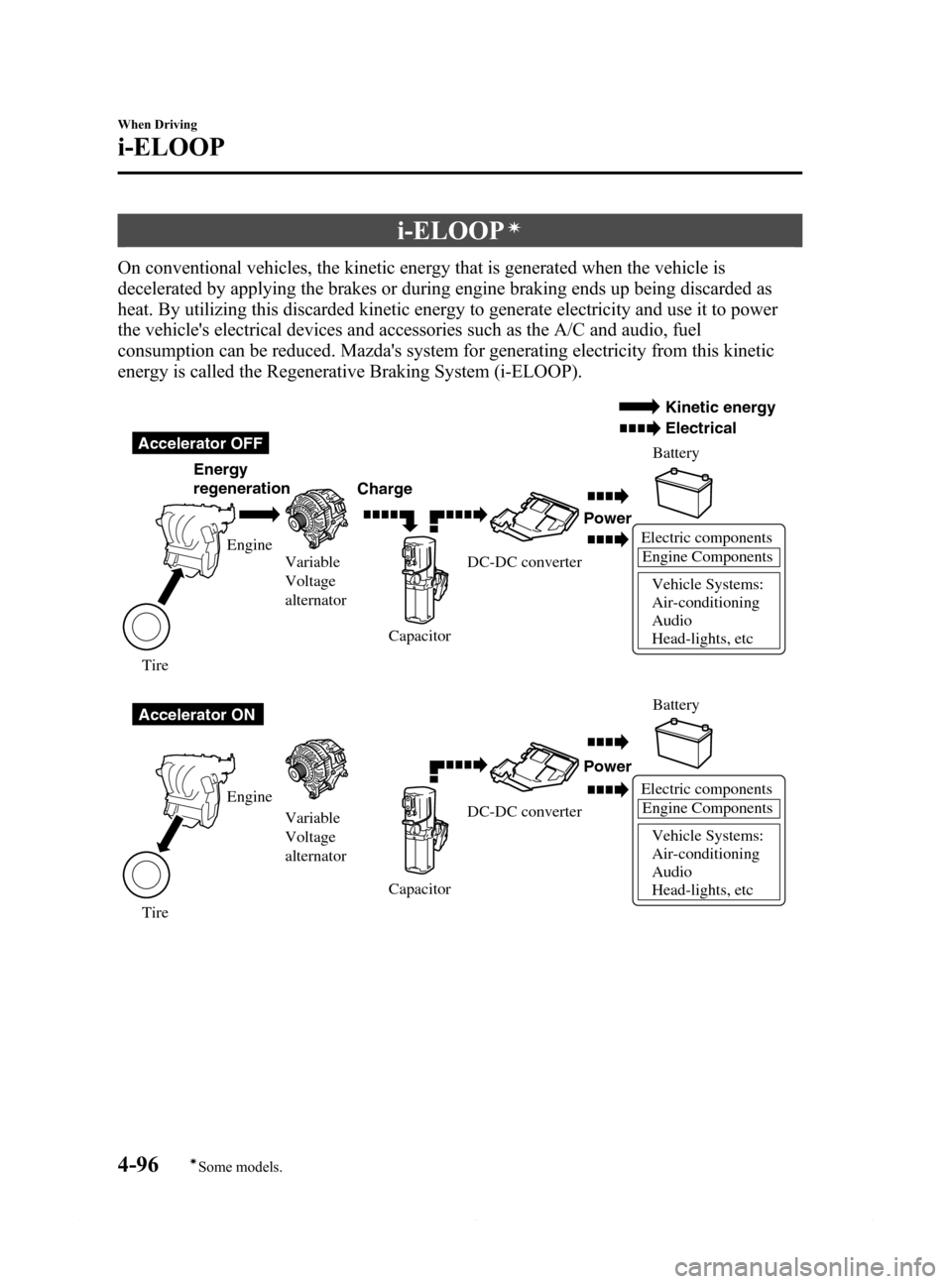

i-ELOOPí
On conventional vehicles, the kinetic energy that is generated when the vehicle is
decelerated by applying the brakes or during engine braking ends up being discarded as
heat. By utilizing this discarded kinetic energy to generate electricity and use it to power
the vehicle's electrical devices and accessories such as the A/C and audio, fuel
consumption can be reduced. Mazda's system for generating electricity from this kinetic
energy is called the Regenerative Braking System (i-ELOOP).
Electric components
Engine Components
Vehicle Systems:
Air-conditioning
Audio
Head-lights, etc
Accelerator OFF
Accelerator ONEnergy
regeneration
ChargeBattery
Battery Power
Power
Electric components
Engine Components
Vehicle Systems:
Air-conditioning
Audio
Head-lights, etc
Engine
Variable
Voltage
alternator
Variable
Voltage
alternator Engine
Tire TireCapacitor
CapacitorDC-DC converter
DC-DC converter
Kinetic energy
Electrical
4-96
When Driving
íSome models.
i-ELOOP
Mazda6_8DQ8-EA-13L_Edition3 Page220
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (221,1)
A capacitor is incorporated as the device for storing the generated electricity, which can
store and use large amounts of electricity instantly.
Variable
Voltage
alternator
CapacitorDC-DC Converter
CAUTION
High-current electricity flows through the following areas, therefore do not touch
them.
ØVariable Voltage alternator
ØDC-DC converter
ØCapacitor
NOTE
lWhen installing high power consumption devices such high-output speakers, consult an
Authorized Mazda Dealer.
lA difference in the fuel economy may occur depending on use conditions such as with the A/C and
headlights.
lIf the capacitor is to be disposed of, always consult an Authorized Mazda Dealer.
For details, go to the following URL.
http://www.mazda.com/csr/environment/recycling
qi-ELOOP Display
Displays the power generating status.
The status is displayed when the ignition is switched ON and the INFO button is pressed.
When Driving
i-ELOOP
4-97
Mazda6_8DQ8-EA-13L_Edition3 Page221
Friday, June 13 2014 6:21 PM
Form No.8DQ8-EA-13L

Black plate (491,1)
WARNING
Do not drive with both the ABS warning
light and brake warning light
illuminated. Have the vehicle towed to
an Authorized Mazda Dealer to have
the brakes inspected as soon as
possible:
Driving when the brake system
warning light and ABS warning light
are illuminated simultaneously is
dangerous.
When both lights are illuminated, the
rear wheels could lock more quickly
in an emergency stop than under
normal circumstances.
qIf the charging system warning
indication/warning light is indicated
If the warning light/indication illuminates
while driving, it indicates a malfunction
of the alternator or of the charging system.
Drive to the side of the road and park off
the right-of-way. Consult an Authorized
Mazda Dealer.
CAUTION
Do not continue driving when the
charging system warning light is
illuminated because the engine could
stop unexpectedly.
qIf the engine oil warning indication/
warning light is indicated
Type A/Type B
This warning light/warning indication
indicates low engine oil pressure.
CAUTION
Do not run the engine if the oil
pressure is low. Otherwise, it could
result in extensive engine damage.
If the light illuminates or the warning
indication is displayed while driving:
1. Drive to the side of the road and park
off the right-of-way on level ground.
2. Turn off the engine and wait 5 minutes
for the oil to drain back into the oil
pan.
3. Inspect the engine oil level (page 6-22).
If it's low, add the appropriate amount
of engine oil while being careful not to
overfill.
CAUTION
Do not run the engine if the oil level
is low. Otherwise, it could result in
extensive engine damage.
4. Start the engine and check the warning
light/warning indication.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-31
Mazda6_8DQ8-EA-13L_Edition3 Page491
Friday, June 13 2014 6:23 PM
Form No.8DQ8-EA-13L
